Description

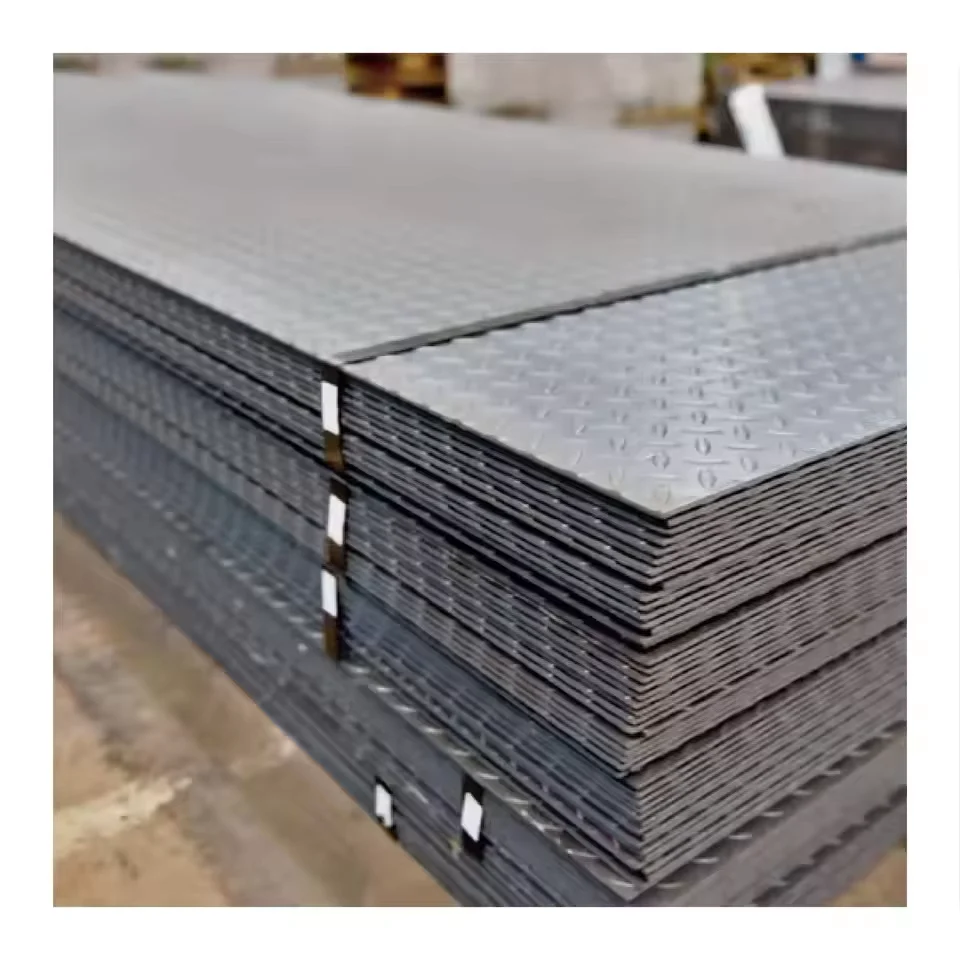

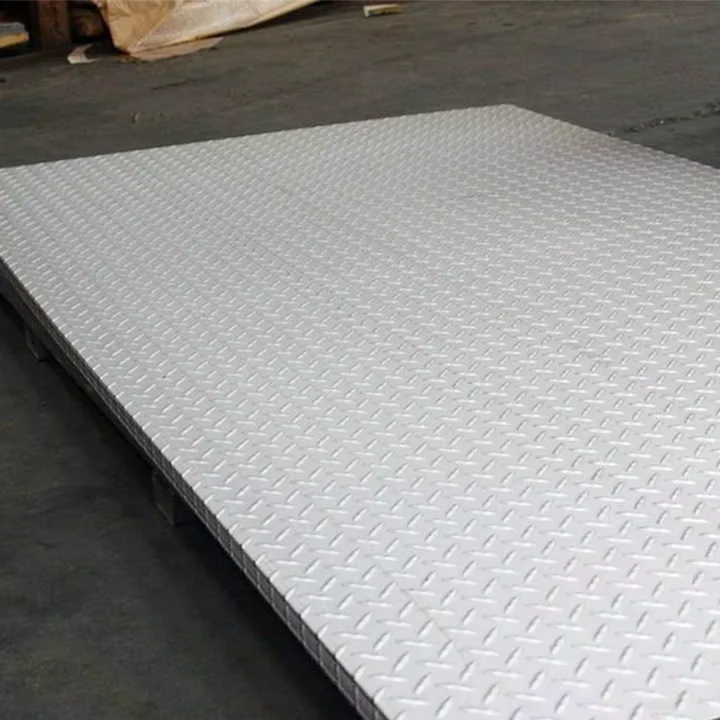

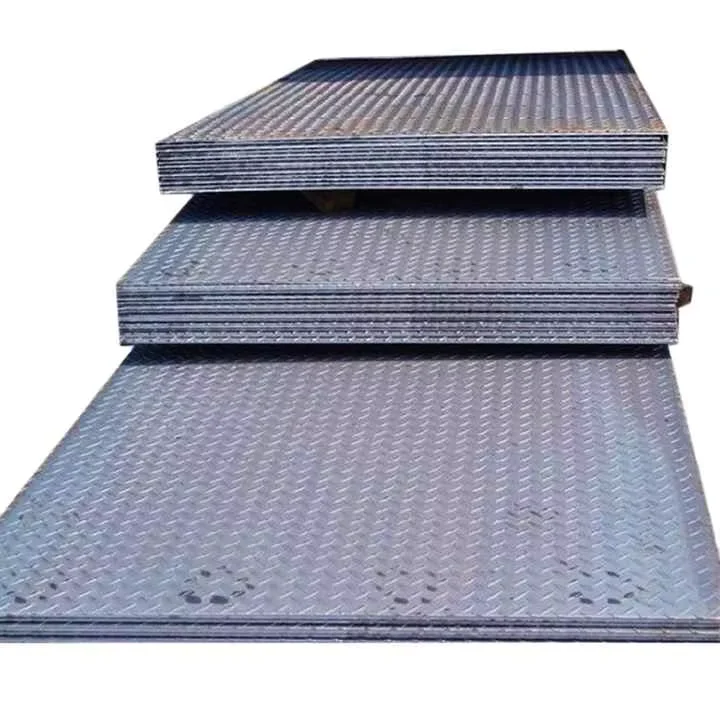

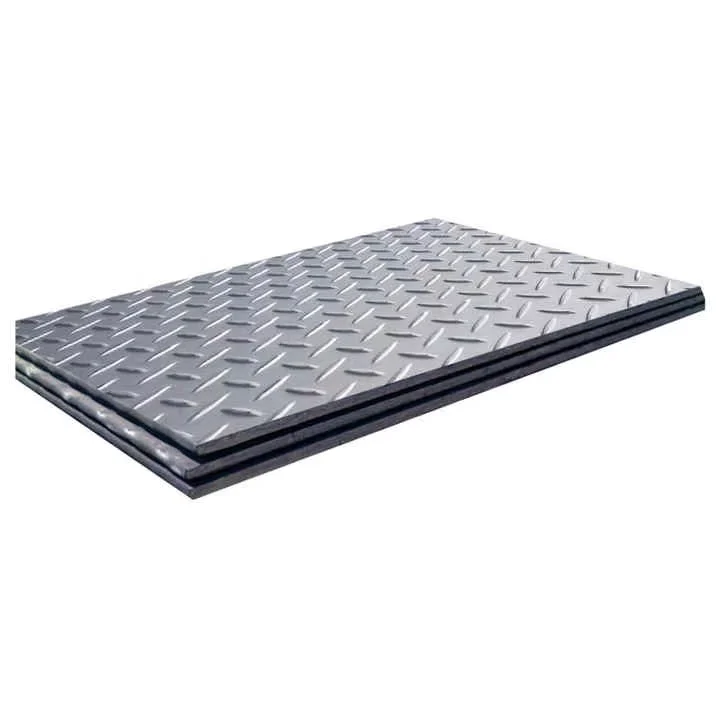

Factory-direct checkered plate production — Hot rolled from our own steel mill with full heat-number traceability across A36, Q235B, Q355, and S275JR grades.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | A36 SS400 Q235B Q345 Q355 S275JR Hot Rolled Checkered Steel Plate |
| Product Type | Checkered Steel Plate (Tread Plate / Diamond Plate) |
| Steel Grade | A36, SS400, Q235B, Q345, Q355, S275JR |
| Standard | ASTM A36, JIS G3101 (SS400), GB/T 700 (Q235B), GB/T 1591 (Q345/Q355), EN 10025 (S275JR) |
| Thickness | 1.0mm – 100mm |
| Width | 1000mm / 1200mm / 3000mm (customizable) |
| Pattern | Diamond Pattern |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled (bare / painted / galvanized upon request) |
| Application | Industrial flooring, stair treads, walkways, truck bed liners, platform decking, anti-slip surfaces |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC & Industrial Construction | Platform decking, mezzanine flooring, equipment walkways in petrochemical and power plants |
| Infrastructure & Civil Engineering | Pedestrian bridges, stair treads, access ramps, maintenance catwalks |
| Transportation & Logistics | Truck bed liners, loading dock surfaces, container flooring |
| Machinery & Equipment Manufacturing | Anti-slip machine bases, crane operator platforms, vibrating screen decks |
What Thickness Tolerance Costs on a Checkered Plate Order
A single millimeter of negative tolerance on a hot rolled checkered steel plate can trigger full-batch rejection at port inspection.
When buyers source checkered plates overseas, the most common dispute is not about steel grade — it is about whether the base metal thickness under the diamond pattern actually matches the purchase order. Third-party inspectors at destination ports measure the base thickness, not the pattern height. If the measured value falls below the ordered specification minus allowable tolerance, the entire shipment gets flagged. [NEED_CITE: international steel plate thickness tolerance standards for hot rolled products] Recutting, re-rolling, or air-freighting replacement plates destroys project timelines and erodes margins far beyond the original material cost difference.
Matching Diamond Pattern Plates to Industrial Flooring Demands
Hot rolled checkered steel plate in thicknesses from 3mm to 12mm serves the majority of industrial flooring and walkway applications where anti-slip performance and structural rigidity must coexist. The diamond pattern provides consistent traction under wet or oily conditions, while the base metal thickness determines load-bearing capacity for foot traffic, light vehicles, or heavy equipment. For EPC contractors building platform decks in refineries or power stations, specifying the correct grade — Q235B for general structural use, Q355 or S275JR for higher yield requirements — ensures the plate passes both dimensional inspection and structural calculation review. Our integrated production from slab to finished checkered plate means every sheet carries traceable chemistry and mechanical data from a single mill.
Engineering Compliance for Checkered Plate in Structural Applications
Checkered plates used as structural flooring in industrial facilities must comply with load-bearing requirements defined by project engineering specifications, often referencing EN 1993 or AISC design standards for composite deck systems. [NEED_CITE: structural steel flooring load requirements in industrial construction] The choice between bare hot rolled, painted, or galvanized surface treatment depends on the service environment — indoor dry conditions may accept bare plates, while outdoor or corrosive atmospheres demand galvanized or coated finishes to prevent premature degradation. For projects entering the EU market, EN 10025 compliance for S275JR grade must be documented with full Mill Test Certificates showing chemical composition and mechanical properties per heat number. Customs authorities in many destination countries now require complete material traceability documentation before releasing steel imports.
Steel Grade Selection Across International Standards
The hot rolled checkered steel plate range covers major international grade systems: ASTM A36 for North American projects, SS400 per JIS G3101 for Japanese-specification work, Q235B and Q345/Q355 per Chinese GB standards for domestic and Belt & Road projects, and S275JR per EN 10025 for European compliance. While A36 and S275JR share similar yield strength ranges, their chemical composition limits and impact testing requirements differ — specifying the wrong equivalent can cause documentation rejection even when mechanical performance is adequate. Q355 offers higher yield strength than Q235B, making it suitable for heavy-duty industrial flooring where reduced plate thickness is desired without sacrificing load capacity. The hot rolling process produces the diamond pattern directly during the final rolling pass, creating an integral anti-slip surface that does not delaminate under heavy traffic or thermal cycling.
Hidden Costs of Sourcing Checkered Plate Without Verified Tolerance
Purchasing hot rolled checkered steel plate based solely on the lowest unit price often exposes buyers to three categories of hidden cost: thickness under-tolerance reducing actual load capacity, pattern height inconsistency causing uneven wear and slip hazards, and missing or forged Mill Test Certificates triggering customs holds. [NEED_CITE: quality documentation requirements for steel plate imports] Engineering inspectors at project sites measure base metal thickness with ultrasonic gauges — if the actual thickness falls below the specified tolerance band, the plate fails acceptance regardless of its visual appearance. Replacement shipments, project delays, and re-inspection fees typically exceed the initial price savings by multiples, particularly for oversized orders destined for remote construction sites.
Why Procure Checkered Plate From an Integrated Mill-Fabricator
Our production facility operates three hot rolling lines with over 2,800 specification combinations in stock, covering the full thickness range from 1.0mm to 100mm in all major international grades. Every checkered plate ships with a Mill Test Certificate traceable to the original heat number from our own steelmaking facility — no third-party sourcing gaps that create documentation chain breaks. We provide shop drawing review and material optimization support for projects requiring custom cutting, drilling, or welding of checkered plate into fabricated assemblies. Certified welding procedures per AWS and EN standards ensure that downstream fabrication — whether attaching stair treads to stringers or welding platform grating to support beams — maintains full compliance with international quality systems. Professional packing and loading plans account for the weight distribution and edge protection needs of diamond-pattern plates during ocean transit.
Documentation & Compliance
- Mill Test Certificate documenting Q235B, Q355, or S275JR chemical composition and mechanical properties per heat number, conforming to GB/T 700, GB/T 1591, or EN 10025
- Third-party inspection reports from SGS, BV, or TÜV covering dimensional accuracy, pattern height measurement, and surface quality
- ISO 9001 quality management system certificate covering the integrated steelmaking and hot rolling process
- Material traceability documentation linking each plate to its original slab heat number and rolling batch
- Customs clearance package including commercial invoice, packing list, bill of lading, and certificate of origin formatted for destination country requirements
- Coating thickness and adhesion test reports for galvanized or painted surface treatment options
Packaging, Loading & Delivery

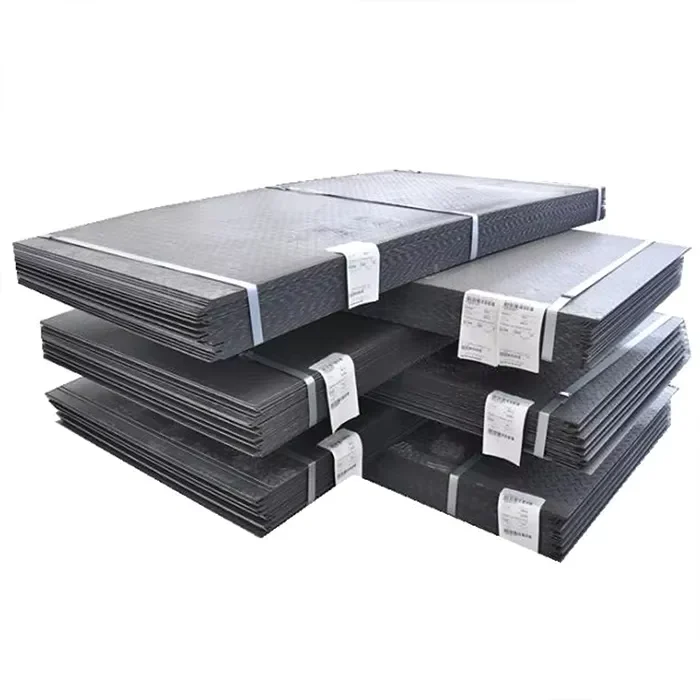

- Hot rolled checkered plates bundled with steel strips and edge protectors to preserve diamond pattern integrity during handling and transit

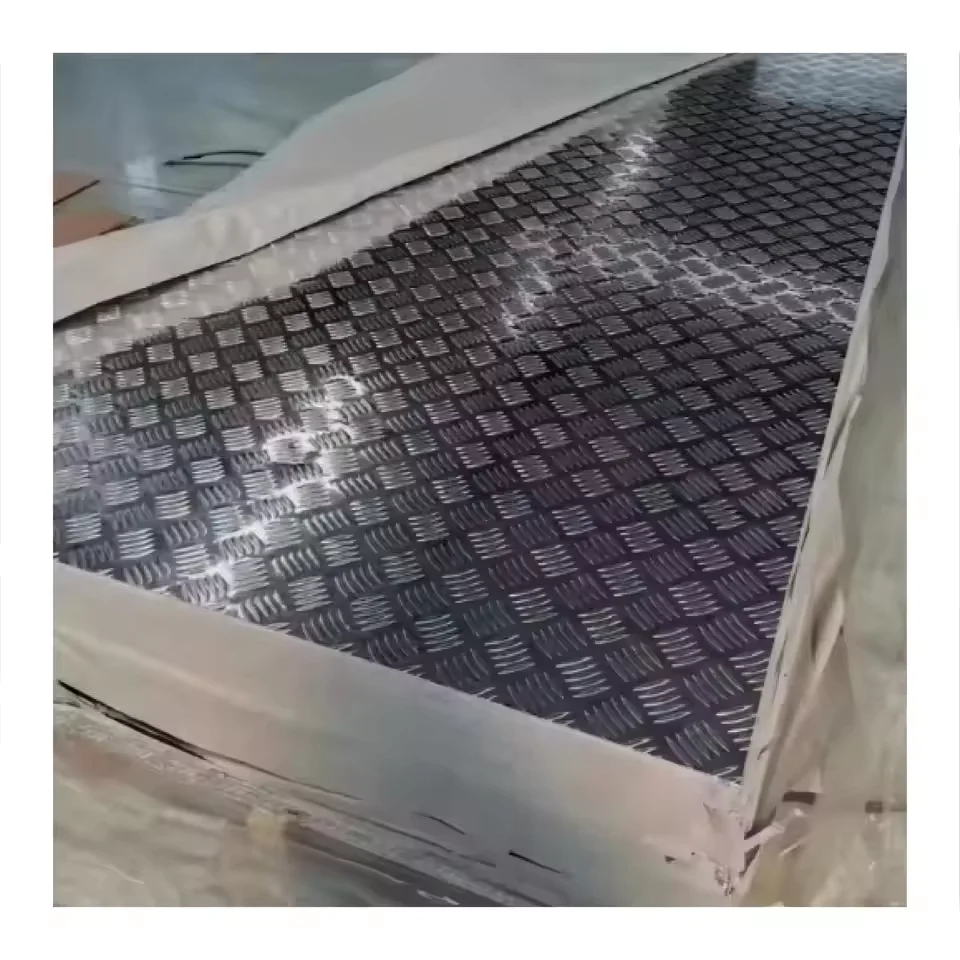

- Galvanized checkered plates separated by protective interleaving material to prevent zinc coating damage from plate-to-plate contact
- Container loading plans optimized for plate width (1000mm/1200mm/3000mm) and thickness to maximize payload while maintaining weight distribution
- Custom cutting to project-specified lengths with dimensional tolerance reports included in the shipping documentation
- Heat number and grade identification marked on each plate bundle for site receiving inspection and material traceability
- FOB, CIF, and DDP shipping terms available with professional oversized cargo handling for heavy-gauge plates
Initiating Your Checkered Plate Procurement
Submit your project drawings or specification sheet indicating steel grade, thickness, width, quantity, and destination port to receive a detailed quotation including material cost, fabrication options, coating treatment, and shipping terms. Our engineering team reviews specifications within 24 hours and provides preliminary assessment with shop drawing recommendations for custom cutting or welding requirements. Confirm Mill Test Certificate format, third-party inspection requirements, and customs documentation needs before contract signing to ensure smooth destination clearance.
Request Quotation with Full Material Documentation
Send your checkered plate specifications to receive pricing, Mill Test Certificate samples, and delivery timeline within one business day.
