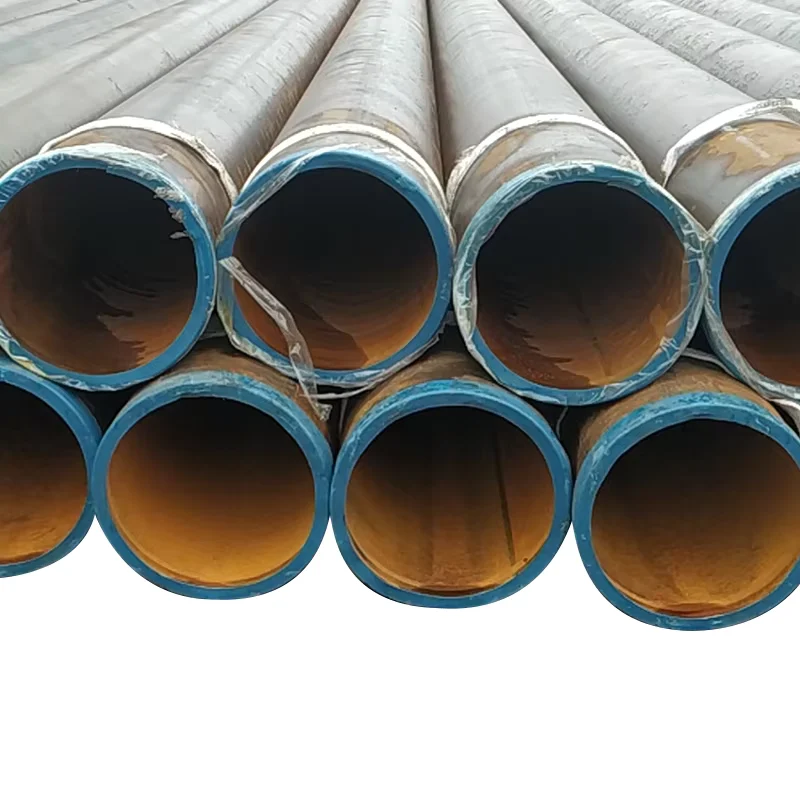

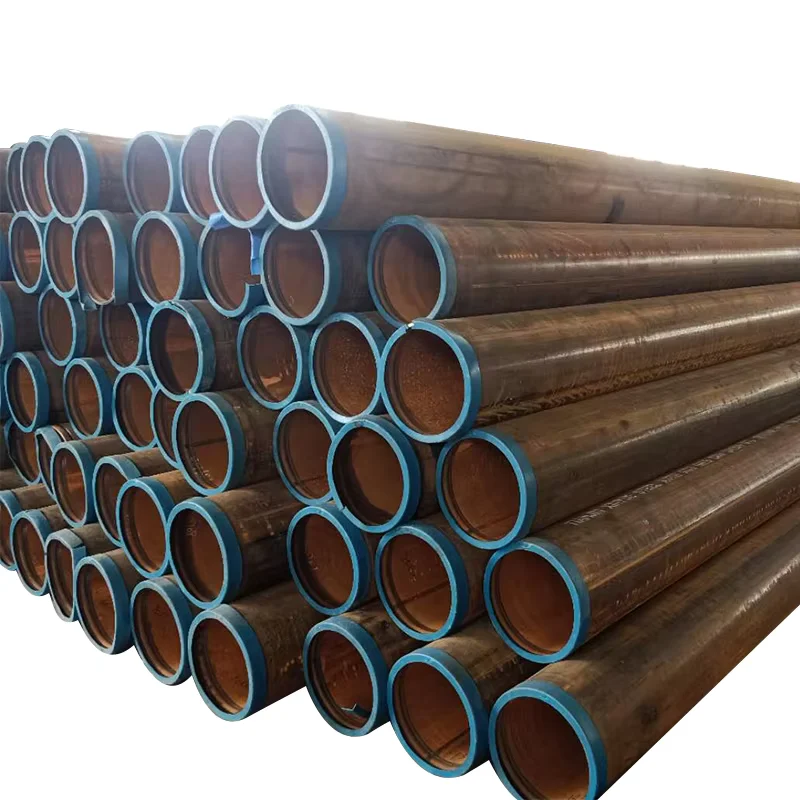

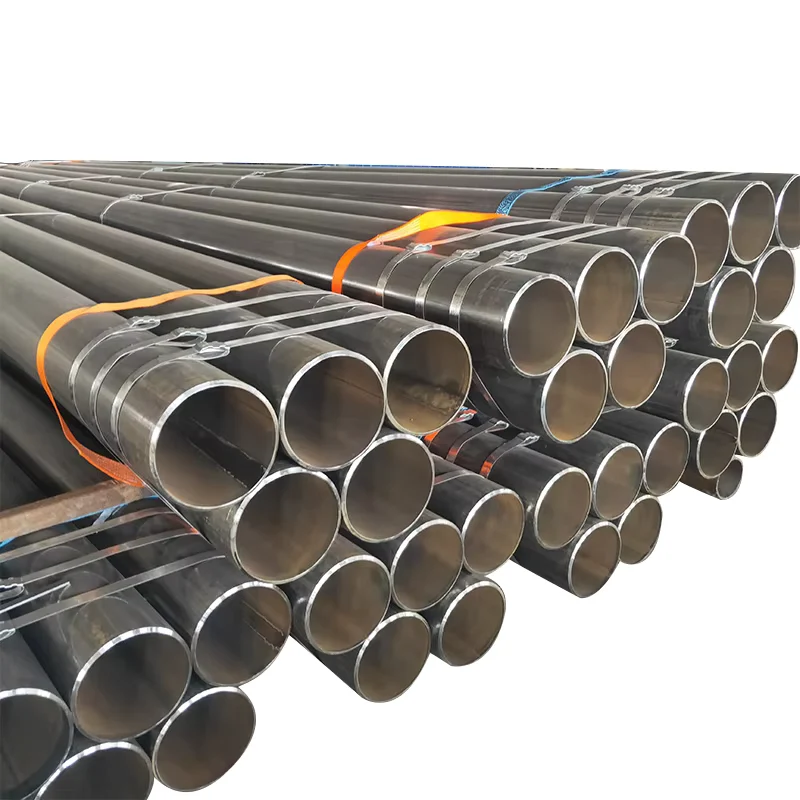

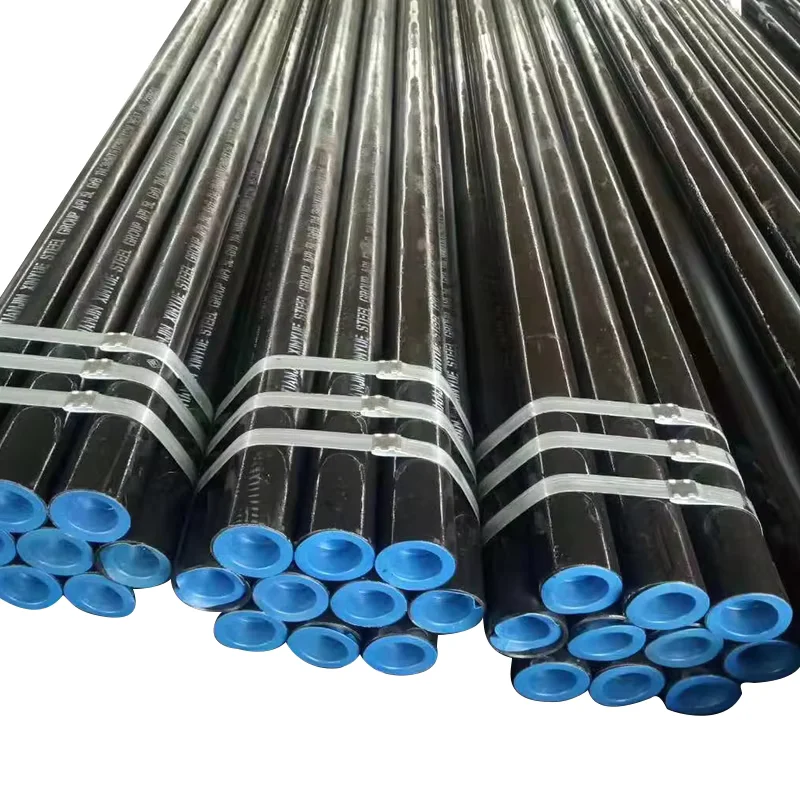

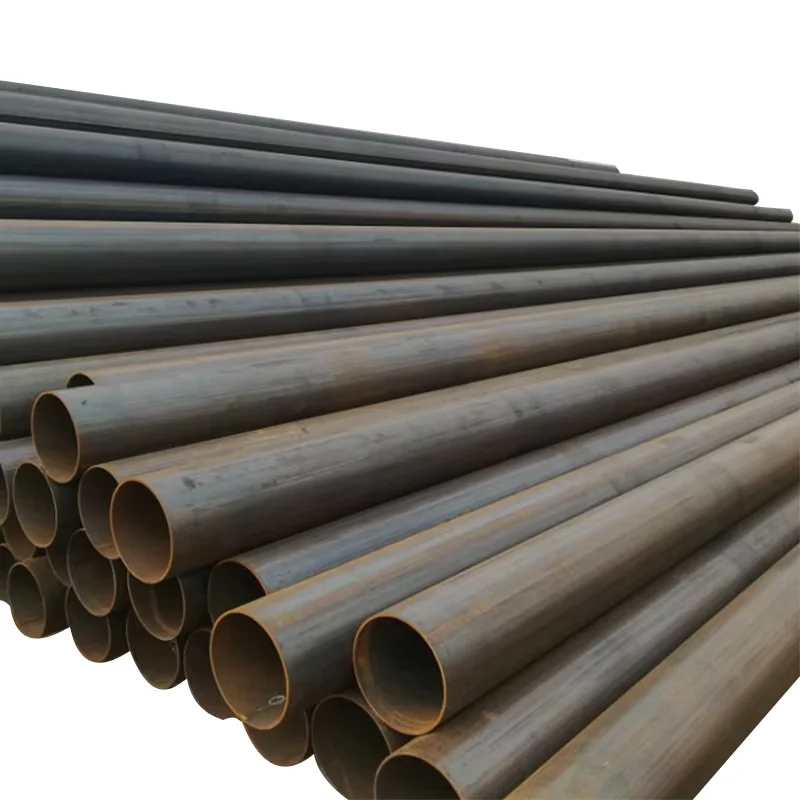

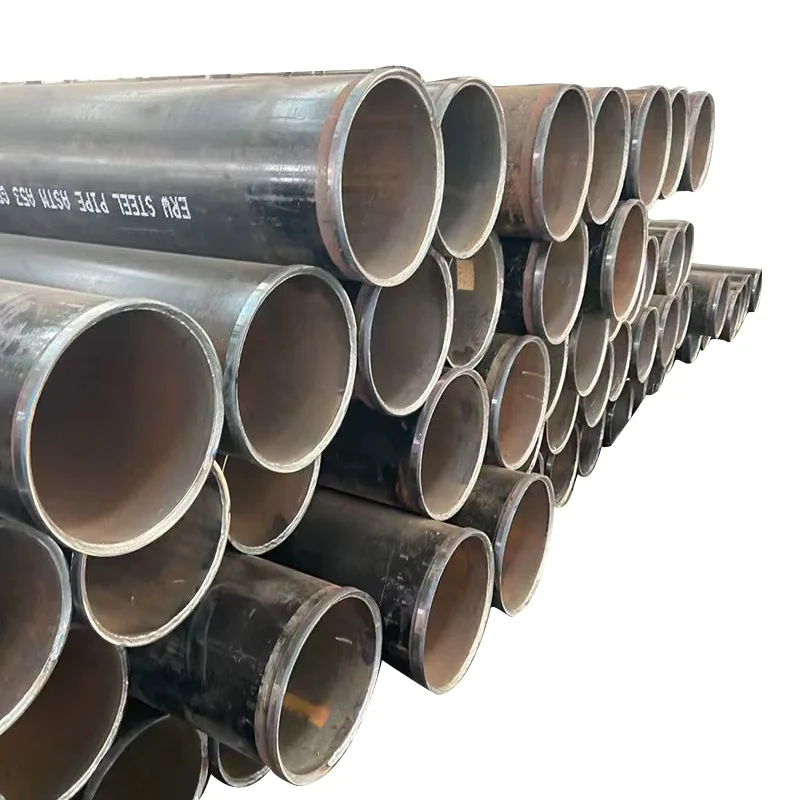

API 5L ASTM A53 ERW LSAW Steel Pipe OD 21.3-660mm Manufacturer

Description

Factory-Direct Pipe Mill — API 5L PSL1/PSL2 and ASTM A53 ERW/LSAW pipes produced in-house with full heat-level traceability from slab to finished end.

Technical Specifications

Application Suitability

Wall-Tolerance Drift Is the Silent Budget Killer on Pipe Orders

A few tenths of a millimeter under spec compounds into tons of missing steel across a long-run pipeline.

Outsourced ERW and LSAW pipes often arrive with wall thickness drifting past the allowed negative tolerance, especially on the X-grade transmission pipes where buyers assume the mill test certificate covers every heat. In practice, the certificate may reflect the first coil while the last twenty joints come from a different batch with thinner walls. On a 660.4 mm OD X65 line coated with 3PE, the field crew only discovers the mismatch when ultrasonic testing flags the weld prep geometry. [NEED_CITE: API 5L PSL2 dimensional tolerance requirements for line pipe]

Matching Pipe Grades to Onshore and Offshore Service Environments

An API 5L X52 or X60 ERW pipe with FBE coating handles most onshore dry-gas transmission work, while offshore splash zones and buried water mains push specifiers toward X65–X70 with 3PE or coal tar epoxy. The API 5L ASTM A53 ERW steel pipe supplier must align the steel grade, wall thickness, and coating system to the same corrosion model — mixing a high-grade pipe with an under-spec coating wastes the alloy cost, and the reverse risks early coating failure. Our in-house mill produces the coil and plate, then the fabrication shop welds, coats, and documents the same heat end-to-end, so the API 5L ASTM A53 ERW steel pipe supplier you deal with owns every step of the chain.

Engineering Compliance Across EN, API, and ASTM Frameworks

European water and piling projects typically call for EN10219 S355JR or S355J2H hollow sections, while North American EPCs default to ASTM A53 GR.B and API 5L GR.B for low-pressure fluid lines. The API 5L ASTM A53 ERW steel pipe supplier must provide CE marking for EN10219 shipments into the EU and full MTC chemistry matching the heat number on every joint. [NEED_CITE: EN 10219 cold-formed welded structural hollow sections compliance] Dimensional tolerance on OD and wall directly affects bevel preparation for girth welding, so ±5% tolerance control is checked at the mill and again before coating. Third-party inspection by SGS, BV, or Lloyds can witness hydrostatic testing and PMI at any production stage.

Steel Grade Selection and Welding Process Trade-Offs

ERW pipe suits OD up to 660.4 mm with tight wall tolerance and is the cost-efficient choice for water, gas, and structural applications in GR.B through X52. LSAW takes over at heavier walls and larger diameters where the submerged arc weld must carry higher hoop stress — typical for X60–X70 transmission lines. SSAW is specified for piling and large-diameter water mains where spiral weld geometry distributes load along the helix. Across the EN series, S235JR serves light structural frames, S275JR steps up to conveyor and platform work, and S355J2H handles loaded columns and seismic zones. Surface treatment follows the environment: bare or oiled for indoor structural use, galvanized for atmospheric exposure, FBE or 3PE for buried and submerged service, and polyurethane top-coats for UV-resistant offshore aesthetics.

Hidden Costs When Material Traceability Breaks Down

Ordering API 5L X65 pipe from a trader who sources from multiple mills means the MTC may not match the heat number stamped on the joint — a problem that surfaces only during third-party re-inspection or customs audit. [NEED_CITE: material traceability requirements for API 5L line pipe] Negative tolerance running past the allowed limit forces the contractor to either reject the shipment or redesign the wall calculation, both of which delay the project. Missing coating adhesion reports or undocumented weld repairs on LSAW seams can trigger rejection at the port of discharge, turning a CIF deal into a costly return.

Why EPCs Source API 5L and ASTM A53 Pipe From Our Integrated Mill

Our own steel mill produces the coil and plate that feed the ERW and LSAW lines, so the API 5L ASTM A53 ERW steel pipe supplier you contract with controls chemistry from ladle to finished end. The in-house理化实验室 runs PMI, tensile, impact, and hydrostatic tests on every heat, and the MTC carries the full chemical and mechanical record traceable to the heat number. With over 2,800 specifications in stock, we consolidate mixed-size orders into one shipment — a 21.3 mm GR.B tube and a 660.4 mm X65 LSAW pipe leave the same yard under one set of documents. CE certification for EN10219 and ISO 9001 quality management are standard, and SGS or BV inspection is welcomed at any hold point. Custom cut-to-length up to 18 m, bevel preparation per client WPS, and coating to FBE, 3PE, or bitumen are handled in the same facility.

Documentation & Compliance

• Mill Test Certificate documenting API 5L X52/X65 chemical composition, yield strength, and tensile results per heat number
• CE certificate confirming EN10219 compliance for S355JR and S355J2H structural hollow sections exported to the EU
• ISO 9001 quality management certificate covering the integrated steel production and pipe fabrication process
• SGS or BV third-party inspection report for hydrostatic testing, PMI, and coating thickness verification
• Full material traceability linking each joint to its heat number, coil ID, and coating batch
• Export customs documents including packing list, bill of lading, and certificate of origin

Packaging, Loading & Delivery

• ERW and LSAW pipes bundled with steel strips and edge protectors, sized to match the OD range from 21.3 mm small-bore tubes to 660.4 mm large-diameter line pipe
• Galvanized pipes wrapped with waterproof paper and plastic caps to preserve the zinc coating during ocean transit
• 3PE and FBE coated joints separated by rubberized spacers to prevent coating damage during loading and transit
• Cut-to-length service available from 0.3 m to 18 m SRL or DRL, with beveled ends protected by plastic caps
• Heat number, steel grade, and size stenciled on every pipe end for site identification and traceability
• FOB, CIF, and DDP terms with professional oversized cargo loading and door-to-door tracking

Start Your Pipe Inquiry With Drawings and Specification

Send your project drawings, steel grade, size schedule, coating requirement, and destination port — we return a detailed quotation covering material, fabrication, coating, packing, and shipping within 24 hours. Our engineering team reviews shop drawings and confirms tolerance, welding procedure, and documentation requirements before production begins.

Request a Quote and Mill Test Certificate

Share your specification and quantity to receive pricing, lead time, and MTC sample.
