Description

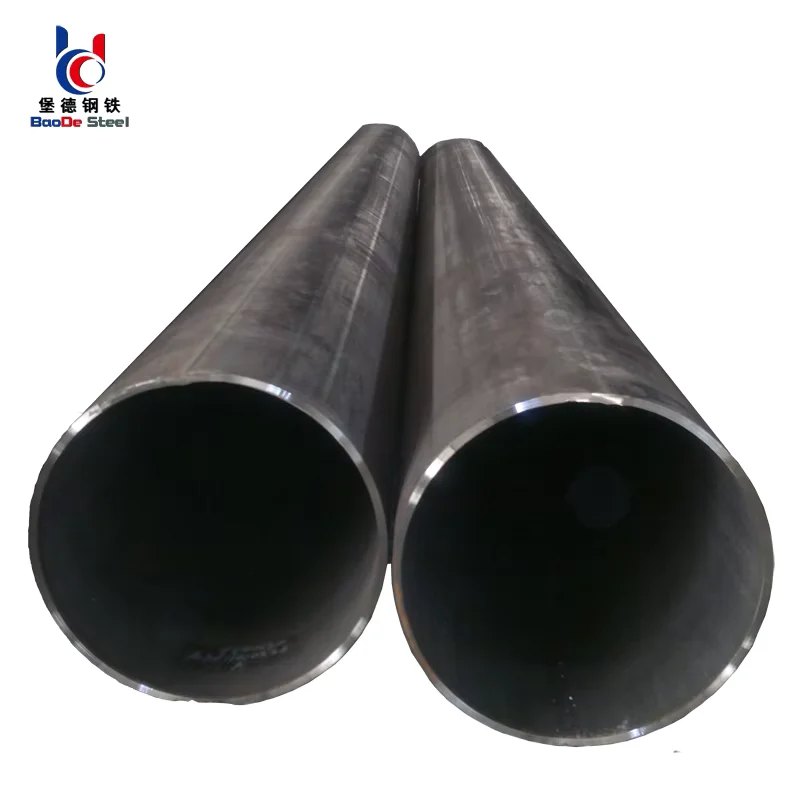

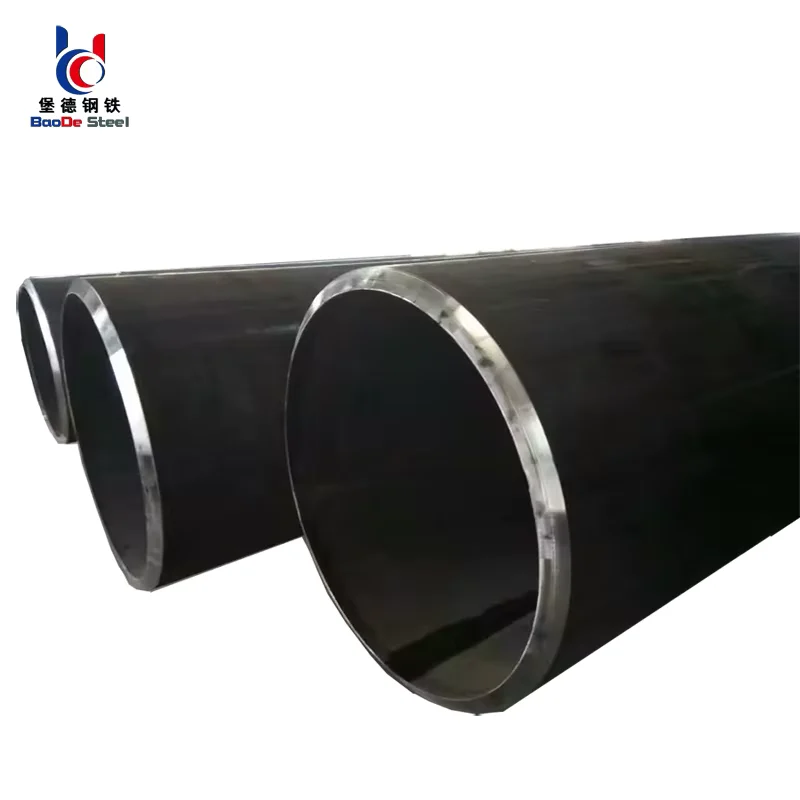

Direct Mill Supply for DN1400 LSAW Pipes — ASTM A53 Gr.B JCOE large diameter steel pipe produced, welded, and coated in one vertically integrated facility, eliminating third-party material sourcing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A53 Gr.B JCOE LSAW Large Diameter Steel Pipe |
| Product Type | LSAW Welded Steel Pipe |
| Steel Grade | ASTM A53 Gr.B, API 5L Gr.B / X42 / X52 / X60 / X70, S235, S355, SS400 |
| Standard | API 5L PSL1, ASTM A53, EN 10210 |
| Section Shape | Round |
| Outer Diameter | DN1400 (1421–1423 mm) |
| Wall Thickness | 8–50 mm |
| Length | 5.8m / 6m / 11.8m / 12m / Random Length |
| Technique | JCOE / LSAW / Submerged Arc Welding (SAW) |

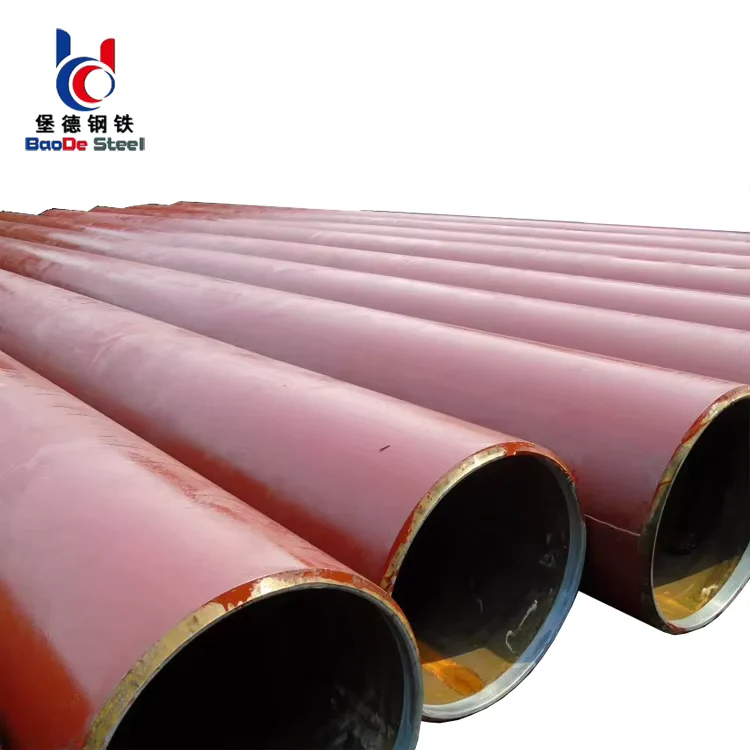

| Surface Treatment | Black Painting / Galvanized / 3LPE Coating / FBE Coating |
| Ends | Bevel Ends |
| Tolerance | ±1% |
| Application | Fluid transport / Drinking water pipeline / Oil & gas pipeline / Structure pipe / Pile pipe / Boiler tubes |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Municipal Infrastructure | Drinking water transmission mains, sewage outfall lines, stormwater conveyance |
| Oil & Gas EPC | Gathering lines, gas transmission pipelines, metering station piping |
| Civil Engineering | Bridge foundation pile pipe, port marine fendering structures, retaining wall casings |
| Industrial Construction | Process water supply lines, cooling water circulation, plant pipe racks |
What Wall-Thickness Deviation Costs on a DN1400 Pipeline Project
Every millimeter of negative tolerance on a DN1400 pipe compounds into structural risk and rejected batches.
When procurement teams source large diameter LSAW pipes from fragmented supply chains, the steel plate origin, welding procedure, and coating application often sit in separate facilities. I once stood in a Middle Eastern laydown yard watching a DN1400 batch get rejected because wall thickness ran 0.8 mm under spec — the fabricator had sourced plates from a different mill than the one listed on the MTC. For a JCOE LSAW large diameter steel pipe, that kind of material traceability gap means hydrostatic test failures, third-party inspector hold points, and weeks of re-shipment at the supplier’s cost or yours. [NEED_CITE: material traceability requirements for large diameter welded pipe in pipeline projects]
Matching DN1400 JCOE Pipe to Pressurized Fluid Transmission
Large diameter JCOE LSAW large diameter steel pipe in DN1400 with wall thickness up to 50 mm handles the internal pressure demands of municipal water mains and raw water transfer lines. The JCOE forming process produces a circular cross-section with uniform stress distribution, while submerged arc welding delivers full-penetration weld seams that meet API 5L PSL1 and ASTM A53 requirements. Bevel ends allow field welding with matching WPS procedures, and 3LPE or FBE coating systems provide long-term corrosion protection for buried service in aggressive soil conditions.
Engineering Compliance for Large Diameter Pipeline Construction
DN1400 LSAW pipes fabricated to API 5L PSL1 and ASTM A53 meet the mechanical and chemical requirements specified by most international EPC consultants for pressurized fluid transmission. [NEED_CITE: API 5L PSL1 requirements for large diameter welded steel pipe] For European-specification projects, EN 10210 compliance documentation ensures customs clearance and third-party acceptance without re-inspection delays. The ±1% dimensional tolerance on outer diameter and wall thickness keeps field fit-up within acceptable limits for automatic welding spreads. Project engineers should confirm that the mill test certificate includes charpy impact values at the specified test temperature when the pipeline operates in sub-zero climates.
JCOE Forming and SAW Welding: Process Fundamentals
The JCOE process begins with steel plate cut to calculated dimensions, then progressively pressed into a circular profile through J-stepping, C-forming, and O-rounding stages before final expansion (E) to achieve precise diameter control. This method suits large diameter JCOE LSAW large diameter steel pipe production because it allows wall thickness from 8 mm to 50 mm without the tooling limitations of UOE presses. Submerged arc welding applies filler metal under a flux blanket on both inside and outside seams, producing weld deposits with low hydrogen content and minimal spatter. For ASTM A53 Gr.B and API 5L X42 through X70 grades, the as-welded or normalized condition delivers the required yield and tensile properties. Surface protection choices — black painting for temporary storage, hot-dip galvanizing for atmospheric exposure, 3LPE for buried pipelines, or FBE for high-temperature service — each address different corrosion mechanisms and service lifetimes.
Hidden Costs of Unverified Material Certification
Ordering a JCOE LSAW large diameter steel pipe without verified mill test certificates creates downstream liabilities that dwarf the initial price difference. Pipes arriving without heat-number traceability fail third-party inspection at the destination port, triggering customs holds and demurrage charges. Wall thickness below the specified tolerance reduces the design pressure rating, forcing engineers to derate the entire pipeline section or replace installed joints. [NEED_CITE: consequences of material certification gaps in international steel pipe procurement] Coating thickness below specification accelerates external corrosion, shortening service life and increasing maintenance costs within the first decade of operation.
Why Source Your DN1400 LSAW Pipe From Our Integrated Mill
Our facility operates three JCOE production lines with in-house steel plate production, meaning the raw material, forming, welding, and coating all occur under one quality management system. Every heat of steel carries full traceability from slab to finished pipe, and our laboratory issues mill test certificates documenting chemical composition and mechanical properties for each production lot. We maintain over 2,800 raw material specifications in inventory, reducing lead times for standard grades like ASTM A53 Gr.B and API 5L X52. Our welding procedures are qualified to AWS and EN standards, with certified welders performing every seam, and our coating lines handle 3LPE, FBE, galvanizing, and black painting in-house. Third-party inspection through SGS, BV, or Lloyds is available at every hold point, and our export documentation team prepares complete customs packages including certificates of origin and packing lists.
Documentation & Compliance
- Mill test certificate (EN 10204 3.1/3.2) documenting ASTM A53 Gr.B chemical composition, yield strength, tensile strength, and elongation per heat number
- CE certificate confirming EN 10210 compliance for DN1400 large diameter structural and pipeline applications
- ISO 9001 quality management system certificate covering the full production chain from steel plate to coated pipe
- SGS / BV / Lloyds third-party inspection reports for dimensional checks, NDT, and coating thickness verification
- Material traceability report linking each pipe to its heat number, plate rolling record, and welding procedure specification
- Complete customs documentation including packing list, bill of lading, certificate of origin, and coating system data sheets
Packaging, Loading & Delivery

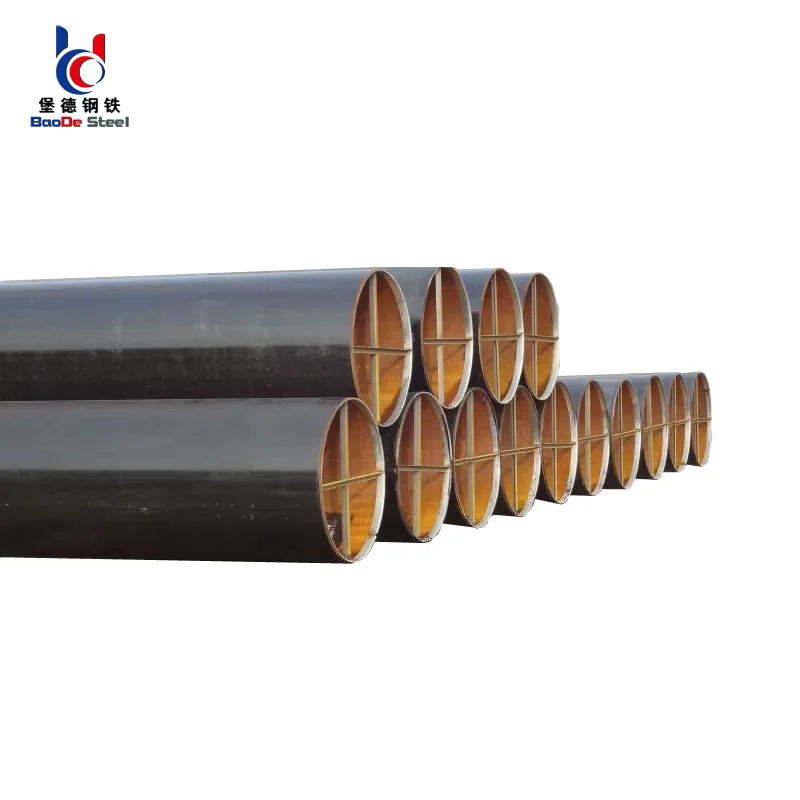

- DN1400 pipes bundled with galvanized steel strips and separated by timber cradles to prevent coating damage during ocean transit
- Bevel ends protected with plastic caps to preserve welding preparation geometry and prevent moisture ingress
- 3LPE and FBE coated pipes wrapped with UV-resistant polyethylene sheeting to shield the coating surface from handling abrasion
- Loading plans optimized for 11.8m and 12m lengths in open-top containers or bulk break vessel stowage, with lashing calculations for oversized cargo
- Each pipe marked with heat number, steel grade, outer diameter, wall thickness, and length for field identification
- FOB, CIF, and DDP delivery terms available with door-to-door logistics coordination for project sites
Start Your DN1400 Pipe Procurement
Share your project drawings, steel grade requirements, coating specification, and destination port — our engineering team responds within 24 hours with a detailed quotation including material, fabrication, coating, and logistics costs, along with a shop drawing timeline and production schedule.
Request Your DN1400 JCOE Pipe Quotation
Submit your specifications, steel grade, quantity, and destination port to receive a detailed quotation with mill test certificate documentation and production schedule.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile / WhatsApp / WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between API 5L and ASTM A53 for large diameter LSAW pipe?
A: API 5L PSL1 specifies requirements for line pipe used in oil and gas transportation, with grades from Gr.B to X70, while ASTM A53 covers general purpose pipe for mechanical and pressure applications with Gr.B as the standard grade. Both standards apply to JCOE LSAW large diameter steel pipe, and the choice depends on the project specification and service medium.
Q: Can third-party inspection be arranged for DN1400 pipe production?
A: Yes, SGS, BV, and Lloyds inspection teams can perform dimensional checks, ultrasonic testing, visual weld inspection, and coating thickness measurement at our facility before shipment. Inspection hold points are agreed upon in the quality plan before production begins.
Q: What coating options are available for buried DN1400 pipeline service?
A: We offer 3LPE coating for standard buried pipeline applications, FBE coating for high-temperature or chemical-resistant requirements, hot-dip galvanizing for atmospheric and splash zone exposure, and black painting for temporary protection during storage and transport.
Q: What is the production lead time for DN1400 JCOE pipe orders?
A: Typical production lead times depend on order quantity, steel grade availability, and coating requirements. Standard grades like ASTM A53 Gr.B with black painting are dispatched faster than API 5L X60 with 3LPE coating, which requires additional coating line scheduling.
Q: How are DN1400 pipes loaded for international shipment?
A: DN1400 pipes exceed standard container dimensions, so we arrange open-top container loading, flat rack stowage, or bulk break vessel booking depending on order volume. Each pipe is secured with timber cradles and steel strip lashing, and loading plans account for port crane capacity at the destination.
