Description

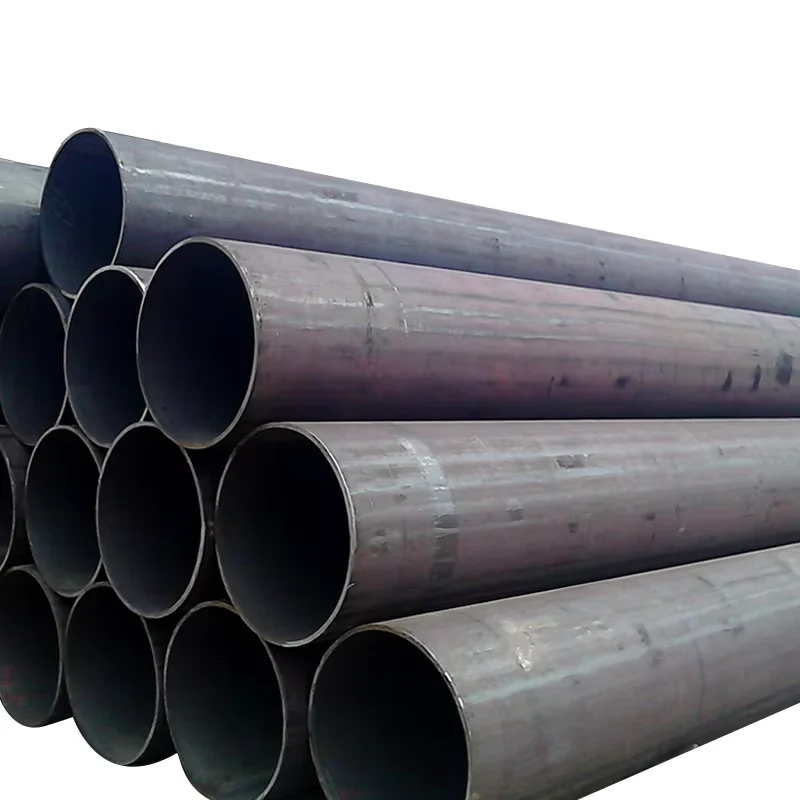

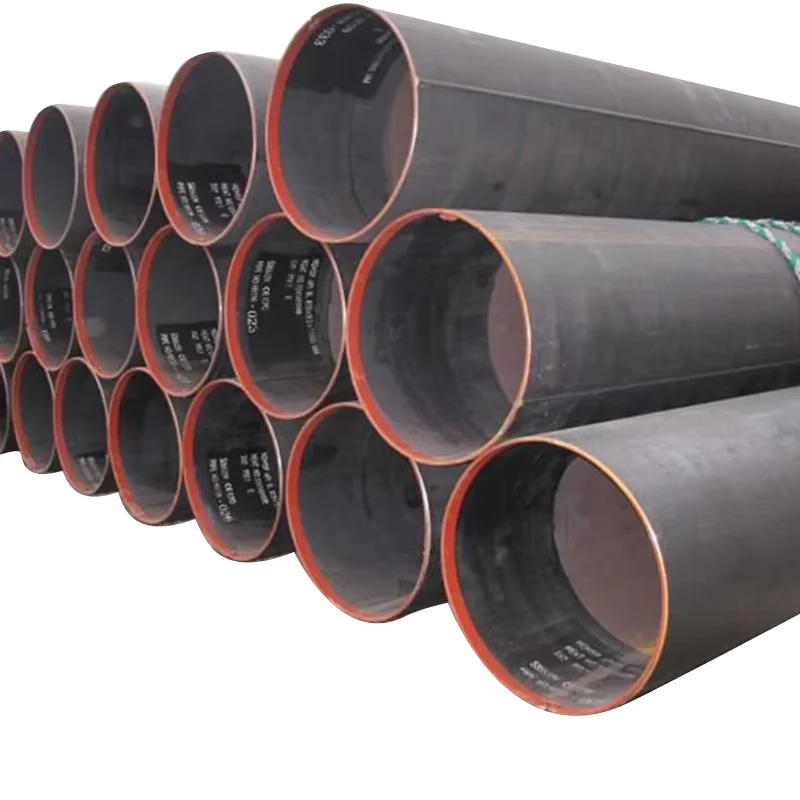

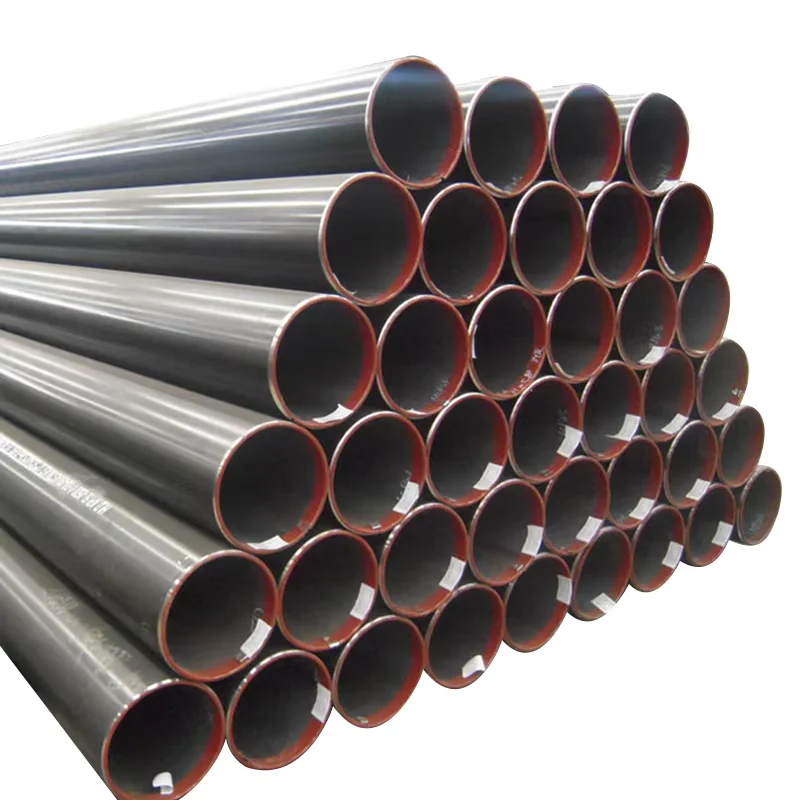

Direct Mill Supply for Large Diameter LSAW Pipes — Vertically integrated JCOE production from our own steel plates ensures full material traceability for Q355B, Q235B, and pipeline grades up to X80.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q355B/Q235B Large Diameter LSAW Steel Pipe |
| Product Type | Large Diameter LSAW Welded Steel Pipe |
| Steel Grade | Q235B, Q355B, L245/B, L290/X42, L555/X80, GR.A, GR.B, GR.C, GR.D, GR.E, P195, P235, P265, S235, S275, S355, S420, S460 |
| Standard | API 5L (PSL1/PSL2), ASTM A139, ASTM A252, EN 10217, EN 10219, GB/T 9711, GB/T 3091, SY/T 5037, SY/T 5040, JIS A5525, JIS A5530, AS1163, AS1554, AS3678, KS F4602 |
| Section Shape | Round |
| Size Range | 355.6 mm – 1626 mm OD |
| Wall Thickness | 8 – 50 mm |
| Length | Up to 12 m |
| Technique | JCOE (LSAW) |
| Surface Treatment | Black painting, Oiled, Galvanized, Bare |
| Ends | Beveled, Plain |
| Packing | Bulk, Wooden frame |
| Application | Oil & gas transmission, Water supply and drainage, Piling, Bridge construction, Steel structure engineering, Hydropower station pressure pipelines, Thermal power generation, Long-distance fluid transmission |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Long-distance transmission pipelines, gathering lines, slug catchers |
| Infrastructure | Bridge piling foundations, highway sound barrier supports, port quay structures |
| Water Engineering | Municipal water supply mains, drainage outfall pipes, irrigation aqueducts |
| Power Generation | Hydropower penstock pipelines, thermal power cooling water circuits |
| Industrial Construction | Steel frame columns, truss members, equipment support platforms |
What Wall-Thickness Deviation Costs on a Piling Foundation Order
A 0.3mm negative tolerance excess can halt an entire project at customs.
When sourcing large diameter welded pipes from fragmented suppliers, buyers face a recurring nightmare: the mill test certificate looks perfect on paper, but third-party inspection at the destination port reveals wall thickness below the minimum specified tolerance. I have seen entire shipments of large diameter LSAW steel pipe stranded at Jebel Ali because the fabricator sourced plates from an unverified trader, and the actual wall thickness fell outside API 5L PSL2 requirements. The滞港费 alone ran into five figures, while the project timeline collapsed.
This is not an isolated incident. Material traceability gaps between plate supplier and pipe fabricator create blind spots that no amount of paperwork can cover. [NEED_CITE: material traceability requirements for API 5L pipeline steel] When you are driving piles into marine sediments or laying transmission lines across desert terrain, there is zero margin for dimensional uncertainty.
How JCOE Forming Matches Large Diameter Structural Demands
The JCOE process steps a steel plate through J-forming, C-forming, O-forming, and E-expanding stages, producing round pipes with consistent ovality across the 355.6–1626mm outer diameter range. For piling applications where Q355B or S355 large diameter LSAW steel pipe must withstand driving stresses without seam failure, this forming sequence delivers uniform grain structure along the longitudinal weld. Our vertically integrated mill produces the raw plates in-house, meaning the chemical composition documented in the mill test certificate matches the actual steel flowing through the JCOE line — no third-party plate substitutions.
Compliance Frameworks for International Project Delivery
Large diameter welded pipes crossing borders must satisfy multiple regulatory layers simultaneously. API 5L PSL1/PSL2 governs oil and gas transmission pipelines, while EN 10217 applies to pressure purposes in European markets. ASTM A252 covers piling applications in North American infrastructure projects. Each standard demands specific documentation: chemical composition reports, tensile test results, hydrostatic test records, and for API 5L PSL2, Charpy impact test data at specified temperatures. [NEED_CITE: EN 10217 dimensional tolerance requirements for welded steel tubes] The JCOE technique produces pipes up to 50mm wall thickness, meeting the structural demands of deep-water piling and high-pressure fluid transmission. Beveled ends facilitate field welding per approved WPS procedures, while plain ends suit mechanical coupling systems.
Steel Grade Selection Across Pipeline and Structural Applications
The Q-series (Q235B, Q355B) represents Chinese structural grades where the number indicates minimum yield strength in MPa. Q355B delivers higher load-bearing capacity than Q235B, making it the preferred choice for bridge columns and heavy equipment platforms. The L-series (L245/B through L555/X80) follows API 5L nomenclature for pipeline applications, with X80 representing high-strength line pipe for long-distance gas transmission. European S-series grades (S235 through S460) and American GR.A through GR.E shipbuilding grades address marine and offshore structural requirements. Surface treatment selection depends on service environment: black painting suits indoor structural applications, oiled finish provides temporary corrosion protection during transit, while galvanized coating extends service life in marine or underground installations. [NEED_CITE: steel grade equivalence between API 5L and EN 10217 standards]
Hidden Costs of Sourcing from Unverified Pipe Suppliers
Purchasing large diameter LSAW steel pipe based solely on price quotes invites catastrophic downstream costs. Material certificates from untraceable sources fail third-party verification at destination ports, triggering customs holds and demurrage charges. Negative tolerance violations compromise structural integrity — a pipe specified at 12mm wall thickness delivering only 10.5mm cannot bear design loads, forcing costly replacement after installation. Missing documentation packages delay project handover, as engineers cannot certify compliance without complete mill test certificates, welding procedure specifications, and dimensional inspection reports. [NEED_CITE: consequences of material certification gaps in structural steel procurement]
Why Vertically Integrated Production Eliminates Supply Chain Risk
Our facility operates three production lines manufacturing over 2,800 steel specifications, from raw plate rolling through JCOE pipe forming to final surface treatment. This integration means every large diameter LSAW steel pipe carries complete traceability from heat number to finished product. Our in-house laboratory conducts chemical analysis, tensile testing, and non-destructive examination per API 5L and EN 10217 requirements. Third-party inspection by SGS, BV, or TÜV is available at any production stage. Certified welding procedures and qualified welders ensure seam integrity meets international standards. Professional packing with wooden frames and steel strip bundling protects galvanized coatings and beveled ends during ocean transit. We have delivered large diameter LSAW steel pipe projects across the Middle East, Southeast Asia, and Africa, with complete export documentation including certificates of origin, packing lists, and bills of lading.
Documentation & Compliance
- Mill test certificate documenting Q355B chemical composition and mechanical properties per GB/T 1591, with heat number traceability from steel plate to finished pipe
- API 5L PSL2 certification for L290/X42 through L555/X80 pipeline grades, including Charpy impact test results at specified temperatures
- EN 10217 compliance documentation for S235 through S460 structural grades, covering dimensional tolerances and welding seam quality
- Third-party inspection reports from SGS, BV, or TÜV covering visual examination, ultrasonic testing, and coating thickness measurement
- Complete welding documentation package including WPS, PQR, weld maps, and welder qualification certificates per AWS D1.1 or EN ISO 15614
- Export customs documents: commercial invoice, packing list, bill of lading, certificate of origin, and fumigation certificate for wooden packing materials
Packaging, Loading & Delivery
- Large diameter LSAW steel pipe bundled with high-tensile steel strips at maximum 12m length, with wooden cradles preventing ovality deformation during transit
- Galvanized pipes packaged with edge protectors and plastic wrapping to preserve zinc coating integrity during ocean shipping to marine environments
- Beveled ends capped with plastic protectors to prevent damage to welding preparation geometry during handling and transport
- Wooden frame packing for Q355B pipes destined for bridge construction projects, ensuring dimensional stability under container stacking loads
- Heat number and steel grade stenciled on each pipe surface, matching mill test certificate documentation for site verification
- FOB, CIF, and DDP shipping terms available, with professional loading plans optimizing container utilization for 355.6–1626mm diameter pipes
How to Initiate Your Large Diameter Pipe Procurement
Submit your project specifications including outer diameter, wall thickness, steel grade, quantity, and applicable standards to receive a detailed quotation within 24 hours. Our engineering team will review your drawings, confirm material availability, and provide a production timeline covering JCOE forming, welding, inspection, and surface treatment. We will confirm third-party inspection arrangements, documentation packages, and shipping logistics tailored to your destination port and project schedule.
Request Your Large Diameter LSAW Steel Pipe Quotation
Send your project drawings and specifications to receive pricing, mill test certificates, and delivery schedules.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between JCOE LSAW and SSAW pipes for large diameter applications?
A: JCOE LSAW pipes use a plate forming process that produces a single longitudinal seam, offering superior dimensional accuracy and weld quality for critical applications like oil and gas transmission and piling. SSAW pipes use a spiral welding technique that is more cost-effective for lower-pressure water supply applications but cannot match LSAW weld integrity for high-stress structural demands. Our JCOE line produces large diameter LSAW steel pipe from 355.6mm to 1626mm outer diameter with wall thickness up to 50mm.
Q: How do you ensure material traceability and weld quality for API 5L pipes?
A: Our vertically integrated facility produces steel plates in-house, so every large diameter LSAW steel pipe carries complete traceability from heat number through final inspection. Weld quality is verified through ultrasonic testing per API 5L requirements, with complete documentation including WPS, PQR, and welder qualification certificates. Third-party inspection by SGS, BV, or TÜV is available at any production stage.
Q: Can you provide third-party inspection and what documentation is included?
A: Yes, we welcome third-party inspection by SGS, BV, or TÜV at any stage from plate inspection through final loading. Documentation packages include mill test certificates with chemical composition and mechanical properties, dimensional inspection reports, coating thickness measurements, welding procedure specifications, and export customs documents including certificates of origin and fumigation certificates.
Q: What surface treatment options are available for corrosion protection in marine or underground environments?
A: We offer black painting for indoor structural applications, oiled finish for temporary transit protection, and galvanized coating for long-term corrosion resistance in marine or underground installations. For aggressive environments, 3PE coating can be applied to large diameter LSAW steel pipe meeting API 5L requirements for buried pipeline service.
Q: How do you handle packing and loading for oversized large diameter pipes to prevent damage during shipping?
A: Large diameter pipes are bundled with high-tensile steel strips and supported by wooden cradles to maintain roundness during transit. Beveled ends receive plastic cap protection, and galvanized surfaces are wrapped to preserve coating integrity. Our loading plans optimize container utilization for 355.6–1626mm diameter pipes, with wooden frame packing available for project-specific requirements.
