Description
Direct Mill Supply for JIS G3125 SPA-H Corten Steel Square Tube — XJY Structure produces SPA-H weathering steel square tubes from our own steel mill, eliminating third-party material sourcing and ensuring full chemical traceability from heat number to finished bundle.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SPA-H Corten Steel Square Tube |
| Product Type | Square Steel Tube (Weathering Steel) |
| Steel Grade | SPA-H, Q195, Q235, Q345, S235JR, S275JR, S355JR |
| Standard | JIS G3125, ASTM |
| Section Shape | Square |
| Wall Thickness | 0.9 mm |
| Length | 6 m / 6.4 m / 12 m |
| Technique | ERW |
| Surface Treatment | Hot Rolled, Black (non-oiled) |
| Tolerance | ±1% |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Application | Container manufacturing, Railway vehicles, Bridge construction, Outdoor structures, Atmospheric corrosion-resistant structures |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Container Manufacturing | Side panels, top panels, door panels, and frame structures for dry cargo and refrigerated containers |
| Railway & Rolling Stock | Freight wagon bodies, hopper cars, and rolling stock underframes exposed to outdoor weathering |
| Bridge & Infrastructure | Bridge railings, inspection platforms, and structural supports in coastal or high-humidity zones |
| Outdoor Architecture | Landscape sculptures, façade cladding frames, and exterior canopy structures requiring self-protecting rust patina |
| Industrial Platforms | Walkways, mezzanine frames, and equipment enclosures in atmospheric corrosion environments |
Why SPA-H Copper-Phosphorus Alloy Chemistry Matters When Buyers Source a JIS G3125 SPA-H Corten Steel Square Tube
Copper and phosphorus content directly controls whether the protective rust patina forms or flakes off under salt-spray exposure.
Buyers who have received weathering steel tubes from fragmented suppliers often discover — during third-party inspection — that Cu and P levels fall below JIS G3125 thresholds. The result: loose orange rust that never stabilizes, continuous material loss, and coating failure within months of installation. When fabrication is outsourced overseas without integrated mill control, material certification gaps make it nearly impossible to verify alloy composition before shipment. [NEED_CITE: JIS G3125 chemical composition requirements for SPA-H weathering steel]
As someone who previously worked on the procurement side, I watched an entire batch of weathering steel square tubes get rejected at a Middle East project site because the copper-phosphorus-chromium ratio was off-spec. The rust layer simply would not adhere. Every piece had to be stripped and reprocessed. That kind of failure does not show up in visual inspection — it only surfaces when the material meets real atmospheric conditions.
How SPA-H Square Tubes Match Container and Railway Structural Requirements
SPA-H corten steel square tubes deliver atmospheric corrosion resistance rated at 2 to 8 times that of standard carbon steel, making them the primary material choice for shipping container side panels, top panels, and frame structures that endure continuous salt-spray exposure during ocean transit. The ERW welding process used in our production maintains certified WPS/PQR procedures with AWS-qualified welders, ensuring weld zone corrosion resistance matches the base metal. For railway rolling stock, the combination of square section geometry and weathering steel chemistry provides structural rigidity for hopper car bodies and freight wagon underframes while eliminating the need for protective painting in outdoor service.
Engineering Compliance and Certification Pathways for JIS G3125 SPA-H Corten Steel Square Tube
Projects specifying JIS G3125 SPA-H require full chemical composition documentation aligned with the copper-phosphorus-chromium-nickel quaternary alloy system defined in the standard. For EU-bound shipments, EN 1090 structural fabrication certification and CE marking may apply alongside the JIS material standard, requiring dual-compliance documentation. [NEED_CITE: EN 1090 structural steel fabrication certification requirements for non-European steel grades] Our engineering team reviews shop drawings and material specifications before production begins, confirming that SPA-H grade chemistry meets JIS G3125 while cross-referencing equivalence to ASTM A588 or A242 when project owners request alternative standard compliance. Dimensional tolerance of ±1% on wall thickness and section geometry supports precision assembly for container manufacturing lines where cumulative stacking errors must remain within tight tolerances.
SPA-H Grade Selection and ERW Welding Process Explained
SPA-H belongs to the JIS G3125 high-strength weathering steel family, where the “SPA” designation indicates atmospheric corrosion-resistant steel and the “H” suffix denotes the high-strength, high-formability grade optimized for stamping and cold-forming operations. The copper-phosphorus-chromium-nickel alloy system creates a self-healing protective oxide layer: copper accelerates initial passivation, phosphorus densifies the oxide film, chromium refines grain structure for abrasion resistance, and nickel stabilizes performance under temperature cycling. The ERW (Electric Resistance Welding) process produces square tubes from hot-rolled coil with a continuous longitudinal weld seam — offering cost efficiency and dimensional consistency for medium-wall-thickness structural applications where seamless manufacturing is not required. Hot-rolled black surface finish retains the mill scale that serves as an initial barrier during transport and storage, while allowing the weathering patina to develop uniformly once the tubes are installed and exposed to atmospheric wet-dry cycling. [NEED_CITE: copper-phosphorus weathering steel corrosion mechanism and protective rust layer formation]
Hidden Costs of Sourcing JIS G3125 SPA-H Corten Steel Square Tube Without Verified Mill Documentation
Purchasing weathering steel square tubes from traders who source from unverified mills creates three categories of hidden cost. First, material that fails JIS G3125 chemical composition limits — particularly copper below 0.25% or phosphorus below 0.07% — will not form a stable protective rust layer, leading to accelerated corrosion and premature structural degradation in coastal or industrial environments. Second, shipments arriving without proper Mill Test Certificates or with heat numbers that cannot be traced back to the original slab face customs delays or outright rejection at the destination port. [NEED_CITE: material traceability and certification requirements for structural steel imports] Third, wall thickness tolerance exceeding ±1% on thin-wall SPA-H tubes directly affects theoretical weight calculations and structural load-bearing capacity, creating rework costs when fabricated components fail dimensional inspection at the assembly stage.
Why Global Contractors Source JIS G3125 SPA-H Corten Steel Square Tube From XJY Structure
Our vertically integrated operation combines an in-house steel mill with a dedicated structural steel fabrication workshop — meaning the SPA-H hot-rolled coil used to produce your square tubes originates from our own production lines, not from third-party traders. Every heat number is traceable from raw slab to finished tube, and our Mill Test Certificates document full chemical composition including copper, phosphorus, chromium, and nickel content per JIS G3125. Our fabrication division holds AWS and EN-certified welding procedures with qualified welders, so when your project requires cutting, punching, bending, or welding of the SPA-H square tubes, all processing occurs under controlled conditions with complete quality documentation. We maintain over 2,800 raw material specifications in stock, reducing lead times for custom sizes and lengths. Professional export packing, oversized cargo loading, and door-to-door logistics coordination handle the complexity of shipping long-length square tube bundles to project sites across the EU, Middle East, Southeast Asia, and Africa.
Documentation & Compliance
- Mill Test Certificate documenting SPA-H chemical composition (C, Si, Mn, P, S, Cu, Cr, Ni) and mechanical properties per JIS G3125, traceable by heat number
- Third-party inspection reports from SGS or BV covering dimensional verification, surface quality, and chemical composition analysis for each production batch
- Welding procedure specifications (WPS) and procedure qualification records (PQR) per AWS D1.1 or EN ISO 15614 for any fabrication welding performed on SPA-H square tubes
- Certificate of origin and commercial invoice supporting customs clearance, with material grade and standard clearly identified
- Dimensional inspection reports confirming wall thickness, section geometry, and length tolerances per ±1% specification
- Shot blasting and coating reports when surface treatment beyond hot-rolled black finish is specified
Packaging, Loading & Delivery

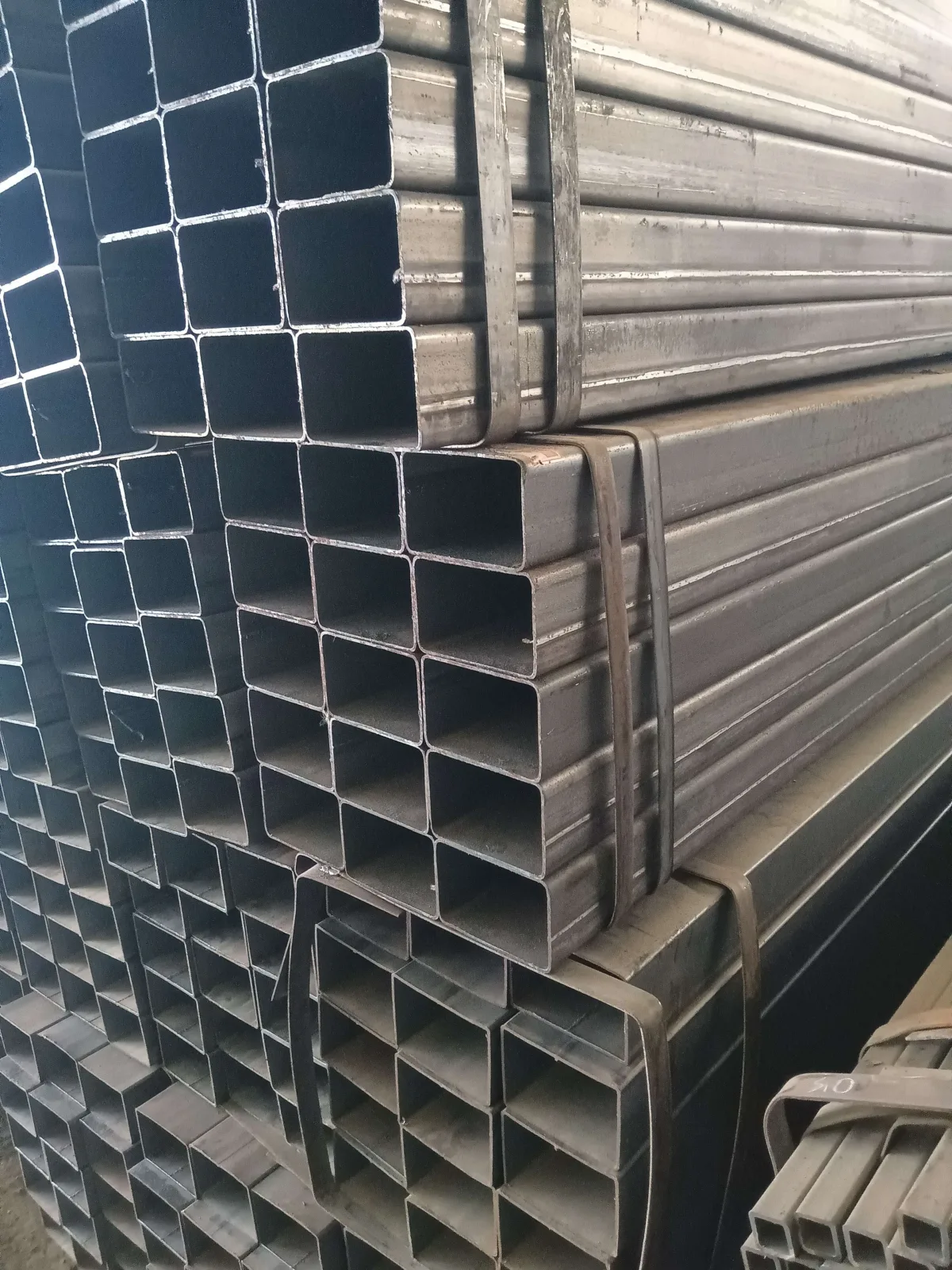

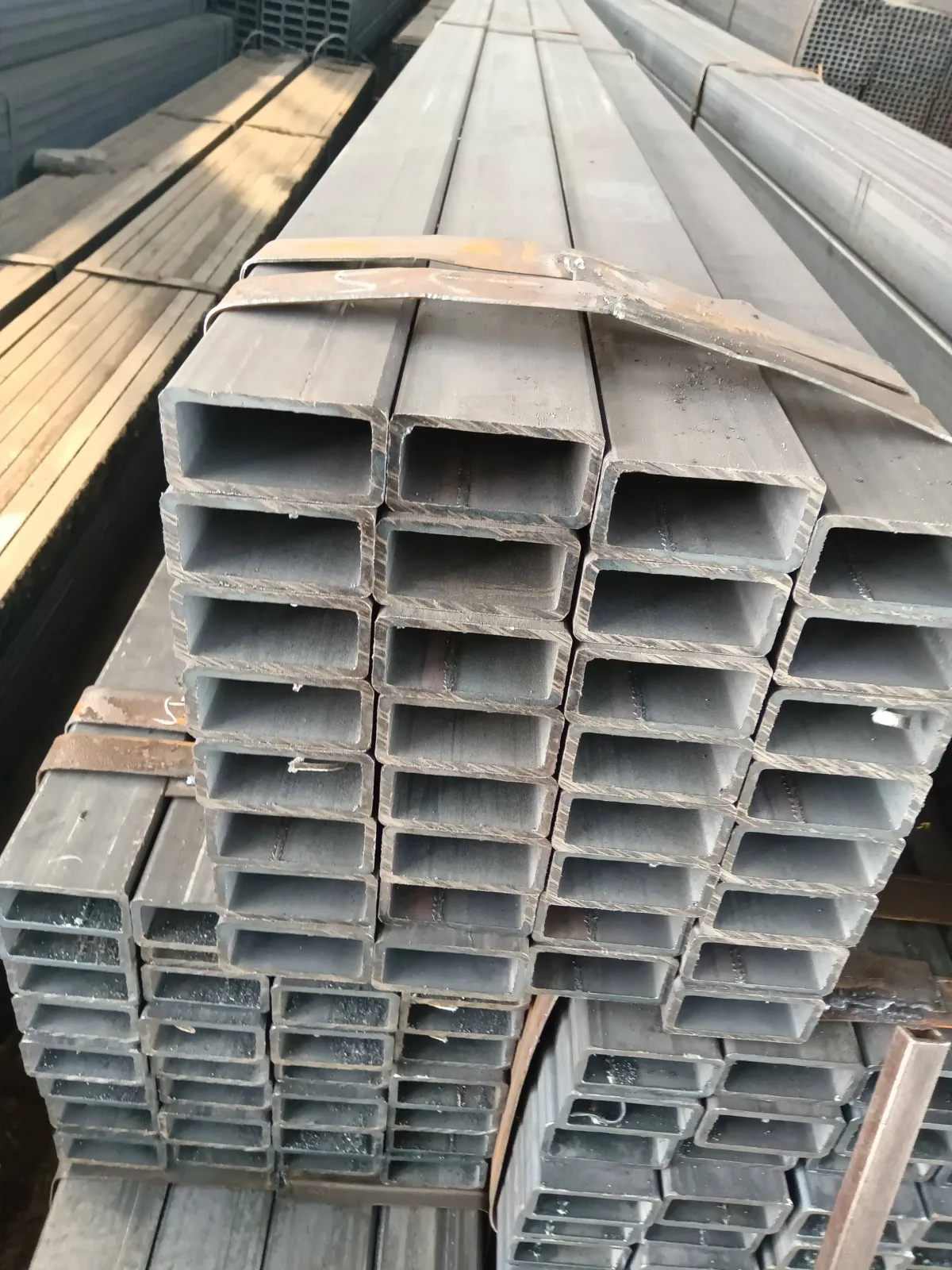

- SPA-H square tubes bundled with steel strips and edge protectors to prevent surface damage to the hot-rolled black finish during handling and ocean transit
- Seaworthy packaging with moisture barriers for 6 m, 6.4 m, and 12 m lengths, optimized for 20ft and 40ft container loading to minimize freight cost per ton
- Heat number and SPA-H grade identification stenciled on each bundle for site traceability and inspection verification
- Custom cutting to project-specific lengths available before shipment, reducing on-site waste and secondary processing for container manufacturing applications
- FOB, CIF, and DDP shipping terms supported with complete export documentation and real-time tracking until site delivery
- Professional lashing and load distribution planning for oversized square tube bundles, ensuring weight compliance and safe arrival at destination ports
How to Initiate Your JIS G3125 SPA-H Corten Steel Square Tube Inquiry
Share your project drawings (PDF or DWG format), required SPA-H square tube dimensions, wall thickness, total quantity, and destination port — our team responds within 24 hours with a detailed quotation including material cost, fabrication charges, surface treatment, packing, and shipping. We will confirm Mill Test Certificate availability, third-party inspection arrangements, and production lead time before contract signing.
Start Your SPA-H Corten Steel Square Tube Order Today
Submit your specifications and required standards to receive a complete quotation with material certification documentation.
