Description
Vertically Integrated LSAW Pipe Supply — In-house steel plate production and LSAW fabrication under one roof ensures full material traceability for every API 5L Gr.B LSAW steel pipe supplier order.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L Gr.B LSAW Steel Pipe |
| Product Type | LSAW (Longitudinal Submerged Arc Welded) Steel Pipe |
| Steel Grade | Q195, Q235, Q345, SS400, A36, A53, S235JR, S275JR, S355JR |
| Standard | API 5L, EN, BS, GB, AISI, ASTM, DIN, JIS |
| Section Shape | Round |
| Technique | SAW / LSAW |
| Surface Treatment | Hot Rolled / Non-oiled |
| Tolerance | ±1%–±5% |
| Length | Standard or as per project requirement |
| Ends | Plain / Beveled |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Application | Oil & Gas Transmission Lines, Fluid Transport, Structural Pipe, Boiler Pipe, Hydraulic Pipe, Chemical Fertilizer Pipe, Drill Pipe |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Onshore and offshore transmission pipelines, gathering lines, flow lines |
| Industrial Plant Construction | Process fluid transport, hydraulic systems, cooling water circuits |
| Infrastructure & Civil Engineering | Structural support columns, piling, bridge handrails |
| Chemical & Fertilizer Plants | Corrosive fluid conveyance, drill pipe casings, chemical fertilizer feed lines |
| Power Generation | Boiler feed lines, steam transport, condenser cooling pipes |
Why Material Traceability Decides Whether Your LSAW Pipe Clears Site Inspection
A missing heat number on a mill test certificate can halt an entire pipeline commissioning.
I watched a batch of API 5L Gr.B LSAW pipes get held at a Middle East port because the end-user’s SGS inspector could not link the pipe body markings back to the original steel plate heat. The pipes were sound — but the paperwork chain was broken across three subcontractors. That kind of gap does not show up until the pipe is already on-site, and fixing it means either flying a quality engineer overseas or cutting out replacement sections. When you source from a fragmented supply chain, the API 5L Gr.B LSAW steel pipe supplier you deal with may not own the plate mill, and the plate supplier may not share heat-level chemistry data downstream. [NEED_CITE: API 5L material traceability requirements for pipeline steel]
Matching LSAW Pipe to Pipeline and Structural Demands
Large-diameter, thick-wall LSAW pipes serve transmission pipelines where internal pressure and external soil loading demand consistent weld integrity along the full longitudinal seam. The submerged arc welding process produces a deep-penetration weld that, when paired with proper WPS and post-weld treatment, meets the rigorous demands of onshore and offshore oil & gas routing. As an API 5L Gr.B LSAW steel pipe supplier controlling both plate rolling and pipe forming, we align the steel chemistry from our own mill with the welding parameters on our fabrication floor — eliminating the chemistry-to-weld mismatch that causes UT failures downstream.
Engineering Compliance and Certification Pathways
Pipeline projects governed by API 5L require documented PQR and WPS for every weld procedure, along with NDT coverage reports (UT, RT, or PAUT) on each pipe. Structural applications under EN 1090 or AISC call for dimensional inspection records and coating thickness measurements. For projects entering the EU market, CE marking per EN 10219 or equivalent hollow section standards may apply to structural pipe components. [NEED_CITE: EN 1090 structural steel fabrication certification requirements] Our in-house quality lab generates the full documentation package — mill test certificates, weld maps, coating reports — before the pipe leaves the factory gate, so customs and site inspectors have everything in one file.
Steel Grade Selection and LSAW Process Fundamentals
API 5L Gr.B sits at the entry level of the API 5L pipeline steel family, offering adequate tensile and yield performance for low-to-medium pressure transmission lines. The grades listed — Q195 through Q345 in the Chinese system, S235JR through S355JR in the European system, and A36/A53 in the ASTM system — represent different national standard frameworks that can be cross-referenced for equivalent mechanical behavior. [NEED_CITE: steel grade equivalence between API 5L, EN, and ASTM standards] The LSAW process itself uses a flat steel plate formed into a round body and welded along a single longitudinal seam using submerged arc welding, making it suitable for larger outside diameters and heavier wall thicknesses than ERW alternatives. Surface condition on these pipes is hot rolled and non-oiled as standard, though downstream coating such as 3PE, FBE, or custom painting can be applied per project specification. Wall thickness tolerance of ±1%–±5% affects both theoretical weight calculations and actual pressure containment capacity — a factor that becomes critical when the design engineer sizes the pipe for hydrostatic test pressure.
The Hidden Cost of Sourcing LSAW Pipe from Disconnected Suppliers
Pipes sourced through trading intermediaries often arrive without heat-level traceability linking the finished pipe back to the original slab chemistry. When a project inspector requests the plate mill’s test certificate and the supplier can only provide a generic compliance letter, the entire batch faces rejection or costly third-party re-testing. API 5L Gr.B LSAW steel pipe supplier orders that lack proper NDT documentation or have unverified WPS records will fail site welding procedure qualification — meaning field welders cannot proceed until the issue is resolved. [NEED_CITE: API 5L PQR and WPS documentation requirements for pipeline welding] The real cost is not the pipe price difference; it is the schedule delay, the re-inspection fees, and the risk of a pressure test failure after the line is buried.
Why Engineering Teams Source API 5L LSAW Pipe from XJY Structure
Our steel mill produces the plate; our fabrication shop forms and welds it into pipe. That vertical integration means every API 5L Gr.B LSAW steel pipe supplier inquiry we handle starts with material we control from the melt stage. Our quality documentation package — including WPS, PQR, NDT reports, and dimensional inspection records — is generated in-house, not assembled from third-party certificates. We hold ISO 9001 certification and can arrange SGS, BV, or TÜV third-party inspection at any production stage. With over 2,800 raw material specifications in our inventory system, we can match plate chemistry to your project’s API 5L grade requirement without waiting for external mill rolls. Our export documentation team prepares the complete customs file — packing list, bill of lading, certificate of origin, and mill test certificates — so your pipe clears the destination port without hold-ups.
Documentation & Compliance
- Mill test certificate documenting API 5L Gr.B chemical composition and mechanical properties per API 5L, traceable by heat number from plate to finished pipe
- API 5L certification package including WPS and PQR records for the submerged arc welding procedure used on each pipe order
- ISO 9001 quality management system certificate covering both steel plate production and LSAW pipe fabrication processes
- Third-party inspection report from SGS, BV, or TÜV available for in-process and final inspection at buyer’s request
- Material traceability sheet linking each pipe’s heat number to the original plate chemistry and rolling records
- Full customs documentation package including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery
- API 5L Gr.B LSAW pipes bundled with steel strip ties and edge protectors to prevent surface damage to the hot-rolled finish during ocean transit
- Plain or beveled pipe ends fitted with plastic caps to protect the weld prep geometry and prevent moisture ingress during storage and shipping

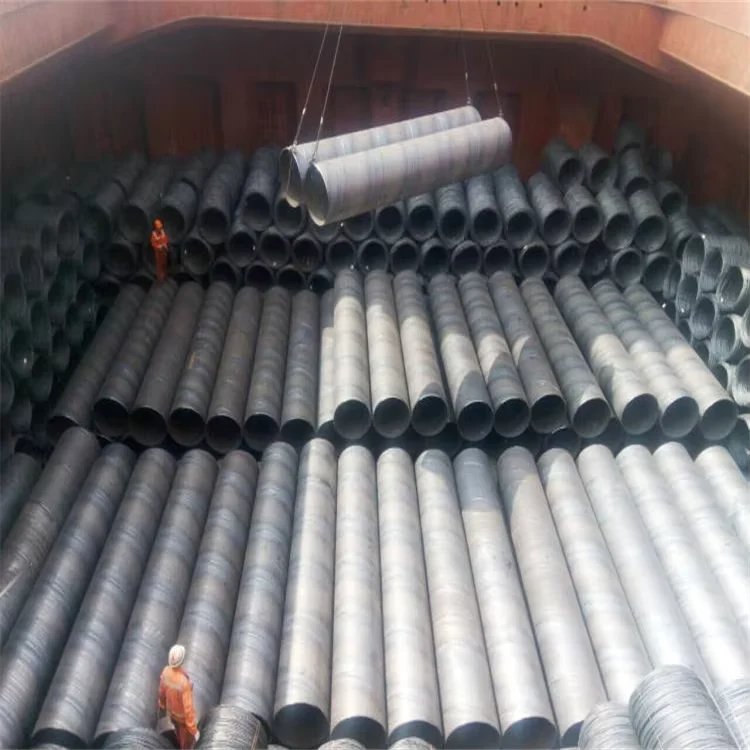

- Loading plans optimized for container or breakbulk shipment based on pipe outside diameter, wall thickness, and standard or custom cut lengths
- Heat number and steel grade stenciled on each pipe body for on-site identification and traceability verification by project inspectors
- FOB, CIF, and DDP delivery terms available with professional oversized cargo lashing and transport coordination to project site
Getting Your API 5L LSAW Pipe Inquiry Moving
Send your project specifications — outside diameter, wall thickness, length, steel grade, applicable standard, and destination port — and we return a detailed quotation within 24 hours including material cost, fabrication, surface treatment, packing, and shipping. If your project requires non-standard dimensions or custom end preparation, our engineering team will review the drawings and confirm feasibility before you commit. We also provide the mill test certificate and third-party inspection schedule upfront so your procurement team can verify compliance before contract signing.
Frequently Asked Questions
Q: What is the MOQ for API 5L Gr.B LSAW steel pipe orders?
A: The minimum order quantity is 5 tons. For projects requiring custom outside diameters or wall thicknesses outside standard ranges, we review the feasibility based on our plate inventory and forming mill capabilities.
Q: How does XJY Structure ensure material traceability from steel plate to finished LSAW pipe?
A: Our own steel mill produces the plate, and our fabrication shop forms and welds it into pipe. Every pipe carries a heat number that links back to the original plate chemistry and rolling records, documented in the mill test certificate provided with each shipment.
Q: What surface treatment options are available for API 5L LSAW pipes?
A: Standard supply condition is hot rolled and non-oiled. For projects requiring corrosion protection, we can apply 3PE coating, FBE coating, or custom painting per project specification and environmental conditions.
Q: Which standards can API 5L Gr.B LSAW pipes be supplied under?
A: We supply to API 5L as the primary standard for pipeline applications, and can also certify to EN, BS, GB, AISI, ASTM, DIN, and JIS frameworks depending on the project’s engineering specification and destination market requirements.
Q: What is the typical production lead time for large-diameter LSAW pipe orders?
A: Lead time depends on the order tonnage, wall thickness, and whether custom surface treatment or end preparation is required. We confirm the production schedule after receiving approved drawings and the contract deposit.
Get Your API 5L Gr.B LSAW Pipe Quotation with Full Mill Test Documentation
Submit your pipe specifications, steel grade, and destination port to receive a detailed quotation and mill test certificate sample within 24 hours.
