Description
Direct Mill Supply, No Broker Markup — ASTM A106 LSAW pipes roll from our own plate stock through submerged arc welding in a single facility, so every heat number traces back to one steelmaking source.
Technical Specifications
| Parameter | Value |
|---|---|

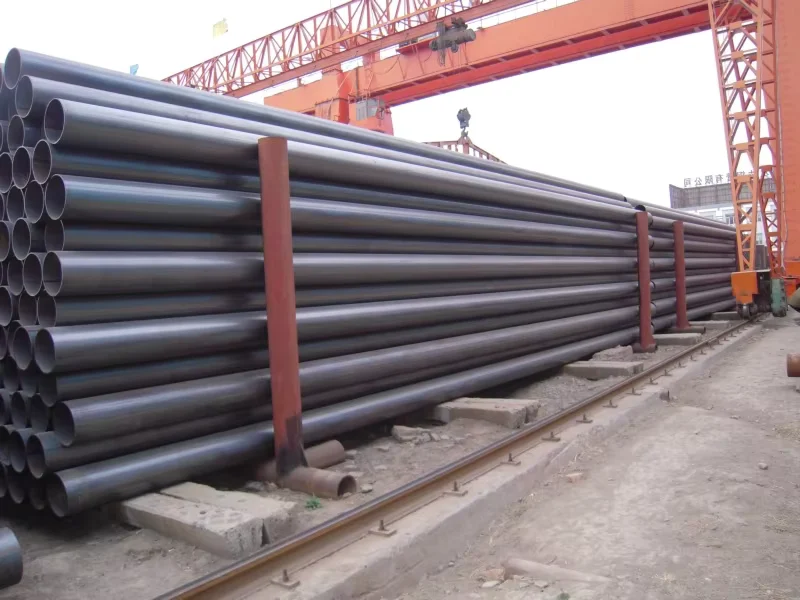

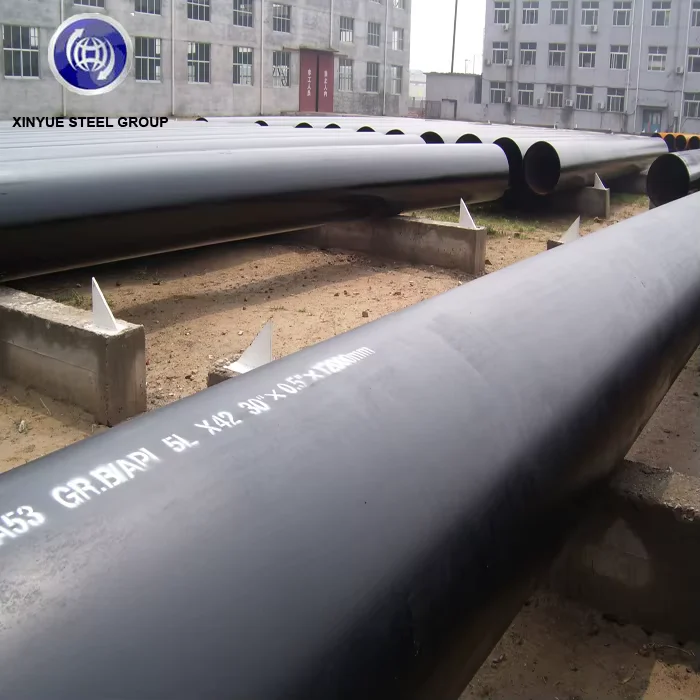

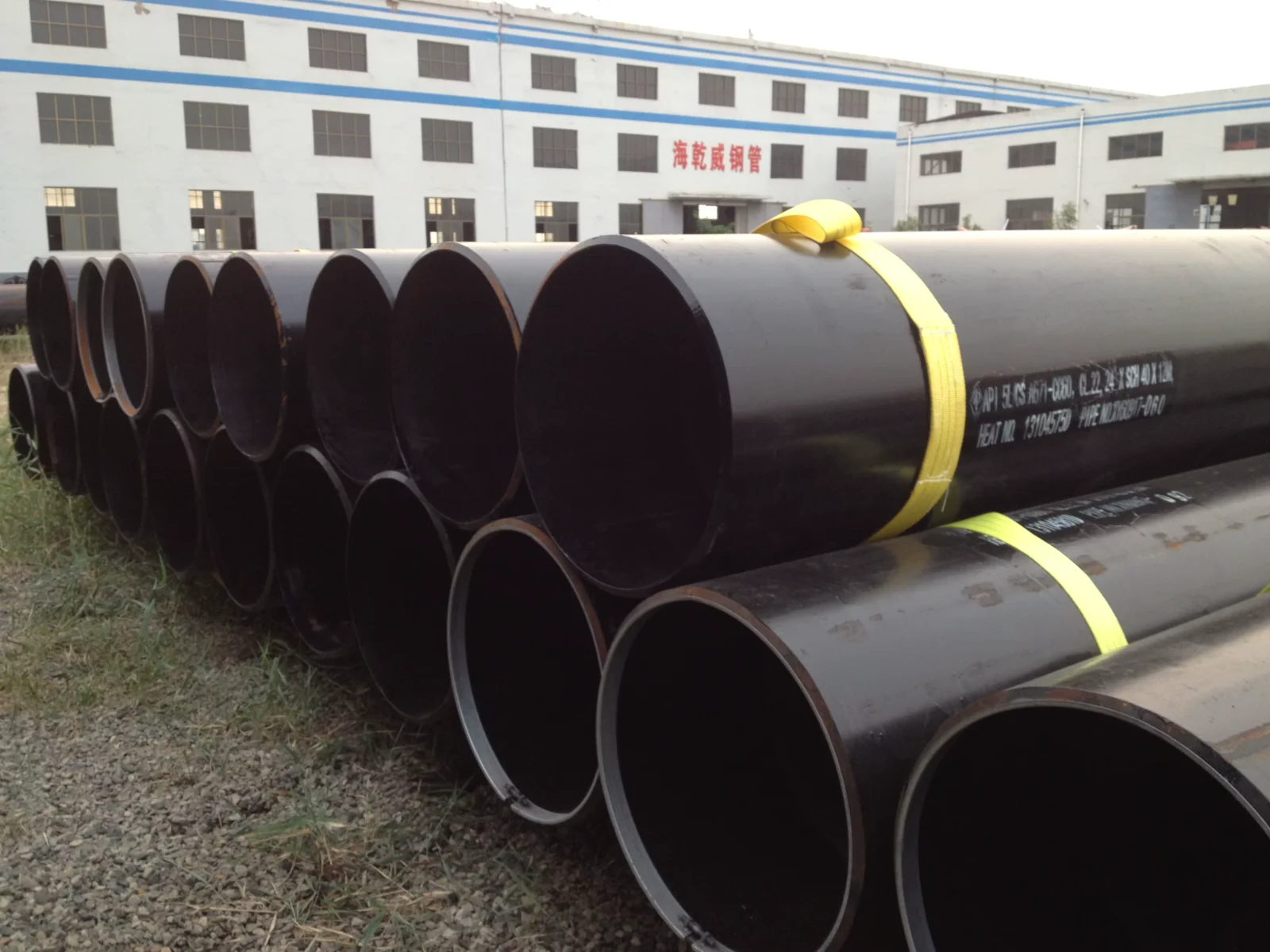

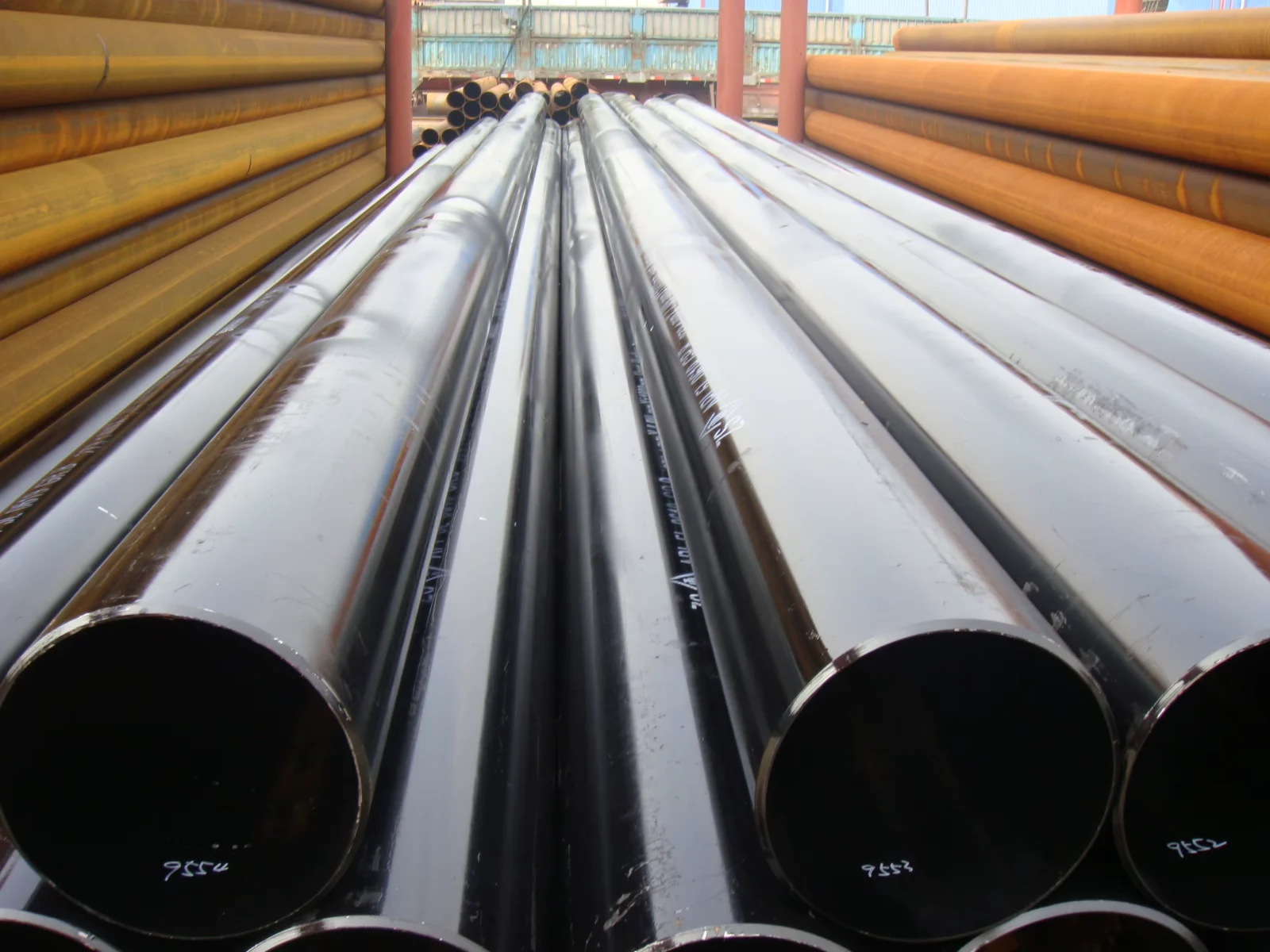

| Designation | ASTM A106 LSAW Steel Pipe |
| Product Type | Round Steel Pipe |
| Steel Grade | A106 |
| Standard | ASTM |
| Section Shape | Round |
| Outer Diameter | 355.6 – 1626 mm |
| Technique | LSAW (Longitudinal Submerged Arc Welding) |
| Surface Treatment | Hot Rolled |
| Tolerance | ±10% |
| Ends | Non-oiled |
| Delivery Time | 8 – 14 days |
| Invoicing | By Theoretical Weight |
| Processing Service | Punching |
| Application | Oil transport / Gas pipeline / Drilling / Construction / Mining / Industrial piping systems |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Long-distance crude and refined product transmission pipelines, gathering lines, and process piping at well sites |
| Industrial Piping | High-temperature steam lines, boiler feed systems, and process headers in refineries and chemical plants |
| Mining | Slurry transport mains, dewatering lines, and structural supports for conveyor gantries |
| Construction | Pile casings, foundation under-reaming columns, and structural columns in heavy industrial buildings |
| Infrastructure | Water intake and discharge lines for power stations, bridge piling sleeves |
What Material Traceability Gaps Cost on a Pipeline Order
One unverified heat number can halt an entire pipeline commissioning.
When buyers source large-diameter LSAW pipes through brokers or trading desks, the mill test certificate often arrives without a verifiable heat-to-pipe chain. I have seen project inspectors reject an entire lot at the staging yard because the MTC referenced a heat that the steel mill had no record of. With an ASTM A106 LSAW steel pipe supplier operating under a vertically integrated model, every plate can be traced from the ladle analysis through forming, welding, and final inspection — no gaps, no re-stamped certificates. [NEED_CITE: material traceability requirements for high-pressure piping per ASME B31.3]
Matching Large-Diameter LSAW Pipe to Pipeline and Pressure Service
ASTM A106 specifies seamless-grade chemistry and mechanical expectations, yet when procured as LSAW pipe in the 355.6–1626 mm OD range, the submerged arc weld must deliver equivalent integrity for high-temperature service. The longitudinal seam runs the full length of each joint, and weld quality is governed by qualified WPS procedures, preheat control, and post-weld treatment. As an ASTM A106 LSAW steel pipe supplier with in-house plate production, we control the parent metal chemistry before the first tack weld is struck — eliminating the mismatch between plate MTC and weld deposit that fragmented supply chains produce.
Engineering Compliance and Certification for Pressure and Structural Service
ASTM A106 governs high-temperature service, making it the default specification for process piping in refineries, power plants, and gas compression stations. For pipeline applications crossing international borders, buyers must confirm that the supplied documentation satisfies both the material standard and the governing construction code — ASME B31.3 for process piping, ASME B31.4 or B31.8 for liquid and gas transmission. [NEED_CITE: ASTM A106 high-temperature service carbon steel pipe requirements] Hot rolled surface condition is standard for A106; however, when pipes enter corrosive burial environments, downstream 3PE coating or FBE application must be planned around the as-delivered surface profile. End preparation — beveled for welding, plain for coupling, or punched for branch connections — should be confirmed before rolling begins, as field modifications on large-diameter pipe add significant cost.
Understanding the LSAW Process and ASTM A106 Grade Selection
Longitudinal Submerged Arc Welding forms the pipe by bending steel plate into a cylindrical shape and welding the seam from both inside and outside using a flux-covered arc. This process suits large diameters (355.6–1626 mm) that seamless mills cannot economically produce, while maintaining weld quality comparable to the parent plate when proper WPS and welder qualifications are in place. ASTM A106 covers three grades — A, B, and C — with increasing carbon and manganese content driving higher tensile and yield strength for more demanding pressure and temperature conditions. The hot rolled surface finish delivers a mill scale layer that provides short-term corrosion resistance during storage and transit; long-term protection depends on the coating system specified for the project environment. Wall thickness tolerance of ±10% means that order quantities invoiced by theoretical weight must account for actual measured thickness, as excessive negative tolerance reduces both pressure rating and structural load capacity. [NEED_CITE: LSAW versus SSAW pipe manufacturing process comparison]
Hidden Costs of Sourcing Without Verified Documentation
Pipes supplied without full heat traceability face rejection at third-party inspection, delaying project timelines and generating demurrage charges at the destination port. Chemistry outside the ASTM A106 range — particularly elevated sulfur or phosphorus — compromises weldability and increases the risk of hydrogen-induced cracking in sour service environments. Undersized wall thickness, even within the stated ±10% tolerance, compounds across a pipeline route: the cumulative weight shortfall signals potential under-gauge plate, which structural engineers cannot accept for pressure-containing service. [NEED_CITE: consequences of non-conforming pipe materials in pressure piping systems]
Why Buyers Choose an Integrated Mill and Fabrication Source
Our steelmaking facility produces the plate that becomes your pipe — there is no intermediate trader adding margin or obscuring the material origin. With over 2,800 specifications in raw material inventory, we can pull plate matching your A106 grade and thickness requirement without waiting for a third-party mill to schedule a heat. Every pipe carries a unique heat number etched into the surface, linking it back to the ladle analysis, rolling records, and weld procedure qualifications. Our welding procedures are qualified per AWS and EN standards, and our welders hold current certifications — documentation that travels with the shipment. Professional loading plans account for the oversized nature of large-diameter pipe, ensuring that 1626 mm OD joints are secured without coating damage or ovality distortion during ocean transit.
Documentation & Compliance
- Mill Test Certificate documenting A106 grade chemical composition (C, Mn, Si, S, P) and tensile properties per ASTM A106, linked to individual heat numbers
- Third-party inspection report from SGS, BV, or TUV covering dimensional verification, weld seam NDT, and surface condition assessment
- Weld Procedure Specification (WPS) and Procedure Qualification Record (PQR) for the submerged arc welding process used on A106 LSAW pipe
- Material traceability sheet mapping each pipe joint to its heat number, plate rolling record, and final inspection lot
- Export customs documentation including packing list, ocean bill of lading, and certificate of origin for destination-country clearance
- Coating inspection report if downstream surface treatment (3PE, FBE, or painting) is applied at our facility before shipment
Packaging, Loading & Delivery
- Large-diameter A106 LSAW pipes (355.6–1626 mm OD) secured in open-top containers or on flat-rack platforms with chocking and steel strapping to prevent rolling and ovality during ocean transit
- Hot rolled surface protected by anti-rust spray or temporary coating to preserve mill scale integrity during storage and transit, given the non-oiled end condition

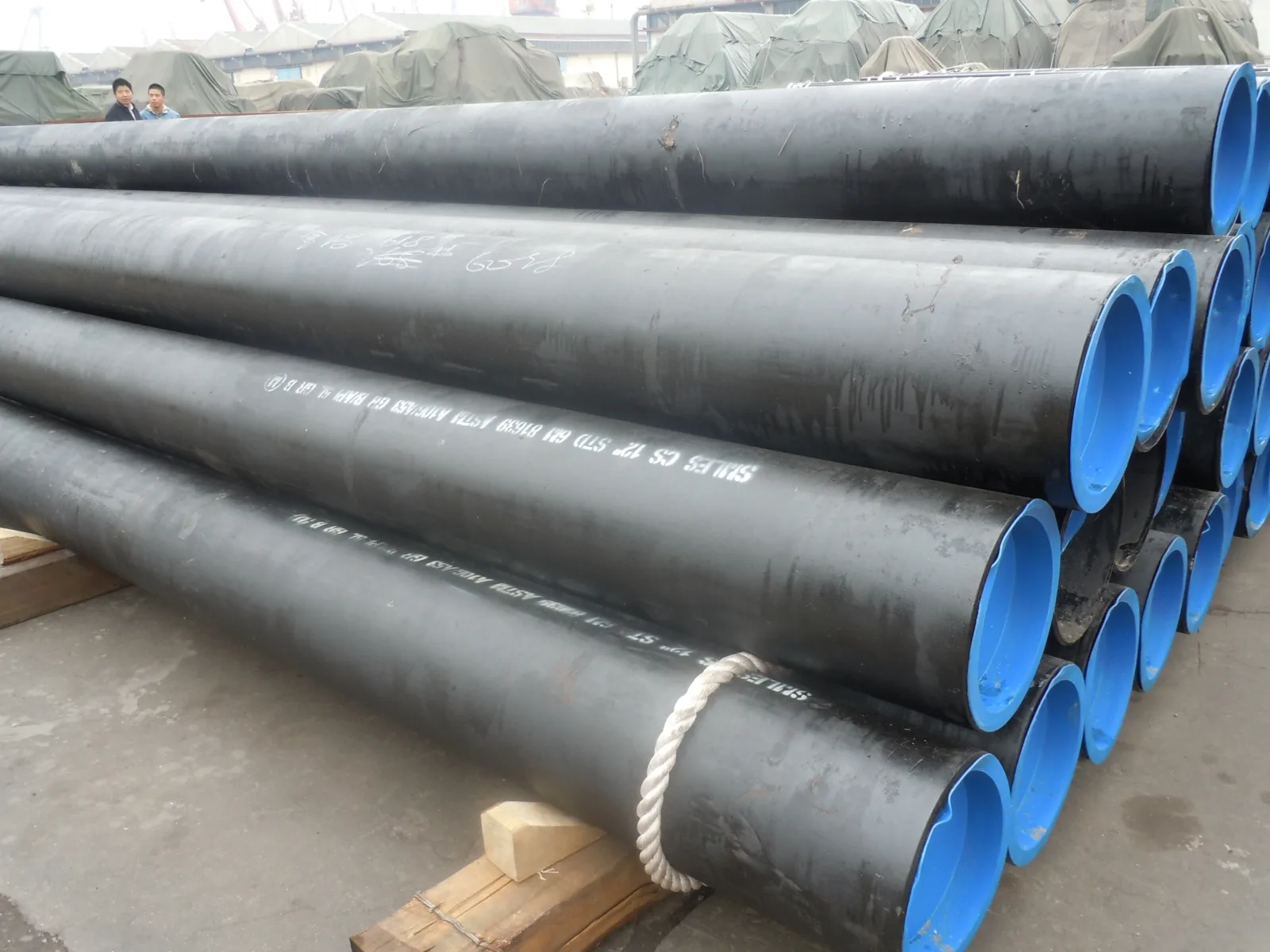

- Custom punching and end preparation completed before packing, with protective caps on beveled ends to prevent damage to weld-prep geometry
- Heat number, steel grade A106, OD, wall thickness, and length stenciled on each pipe end for site identification and traceability verification upon arrival
- Loading plans optimized for 40ft open-top and flat-rack containers, maximizing payload while respecting port crane capacity limits at destination
- Delivery terms available as FOB, CIF, or DDP, with typical production lead times of 8–14 days from drawing and deposit confirmation
Getting Your ASTM A106 LSAW Quote Moving
Share your project drawings or pipe schedule specifying OD, wall thickness, length, quantity, and end treatment — we return a detailed quotation covering material, fabrication, coating, packing, and freight within 24 hours. If your project requires third-party inspection, specific WPS documentation, or custom punching per your isometric drawings, confirm these at the inquiry stage so our engineering team can include them in the production plan.
Start Your ASTM A106 LSAW Inquiry Today
Send your specifications, steel grade, quantity, and destination port to receive a quotation with full mill test documentation.
- Website: www.xjystructure.com
- Tel: +86 531 8573 6315
- Mobile/WhatsApp/WeChat: +86 188 5315 7756
- Email: admin@xjystructure.com
- Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between ASTM A106 and API 5L for pipeline applications?
A: ASTM A106 covers seamless-grade carbon steel pipe intended for high-temperature service in process piping, while API 5L governs line pipe used in oil and gas transmission pipelines. Both specify chemistry and mechanical requirements, but API 5L includes additional provisions for sour service, hydrostatic testing at the mill, and specific end finishes for field welding. When your project specification calls for A106, the LSAW manufacturing route delivers equivalent chemistry and tensile performance in large diameters that seamless mills cannot produce economically.
Q: How does your material traceability process work for LSAW pipe orders?
A: Every plate we roll into pipe carries a unique heat number from our steelmaking facility. That number follows the material through forming, submerged arc welding, dimensional inspection, and final testing. Your Mill Test Certificate references the same heat number, allowing your inspector to verify chemistry and mechanical properties against the original ladle analysis. Third-party inspectors from SGS, BV, or TUV can witness testing at our facility before shipment.
Q: Can you provide custom end treatment and punching services for A106 LSAW pipe?
A: Yes. We offer beveled ends for field welding, plain ends for mechanical coupling, and custom punching per your project drawings for branch connections, drainage holes, or mounting points. All processing is completed before packing, and dimensional reports for each operation are included in the quality documentation package.
Q: What surface treatment options are available beyond the standard hot rolled finish?
A: The standard delivery condition for ASTM A106 is hot rolled with mill scale. For pipeline burial or corrosive environments, we can apply 3PE anti-corrosion coating, fusion-bonded epoxy (FBE), or custom painting systems after surface preparation. The choice depends on your project’s corrosion protection specification and the environment the pipe will serve.
Q: How do you handle loading and shipping for large-diameter LSAW pipes?
A: Pipes in the 355.6–1626 mm OD range require specialized loading plans. We use open-top containers for mid-range diameters and flat-rack platforms for the largest sizes, with steel strapping and wooden chocking to prevent movement. Our loading team plans each shipment around destination port crane capacity and road transport limits, ensuring that oversized joints arrive without ovality damage or coating loss.
