Description
Direct Mill Supply for ASTM A252 Gr.2 SSAW Piling Pipes — Own steel production facility with 3 lines and 2,800+ raw material specifications ensures full heat-to-finished-pipe traceability for every ASTM A252 Gr.2 SSAW steel pipe order.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A252 Gr.2 Straight Seam Submerged Arc Welded Pipe |
| Product Type | Straight Seam Submerged Arc Welded (SSAW) Steel Pipe |
| Steel Grade | ASTM A252 Gr.2, ASTM A106, ASTM A53 Gr.B, API 5L Gr.B, DIN ST37, DIN ST52 |
| Standard | ASTM A252, ASTM A106, ASTM A53, API 5L, ASTM A179, ASTM A192, ASTM A333, ASTM A335, DIN ST37, DIN ST52, DIN2448, BS1387 |
| Section Shape | Circular |
| Size Range | Outer Diameter 21.3mm – 914.4mm |
| Wall Thickness | 4mm – 60mm |
| Length | 5.8m – 12m (customizable) |
| Technique | Straight Seam Submerged Arc Welded (SSAW) |
| Surface Treatment | Varnish coating / Anti-rust oil / Beveled ends with plastic caps |
| Tolerance | Per standard (±10%) |
| Ends | Beveled / Plain |
| Application | Piling / Fluid transport (water, petroleum, gas) / Structural / Infrastructure |
| MOQ | 20 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Foundation & Piling | Driven pile foundations for bridges, port wharves, and high-rise buildings |
| Oil & Gas | Flow lines and gathering pipelines for onshore petroleum transport |
| Municipal Infrastructure | Water supply mains, drainage culverts, and stormwater conveyance |
| Industrial Construction | Plant pipe racks, structural columns, and equipment support frames |
| Marine Engineering | Jetty fender piles, sheet pile backing, and dock reinforcement |
Wall Thickness Tolerance on SSAW Piling Pipes Determines Whether Your Foundation Holds or Fails
A 1.2mm negative tolerance deviation on a single pile can trigger full-batch rejection at the driven stage.
Procurement teams sourcing ASTM A252 Gr.2 SSAW steel pipe from overseas fabricators frequently encounter fragmented material certification chains — the pipe maker sources plate from a third-party mill, welds it in a separate shop, and issues a generic certificate that cannot be traced back to the original heat. When wall thickness runs below the ASTM A252 minimum at the pile toe, the pipe buckles under driving hammer impact before reaching design depth. [NEED_CITE: ASTM A252 dimensional tolerance requirements for welded steel pipe piles] The cost of pulling driven piles, re-inspecting, and re-ordering dwarfs the original pipe price. Buyers who have faced this scenario now demand vertically integrated suppliers who control both the steelmaking and the welding under one quality management system.
Matching Piling and Pipeline Demands with SSAW Process Capabilities
The ASTM A252 Gr.2 SSAW steel pipe covers outer diameters from 21.3mm to 914.4mm and wall thicknesses from 4mm to 60mm, spanning both small-diameter utility piling and large-diameter bridge foundation piles. The submerged arc welding process produces a continuous, full-penetration longitudinal seam that meets the structural integrity demands of driven pile applications — where impact loads during installation require consistent weld quality along the entire seam length. Our own mill produces the plate and coil feedstock, so every heat number on the Mill Test Certificate traces directly back to our steelmaking facility rather than an unverified third-party supplier.
Structural Code Compliance and Certification Pathways for International Projects
Piling contractors working under AISC or EN 1993 frameworks need fabrication documentation that satisfies both the structural engineer and the port authority inspector. ASTM A252 Gr.2 conforms to North American piling specifications, while equivalent grades such as DIN ST37 or API 5L Gr.B serve European and Middle Eastern projects respectively. [NEED_CITE: steel grade equivalence between ASTM A252 and EN / DIN standards for piling applications] Surface treatment selection — varnish coating for temporary corrosion protection during stockpiling, or anti-rust oil for pipeline transport — must align with the project’s environmental exposure timeline. Third-party inspection by SGS or BV is available at every production stage, and all welding documentation including WPS, PQR, and weld maps travels with the shipment.
Understanding SSAW Welding and Grade Selection for Piling versus Pressure Service
Submerged Arc Welded pipe differs from ERW and seamless in three ways relevant to project specification. First, SAW uses a granular flux blanket that shields the molten weld pool, producing deeper penetration and higher deposition rates — suited to the thicker walls (up to 60mm) required for heavy-duty piling. Second, the longitudinal seam in SSAW pipe runs parallel to the pipe axis, making it ideal for large diameters above 508mm where seamless production becomes cost-prohibitive. Third, ASTM A252 Gr.2 is specifically designated for piling — its chemical composition and mechanical requirements prioritize ductility and driveability over the pressure-retention focus of ASTM A106 or API 5L. Selecting the correct grade matters: using a pipeline grade for piling may pass inspection but deliver poor performance under impact driving, while specifying A252 for a pressure pipeline violates code. [NEED_CITE: differences between SSAW, ERW, and seamless pipe manufacturing processes]
The Hidden Cost of Unverified Material Certificates and Excessive Negative Tolerance
When a supplier provides a Mill Test Certificate that cannot be traced to a specific heat of steel, the buyer inherits the risk of unverified chemistry and unconfirmed mechanical properties. Negative wall thickness tolerance beyond the ASTM A252 permissible range reduces the pile’s cross-sectional area — meaning the pipe carries less load than the structural engineer calculated. At the project site, this surfaces as pile refusal at shallower depths, foundation settlement complaints, or outright rejection by the supervising engineer. [NEED_CITE: consequences of wall thickness deviation in driven steel pipe piles] The rework cost — pulling piles, ordering replacements, remobilizing the rig — typically exceeds three times the original pipe procurement value.
Integrated Mill and Fabrication Control from Raw Steel to Finished Pipe
Our facility operates three dedicated SSAW production lines backed by an in-house steel mill producing over 2,800 raw material specifications. This vertical integration means the plate rolled for your ASTM A252 Gr.2 SSAW steel pipe order originates from our own furnaces, passes through our own rolling stands, and enters our own welding bays — with one quality system governing every step. Welders hold AWS and EN certifications, and every weld procedure is qualified through documented WPS and PQR records. For buyers sourcing from China, this eliminates the common gap between material supplier and fabricator, providing a single point of accountability from steelmaking through final coating and packing.
Documentation & Compliance
- Mill Test Certificate documenting ASTM A252 Gr.2 chemical composition (carbon, manganese, silicon, sulfur, phosphorus) and mechanical properties per heat number
- Welding Procedure Specification (WPS) and Procedure Qualification Record (PQR) for submerged arc welding per AWS D1.1
- ISO 9001:2000 certified quality management system covering full production from plate rolling to final inspection
- SGS or BV third-party inspection report available for dimensional checks, ultrasonic weld examination, and coating thickness verification
- Material traceability report linking each pipe bundle to its original heat number, rolling record, and welding log
- Export documentation package including commercial invoice, packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery

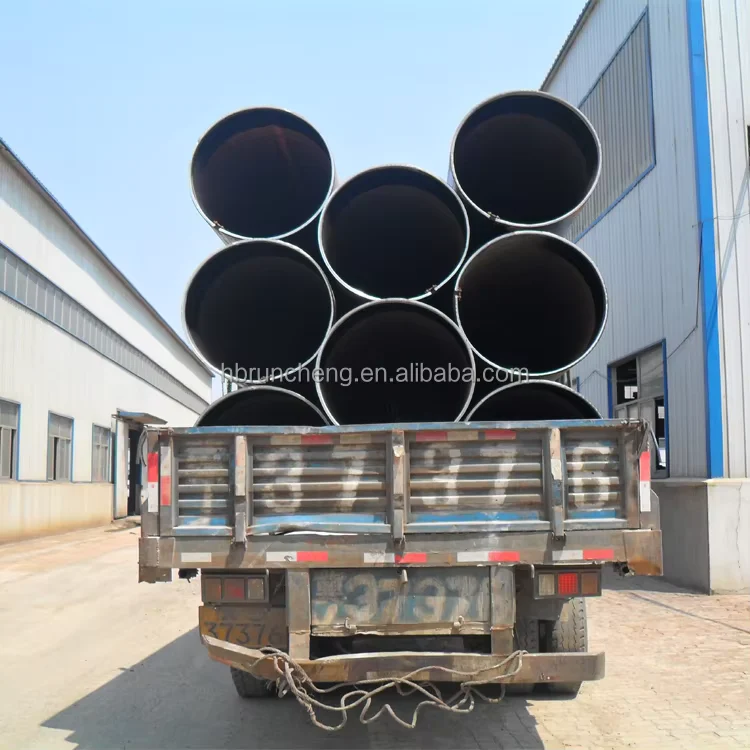

- ASTM A252 Gr.2 SSAW pipes bundled with galvanized steel strips at intervals matching the 5.8m–12m length range, with end caps protecting beveled edges during transit
- Varnish-coated or anti-rust oil-treated surfaces wrapped in waterproof paper and secured within steel-framed crates for ocean shipment
- Loading plans optimized for 20ft and 40ft open-top containers based on pipe outer diameter and wall thickness, maximizing payload within port weight restrictions
- Heat number and ASTM A252 Gr.2 grade stenciled on each pipe end for site identification and traceability verification upon arrival
- FOB, CIF, and DDP shipping terms available with professional lashing and securing for oversized and heavy-wall piling pipe cargo
- Custom cutting to site-specific lengths available to reduce field welding and accelerate pile installation schedules
Requesting a Fabrication Quote with Full Material Traceability
Submit your project drawings (PDF or DWG), required steel grade, outer diameter, wall thickness, total tonnage, and destination port. Our engineering team responds within 24 hours with a detailed quotation covering material, fabrication, coating, packing, and logistics — along with the shop drawing timeline and production schedule. Third-party inspection and specific certification requirements can be confirmed at the inquiry stage.
Frequently Asked Questions
Q: What is the difference between ASTM A252 Gr.2 and API 5L Gr.B for piling applications?
A: ASTM A252 Gr.2 is specifically written for welded and seamless steel pipe piles, with chemical and mechanical requirements optimized for driveability and structural load-bearing. API 5L Gr.B is a pipeline transportation standard focused on pressure containment. While both grades share similar yield strength ranges, using API 5L Gr.B for piling may not satisfy the project engineer’s specification for impact toughness during driving.
Q: Can you provide third-party inspection for ASTM A252 Gr.2 SSAW steel pipe orders?
A: Yes. SGS and BV third-party inspection is available at any production stage — including raw material verification, in-process dimensional and ultrasonic weld examination, and final coating thickness measurement. The inspection report is included in the export documentation package.
Q: What surface treatment options are available for SSAW piling pipes?
A: We offer varnish coating for short-term corrosion protection during storage and transit, anti-rust oil for pipeline and marine environments, and beveled ends sealed with plastic caps to prevent moisture ingress. Custom coating specifications can be accommodated based on project requirements.
Q: What is the minimum order quantity and typical production lead time?
A: The minimum order quantity is 20 tons. Production lead time depends on order volume, diameter range, and coating requirements — typical timelines are confirmed during the quotation stage after drawing review.
Q: Do you supply shop drawings and welding documentation for engineered piling projects?
A: Yes. Our engineering team prepares shop drawings for client approval before fabrication begins. The complete documentation package includes WPS, PQR, weld maps, dimensional inspection reports, and coating reports — all traceable to individual heat numbers.
Get Your ASTM A252 Gr.2 SSAW Pipe Quote with Certified Mill Documentation
Send your project specifications and required quantities to receive a detailed quotation and Mill Test Certificate sample within 24 hours.
