Description

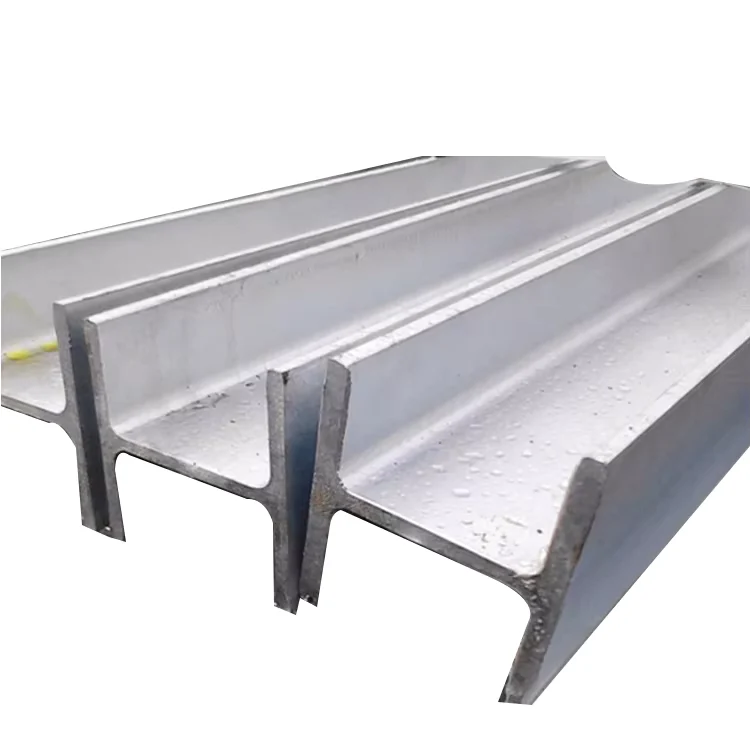

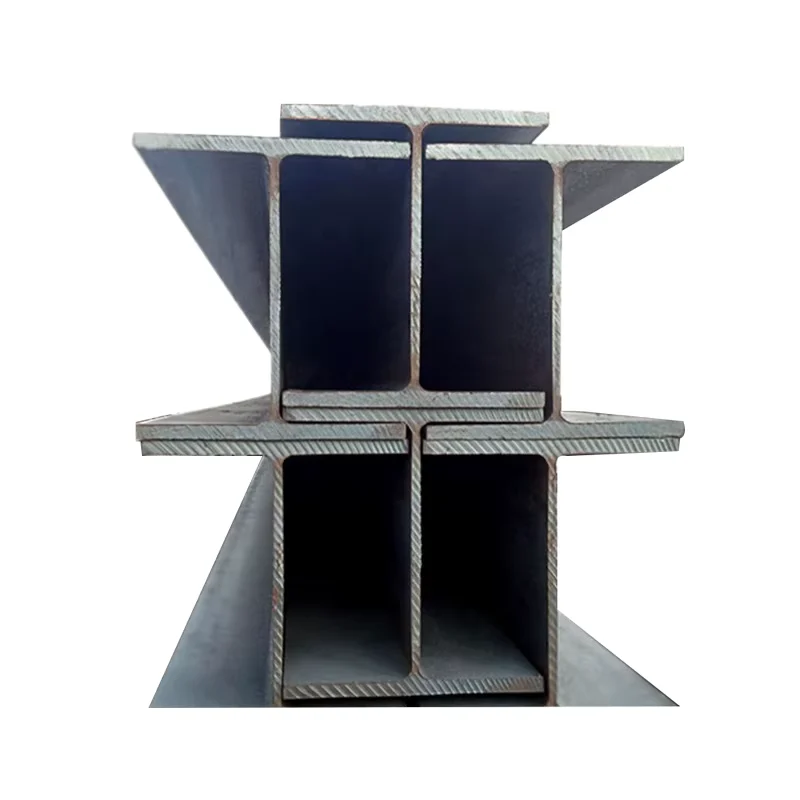

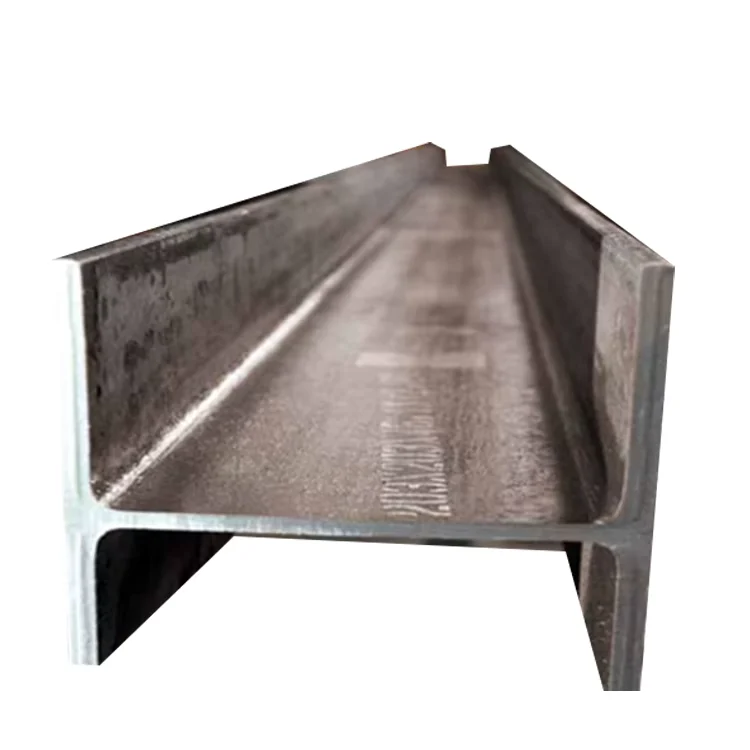

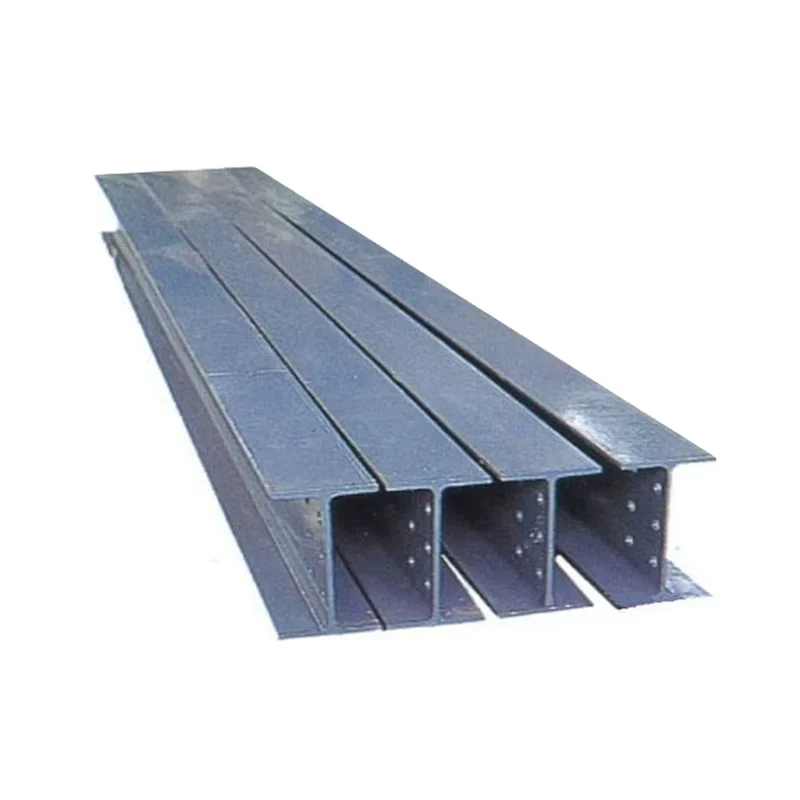

Direct Mill Supply for ASTM A36/A572 Galvanized H-Beams — Hot rolled sections produced from our own steel mill with full material traceability from slab to finished beam.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A36/A572 Hot Rolled Galvanized H-Beam |
| Product Type | H-Beam |
| Steel Grade | Q235, Q345, Q355, ASTM A36, ASTM A572, S355JR, S355J0 |
| Standard | ASTM A36, ASTM A572, EN, GB, BS, DIN, JIS, AISI |
| Section Shape | H-Beam (I-Beam) |
| Flange Thickness | 8mm–64mm |
| Web Thickness | 4.5mm–36.5mm |
| Web Width | 100mm–900mm |
| Length | 6m / 9m / 12m or as requested |
| Technique | Hot Rolled |
| Surface Treatment | Hot Dip Galvanized / Painted / Customized Colors |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting |
| Application | Steel Building / Building Frames / Bridges / Retaining Wall Post / Support Rail / Industrial Platforms / Prefab Cabin |
Application Suitability
| Industry | Typical Applications |
|---|---|
| General Contractors | Steel building frames, column-beam assemblies, mezzanine platforms |
| EPC Firms | Bridge girders, infrastructure support structures, retaining wall posts |
| Industrial Developers | Warehouse portal frames, prefab cabin skeletons, conveyor support rails |
| Architecture & Engineering | Custom connection assemblies, stairway stringers, structural trusses |
Why Galvanized Coating Thickness Determines Inspection Sign-Off on H-Beam Orders
A 600-micron zinc layer on an ASTM A36 flange means nothing if the substrate chemistry fails mill audit.
When structural steel is sourced from third-party fabricators who buy raw material from spot-market traders, the certification chain breaks at the first link. Buyers receive mill test certificates that cannot be traced back to a specific heat number, and coating thickness reports that were measured on a different batch than the beams sitting on their job site. This disconnect surfaces during EN 1090 or AISC compliance audits, where inspectors demand full traceability from raw slab to finished galvanized section. [NEED_CITE: material traceability requirements for EN 1090 structural steel fabrication]
Matching Hot Rolled Galvanized H-Beams to Structural Load Paths
Hot dip galvanized H-beams in grades Q235 through ASTM A572 serve load-bearing frames where corrosion resistance and structural integrity must coexist. The zinc coating protects web and flange surfaces in outdoor infrastructure, bridge supports, and industrial platforms where moisture and atmospheric exposure accelerate carbon steel degradation. For projects spanning multiple climate zones — from coastal Middle East sites to Southeast Asian humidity — the combination of hot rolled section geometry and galvanized surface treatment eliminates the need for on-site painting, reducing installation time and long-term maintenance costs. Our fabrication workshop processes these beams to project-specific shop drawings, including CNC cutting, drilling, and welded connection assemblies ready for bolt-up.
Engineering Compliance and Certification for International H-Beam Procurement
Structural H-beams shipped to EU markets must comply with EN 1090 execution class requirements, which mandate certified welding procedures, qualified welders, and full documentation packages including WPS, PQR, and dimensional inspection reports. [NEED_CITE: EN 1090 certification requirements for structural steel components] For North American projects, ASTM A36 and ASTM A572 grades align with AISC 360 design specifications, requiring mill test certificates that confirm chemical composition and mechanical properties per the relevant standard. The choice between Q-series (Chinese GB standard), S-series (European EN standard), and ASTM grades depends on the design engineer’s specification and the destination country’s import regulations. Custom lengths of 6m, 9m, or 12m reduce on-site splicing, while hot dip galvanizing ensures corrosion protection extends into welded connection zones when post-weld touch-up follows approved procedures.
Steel Grade Selection and Hot Rolling Process for H-Beam Performance
The progression from Q235 to Q355 or from ASTM A36 to ASTM A572 reflects increasing yield strength requirements for heavier load applications. Q235 and ASTM A36 serve general construction where moderate strength suffices, while Q355 and ASTM A572 Grade 50 provide higher yield points for long-span bridges and industrial crane runways. Hot rolling produces H-beams with uniform grain structure through the web and flange thickness, ensuring consistent mechanical properties across the entire section. This differs from welded H-beams assembled from plate, where the web-to-flange weld zone introduces potential discontinuities. For galvanized H-beams, the hot dip process requires proper surface preparation — shot blasting to Sa 2.5 cleanliness — to ensure zinc adhesion across the full section, including inside fillet radii where rust initiation often begins.
Hidden Costs of Procuring Galvanized H-Beams Without Verified Traceability
When a project specifies ASTM A572 Grade 50 but receives beams with A36 chemistry, the structural engineer’s load calculations become invalid, forcing either costly reinforcement or complete replacement. [NEED_CITE: consequences of steel grade substitution in structural engineering] Coating thickness below specification accelerates corrosion in aggressive environments, leading to premature maintenance or structural failure. Missing mill test certificates delay customs clearance in markets requiring EN 1090 or AISC compliance documentation, stranding containers at port while demurrage charges accumulate. Dimensional tolerance exceeding ±1% creates fit-up problems during erection, requiring field cutting and re-welding that compromise galvanized protection and extend project schedules.
Why Vertical Integration Eliminates Material Gaps in H-Beam Supply
Our steel mill produces the raw slabs that become your galvanized H-beams, eliminating the traceability gap that occurs when fabricators source material from third-party traders. Every heat number on your mill test certificate links directly to our production records, from chemical composition to rolling temperature to final inspection. The fabrication workshop adjacent to the mill processes these beams using certified welding procedures (WPS/PQR) with AWS and EN qualified welders, ensuring that cut, drilled, and welded connections maintain the same quality standard as the parent material. With over 2,800 specifications of raw material in inventory, we fulfill multi-grade orders — mixing ASTM A36, ASTM A572, and S355JR in a single shipment — without the delays of coordinating multiple suppliers. Professional loading plans engineered for each container prevent the flange damage and coating scratches that occur when heavy sections shift during ocean transit.
Documentation & Compliance
- Mill test certificate documenting ASTM A36 chemical composition (C ≤0.25%, Mn 0.80-1.20%) and mechanical properties per ASTM A36/A36M standard
- CE certificate confirming EN 1090 execution class compliance for galvanized H-beams shipped to EU markets
- ISO 9001 quality management certificate covering the integrated steel mill and fabrication workshop
- SGS or BV third-party inspection report verifying galvanized coating thickness and dimensional tolerance for ASTM A572 H-beams
- Material traceability documentation linking each beam’s heat number to specific mill production batch and chemical analysis
- Customs documentation package including packing list, bill of lading, and certificate of origin for galvanized H-beam shipments
Packaging, Loading & Delivery
- Hot dip galvanized H-beams bundled with steel strips and edge protectors to preserve zinc coating during ocean transit
- Surface protection maintained through proper separation between nested beams, preventing coating damage from friction during transport
- Container loading optimized for 6m, 9m, and 12m lengths using engineered lashing plans that prevent flange bending and web deformation
- Custom cutting to project-specific lengths available before galvanizing, reducing on-site waste and welding requirements
- Heat number and steel grade identification marked on each beam end for site traceability and inspection verification
- FOB, CIF, and DDP shipping terms available with professional oversized cargo handling for large-section H-beams
Submit Drawings and Specifications for Galvanized H-Beam Quotation
Share your project drawings (PDF/DWG), required steel grades (ASTM A36, ASTM A572, Q355, or S355JR), quantities, and destination port to receive a detailed quotation within 24 hours. The quotation includes material cost, fabrication services, hot dip galvanizing, packaging, and shipping — with shop drawing timelines and production schedules attached for engineering review.
Request Your Galvanized H-Beam Quote with Mill Test Certificates
Submit project specifications and steel grade requirements to receive pricing, material traceability documentation, and production timelines.
