Description
Direct Mill Supply, No Broker Markup — Every Gr.B LSAW pipe rolls from our own steel mill heat, so material certs and weld logs trace back to a single source.
Technical Specifications
| Parameter | Value |
|---|---|

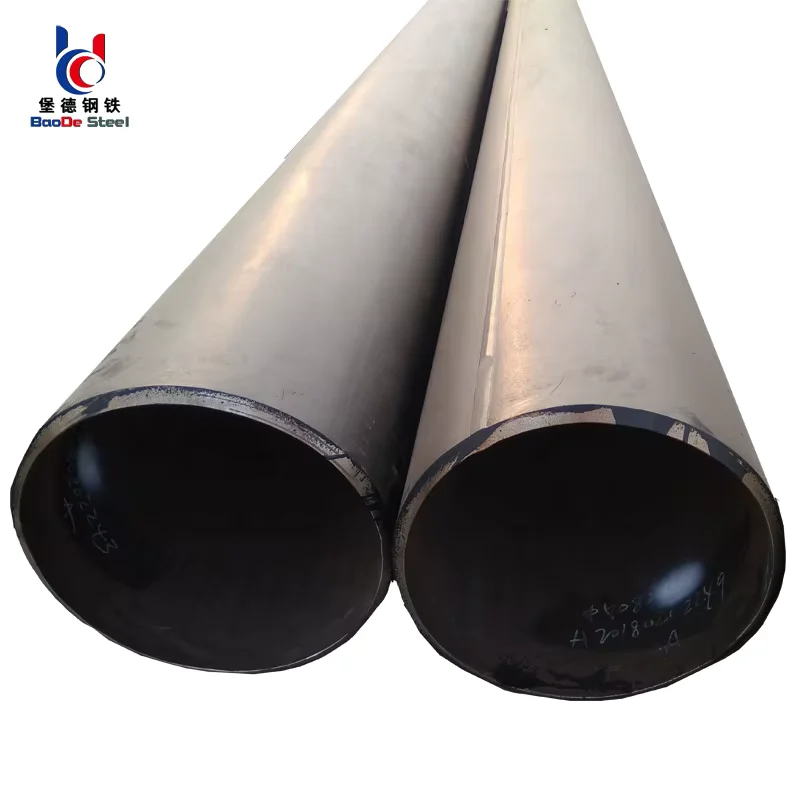

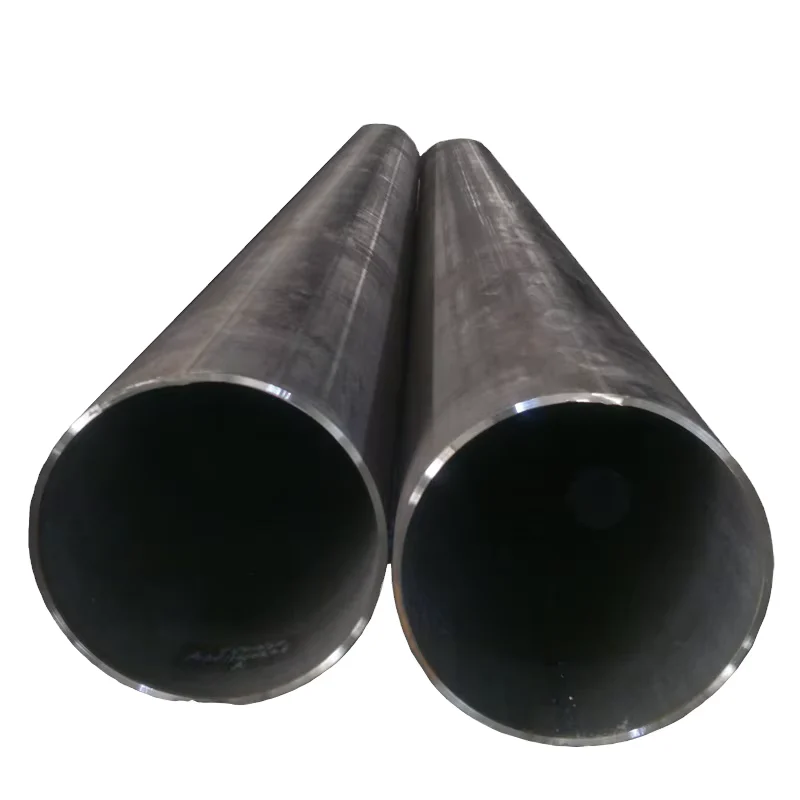

| Designation | Gr.B LSAW Welded Steel Pipe |
| Product Type | LSAW Welded Steel Pipe (Longitudinal Submerged Arc Welded Pipe) |
| Steel Grade | Gr.B, Q345 |
| Standard | API 5L PSL1, DIN 1626 |
| Section Shape | Round |
| Size Range | OD 406.4mm–1524mm |
| Wall Thickness | 8mm–50mm |
| Length | 5.8m / 6m / 11.8m / 12m / Random Length |
| Technique | LSAW / Submerged Arc Welding |
| Surface Treatment | Black Painting / 3LPE Coating |

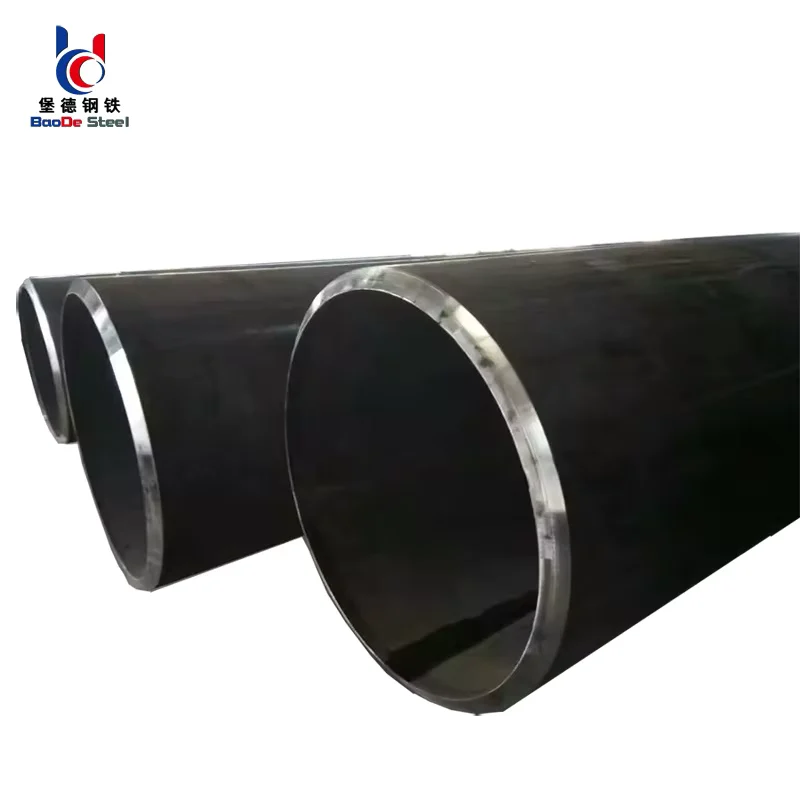

| Ends | Plain / Beveled |
| Tolerance | ±1% |
| Application | Fluid Pipe / Oil Pipe / Gas Pipe / Structure Pipe / Pile Pipe |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Onshore and offshore transmission pipelines, gathering lines, flow lines |
| Civil Infrastructure | Bridge piling, port foundation works, retaining wall piles |
| Industrial Plant | Process water conveyance, cooling water circuits, utility piping |
| Municipal Engineering | Raw water intake, drainage outfall, large-diameter siphon systems |
When Material Traceability Breaks Down on a Pipeline Job
A missing heat number can halt hydrostatic testing and trigger a full pipe rejection at site.
Procurement teams sourcing large-diameter welded pipe from overseas fabricators often discover too late that the mill test certificate does not match the heat stamps on the pipe body, or that the fabricator sourced blanks from a third-party trader with no upstream chemistry records. On an API 5L Gr.B LSAW steel pipe order destined for a West African gas transmission line, we once saw a competitor’s shipment held at customs because the MTR listed a different steel grade than the bevel-end markings — a documentation gap that cost the EPC three weeks of delay and a re-inspection fee billed back to the supplier. [NEED_CITE: API 5L material traceability and MTR requirements for pipeline projects]
Matching OD-Wall Combinations to Transmission and Piling Loads
An API 5L Gr.B LSAW steel pipe in the 406.4mm to 1524mm outer diameter range with wall thickness from 8mm to 50mm covers the majority of onshore gas transmission and structural piling specifications. For buried pipeline segments in corrosive soil, the 3LPE coating option meets DIN 30670 requirements and eliminates the need for field-wrap after installation. Our engineering team reviews client isometric drawings and recommends the most economical OD-Wall combination that still satisfies the design pressure and external load calculations — a step that prevents over-specifying wall thickness and paying for steel the project does not need.
Engineering Compliance Across Corrosive and High-Pressure Environments
Large-diameter LSAW pipe used in oil and gas transmission must satisfy API 5L PSL1 chemical and mechanical requirements, while structural piling applications often reference EN or ASTM pile-driving standards. [NEED_CITE: API 5L PSL1 vs PSL2 requirements for pipeline steel] The choice between black painting and 3LPE coating depends on whether the pipe will be buried, submerged, or installed above ground in an industrial plant — each environment demands a different corrosion protection strategy. Beveled ends per API 5L allow automatic welding spread on the spread, while plain ends suit mechanical coupling or site-modified connections. Third-party inspection at hold points — chemical analysis, dimensional check, hydrostatic test, and coating holiday detection — keeps the project aligned with the client’s ITP before the container doors seal.
Understanding Gr.B Steel and Submerged Arc Welding Fundamentals
API 5L Gr.B is a carbon manganese steel grade widely specified for moderate-pressure oil and gas pipelines. When cross-referenced against Chinese standards, Gr.B aligns closely with the Q345 grade family in yield behavior, though chemistry limits differ slightly and project engineers should confirm equivalence through the MTR rather than assumption. [NEED_CITE: steel grade equivalence between API 5L and GB/T 9711 standards]
The LSAW manufacturing process uses submerged arc welding along a single longitudinal seam. Compared to spiral-welded pipe, LSAW offers more consistent seam geometry and easier ultrasonic inspection of the weld line — critical advantages when the pipe will carry sour gas or operate under cyclic loading. The submerged arc process*l thickness, which is why LSAW pipe in the 8mm to 50mm wall range remains the preferred choice for transmission and piling applications where seam integrity cannot be compromised.
Surface treatment selection follows the service environment: black painting suits inland transport and above-ground industrial piping where atmospheric corrosion is mild, while 3LPE coating — a three-layer system of fusion-bonded epoxy, copolymer adhesive, and polyethylene — provides mechanical damage resistance and cathodic disbondment protection for buried pipeline segments.
The Hidden Cost of Accepting Unverified Pipe on a Pipeline Spread
Buying API 5L Gr.B LSAW steel pipe from a broker who cannot produce a heat-level MTR, or from a fabricator who mixes blanks from multiple unknown mills, creates risk that only surfaces during hydrostatic testing or third-party audit. Pipes with chemistry outside the API 5L Gr.B window may pass visual inspection but fail impact testing at low temperature, forcing the EPC to reject entire batches after they have already reached the construction site. [NEED_CITE: consequences of non-conforming pipeline steel in hydrostatic testing]
Dimensional tolerance matters as well: an OD or wall thickness outside the ±1% band can cause fit-up problems during automatic welding, leading to rework, weld repairs, and schedule slippage on a pipeline spread where every day of delay carries a high cost. Certification gaps — missing WPS, incomplete PQR, or no coating holiday test report — can also block customs clearance in markets that enforce EN 1090 or local import inspection rules.
Why EPC Firms and Pipeline Contractors Source Through Our Mill
Our facility operates three production lines and stocks over 2,800 raw material specifications, meaning every API 5L Gr.B LSAW steel pipe order begins with steel melted and rolled in-house — no third-party blanks, no broken traceability chains. The in-house metallurgical lab performs chemical composition analysis and mechanical re-testing before any pipe leaves the mill, and every heat number is documented from the steelmaking stage through to the finished, coated pipe.
Welding procedures are qualified per API 5L and supported by certified WPS and PQR records, with welder qualifications maintained to international standards. For projects requiring independent verification, we coordinate BV or SGS inspection at every hold point — from plate edge preparation and fit-up through final coating thickness measurement. The integration of raw material production and pipe fabrication under one quality system means the client deals with a single point of accountability for material, weld quality, coating, and export documentation.
Documentation & Compliance
- Mill Test Certificate documenting Gr.B and Q345 chemical composition and mechanical properties per API 5L PSL1, traceable to heat number
- Welding Procedure Specification (WPS) and Procedure Qualification Record (PQR) for submerged arc longitudinal seam welding
- Coating inspection report covering 3LPE film thickness, adhesion pull-off test, and holiday detection per DIN 30670
- Dimensional inspection report confirming OD, wall thickness, length, and bevel angle within ±1% tolerance
- Third-party inspection release note from BV or SGS upon client request at agreed hold points
- Export documentation package: commercial invoice, packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

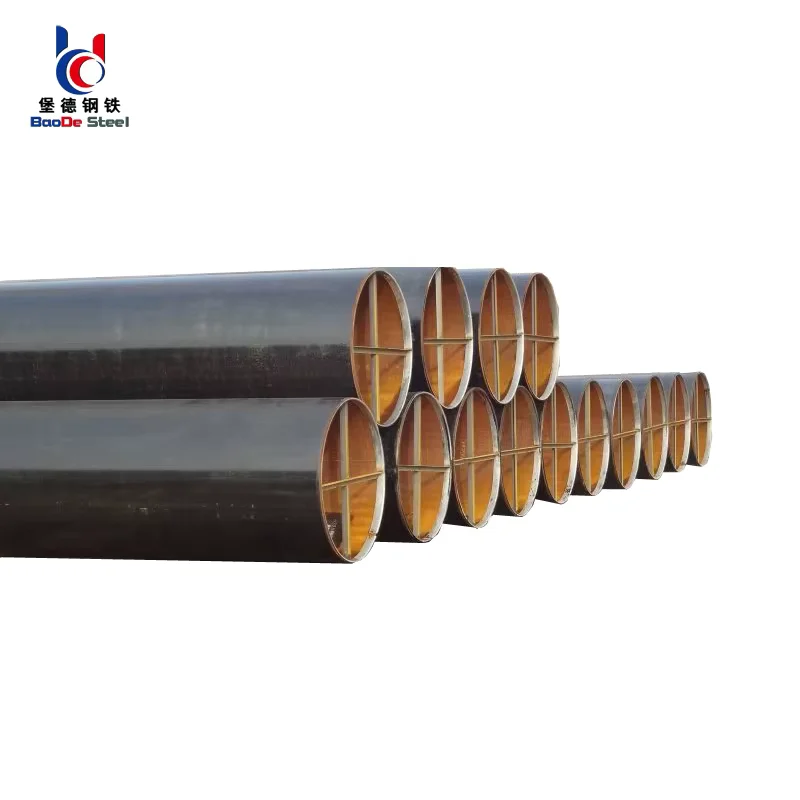

- Gr.B LSAW pipes in OD 406.4mm–1524mm range bundled with steel strips and separated by rubber cradles to prevent coating damage during ocean transit
- 3LPE coated pipes wrapped with protective sleeves at both ends and along the body to guard against UV exposure and mechanical abrasion before installation
- Black painted pipes oiled on the external surface to prevent transit rust in humid coastal ports
- Random length and 12m pipes loaded in dedicated open-top containers or on flat racks with welded chocks to prevent rolling
- Heat number, steel grade, and OD-Wall markings stenciled on each pipe end for site identification and traceability verification
- FOB, CIF, and DDP shipment options with professional lashing plans for oversized pipe cargo
Starting Your API 5L Gr.B LSAW Pipe Inquiry
Share your project isometric drawings, required steel grade, OD-Wall schedule, coating specification, and destination port — our engineering team responds within 24 hours with a technical assessment and detailed quotation covering material, fabrication, coating, packing, and freight. We also provide shop drawing review and material optimization recommendations before the contract is signed, so you can confirm compliance with your project specification and secure third-party inspection arrangements early in the procurement cycle.
Frequently Asked Questions
Q: What is the difference between API 5L Gr.B and Q345 steel grade in LSAW pipe?
A: Both grades are used in our LSAW pipe production. API 5L Gr.B is specified for oil and gas pipeline transport under API 5L PSL1, while Q345 is a Chinese structural steel grade often used for piling and structural applications. The chemical composition and mechanical property windows differ, so the correct grade must be confirmed against the project design specification and reflected on the Mill Test Certificate.
Q: Can you arrange third-party inspection for the LSAW pipe before shipment?
A: Yes. We coordinate BV or SGS inspection at hold points agreed in the quality plan — typically covering material chemical analysis, dimensional verification, weld NDT review, hydrostatic testing witness, and coating thickness measurement. The inspection scope and acceptance criteria are confirmed before production starts.
Q: What coating options are available for API 5L Gr.B LSAW steel pipe?
A: We offer black painting for inland or above-ground industrial applications and 3LPE coating per DIN 30670 for buried or submerged pipeline segments. The 3LPE system includes fusion-bonded epoxy primer, copolymer adhesive, and polyethylene outer layer, with holiday testing performed on every coated pipe before dispatch.
Q: How do you handle packing and loading for large-diameter LSAW pipes?
A: Pipes in the 406.4mm–1524mm OD range are bundled with steel strips and loaded on rubber cradles or welded chocks inside open-top containers or on flat racks. A written lashing plan is prepared for each shipment to prevent oval deformation or coating damage during ocean transit, and end protectors are fitted on beveled-end pipes.
Q: What is the minimum order quantity for Gr.B LSAW welded steel pipe?
A: The minimum order quantity is 1 Ton. For project orders, we can consolidate multiple OD-Wall combinations and lengths into a single shipment to reduce freight cost per ton.
From Mill Heat to Project Site — Request Your API 5L Gr.B LSAW Pipe Quote
Send your drawings, specification, and quantity to start the technical review and receive a quotation with full Mill Test Certificate documentation.
