Description
Direct Mill Supply, No Middlemen — Every NM400 NM500 wear resistant steel plate rolls from our own steel mill with heat-number traceability from slab to finished sheet.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | NM400 NM500 AR400 AR500 Wear Resistant Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | NM400, NM500, AR400, AR500, Hardox 400, Hardox 500 |
| Standard | ASTM, JIS |
| Thickness | 1-100mm |
| Width | 500-2300mm |
| Length | 1-12m or as customer requested |
| Hardness | Hard |
| Tolerance | ±1% |
| Surface Treatment | Non-oiled |
| Technique | Wear Resistant Carbon Steel Plate |
| Application | Machinery manufacturing / Construction / Petrochemical / Transportation / Mining equipment / Industrial wear parts |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining Equipment | Excavator bucket liners, crusher jaw plates, conveyor chute liners, hopper wear sheets |
| Construction Machinery | Loader blade edges, bulldozer end bits, concrete pump delivery cylinders |
| Industrial Wear Parts | Cement mill liners, aggregate screen panels, coal handling chute linings |
| Petrochemical | Valve trim plates, pipeline wear guards, reactor vessel internal baffles |
| Transportation | Dump truck bed liners, trailer floor plates, grab crane wear buckets |
What Inconsistent Hardness Claims Cost on a Mining Liner Order
Hardness variance beyond ±1% tolerance forces premature liner replacement and unplanned downtime.
When buyers source a NM400 NM500 wear resistant steel plate supplier overseas, the Brinell hardness value printed on a generic certificate often diverges from the actual plate delivered. A batch labeled NM400 arriving at 340 HBW instead of the specified 370-430 HBW range means the liner wears through months ahead of schedule — and the replacement cycle costs far more than the original material savings. [NEED_CITE: Brinell hardness testing methods for wear resistant steel per ASTM E10]
### Matching Abrasion Resistance to Mining and Industrial Wear Environments
Mining operators running high-impact, low-abrasion ore need NM400-grade plates that absorb shock without cracking, while aggregate plants processing hard granite demand NM500 or AR500 for maximum surface longevity. Our NM400 NM500 wear resistant steel plate supplier capability covers both ends of this spectrum in thicknesses from 1mm thin wear strips to 100mm heavy-duty structural plates, all cut to custom lengths up to 12m to minimize on-site welding joints. The non-oiled surface condition arrives ready for CNC plasma cutting and direct welding without pre-treatment delays.
Engineering Compliance and Structural Integrity Requirements
Wear resistant plates used in load-bearing chute structures or crusher frames must satisfy both hardness specifications and dimensional tolerances — a ±1% thickness tolerance ensures predictable weight calculations for structural support design. [NEED_CITE: wear resistant steel plate dimensional tolerance standards per ASTM A6] For projects targeting EU or Middle East markets, material certification must include full chemical composition reports with heat number traceability, not just hardness summaries. Our engineering team reviews shop drawings before fabrication to confirm plate grade selection matches the abrasion-impact ratio of the specific application, preventing over-specification that wastes budget or under-specification that causes early failure.
Steel Grade Selection and Hardness Technology Explained
NM400 and NM500 follow the Chinese GB/T 24101 designation system where the number indicates nominal Brinell hardness — NM400 targets approximately 400 HBW while NM500 reaches 500 HBW for extreme abrasion environments. AR400 and AR500 follow the ASTM international designation (Abrasion Resistant), with equivalent hardness ranges but different testing protocols. Hardox 400 and Hardox 500 represent premium Swedish-origin grades with tighter carbon equivalent controls for superior weldability despite high hardness. The quenching and tempering heat treatment process creates a martensitic microstructure throughout the plate cross-section — this is why thickness uniformity matters: a 100mm plate must achieve consistent hardness from surface to center, not just at the skin. Our vertically integrated mill controls the entire thermal cycle from slab reheating to final tempering, eliminating the hardness variation that occurs when fabricators buy plates from multiple third-party sources.
Hidden Costs of Sourcing Unverified Wear Plates
Plates arriving with inflated hardness certificates or missing heat-number traceability create three categories of hidden cost: customs clearance delays when MTC documentation fails importer verification, structural rework when thickness tolerance deviations exceed ±1% and force on-site machining, and catastrophic field failure when actual hardness falls below specification in high-wear zones. [NEED_CITE: material certification requirements for wear resistant steel imports per EN 10204] A single rejected container of NM500 plates at a West African port costs more in demurrage and re-shipment than the price difference between a verified NM400 NM500 wear resistant steel plate supplier and a broker offering suspiciously low quotes.
Why Procurement Teams Choose Our Mill-Direct Supply
Our own steel production facility with dedicated plate rolling lines means every NM400 NM500 wear resistant steel plate ships with a Mill Test Certificate tied to a specific heat number — no certificate swapping, no third-party material blending. We maintain 2,800+ specifications in raw material inventory, allowing us to consolidate multi-grade orders (NM400 for chute liners, NM500 for crusher plates) into a single shipment with unified documentation. Our in-house理化实验室 tests every heat for chemical composition and Brinell hardness before release, and we welcome SGS or BV third-party inspection at our facility before container loading. Professional export packing with edge protectors and seaworthy bundling preserves the non-oiled surface during ocean transit, while our logistics team handles oversized plate loading plans for 12m lengths that exceed standard container dimensions.
Documentation & Compliance
- Mill Test Certificate documenting NM400/NM500 chemical composition (C, Si, Mn, P, S, Cr, Mo) and Brinell hardness values per heat number
- Third-party inspection report from SGS or BV confirming dimensional tolerance and surface condition before shipment
- Material traceability sheet linking each plate to its original heat number and rolling schedule
- Customs documentation package including packing list, bill of lading, and certificate of origin for import clearance
- Hardness testing report with Brinell verification results for each thickness range supplied
Packaging, Loading & Delivery

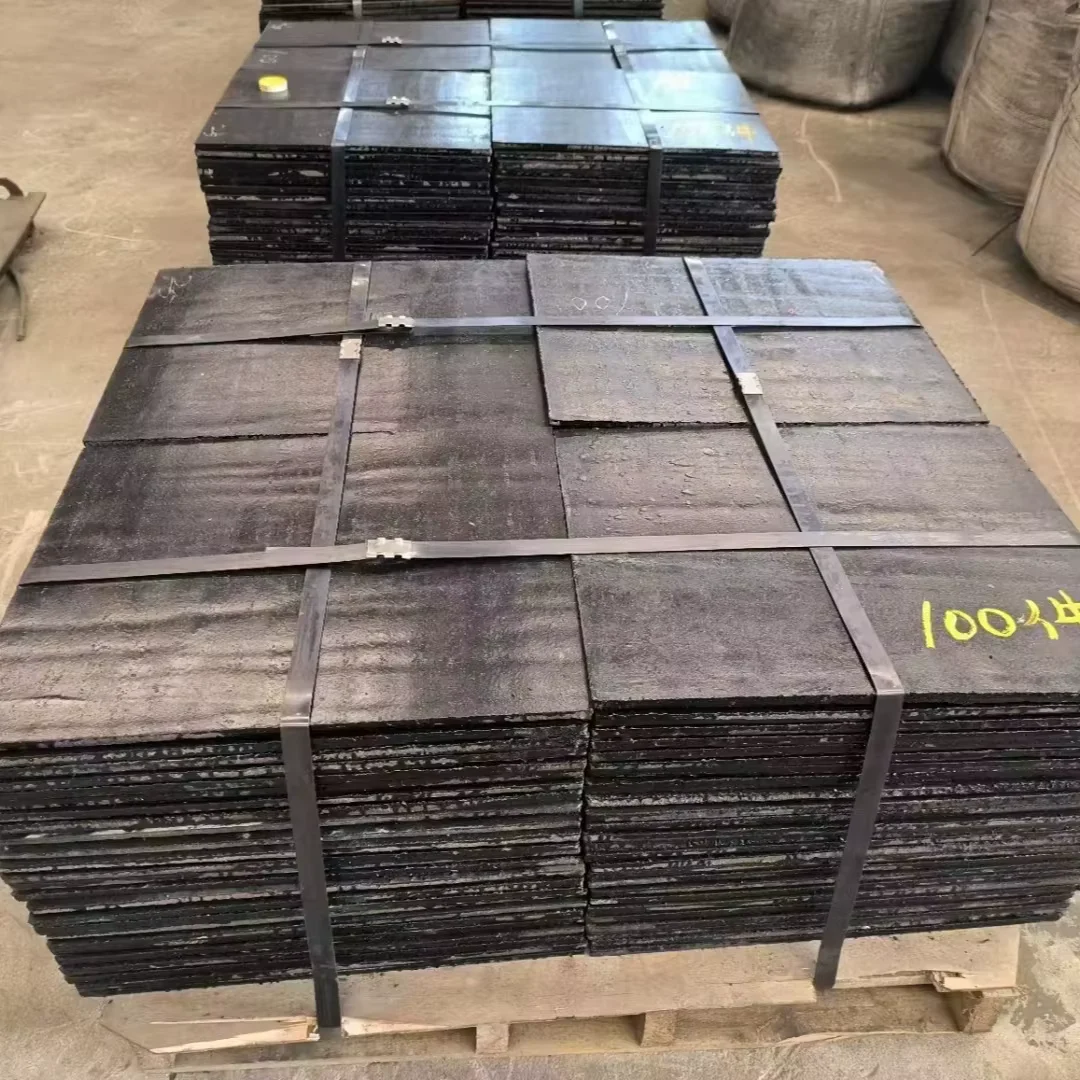

- NM400 NM500 plates bundled with steel strips and edge protectors to prevent surface damage during ocean transit
- Non-oiled surface condition requires moisture-barrier wrapping for containers shipping to humid climates

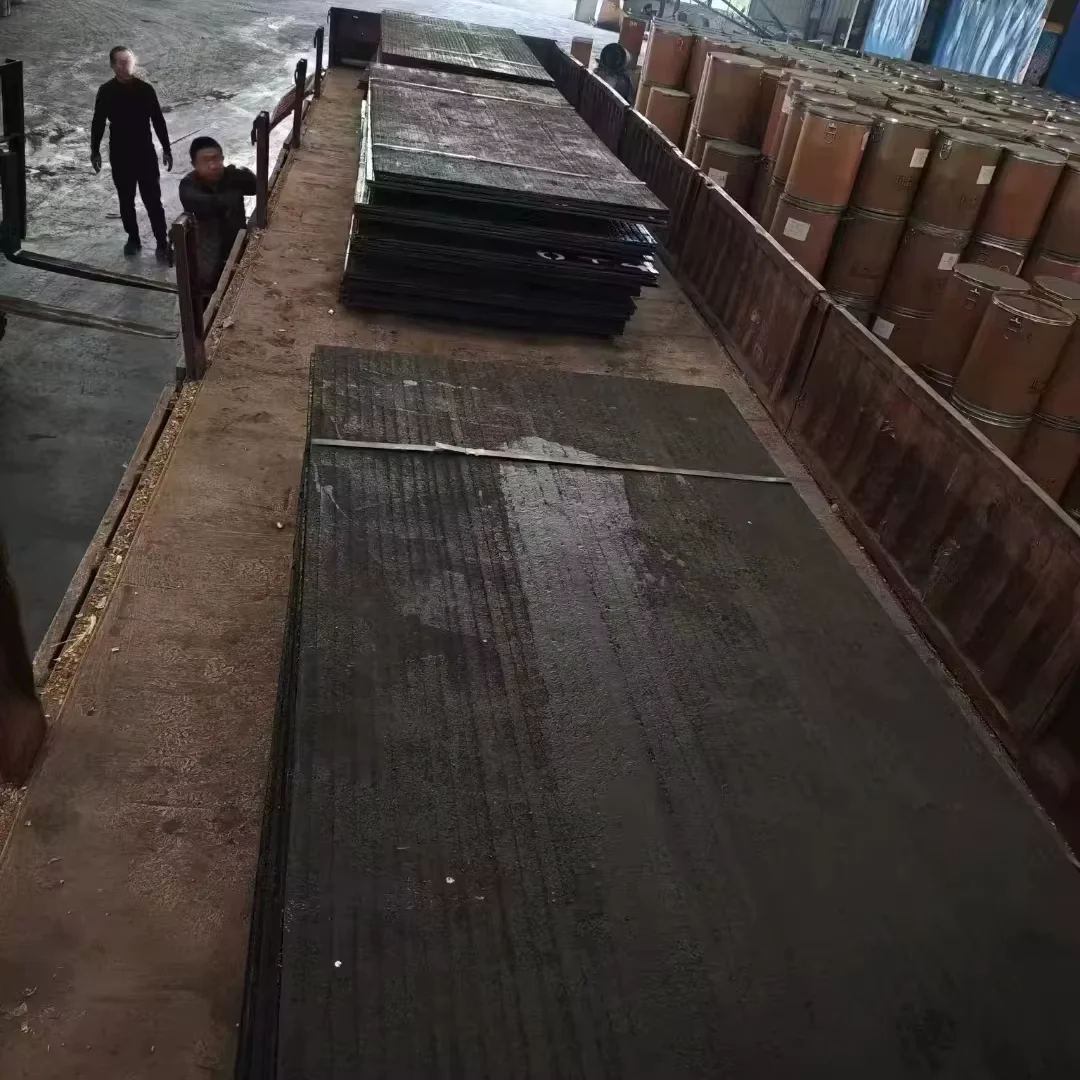

- Custom length plates up to 12m loaded on open-top containers or flat racks with professional lashing plans
- Heat number and steel grade marked on each plate edge for on-site identification and traceability
- FOB, CIF, and DDP delivery terms available with door-to-door logistics for project sites
Ready to Verify Material Traceability for Your Next Wear Plate Order
Share your project drawings specifying NM400, NM500, AR400, or AR500 grades with thickness, width, and quantity requirements — we respond within 24 hours with a detailed quotation including material costs, fabrication services, coating options, and Mill Test Certificate documentation. Confirm your destination port and required third-party inspection preferences, and our engineering team will prepare a shop drawing review to optimize plate nesting and minimize waste.
Frequently Asked Questions
Q: What is the difference between NM400, NM500, AR400, and Hardox 400 grades?
A: NM400 and NM500 follow Chinese GB/T 24101 standards with nominal Brinell hardness of 400 and 500 respectively. AR400 and AR500 follow ASTM international designation with equivalent hardness ranges. Hardox 400 is a premium Swedish-origin grade with tighter carbon equivalent controls for improved weldability. Selection depends on your specific abrasion-impact requirements and welding conditions.
Q: Can you provide third-party hardness testing before shipment?
A: Yes, we welcome SGS or BV inspection at our facility before container loading. Our in-house laboratory provides Brinell hardness testing reports for every heat, and third-party verification confirms the results independently.
Q: What thickness range do you supply for wear resistant plates?
A: We supply NM400 NM500 wear resistant steel plate in thicknesses from 1mm to 100mm, with width ranging 500-2300mm and custom lengths up to 12m. The ±1% thickness tolerance ensures dimensional accuracy for structural calculations.
Q: Do you offer custom cutting and size optimization?
A: Yes, our CNC plasma cutting and fabrication services include custom cutting to your specified dimensions, hole drilling, and edge preparation. We review shop drawings to optimize plate nesting and reduce material waste.
Q: What documentation do you provide for customs clearance?
A: Each shipment includes Mill Test Certificate with heat number traceability, hardness testing reports, packing list, bill of lading, and certificate of origin. We also provide third-party inspection reports if requested before shipment.
Get Your NM400 NM500 Wear Resistant Steel Plate Quote with Full Material Traceability
Send your specifications including steel grade, thickness, dimensions, and quantity to receive a detailed quotation with Mill Test Certificate documentation within 24 hours.
