Description
One-Source Wear Plate Supply — Hot rolled NM400, NM500, JFEEH360, JFEEH400, and JFEEH500 plates rolled in-house with full heat-number traceability from slab to finished sheet.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | JFEEH360 / JFEEH400 / JFEEH500 / NM500 / NM400 Wear Resistant Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | JFEEH360, JFEEH400, JFEEH500, NM500, NM400 |
| Standard | JIS |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled |
| Tolerance | ±1% |
| Application | Construction, Petrochemical, Machinery Manufacturing |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Machinery Manufacturing | Excavator buckets, crusher liners, conveyor scraper blades, mixer drum shells |
| Construction | Bulldozer blades, grader moldboards, foundation drilling teeth holders |
| Petrochemical | Hopper liners, chute wear plates, silo discharge gates, valve body reinforcement plates |
When Hardness Certification Determines Whether a Shipment Clears the Site
A mill certificate that only states grade name without verified Brinell hardness turns a wear plate order into a guessing game.
Project procurement teams sourcing NM400 NM500 wear resistant steel plate supplier options from overseas fabricators frequently discover that the delivered plates carry a grade label but lack independently verified hardness readings tied to specific heat numbers. When a crusher liner stamped as NM500 measures NM400-range hardness on-site, the entire batch fails acceptance testing — triggering return freight, replacement production, and weeks of idle equipment. [NEED_CITE: Brinell hardness verification procedures for wear resistant steel per JIS standards] Material traceability gaps between the rolling mill and the fabrication shop compound this risk, because third-party sourcing breaks the chain from slab chemistry to final plate hardness.
How Wear Grade Selection Matches Abrasion Severity in Field Conditions
Selecting the right wear resistant steel plate begins with mapping the abrasion profile of the end use. NM400 NM500 wear resistant steel plate supplier decisions should weigh impact-to-abrasion ratios: NM400 suits moderate sliding abrasion in chute liners and hopper walls where formability matters, while NM500 handles high-stress grinding in crusher jaws and mining bucket lips. The JFEEH series — JFEEH360, JFEEH400, JFEEH500 — offers JIS-standardized gradations that align with Japanese engineering specifications common in Southeast Asian and Middle Eastern EPC projects. Our in-house rolling lines produce all five grades from stocked slabs, so grade switching within a single order does not require separate mill campaigns or extended lead times.
Structural Compliance and Certification Requirements for Wear Plate Procurement
Wear resistant plates used in load-bearing machinery frames or petrochemical platform structures must satisfy both hardness specifications and dimensional tolerances. The ±1% thickness tolerance on our hot rolled plates ensures that CNC cutting programs run without compensation errors — a critical factor when fabricators are nesting multiple parts from a single sheet. For EU-bound shipments, EN 1090 execution class documentation may be required alongside the JIS grade certificates, and our engineering team prepares shop drawing reviews that cross-reference hardness zones with weld joint locations. [NEED_CITE: EN 1090 structural steel execution class requirements for fabricated components] Third-party inspection by SGS or BV is available at the mill before shipment, covering hardness testing, ultrasonic scanning for internal defects, and dimensional verification against purchase drawings.
Hot Rolling Process and Hardness Consistency Across the JFEEH and NM Series
Hot rolling at controlled finishing temperatures produces the martensitic or bainitic microstructures that give NM400, NM500, and JFEEH-series plates their abrasion resistance. Unlike quenched-and-tempered plates that require separate heat treatment after rolling, our hot rolled wear plates achieve target Brinell hardness ranges through precise cooling rates on the run-out table — reducing the risk of surface decarburization that can soften the wearing face. The JFEEH360, JFEEH400, and JFEEH500 designations follow JIS classification logic where the numeric suffix indicates minimum Brinell hardness, providing a direct specification link for buyers working with Japanese-origin engineering drawings. NM400 and NM500 follow the Chinese GB/T 24512 naming convention widely accepted across Belt & Road infrastructure projects, and our mill issues dual-certification test reports when a single order must satisfy both JIS and GB references. [NEED_CITE: Hot rolling temperature control effects on wear resistant steel microstructure]
The Hidden Costs of Sourcing Wear Plate Without Verified Hardness Data
Procuring wear resistant steel plate on price alone, without requiring heat-specific hardness test reports, exposes projects to three categories of hidden cost. First, plates that underperform their stated grade wear out prematurely — a conveyor scraper blade rated NM500 but delivering NM400 hardness may last only half its expected service interval, forcing unplanned shutdowns for replacement. Second, dimensional tolerance drift beyond ±1% causes CNC cutting misalignment and weld joint gaps that fail ultrasonic inspection, requiring re-cutting or full component rejection. Third, missing or incomplete mill test certificates delay customs clearance in markets that mandate material documentation for imported steel products. [NEED_CITE: Material certification requirements for steel plate imports in Middle East and African markets]
Why Engineering Procurement Teams Source NM400 NM500 Wear Resistant Steel Plate Supplier Services Through Our Mill
Our vertically integrated operation eliminates the material traceability gap that plagues broker-sourced wear plate orders. The same facility that produces the raw slab rolls the finished plate, issues the mill test certificate, and prepares the export documentation — one quality system, one point of accountability. We stock over 2,800 specifications of raw material, so NM400, NM500, JFEEH360, JFEEH400, and JFEEH500 orders draw from certified slab inventories rather than spot-market purchases with unknown chemistry. Certified welding procedures (WPS/PQR) and qualified welders support any post-rolling fabrication, and our engineering team reviews shop drawings to optimize nesting and minimize waste on custom-cut orders. Complete quality documentation packages — including heat numbers, hardness maps, dimensional inspection reports, and coating certificates where applicable — travel with every shipment.
Documentation & Compliance
- Mill test certificate documenting JFEEH360/JFEEH400/JFEEH500/NM400/NM500 chemical composition and Brinell hardness values per heat number
- Third-party inspection report from SGS or BV covering hardness testing, ultrasonic examination, and dimensional verification
- ISO 9001 quality management system certificate covering the integrated rolling and fabrication process
- Material traceability sheet linking each plate to its slab heat number, rolling schedule, and cooling parameters
- Export customs documentation including packing list, bill of lading, and certificate of origin formatted for destination-port clearance
- Welding procedure specifications (WPS) and procedure qualification records (PQR) for any fabrication welding performed on the plates
Packaging, Loading & Delivery

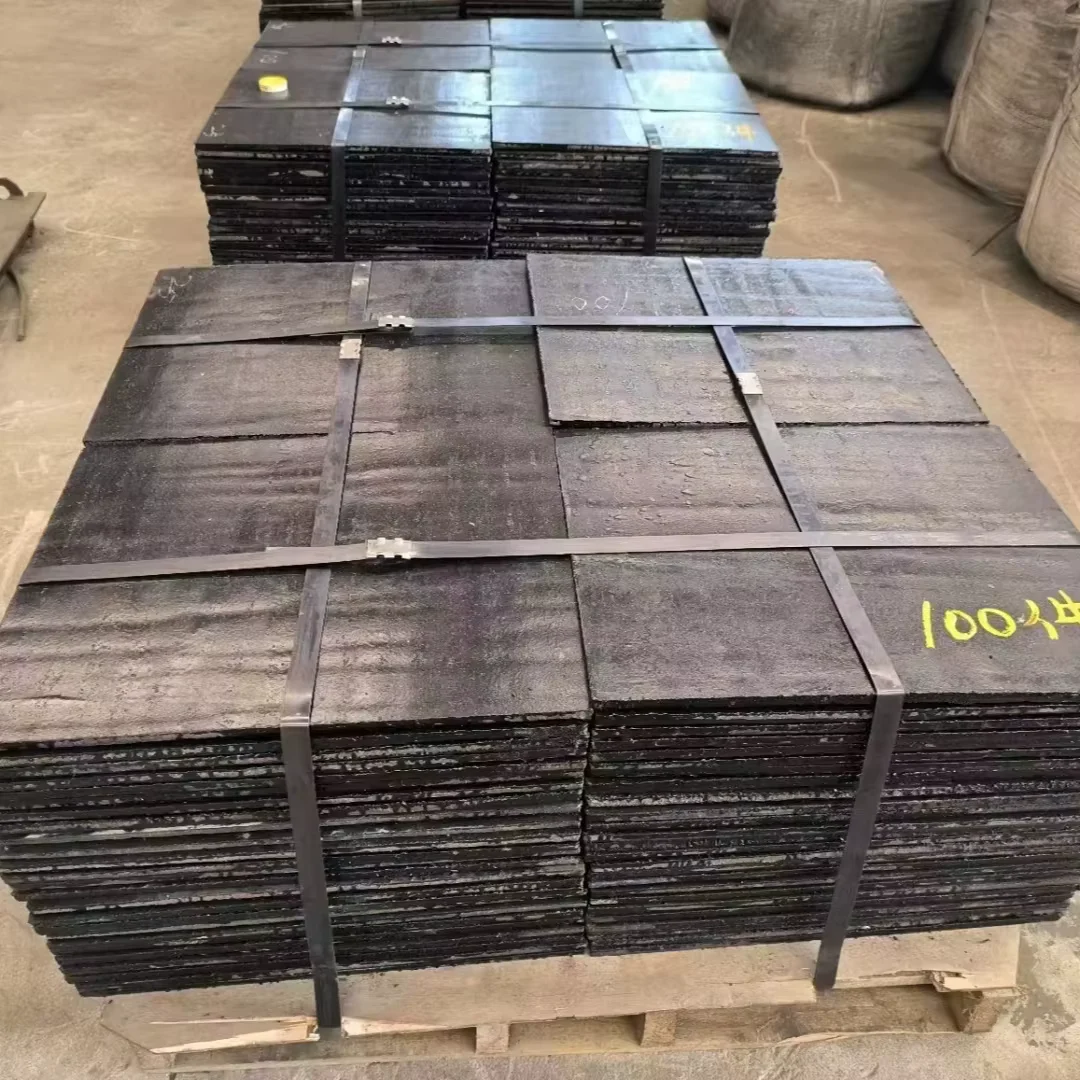

- Hot rolled NM400 and NM500 plates bundled with steel straps and edge protectors to prevent surface scratching during ocean transit
- Surface protection via mill-applied anti-rust coating or interleaving paper for JFEEH-series plates requiring preserved surface quality for CNC cutting
- Container loading optimized for plate dimensions — standard 20ft and 40ft containers configured with timber dunnage to distribute weight and prevent shifting
- Custom cutting to project-specified lengths before shipment, reducing on-site waste and cutting costs for machinery manufacturers

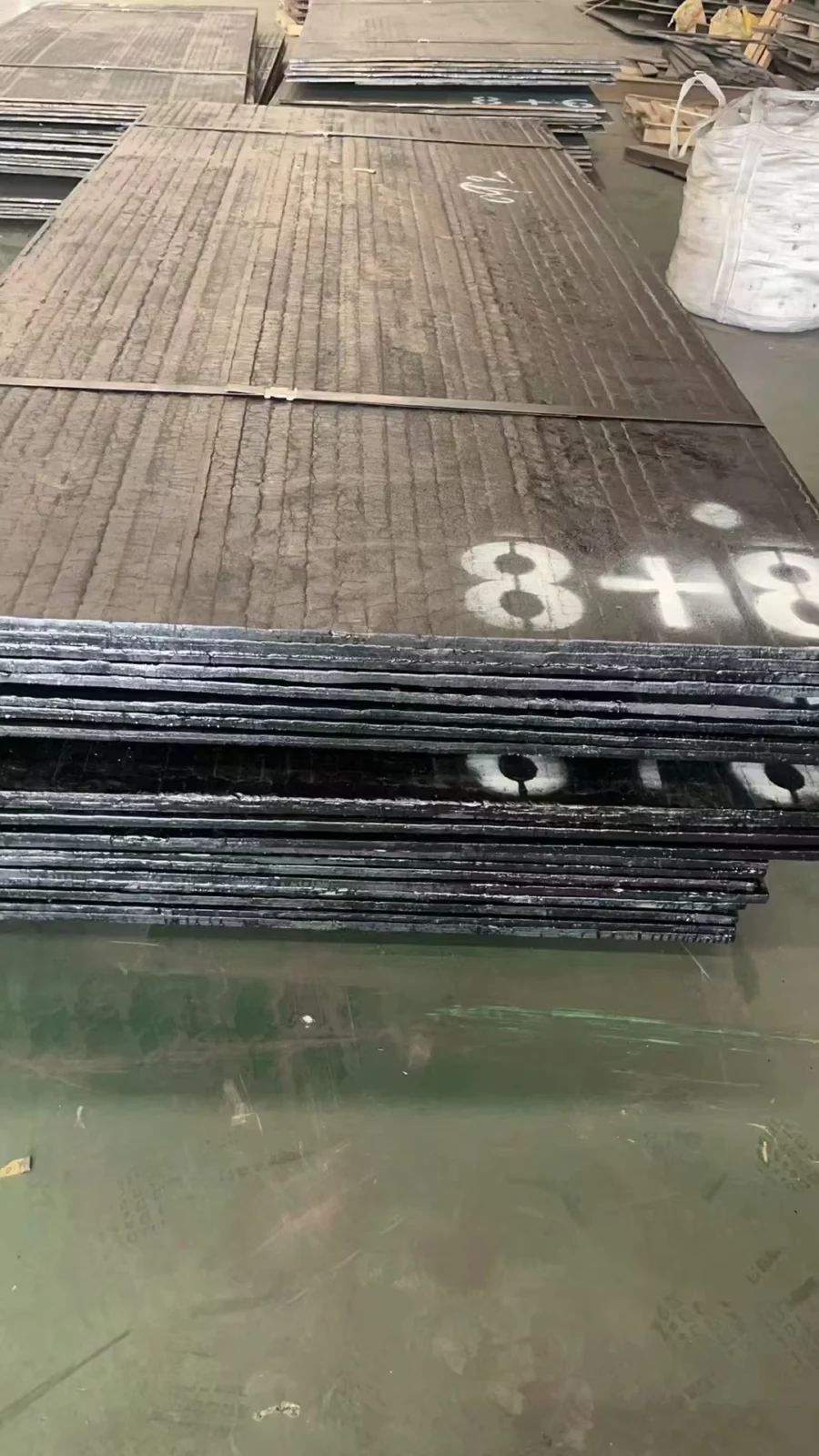

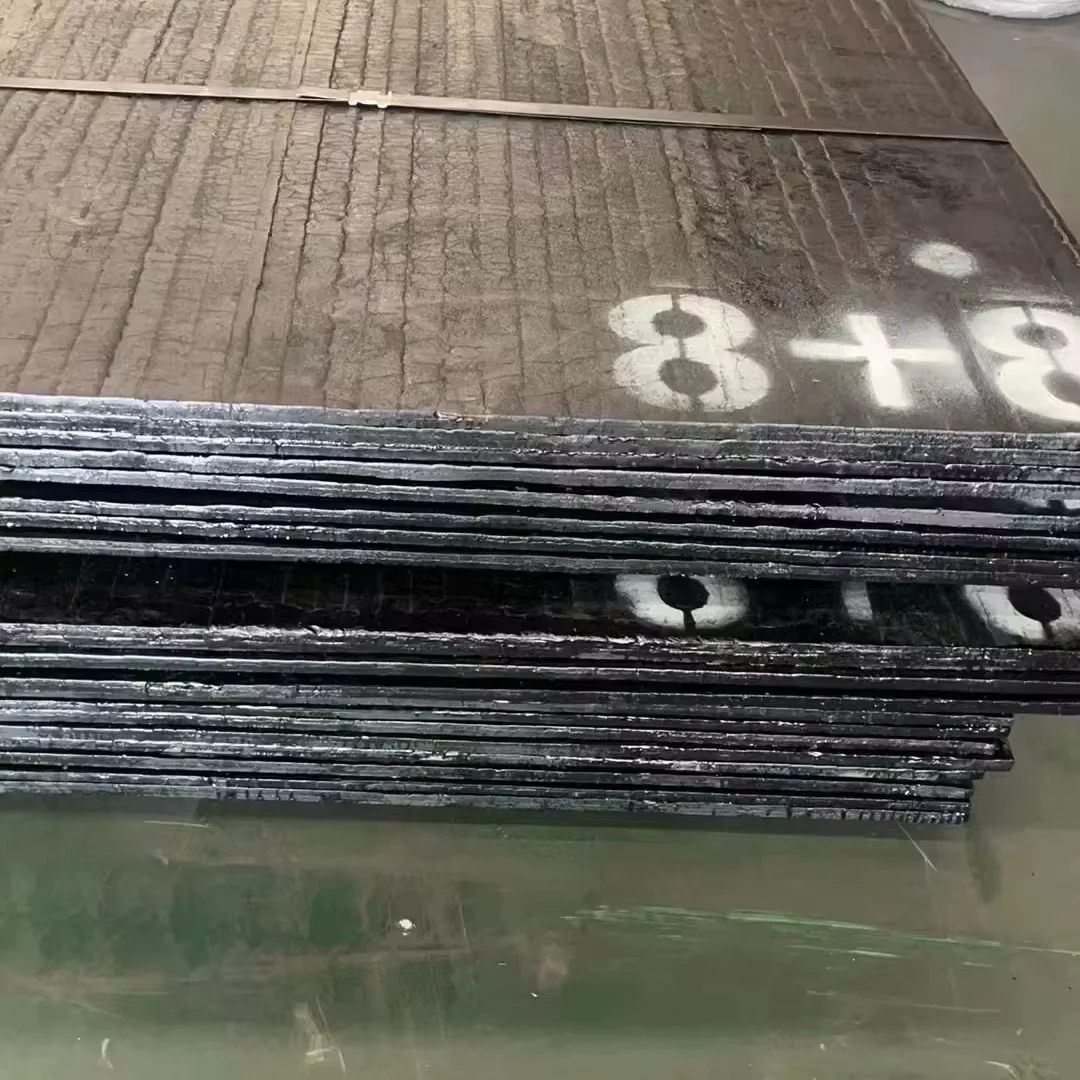

- Heat number and grade stenciled on each plate surface with paint markers, matching the mill test certificate for on-site verification
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination for Middle East, Southeast Asian, and African project sites
Starting Your NM400 NM500 Wear Resistant Steel Plate Supplier Inquiry
Submit your project drawings (PDF or DWG), required steel grades, plate dimensions, and destination port to receive a detailed quotation within 24 hours. Our engineering team will review material specifications, confirm hardness requirements against your application, and provide a shop drawing proposal with nesting optimization before production begins.
Request Your Wear Plate Quotation and Mill Test Certificate
Share your specifications, steel grade requirements, and order quantity to receive pricing, production timelines, and complete material documentation.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between NM400 and NM500 wear resistant steel plate for machinery applications?
A: NM400 offers moderate abrasion resistance with better formability, making it suitable for chute liners, hopper walls, and conveyor components where plates must be bent or welded into complex shapes. NM500 provides higher Brinell hardness for high-stress grinding applications such as crusher jaws, mining bucket lips, and excavator wear parts. Both grades are hot rolled in our mill with full heat-number traceability and mill test certificates.
Q: Can you provide JFEEH-series plates for projects requiring JIS standard compliance?
A: Yes, we produce JFEEH360, JFEEH400, and JFEEH500 plates to JIS standards, with mill test certificates documenting chemical composition and hardness values. These grades are commonly specified in Japanese-origin engineering drawings for Southeast Asian and Middle Eastern EPC projects. We can also issue dual-certification reports when orders must satisfy both JIS and GB/T references.
Q: What thickness tolerance do your hot rolled wear plates meet?
A: Our hot rolled NM400, NM500, and JFEEH-series plates are produced to ±1% thickness tolerance, ensuring dimensional accuracy for CNC cutting and welding operations. This tolerance range prevents nesting errors and weld joint gaps that can occur with plates exceeding standard tolerance limits.
Q: Do you offer third-party inspection before shipment?
A: Yes, we arrange SGS or BV third-party inspection at our mill before shipment. The inspection covers Brinell hardness testing, ultrasonic scanning for internal defects, dimensional verification against purchase drawings, and surface quality assessment. Inspection reports are included in the export documentation package.
Q: What is the minimum order quantity for custom-cut wear resistant steel plate?
A: Minimum order quantities depend on plate thickness, grade, and cutting complexity. Contact our sales team with your project drawings and specifications to receive a detailed quotation including custom cutting options, nesting optimization, and delivery timelines.
