Description

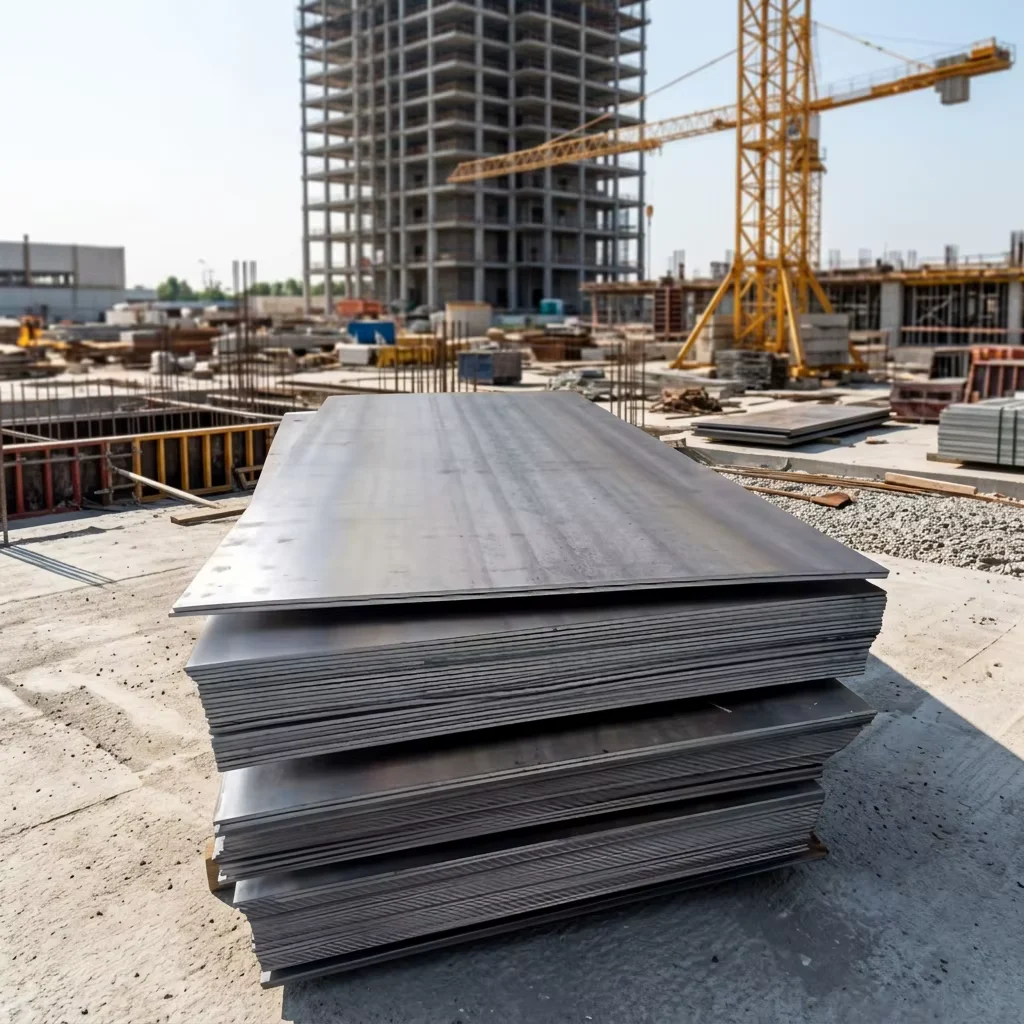

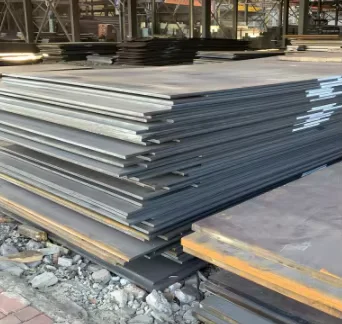

Direct Mill Supply — NM400 and NM500 plates rolled, tested, and shipped from our own production lines with full heat-number traceability.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | NM400/NM500 Wear Resistant Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | NM400, NM500 |
| Standard | JIS, ASTM, DIN |
| Thickness | 12mm |
| Technique | Hot Rolled |
| Surface Treatment | Coated / Cutting Service Available |
| Application | Wear-resistant equipment / Mining machinery / Construction equipment / Industrial liners / Bucket blades |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining | Conveyor chute liners, hopper wear plates, crusher jaw guards, dump truck bed liners |
| Construction Equipment | Excavator bucket blades, loader bucket cutting edges, grader moldboards |
| Industrial Processing | Cement mill discharge liners, aggregate screening plates, coal handling chute linings |
| Material Handling | Screw conveyor flights, silo hopper bottoms, transfer point wear sheets |
What Thickness Tolerance Costs When Wear Plates Fail Prematurely
A 12mm NM500 plate that arrives under-spec loses its wear life before the next scheduled shutdown.
Overseas procurement teams ordering NM400 NM500 wear resistant steel plate supplier shipments from fragmented sources face a recurring problem: the mill test certificate says NM500, but the actual Brinell hardness falls short because the heat treatment was rushed or the rolling reduction was insufficient. The plate looks right, cuts right, and installs right — then wears through in half the expected service life. [NEED_CITE: wear resistant steel plate hardness testing standards and field performance correlation] When this happens on a mining conveyor liner, the cost is not just the replacement plate — it is the unplanned downtime, the crew mobilization, and the cascading delay across the entire production shift.
Matching Hardness Grade to Abrasion Severity in Mining and Construction
Selecting between NM400 and NM500 is not simply a matter of choosing the harder option. NM400 provides sufficient resistance for moderate-abrasion environments such as grain silo liners and light-duty material handling chutes, where impact loading is low and the primary wear mechanism is sliding abrasion. NM500 is specified when the application involves high-stress gouging abrasion — crushed ore in mining hoppers, granite aggregate in construction equipment buckets, or iron ore transfer points. As an NM400 NM500 wear resistant steel plate supplier operating our own rolling and heat treatment lines, we control the quenching and tempering cycle for each heat, ensuring the hardness distribution across the plate width stays within the grade specification. This matters when a 12mm plate is CNC-cut into complex bucket liner shapes: inconsistent hardness through the thickness means the cut edges wear at a different rate than the plate body.
Engineering Compliance and Certification for International Wear Plate Procurement
Wear resistant plates shipped to EU, Middle East, and Southeast Asian projects must carry documentation that satisfies both the material standard and the importing country’s customs requirements. JIS, ASTM, and DIN designations each define different testing protocols for hardness verification, and the mill test certificate must explicitly state the test method used — typically Brinell for NM grades. [NEED_CITE: international wear resistant steel plate certification requirements for mining and construction equipment] Third-party inspection agencies such as SGS or BV can verify hardness and dimensions at the loading port, but the underlying material traceability must originate from the producing mill. Our vertically integrated operation means every plate’s heat number traces back to our own steelmaking, eliminating the documentation gaps that occur when a trading company sources from multiple uncontrolled mills.
Hot Rolling, Hardness, and the Heat Treatment Window for NM Grades
NM400 and NM500 are quenched and tempered wear-resistant steels, where the “NM” designation indicates the nominal Brinell hardness value — 400 and 500 respectively. The hot rolling process produces the initial plate geometry at 12mm thickness, but the critical mechanical properties are developed during the subsequent quenching and tempering cycle. Quenching transforms the microstructure to martensite, providing the base hardness; tempering then reduces brittleness to a level where the plate can be cut, drilled, and welded without catastrophic cracking. The balance between hardness and toughness is what separates a reliable NM400 NM500 wear resistant steel plate supplier from one that delivers plates that crack during CNC cutting or shatter under impact loading in the field. Surface coating options add a secondary corrosion protection layer, which is relevant when wear plates are stored outdoors before installation or used in wet abrasive environments such as slurry handling systems.
The Hidden Cost of Sourcing Wear Plates Without Mill Traceability
Procuring NM400 NM500 wear resistant steel plate supplier shipments from trading intermediaries introduces a chain of custody that breaks material traceability. The plate arrives with a certificate, but the heat number does not link back to a recognized producing mill — it links back to a warehouse receipt. When the plate fails in service, the end user cannot determine whether the chemistry was correct, whether the quenching temperature was held, or whether the plate was actually NM500 or a lower-grade substitution. [NEED_CITE: material traceability requirements for wear resistant steel in mining equipment specifications] The result is not a warranty claim — it is a forensic metallurgical investigation, a project delay, and a procurement team that will never trust that supplier again. Correct sourcing from a vertically integrated mill eliminates this risk entirely: one heat number, one test certificate, one accountable source.
Why Engineering Teams Source NM400 NM500 Wear Resistant Steel Plate Supplier Shipments From Our Mill
Our own steel production facility operates dedicated rolling lines for wear-resistant grades, meaning we control the chemistry, the rolling reduction, and the heat treatment cycle from slab to finished plate. Every NM400 NM500 wear resistant steel plate supplier order leaving our facility carries a mill test certificate generated by our own laboratory, with hardness tested per plate and heat number fully traceable. We maintain over 2,800 specifications of raw material inventory, so standard 12mm thicknesses in both NM400 and NM500 are available for immediate production scheduling rather than waiting for a third-party mill’s campaign. Our CNC cutting, plasma cutting, and flame cutting services process plates to project-specific drawings before shipment, reducing on-site fabrication time for mining and construction clients. Welding procedures are qualified per international standards, and our welders hold current certifications — critical when wear plates must be welded into bucket assemblies or liner systems in the field. Complete quality documentation packages travel with every shipment: WPS, PQR, hardness test reports, dimensional inspection records, and coating certificates where applicable.
Documentation & Compliance
- Mill Test Certificate documenting NM400 and NM500 chemical composition and Brinell hardness values per JIS, ASTM, and DIN standards
- Material traceability by heat number from our own steelmaking through hot rolling and heat treatment to finished 12mm plate
- Third-party inspection reports from SGS or BV verifying hardness, dimensions, and surface condition at loading port
- Hardness test reports confirming Brinell values across the plate width for each heat lot
- Coating thickness and adhesion test certificates for surface-treated NM400 NM500 wear resistant steel plate supplier orders
- Export customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Hot rolled NM400 and NM500 plates bundled with steel strips and edge protectors to prevent coating damage and edge deformation during ocean transit
- Surface-coated 12mm wear plates wrapped in waterproof paper and plastic film to preserve the protective layer against moisture and salt spray
- Custom-cut plates nested and separated with timber dunnage to prevent contact damage between CNC-cut profiles during container loading
- Heat number and steel grade stenciled on each plate bundle for on-site identification and traceability verification
- Container loading plans optimized for 12mm plate dimensions to maximize payload per 20ft and 40ft containers
- FOB, CIF, and DDP delivery terms available with full export documentation and tracking through to project site
How to Initiate a Wear Plate Procurement With Full Technical Validation
Submit your project drawings, required NM400 or NM500 grade, 12mm thickness specification, quantity, and destination port. We respond within 24 hours with a preliminary assessment including material availability, cutting service feasibility, production scheduling, and the complete mill test certificate and third-party inspection package that will accompany your shipment.
Frequently Asked Questions
Q: What is the difference between NM400 and NM500 for mining liner applications?
A: NM400 suits moderate sliding abrasion environments with lower impact loading, while NM500 is specified for high-stress gouging abrasion such as crushed ore hoppers and iron ore transfer points. The selection depends on the specific wear mechanism and impact severity in your application.
Q: Can you provide third-party inspection for NM400 NM500 wear resistant steel plate supplier shipments?
A: Yes, SGS and BV third-party inspections are available for hardness verification, dimensional checks, and surface condition assessment at the loading port before shipment.
Q: Do you offer custom cutting services for 12mm wear plates?
A: Yes, our CNC cutting, plasma cutting, and flame cutting services process NM400 and NM500 plates to your project-specific drawings and dimensions before shipment.
Q: What documentation accompanies each wear plate shipment?
A: Every shipment includes a mill test certificate with chemical composition and Brinell hardness values, heat number traceability, dimensional inspection reports, and coating certificates where applicable.
Q: What is the minimum order quantity for NM400 and NM500 plates?
A: MOQ requirements depend on the specific grade, thickness, and whether custom cutting services are required. Contact us with your specifications for a detailed quotation.
Get Your NM400 NM500 Wear Resistant Steel Plate Quotation With Full Mill Documentation
Send your project specifications, steel grade, thickness, quantity, and destination port to receive a detailed quotation including material cost, fabrication services, and the complete mill test certificate package.
