Description
Integrated Mill-to-Plate Supply — Hot rolled carbon steel sheets produced and fabricated under one quality system, from raw slab to cut-to-size plate.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Sheet / Hot Rolled Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | Q235, Q345, SS400, A36, S235JR, S355JR, St37-2, Q195-Q460, SPHC-E |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Thickness | 0.35–200mm |
| Width | 1000–2500mm |
| Length | 2000–12000mm |
| Technique | Hot Rolled |
| Surface Treatment | Black |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Application | Shipbuilding, Construction, Petrochemical, Machinery Manufacturing, Transportation, Container Fabrication, Pressure Vessels, Bridge Engineering, Boiler |
| MOQ | 1 Ton |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & EPC | Building frames, warehouse portal frames, platform grating supports, stairway stringers |
| Shipbuilding & Bridge | Deck plating, bulkhead panels, bridge girder web plates, splice connections |
| Petrochemical & Pressure Vessel | Tank shell courses, saddle supports, flange blanks, expansion joint plates |
| Container & Machinery | Container corner castings, base rails, conveyor frame gussets, crane boom side plates |
When Thickness Tolerance Decides Whether Your Frame Fits Together
A ±1% tolerance on a 200mm plate means ±2mm — enough to throw off bolt-hole alignment on a moment connection.
Procurement teams ordering hot rolled carbon steel sheet from overseas fabricators routinely discover that dimensional drift compounds at the assembly stage. When plates arrive outside the stated tolerance range, field crews spend days re-drilling or re-cutting on site — or worse, force-fit members that introduce unintended eccentric loads into the structure. The root cause is often fragmented sourcing: the plate comes from one mill, the fabrication from another shop, and nobody owns the full tolerance chain. [NEED_CITE: dimensional tolerance requirements for structural steel plates in EN 10029]
Matching Plate Grades to Structural Load Paths
Every project carries a specific load path requirement, and selecting the right hot rolled carbon steel sheet grade determines whether that path performs as engineered. For general warehouse frames and non-critical bracing, Q235 or S235JR provides adequate yield capacity at lower cost. When the design calls for heavier point loads — crane runways, equipment supports, bridge girders — stepping up to Q345 or S355JR delivers higher yield strength without increasing plate thickness, which in turn reduces welding volume and distortion risk. The ±1% thickness tolerance holds across the full 0.35–200mm range, meaning precision-cut flange plates for pressure vessels arrive ready for fit-up without secondary machining.
Engineering Compliance Across International Standards
Structural plates serving EU-bound projects must conform to EN standards and carry CE marking for customs clearance; North American projects typically specify ASTM A36 or equivalent. Our hot rolled carbon steel sheet covers both systems — S235JR and S355JR for EN 1993 design, A36 and A572 for AISC-based structures, SS400 for JIS-governed work in Southeast Asia. Third-party inspection through SGS or BV is available at the mill before shipment, verifying chemical composition and mechanical properties against the specified standard. [NEED_CITE: steel grade equivalence mapping between EN 10025 and ASTM standards] For projects requiring weld procedure qualification, we supply WPS and PQR documentation matched to the delivered grade, eliminating guesswork at the fabrication shop.
Understanding the Grade Families You Are Ordering
The hot rolled carbon steel sheet range spans three major designation systems, and knowing which family your project falls under prevents substitution errors at the mill. The Q-series (Q195 through Q460) follows the Chinese GB standard, where the number after “Q” indicates minimum yield strength in MPa — Q235 yields at 235 MPa, Q345 at 345 MPa. The S-series (S235JR, S355JR) uses the same logic under EN 10025, with the suffix letter indicating impact test temperature: JR means Charpy tested at +20°C. The ASTM system (A36) specifies yield at 250 MPa minimum with no impact testing requirement for standard grades. Hot rolling produces a mill-scale black surface that is suitable for most structural applications where painting or coating will follow; for corrosion-exposed environments, the plate can be shot-blasted and primed per project specification before dispatch.
The Hidden Cost of Unverified Plate Procurement
Ordering hot rolled carbon steel sheet without verified mill test certificates creates a cascade of downstream risks. Material that fails to meet the specified grade’s chemical composition will not pass weld procedure qualification — meaning every welded connection on the project becomes suspect. Plates delivered with thickness below the negative tolerance limit reduce the section modulus of the member, potentially triggering structural recalculation and redesign. At the customs stage, missing or mismatched documentation leads to port holds, demurrage charges, and project delays that dwarf the original material savings. [NEED_CITE: consequences of non-compliant structural steel in international construction projects]
Why Procurement Teams Consolidate With Us
We operate our own steel production facility with three rolling lines, meaning the hot rolled carbon steel sheet you order is produced, tested, and documented under a single quality system — no third-party plate trading, no broken material traceability chains. Our inventory covers over 2,800 specifications across the full grade and dimension range, so mixed-grade orders for EPC projects ship from one source with unified documentation. Every plate carries a heat number traceable to the original slab chemistry, and our in-house laboratory issues mill test certificates before the container is sealed. For oversized plates exceeding standard container dimensions, we engineer custom loading plans — I learned to draw those plans myself after watching a client’s order get rejected at Jebel Ali because the plates shifted during ocean transit.
Documentation & Compliance
- Mill test certificate documenting Q235/A36/S235JR chemical composition and mechanical properties per GB/ASTM/EN standards, traceable by heat number
- CE certificate for S235JR and S355JR plates destined for EU construction markets, confirming EN 10025 compliance
- ISO 9001 quality management certificate covering the full production and inspection process
- SGS or BV third-party inspection report available at the mill prior to shipment, verifying dimensional accuracy and surface condition
- Full customs documentation package: commercial invoice, packing list, bill of lading, and certificate of origin matched to plate heat numbers
Packaging, Loading & Delivery

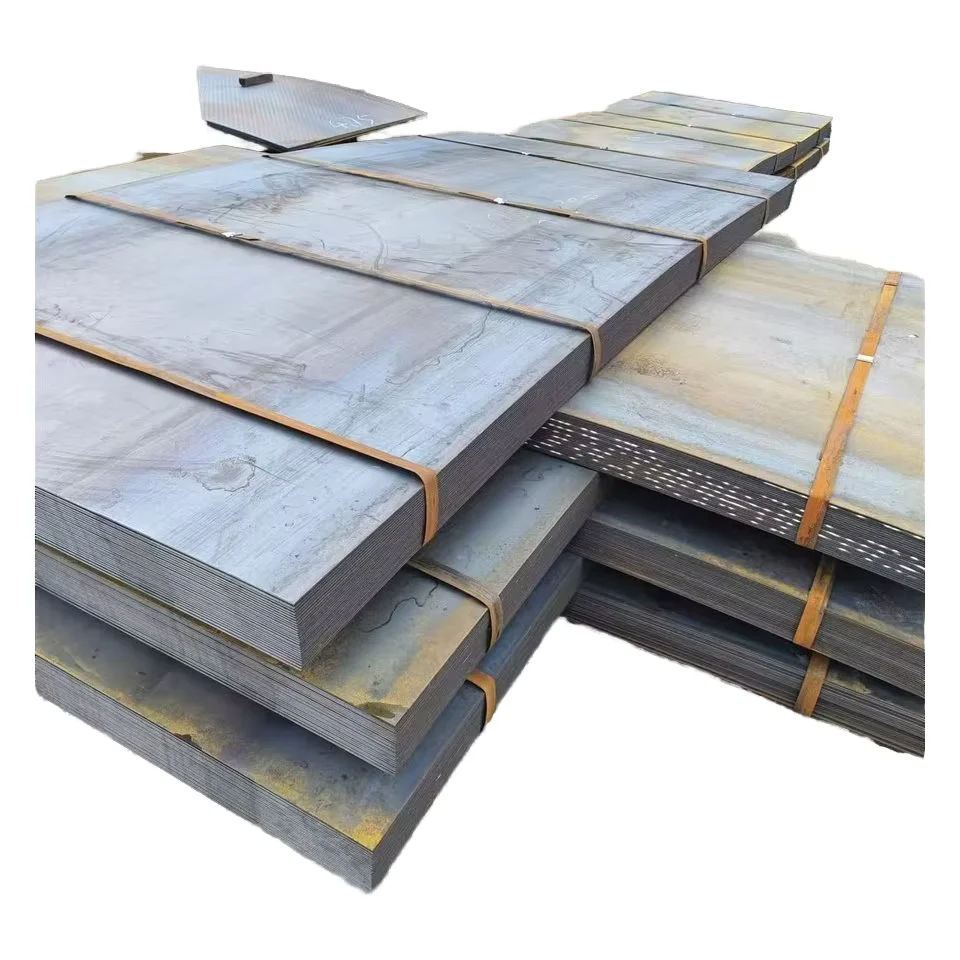

- Hot rolled carbon steel sheet bundled with steel straps and edge protectors, black surface preserved with anti-rust oil for ocean transit
- Plates cut to project-specified lengths within the 2000–12000mm range, minimizing on-site waste and secondary cutting
- Container loading plans optimized for 1000–2500mm width plates, with timber dunnage and lashing designed to prevent edge damage during heavy-sea transit
- Heat number and grade stenciled on each plate end for site identification, matching the mill test certificate package
- FOB, CIF, and DDP terms available, with door-to-door coordination for project sites requiring direct delivery to fabrication yards
Getting Your Quotation Started
Send your project drawings or plate schedule — specifying grade, thickness, width, length, quantity, and destination port — and we return a detailed quotation within 24 hours, including material cost, processing charges, packing, and freight. For projects requiring third-party inspection or specific certification packages, confirm those requirements upfront so we can include them in the proposal and production timeline.
Frequently Asked Questions
Q: Can you supply mill test certificates for both GB and EN standards on the same order?
A: Yes. We produce hot rolled carbon steel sheet to multiple standards simultaneously. Each plate receives a mill test certificate specific to the grade and standard you specify — Q235 plates are tested per GB/T 700, S235JR plates per EN 10025-2, and A36 plates per ASTM A36. Mixed-standard orders ship with separate documentation for each grade.
Q: What is the minimum order quantity for custom-cut plates?
A: The MOQ is 1 Ton. We can cut plates to your specified dimensions within the 0.35–200mm thickness and 2000–12000mm length range. For smaller quantities, we consolidate your order with other project shipments to meet the minimum efficiently.
Q: Do you offer third-party inspection before shipment?
A: Yes. SGS and BV inspections are available at our mill. The inspector verifies dimensional tolerance, surface condition, and reviews the mill test certificate against your purchase specification. The inspection report is included in the shipping documentation package.
Q: How do you handle oversized plates that exceed standard container dimensions?
A: Plates up to 2500mm width and 12000mm length fit within standard flat-rack or open-top containers. For plates exceeding these dimensions, we arrange break-bulk shipping or specialized equipment. Each loading plan is engineered with timber dunnage and steel strap lashing to prevent movement during ocean transit.
Q: Can you provide weld procedure qualification support for the plates you supply?
A: Yes. We supply welding procedure specifications (WPS) and procedure qualification records (PQR) matched to the steel grade delivered. This supports your fabrication shop in qualifying welders and procedures before production begins, reducing the risk of weld rejection during project inspection.
Request Your Hot Rolled Carbon Steel Sheet Quotation
Submit your plate schedule — grade, dimensions, quantity, and destination — to receive a detailed quotation with mill test certificate and loading plan within 24 hours.
