Description
Direct mill supply, no trading markup — Q235 LSAW pipes produced and tested in-house from slab to finished weld seam.
Technical Specifications
| Parameter | Value |
|---|---|

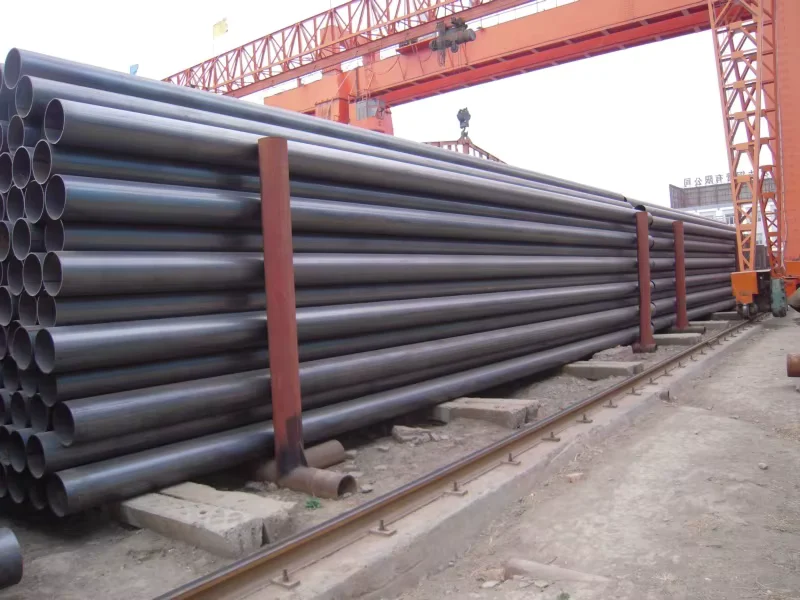

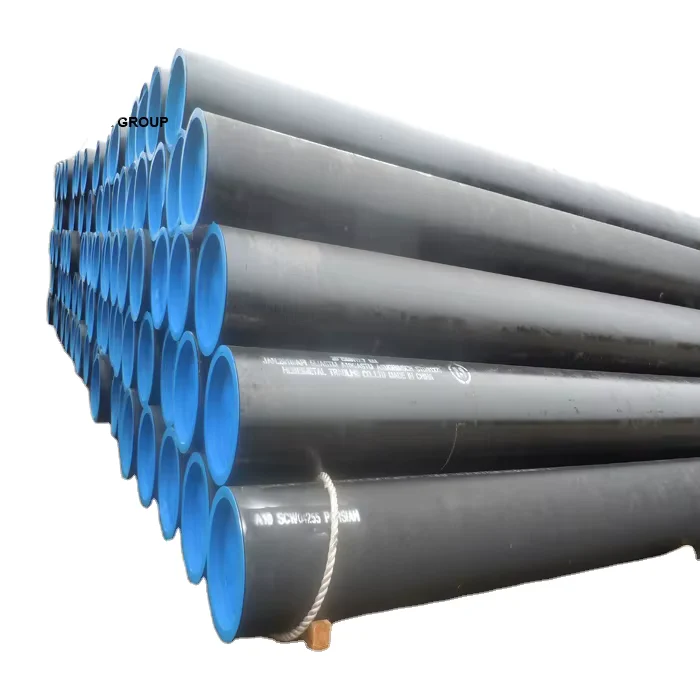

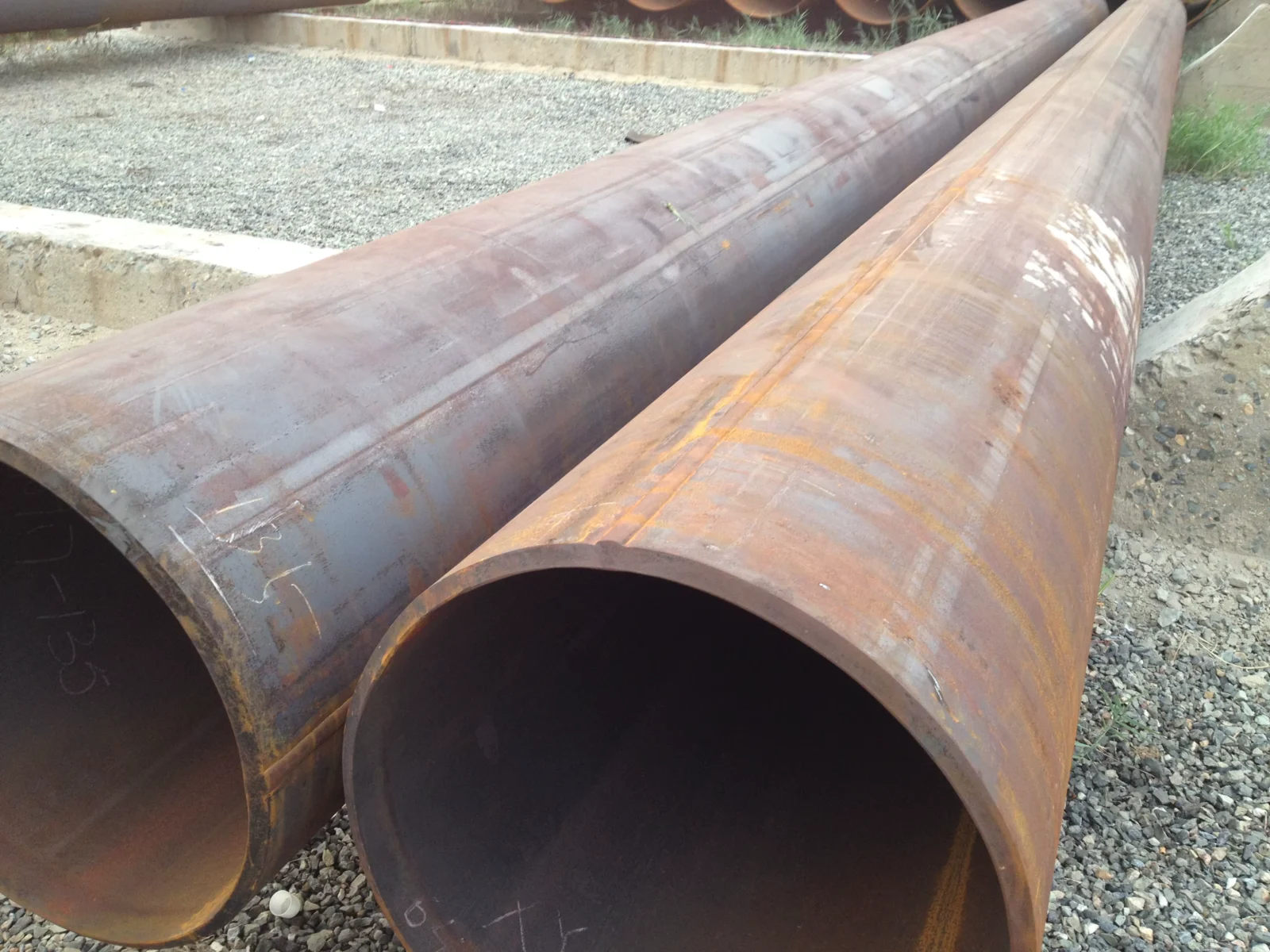

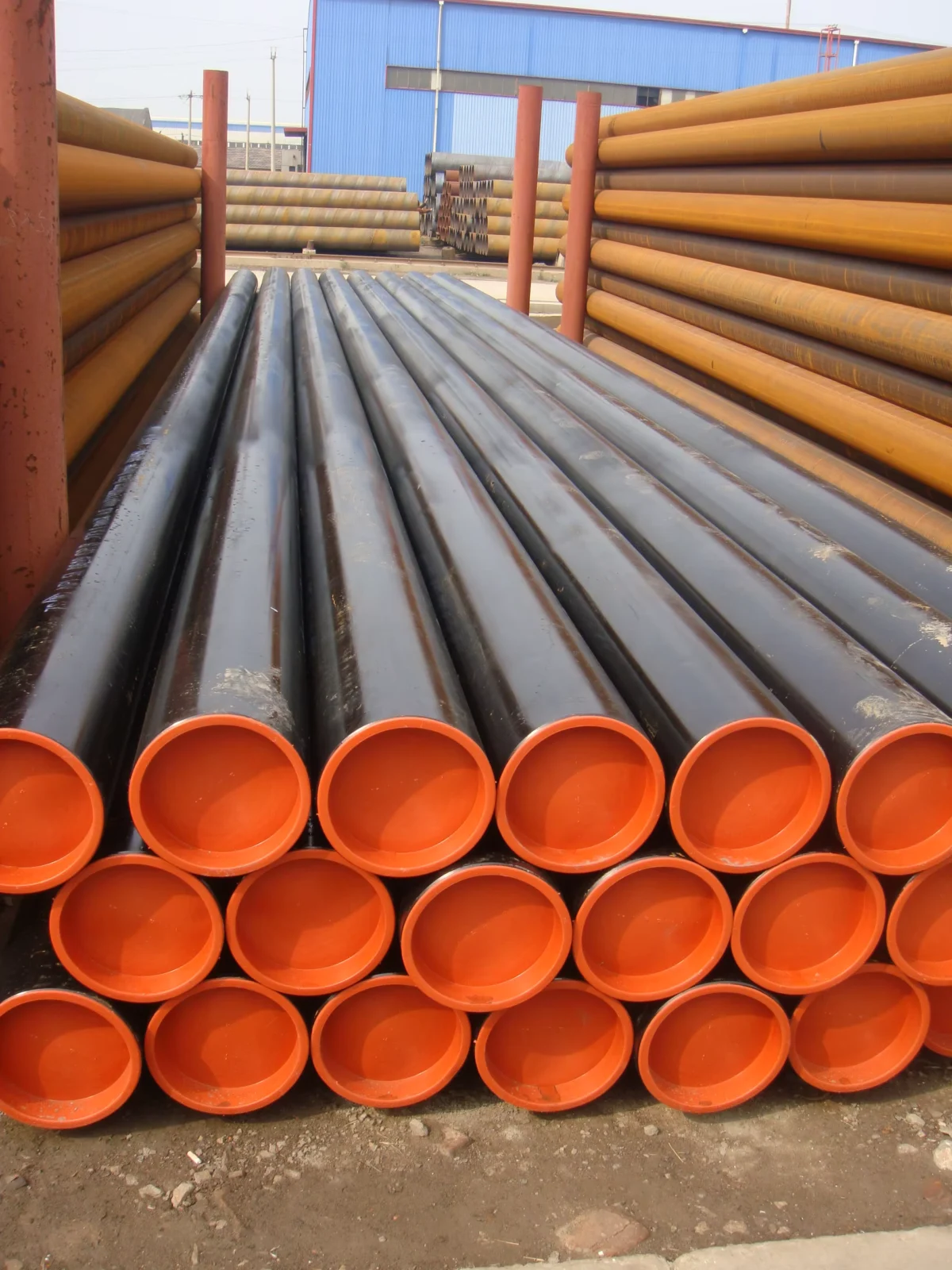

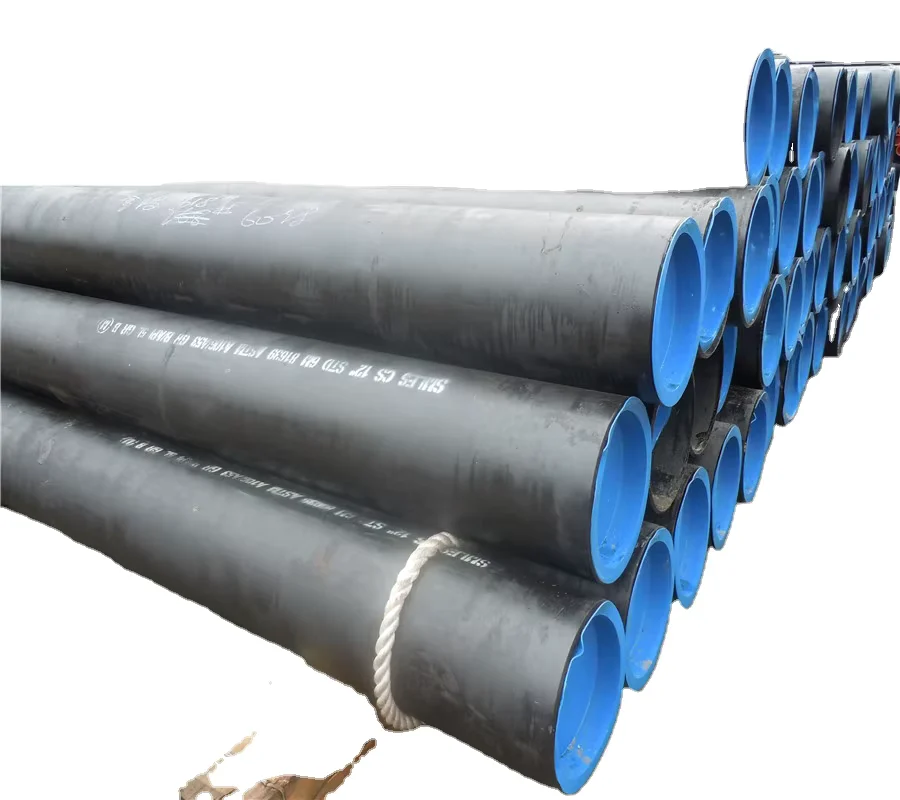

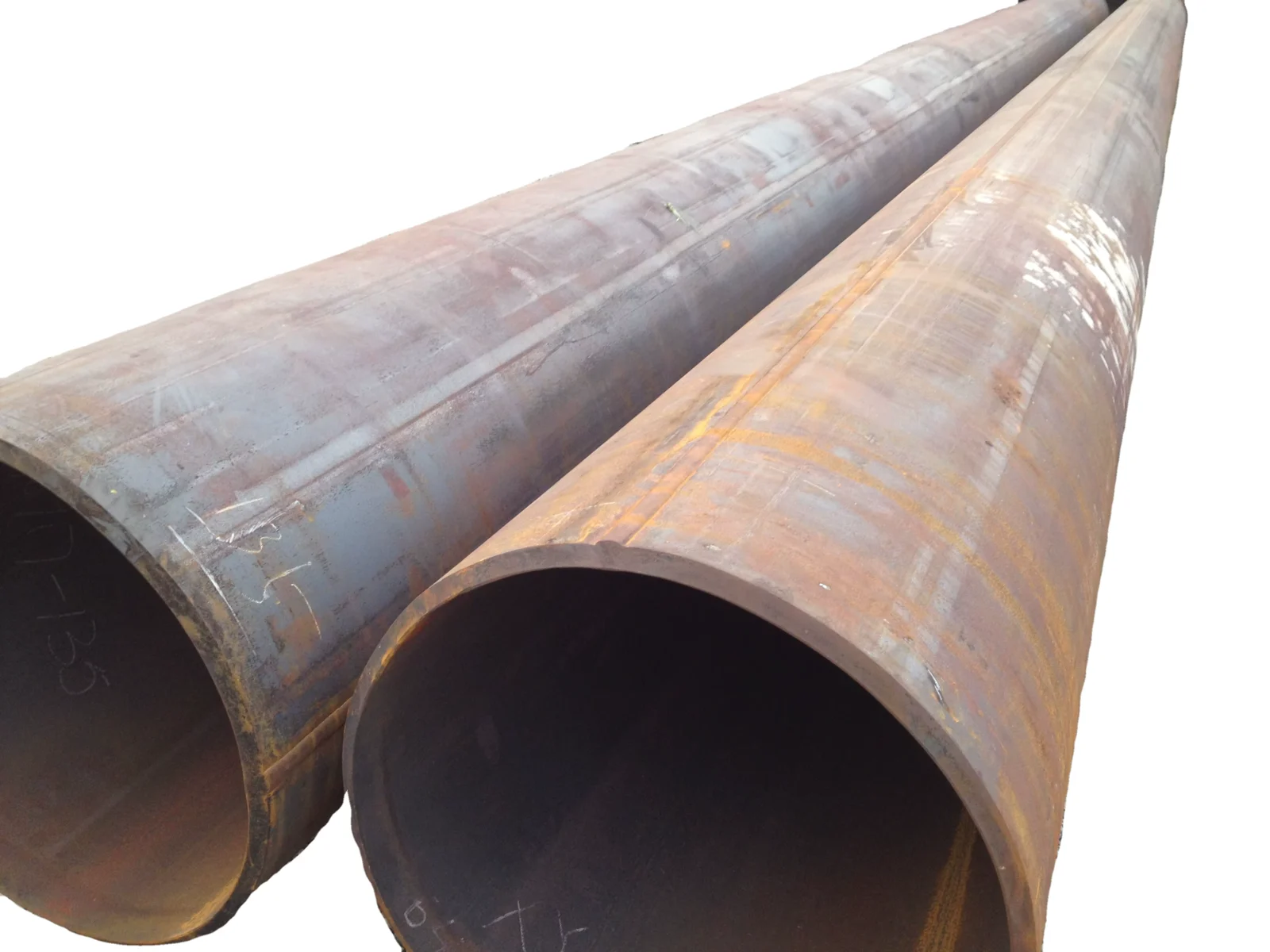

| Designation | Q235 LSAW Longitudinal Submerged Arc Welded Steel Pipe |
| Product Type | LSAW Welded Steel Pipe |
| Steel Grade | Q235 |
| Standard | GB/T 3091, API |
| Section Shape | Round |
| Size Range | OD 355.6–1626 mm |
| Technique | LSAW (Longitudinal Submerged Arc Welded) |
| Surface Treatment | Hot Rolled |
| Tolerance | ±10% |
| Ends | Plain (default) |
| Delivery Time | 8–14 days |
| Invoicing | By Theoretical Weight |
| Application | High-pressure natural gas pipeline / Fluid transport / Industrial pipeline systems |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | High-pressure natural gas transmission pipelines, gathering line networks |
| Industrial Infrastructure | Process fluid transport systems, plant utility piping |
| Municipal Engineering | City gas distribution trunk lines, utility corridor pipelines |
| Energy Projects | Compressor station piping, metering station manifolds |
What Material Traceability Gaps Cost on a High-Pressure Gas Pipeline
A missing heat number on a single pipe spool can halt an entire pipeline commissioning.
When EPC firms source large-diameter pipe overseas, the distance between mill and jobsite creates blind spots. Weld seams on Q235 LSAW steel pipe for high pressure natural gas pipeline must carry full chemical and mechanical traceability back to the original slab heat — not just a supplier’s re-inspection report. [NEED_CITE: API 5L material traceability requirements for pipeline steel] Third-party inspectors at destination ports routinely reject shipments where mill test certificates do not align with heat numbers stamped on pipe ends, causing weeks of delay and costly re-procurement.
Matching High-Pressure Gas Pipeline Engineering Demands
Q235 LSAW steel pipe for high pressure natural gas pipeline covers the OD 355.6–1626 mm range that aligns with standard gas transmission design specifications. The longitudinal submerged arc welding process produces full-penetration weld seams with consistent fusion across the entire length — critical for pressure containment in high-pressure service. Our own steel mill produces the Q235 slab, then rolls and welds it into finished pipe within the same facility, so every heat number on the pipe traces directly back to our melt shop records rather than passing through multiple intermediaries.
Compliance Frameworks for Pressure-Rated Pipeline Steel
Gas pipeline projects require documented compliance with pressure containment standards — API certification for the Q235 LSAW steel pipe for high pressure natural gas pipeline confirms that welding procedures and material properties meet the demands of pressurized gas transmission. [NEED_CITE: API specification requirements for submerged arc welded line pipe] Hot rolled surface treatment provides a clean, mill-scale base suitable for field coating application (3PE, FBE) at the coating yard or jobsite. Plain ends allow field welding with project-specific WPS, while full dimensional tolerance control at ±10% ensures fit-up accuracy during stringing and tie-in operations.
Q235 Grade and LSAW Process: How They Serve Gas Pipeline Service
Q235 is a carbon structural steel grade widely specified in Chinese national standards for general structural and low-pressure fluid applications. In the LSAW process, steel plate is formed into a cylindrical shape and welded along a single longitudinal seam using submerged arc welding — the flux blanket shields the molten weld pool from atmospheric contamination, producing dense, high-integrity weld metal suitable for pressure service. The hot rolled surface condition preserves the as-rolled grain structure of the Q235 base metal, avoiding the additional thermal cycles that cold-forming or galvanizing would introduce. For gas pipeline applications, this means the base metal and weld zone maintain consistent mechanical behavior under internal pressure, and the plain-end configuration allows field welders to apply project-approved welding procedures without coating removal or surface preparation complications.
Hidden Costs of Sourcing Pipeline Steel Without Verified Provenance
Procuring Q235 LSAW steel pipe for high pressure natural gas pipeline from a trader rather than an integrated mill introduces material provenance gaps that surface only during hydrostatic testing or third-party inspection at destination. [NEED_CITE: consequences of material traceability failure in pipeline construction] Pipes with undocumented heat treatment history or unverified chemical composition may pass visual inspection but fail ultrasonic testing on the weld seam — triggering rejection of entire shipment lots, project schedule delays, and contractual penalties. Certification documents that cannot be traced to the producing mill’s original test records will not satisfy API or project-specific quality requirements, regardless of the physical condition of the pipe.
Why Procure Q235 LSAW Pipe from an Integrated Mill-Fabricator
Our facility operates its own steel production lines alongside the LSAW pipe welding shop — meaning the Q235 plate is melted, rolled, formed, and welded under one quality management system rather than sourced from external suppliers and re-inspected. Every pipe carries a heat number traceable to our mill’s original chemical analysis and mechanical test records. Our in-house laboratory performs weld seam testing, dimensional verification, and non-destructive examination before any pipe leaves the facility. We maintain 2,800+ specifications of raw material in stock, reducing procurement lead times for standard and near-standard OD sizes. For international projects, we provide complete export documentation packages and coordinate with SGS/BV for third-party inspection at our facility prior to shipment.
Documentation & Compliance
- Mill Test Certificate documenting Q235 chemical composition (C, Mn, Si, S, P) and mechanical properties per GB/T 3091, traceable to original heat number
- API certification confirming LSAW welding procedures and material compliance for pressure-rated gas pipeline service
- ISO 9001 quality management system certificate covering the integrated mill-to-pipe production process
- SGS or BV third-party inspection report available for pre-shipment verification of dimensions, weld seam quality, and surface condition
- Material traceability report linking each pipe’s heat number to mill melt records, chemical analysis, and tensile test results
- Full customs documentation package: commercial invoice, packing list, bill of lading, certificate of origin
Packaging, Loading & Delivery
- Large-diameter Q235 LSAW pipes (OD 355.6–1626 mm) secured with steel strip bundling and wooden cradles to prevent ovalization during ocean transit
- Hot rolled surface protected with anti-rust oil coating to prevent corrosion during storage and shipping
- Loading plans optimized for container or breakbulk vessel based on pipe OD and length, maximizing payload per shipment
- Plain ends fitted with plastic protectors to prevent damage during handling and maintain bevel readiness for field welding
- Heat number and Q235 grade clearly marked on each pipe end with stenciled identification for site traceability
- FOB, CIF, and DDP shipping terms available with full export documentation and tracking until site delivery
How to Initiate a Pipeline Steel Procurement Inquiry
Submit your project specifications — including OD, wall thickness, length, quantity, steel grade, and applicable standards — to receive a detailed quotation covering material, fabrication, coating, packing, and shipping costs. Our engineering team will review your requirements and confirm material availability, production scheduling, and certification documentation within 24 hours. For non-standard dimensions or project-specific quality requirements, we provide custom fabrication solutions with full shop drawing support.
Start Your Q235 LSAW Pipeline Steel Inquiry
Share your project drawings and specifications to receive a quotation with mill test certificate preview and production timeline. Contact Shandong Xin Jiyuan Special Steel Tube Co., Ltd at admin@xjystructure.com or WhatsApp +86 188 5315 7756.
