Description

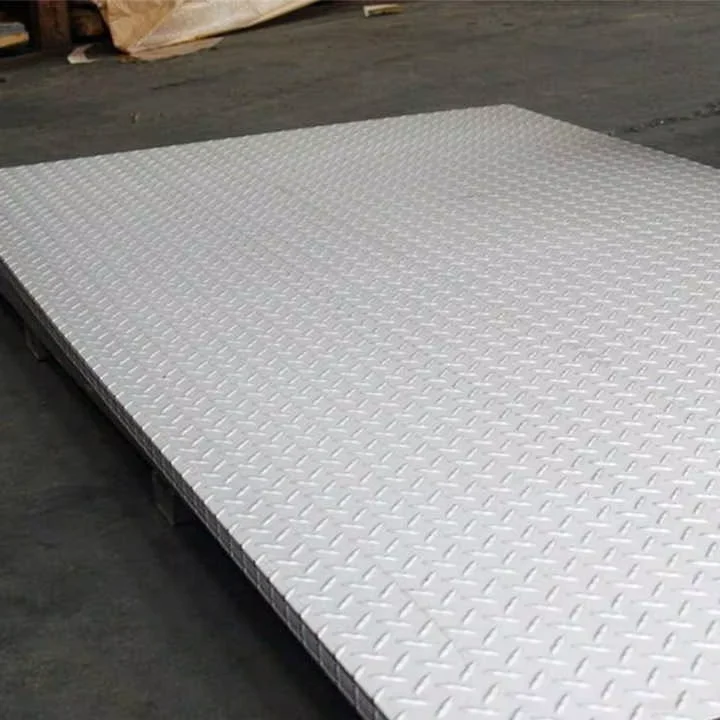

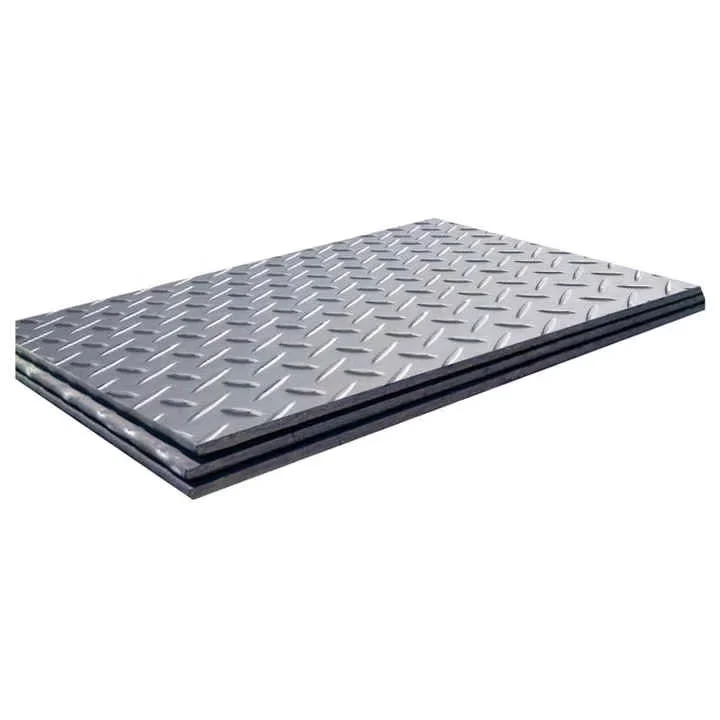

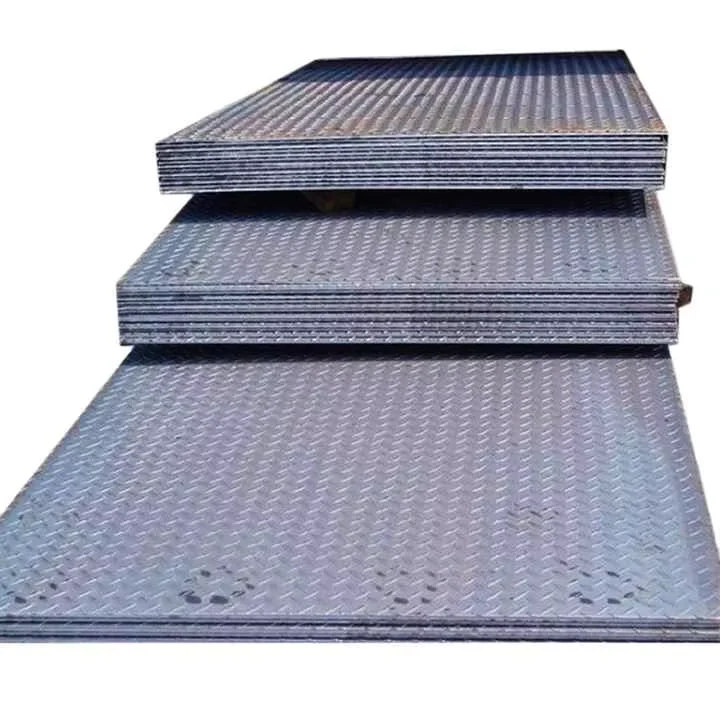

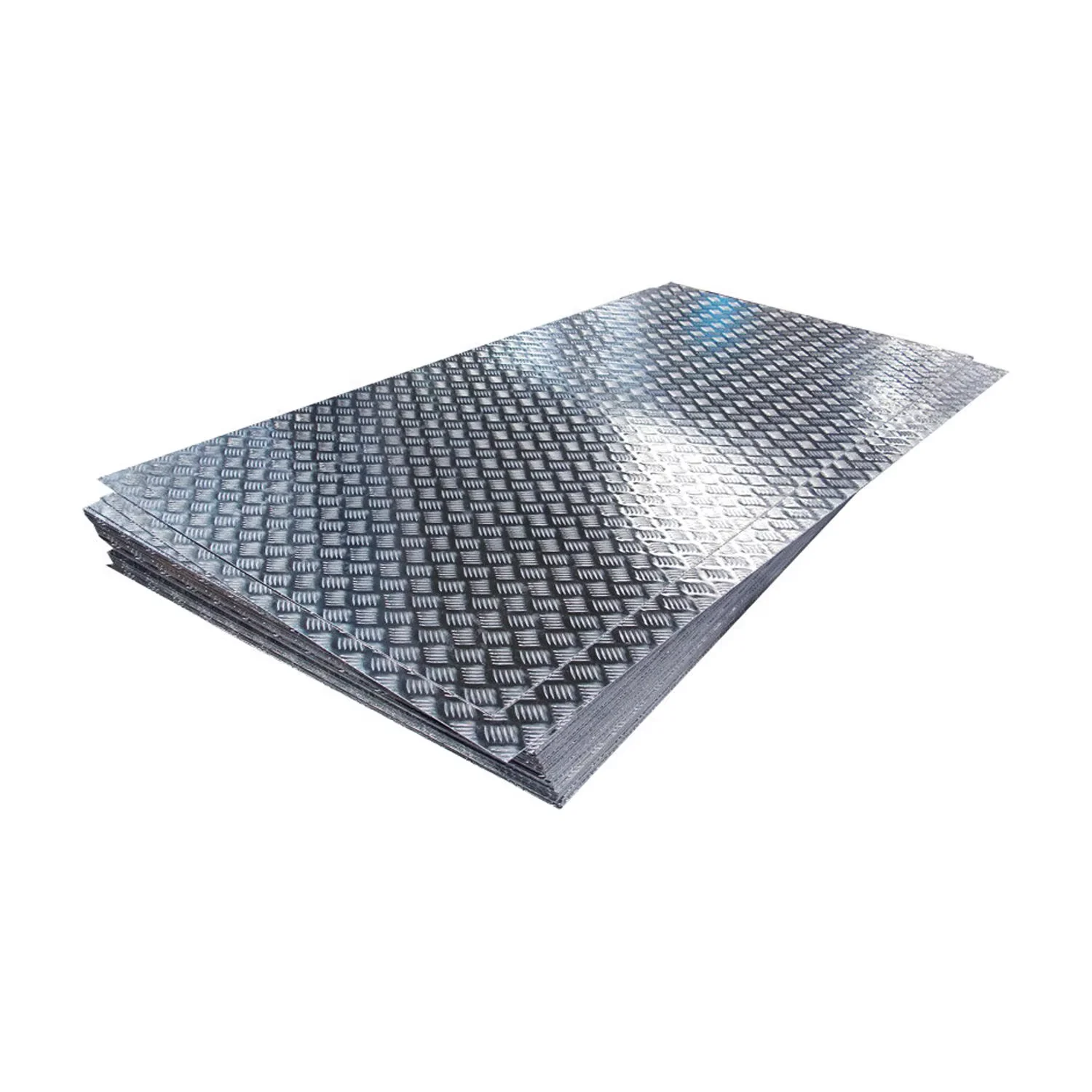

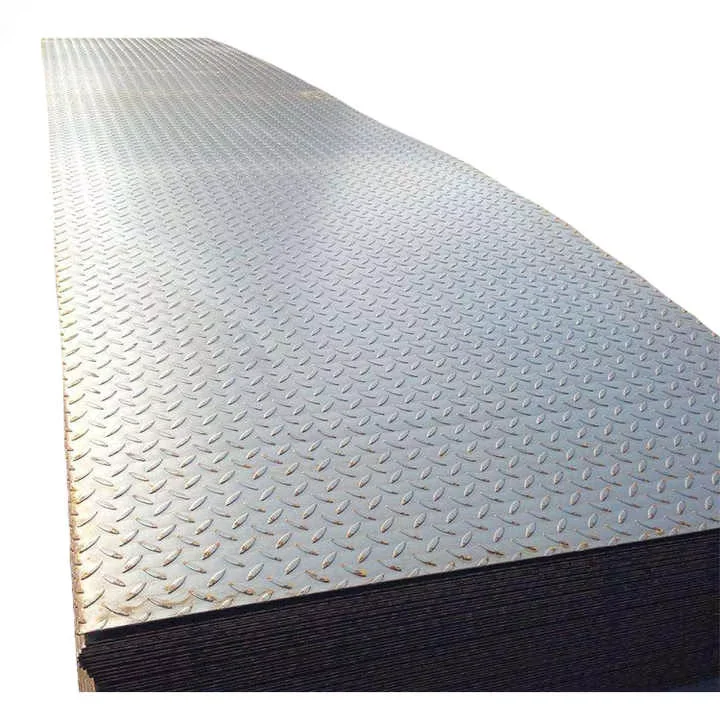

Mill-Direct Checkered Plate — Our own hot rolling line produces Q235B checkered steel plate from slab to finished surface, eliminating third-party sourcing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B Hot Rolled Checkered Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | Q195, Q235, A36, SS400, S235 |
| Standard | JIS |
| Section Shape | Flat Plate with Embossed Pattern (Diamond / Round Bean / Lentil / Flat Mixed) |
| Width | 1000mm – 3000mm |
| Thickness | 1.0mm – 100mm |
| Length | 2000mm – 6000mm |
| Technique | Hot Rolled |
| Surface Treatment | Oiled / Black / Custom Required |
| Application | Commercial buildings / Industrial flooring / Stair treads / Platform walkways / Decoration |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Commercial Construction | Floor decking in shopping centers, office mezzanines, loading dock platforms |
| Industrial Manufacturing | Factory floor grating, machinery base covers, workshop catwalks |
| Infrastructure | Pedestrian bridge walkways, stair treads in public transit stations, utility platform flooring |
| Warehouse & Logistics | Racking system base plates, forklift traffic areas, dock leveler platforms |
What Thickness Measurement Disputes Cost on a Checkered Plate Order
Base thickness and pattern height must be specified separately on every purchase order.
When buyers source a Q235B hot rolled checkered steel plate from overseas, the most common rejection at destination port involves thickness measurement. A buyer orders 16mm plate, measures the base metal with a caliper, and reads 15.2mm. The pattern height was never contractually separated from the base thickness. The result: a claim for short supply, a price deduction, or a costly reshipment. This is not a manufacturing defect — it is a documentation gap. Fragmented suppliers who source coils from multiple mills cannot guarantee consistent pattern depth or clear measurement基准. [NEED_CITE: checkered plate thickness tolerance standards for hot rolled embossed sheet]
How Pattern Depth and Base Thickness Match Industrial Flooring Loads
A Q235B hot rolled checkered steel plate performs as anti-slip flooring only when the embossed pattern — diamond, round bean, or lentil — maintains adequate height above the base metal to provide grip under wet or oily conditions. For heavy industrial platforms where forklift traffic is constant, the base thickness carries the structural load while the pattern provides surface function. Our hot rolling process controls both dimensions independently, so a 10mm base plate with 2mm pattern height delivers the load capacity the structural engineer calculated, not a reduced section that fails under dynamic loading.
Engineering Compliance and Surface Treatment Selection
Checkered plate used in commercial buildings and industrial flooring must meet dimensional tolerances that align with the structural loads specified by the engineer. Q235B conforms to Chinese GB standards and is widely accepted as equivalent to A36 in ASTM systems and S235 in European frameworks for general structural use. [NEED_CITE: steel grade equivalence between Q235B and A36 S235] Surface treatment choice — oiled for transit protection, black for indoor use, or custom coating for corrosive environments — directly affects service life. For outdoor platform walkways in coastal or chemical plant settings, specifying the correct surface treatment at the procurement stage avoids premature corrosion and re-coating costs. Third-party inspection by SGS or BV verifies both dimensional compliance and coating thickness before shipment. [NEED_CITE: surface treatment requirements for structural steel in corrosive environments]
Steel Grade Selection and Hot Rolling Process
Q235B remains the most widely specified grade for checkered plate in general construction because it offers adequate yield strength for flooring and walkway applications at competitive cost. When projects require higher strength or export to markets with different standard systems, A36 (ASTM), SS400 (JIS), or S235 (EN) serve as direct equivalents. The hot rolling process forms the embossed pattern — diamond, round bean, lentil, or flat mixed — in a single pass through the finishing stands, which means pattern height is integral to the plate, not welded or bonded on. This matters: adhesive-backed anti-slip treatments peel under heavy traffic, while hot-rolled patterns are permanent. Width options from 1000mm to 3000mm and thickness from 1.0mm to 100mm cover everything from light decorative cladding to heavy-duty industrial platform base plate.
The Hidden Cost of Unspecified Tolerance in Checkered Plate Procurement
Ordering checkered plate without explicitly defining whether the quoted thickness includes or excludes pattern height creates a chain of problems: the mill produces to one interpretation, the buyer measures to another, and the material either gets rejected at customs or fails structural inspection on site. [NEED_CITE: hot rolled checkered plate tolerance and measurement standards] Material traceability becomes equally critical — if the mill test certificate does not link each plate to a specific heat number, the buyer cannot verify chemical composition or mechanical properties. Projects requiring EN 1090 or AISC compliance will not accept plates without full documentation, regardless of whether the steel itself is sound.
Why Sourcing Checkered Plate from an Integrated Mill Matters
We operate our own hot rolling production line, which means every Q235B hot rolled checkered steel plate we supply starts as slab from our own steelmaking facility. There is no gap between material supplier and fabricator. Our mill produces over 2,800 specifications of raw material across multiple product lines, giving us direct control over chemical composition, rolling temperature, and pattern formation. When you order Q235B checkered plate from us, the mill test certificate comes from the same facility that rolled the plate — not from a trading company that bought coils from three different sources and consolidated paperwork. We also maintain certified welding procedures and qualified welders for any secondary fabrication — cutting, drilling, welding — if your project requires fabricated components rather than loose plate.
Documentation & Compliance
- Mill test certificate documenting Q235B chemical composition (C, Mn, Si, S, P) and mechanical properties per GB/T 700, with full heat number traceability for each plate
- Third-party inspection report from SGS or BV verifying dimensional accuracy, pattern height, and surface treatment compliance before shipment
- Material traceability report linking each plate to its original heat number, slab cast date, and rolling pass records
- Customs documentation package including commercial invoice, packing list, bill of lading, and certificate of origin formatted for destination port requirements
- Equivalence declaration mapping Q235B to A36 (ASTM A36), SS400 (JIS G3101), or S235 (EN 10025) when project specifications require international standard compliance
Packaging, Loading & Delivery
- Q235B checkered plates bundled with steel strips and edge protectors to prevent pattern damage during handling and ocean transit
- Oiled surface treatment applied before bundling to prevent oxidation during shipping; black finish plates wrapped with waterproof paper for moisture protection
- Container loading optimized for plates in 2000mm–6000mm length range, with weight distribution calculated to maximize 20ft and 40ft container capacity within road transport limits
- Heat number and steel grade stenciled on each plate bundle for on-site identification and traceability verification upon arrival
- FOB, CIF, and DDP delivery terms available with professional oversized cargo loading plans for heavy plate shipments exceeding standard container dimensions
How to Request a Quote for Your Checkered Plate Project
Send your project drawings or specification sheet — including steel grade, base thickness, pattern type, dimensions, surface treatment, and quantity — and we respond within 24 hours with a detailed quotation covering material, fabrication, coating, packing, and shipping costs. If your project requires shop drawing review or material optimization, our engineering team prepares a full assessment before production begins.
Start Your Checkered Plate Inquiry Today
Submit your specifications, steel grade, and destination port to receive a quotation with mill test certificate and loading plan.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between diamond, round bean, and lentil patterns on checkered plate?
A: Diamond pattern is the most common and provides multi-directional anti-slip grip. Round bean pattern offers raised circular protrusions suitable for areas where smooth cleaning is needed between ribs. Lentil pattern features small elongated raised surfaces. The choice depends on the specific anti-slip requirement, traffic type, and cleaning frequency of the installation environment.
Q: Can Q235B checkered plate be used as a substitute for A36 or S235?
A: Q235B is widely recognized as equivalent to A36 in the ASTM system and S235 in the European EN system for general structural and flooring applications. We provide an equivalence declaration with shipment documentation when project specifications require international standard compliance. For critical structural applications, confirm with your engineer that the specific project accepts this equivalence.
Q: What is the minimum order quantity for Q235B hot rolled checkered steel plate?
A: The minimum order quantity is 5 tons. We can mix different thicknesses, widths, and pattern types within a single order to meet the 5-ton minimum, which supports projects requiring multiple specifications for different flooring zones.
Q: How is thickness measured on hot rolled checkered plate?
A: Base thickness is measured on the flat surface between pattern protrusions, excluding the pattern height. Pattern height is measured separately as the distance from the base surface to the top of the embossed feature. We specify both dimensions clearly on our quotation and mill test certificate to avoid measurement disputes at destination.
Q: Can you provide custom surface treatment beyond oiled or black finish?
A: Yes. In addition to standard oiled and black finish, we apply custom surface treatments based on project requirements — including primer coating, galvanizing, or specialized anti-corrosion systems for coastal or chemical plant environments. Specify your surface treatment requirement in the inquiry and we include it in the quotation.
