Description

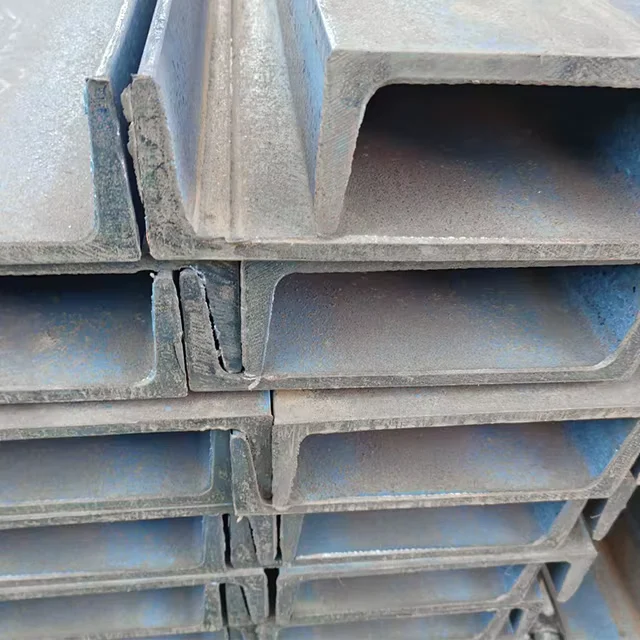

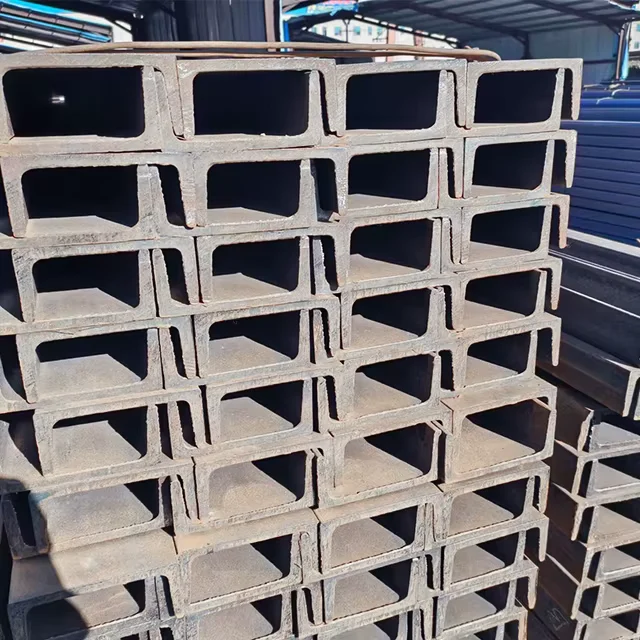

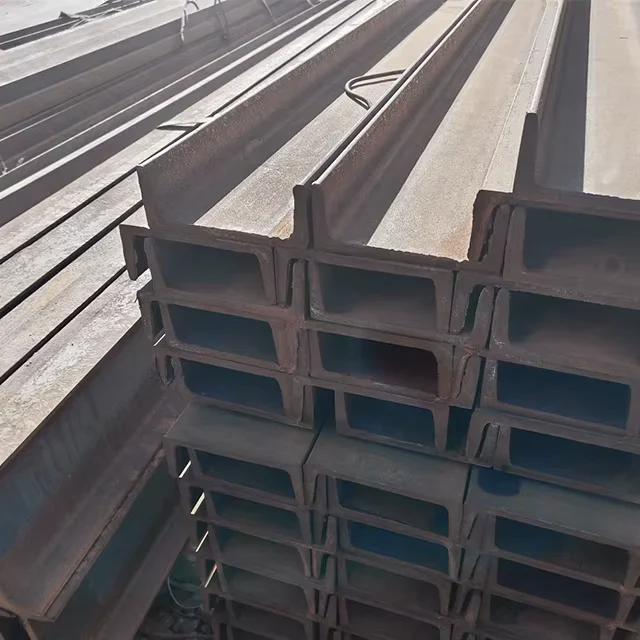

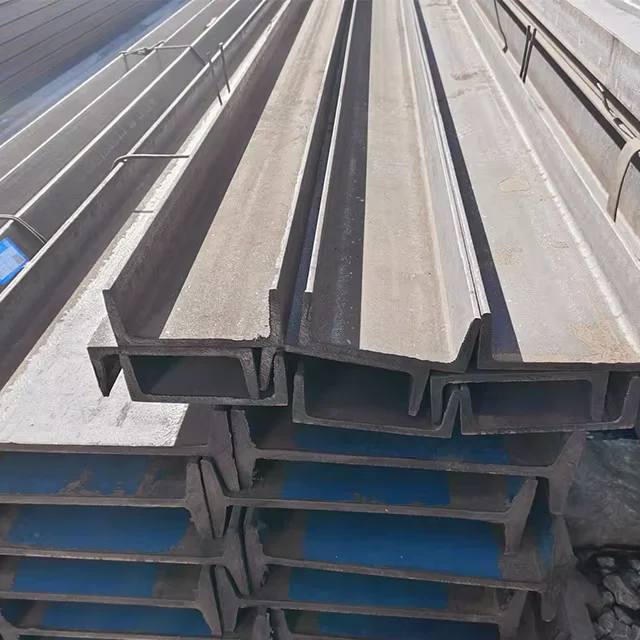

Vertically Integrated Mill & Fabrication — Hot dip galvanized Q235B and Q345B channel steel produced and coated under one roof, backed by mill test certificates traceable to heat number.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B U/C Channel Steel |
| Product Type | U / C Channel |
| Steel Grade | Q235B, Q345B, SS400, A36, 10#, 20# |
| Standard | GB, DIN, JIS, ASTM |
| Section Shape | U / C Channel |
| Size Range (GB) | 10#–40# (100×48mm–400×102mm) |
| Size Range (JIS) | 50×25mm–250×90mm |
| Length | 6m, 12m, or customized |
| Technique | Hot Rolled |
| Surface Treatment | Hot Dip Galvanized / as per customer requirements |
| Tolerance | ±1% |
| Processing Service | Welding, Cutting |
| Application | Building structures, Vehicle manufacturing, Industrial structures, Metal construction |
| MOQ | 25 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Building & Construction | Portal frame purlins, warehouse column bracing, mezzanine support rails |
| Industrial & Manufacturing | Machinery base frames, conveyor support structures, platform edge protection |
| Infrastructure | Bridge walkway brackets, utility pole cross-arms, solar mounting rails |
| Vehicle & Transport | Truck chassis reinforcement members, trailer body side rails |
Material Traceability Decides Whether Your Galvanized Channels Pass Site Inspection
One source of steel, one quality system — from slab to zinc bath.
Overseas buyers sourcing Hot Dip Galvanized U Channel Steel Q235B Supplier materials from China often discover the gap between the fabricator and the steel mill is where traceability breaks down. When the channel producer buys black bar from a third-party mill, then subcontracts galvanizing to a local dip shop, no single party owns the full test record. At site, the engineer asks for a mill test certificate matching the heat number stamped on each piece — and the paperwork trail goes cold. [NEED_CITE: material traceability requirements in EN 1090 structural fabrication standard]
I have watched a warehouse project in the Middle East reject an entire container of channels because the zinc coating report and the mill cert came from two different companies with no cross-reference. The rework and reshipment cost more than the original order.
How Q235B Channels Match Portal Frame and Bracing Applications
Hot rolled Q235B and Q345B channel sections in the GB 10#–40# range carry the load profiles typical of portal frame purlins, bracing members, and mezzanine edge beams. When paired with I-beams in warehouse and factory structures, the U/C profile provides a flat bearing surface for bolted or welded connections. The hot dip galvanized finish protects the section in outdoor and semi-exposed environments — roofing purlins, external bracing, and coastal industrial sites where black steel would corrode within months. As a Hot Dip Galvanized U Channel Steel Q235B Supplier with our own rolling and galvanizing lines, we control the coating thickness from the first piece to the last.
Engineering Compliance and Standard Selection for Channel Steel
Structural channel orders for EU projects must satisfy EN 1090 execution class requirements, which demand full material traceability and certified welding procedures — even for non-welded bolted connections. North American buyers specifying ASTM A36 need to confirm the supplier can provide equivalent mill test documentation. JIS-standard channels (50×25mm to 250×90mm) serve Southeast Asian and Japanese-spec infrastructure programs where dimensional tolerance matters for prefabricated assembly. [NEED_CITE: EN 1090 structural steel fabrication compliance requirements] Galvanized coatings on load-bearing channels must meet minimum thickness per ISO 1461 or project specification; under-galvanizing shows up only after months of field exposure. Custom cutting to 6m, 12m, or project-specific lengths reduces on-site waste and welding labor.
Steel Grade Selection and Hot Rolling Process Explained
Q235B remains the default structural carbon steel grade in the Chinese GB system, widely accepted across Belt & Road markets and recognized as broadly equivalent to S235JR in EN and A36 in ASTM for general construction. Q345B offers higher yield strength for heavier load paths — bridge walkways, crane runway beams, and industrial mezzanines where deflection limits are tighter. SS400 and A36 serve Japanese-spec and North American-spec projects respectively; 10# and 20# grades cover lighter, non-structural applications.
Hot rolling produces the channel profile at temperatures above recrystallization, giving the section its final geometry and mechanical properties in a single pass sequence. The ±1% dimensional tolerance holds the web height and flange width within acceptable limits for bolted connection fit-up. Hot dip galvanizing then immerses the rolled section in molten zinc, forming a metallurgical bond that outperforms electroplated or painted finishes in corrosion resistance — critical for channels used in outdoor bracing, coastal warehouses, and industrial exhaust areas.
The Hidden Cost of Buying Channels from a Broker, Not a Mill
When a trading company quotes Hot Dip Galvanized U Channel Steel Q235B Supplier prices without owning the rolling or galvanizing line, three risks compound: the zinc coating may fall below the specified 80μm minimum, the mill test certificate may not match the heat number on the steel, and dimensional tolerance may drift beyond ±1% without anyone catching it before shipment. The buyer discovers these gaps at site inspection — after the container has cleared customs. Rework means either re-galvanizing locally at two to three times the original cost or scrapping the material and waiting for a replacement shipment. [NEED_CITE: hot dip galvanized coating thickness standards ISO 1461]
Why Procurement Teams Source Channel Steel from XJY Structure

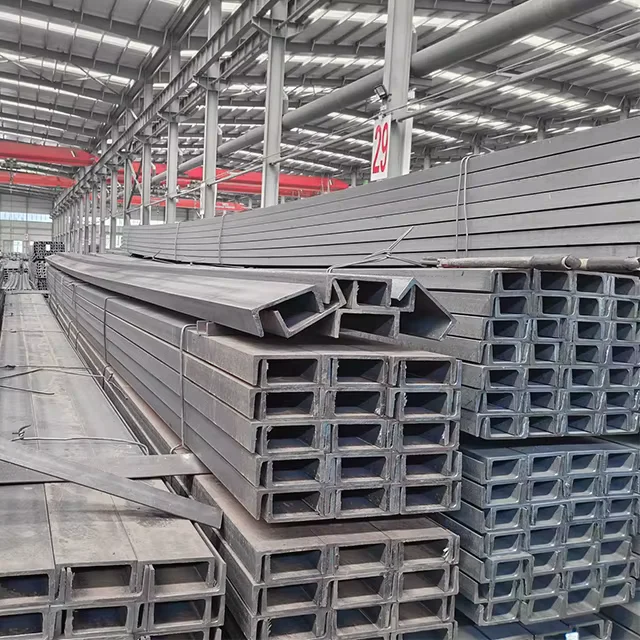

Our steel mill rolls the Q235B and Q345B billets into channel sections; our own galvanizing line coats them. That vertical integration means the mill test certificate, the zinc coating report, and the dimensional inspection all come from one quality system — no gaps, no finger-pointing. We stock over 2,800 specifications of raw material, so standard GB 10#–40# and JIS 50×25mm–250×90mm channels ship from inventory while custom lengths and non-standard grades roll to order. Every shipment carries full documentation: WPS-qualified welding records, heat-number traceability, and third-party inspection reports from SGS, BV, or TÜV when requested. Our export team plans container loading for 6m and 12m channels to maximize weight per TEU, and we handle customs documentation for EU, Middle East, Southeast Asian, and African ports.
Documentation & Compliance
- Mill Test Certificate (EN 10204 3.1) documenting Q235B and Q345B chemical composition and mechanical properties per GB/T 700 and GB/T 1591, with heat number traceability to our own steel mill
- Hot dip galvanized coating thickness report per ISO 1461, measured on production samples from each batch
- ISO 9001 quality management certificate covering the full production chain from raw steel to finished galvanized channels
- SGS, BV, or TÜV third-party inspection report available upon request, covering dimensional checks, coating adhesion, and visual surface quality
- Material traceability by heat number from billet to finished channel, maintained in our quality database for audit
- Customs documentation package: commercial invoice, packing list, bill of lading, and certificate of origin formatted for destination port requirements
Packaging, Loading & Delivery
- Hot dip galvanized Q235B and Q345B channels bundled with high-tensile steel strips and edge protectors to prevent zinc coating damage during handling and ocean transit
- Seaworthy packaging with waterproof interleave for 6m and 12m standard lengths; custom-cut channels packed separately by project mark to avoid on-site sorting delays
- Container loading optimized for GB 10#–40# and JIS 50×25mm–250×90mm profiles, maximizing weight per 20ft and 40ft container based on section dimensions and destination port weight limits
- Heat number and steel grade stenciled on each bundle; shipping marks include purchase order number, destination, and gross/net weight for customs and site receiving
- FOB, CIF, and DDP terms available; door-to-door logistics coordinated for project sites in the Middle East, Southeast Asia, Africa, and South America
Start Your Channel Steel Inquiry with Drawings and Specifications
Send your project drawings (PDF or DWG), required steel grades, standard (GB, DIN, JIS, or ASTM), surface treatment preference, and destination port. We respond within 24 hours with a quotation covering material, fabrication, galvanizing, packing, and freight — plus a shop drawing timeline and production schedule. For non-standard lengths or custom cutting, we confirm feasibility and MOQ before contract.
Request a Quotation with Mill Test Certificate Preview
Share your channel steel specifications, quantity, and destination to receive a detailed quotation and sample mill test documentation.
