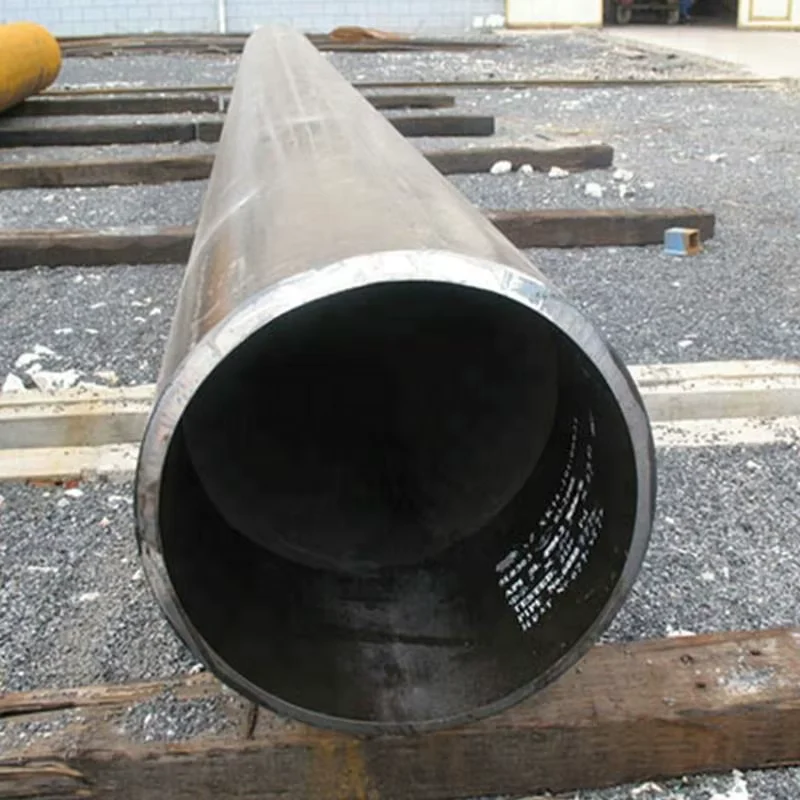

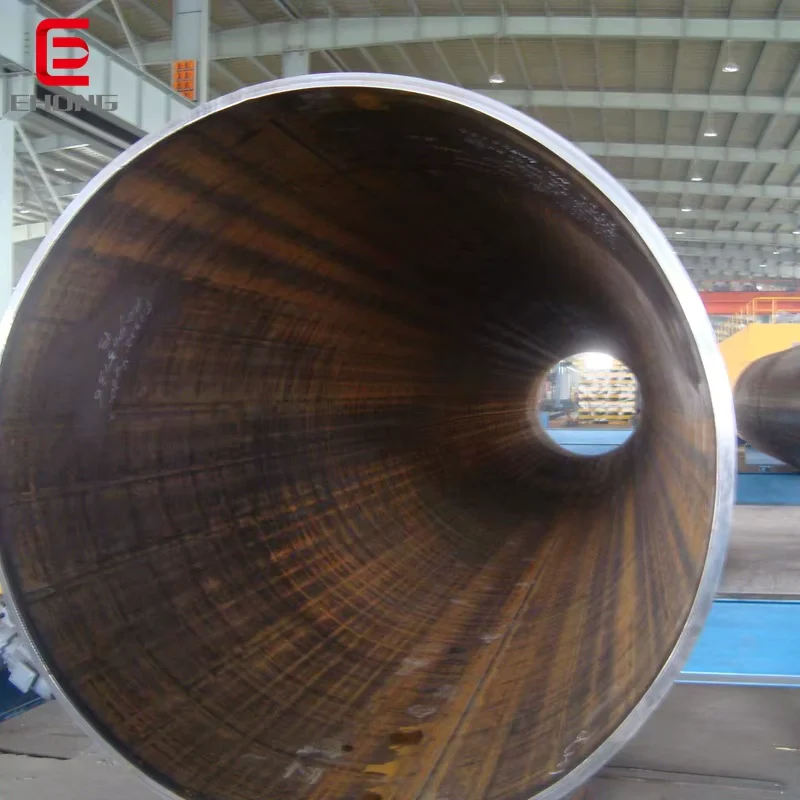

Q235B S355 LSAW Welded Steel Pipe OD 406-1524mm API 5L EN10210 Supplier

Description

Vertically Integrated LSAW Pipe Mill — Direct supply from our own steel production facility with full heat-number traceability from slab to finished pipe.

Technical Specifications

Application Suitability

What Negative Tolerance on Wall Thickness Costs a Pipeline Project

A pipe that passes mill gauge but fails ultrasonic re-inspection at site turns an entire shipment into scrap.

Overseas buyers sourcing large-diameter LSAW welded steel pipe from fragmented suppliers face a recurring problem: the material certificate says one thing, but the ultrasonic gauge reading at the laydown yard tells another. When wall thickness sits at the negative tolerance edge across an entire batch, the pipe may technically pass factory acceptance but fail third-party inspection at destination — leaving the EPC contractor with containers of rejected steel sitting at port, rework impossible, and rescheduling ocean freight eating weeks off the project timeline. [NEED_CITE: API 5L dimensional inspection requirements for line pipe]

Material traceability gaps compound the issue. When a fabricator sources plates from multiple third-party mills without heat-number linkage, the certification chain breaks at the weld seam. For LSAW welded steel pipe destined for pressurized service, this documentation gap is not a paperwork inconvenience — it is a structural liability that can halt commissioning.

Matching Large-Diameter LSAW Pipe to Pipeline and Structural Demands

The 406–1524 mm OD range with wall thickness up to 60 mm positions this LSAW welded steel pipe for projects where flow volume and pressure containment drive specification. The submerged arc welding process produces a full-penetration longitudinal seam with toughness properties suited to high-pressure fluid and gas transmission, while the availability of 3PE and FBE coating systems addresses corrosion protection requirements for buried offshore and aggressive soil environments. Long single lengths of up to 12 m reduce field weld joint counts, directly lowering leakage risk and construction time on long-distance pipeline routes.

Engineering Compliance Across International Standards Frameworks

Large-diameter LSAW pipe must satisfy both dimensional standards and material performance specifications simultaneously. For European projects, EN 10210 governs hot-finished structural hollow sections while EN 10219 covers cold-formed welded sections — the steel grade designation (S235JR, S275, S355) and impact testing requirements differ between them. [NEED_CITE: EN 10210 hot-finished structural hollow section requirements] API 5L applies to line pipe for oil and gas transportation, with PSL1 and PSL2 defining different levels of mandatory testing. North American structural work references ASTM A500 and ASTM A53, where Grade B is the most commonly specified. Bevel-ended pipes facilitate field butt-welding per approved WPS, while plain ends suit mechanical coupling or flanged connections. Third-party inspection by SGS, BV, or TUV is routinely required for EU and Middle East project compliance.

Steel Grade Selection and Submerged Arc Welding Metallurgy

The LSAW process forms plate into a cylindrical shape and welds the longitudinal seam using submerged arc welding, where the arc burns under a blanket of granular flux — this shields the molten pool from atmospheric contamination and produces weld metal with low hydrogen content and high impact toughness. Steel grade selection directly determines the minimum yield strength available for design calculations: S235JR provides 235 MPa minimum yield for general structural use, S355 offers 355 MPa for higher-load applications, and API 5L Grades A and B serve pipeline service where weldability and pressure containment take priority. The Q-series grades (Q235B, Q345) follow the Chinese GB system and are broadly equivalent to S235 and S355 respectively in yield strength classification. Wall thickness tolerance of ±5% means a 20 mm nominal wall can measure between 19.0 mm and 21.0 mm — for pressure design calculations, engineers must use the minimum specified thickness, not the nominal value.

Hidden Costs of Procuring LSAW Pipe Without Verified Traceability

Selecting the correct steel grade and confirming compliance with the specified standard is only half the procurement equation. When material certificates cannot be traced back to individual heat numbers from a recognized steel mill, the pipe may face rejection during customs inspection in the destination country — particularly in EU markets where CE marking under EN 10210 requires documented factory production control. [NEED_CITE: CE marking requirements for structural steel under EN 10210] Negative tolerance abuse — where wall thickness consistently sits at the lower limit — reduces the pressure rating and load-bearing capacity below design assumptions, creating structural safety concerns that surface only during hydrostatic testing or structural loading. The cost of replacing rejected pipe at an overseas project site, including demurrage, remobilization, and schedule delay, far exceeds any initial price saving from unverified sourcing.

Why Sourcing LSAW Welded Steel Pipe From an Integrated Mill Reduces Risk

Our own steel production facility operates three production lines covering over 2,800 raw material specifications, meaning the plate used to form your LSAW welded steel pipe originates from the same quality system that produces the finished pipe — no third-party plate sourcing, no broken certification chains. Every heat number is traceable from slab chemistry through rolling, forming, welding, and final inspection. Our in-house laboratory generates Mill Test Certificates documenting chemical composition and mechanical properties per the applicable standard, and we welcome third-party inspection by SGS, BV, or TUV at any production stage. For oversized pipes above 1,000 mm OD, our logistics team plans specialized loading and lashing to prevent deformation during ocean transit. The engineering team reviews shop drawings, confirms material optimization, and provides fabrication sequencing support — capabilities that matter when your project requires bevel-end preparation, specific coating systems, or non-standard lengths.

Documentation & Compliance

• Mill Test Certificate documenting Q235B or S355 chemical composition and yield strength per EN 10210 or API 5L, with heat number traceability to original slab
• CE Certificate confirming compliance with EN 10210 for hot-finished structural hollow sections exported to European markets
• ISO 9001 quality management certificate covering the full production chain from plate rolling through submerged arc welding and final inspection
• SGS or BV third-party inspection report available at buyer’s request, covering dimensional checks, ultrasonic wall thickness measurement, and weld seam NDT
• Complete material traceability package linking each pipe to its heat number, with WPS, PQR, and weld maps included for pressure-rated pipeline orders
• Export documentation set including packing list, bill of lading, and certificate of origin for customs clearance at destination port

Packaging, Loading & Delivery

• OD ≥273 mm LSAW pipes packed loose piece by piece with end protectors on bevel-ended pipes to preserve welding preparation during transit
• Surface-treated pipes with 3PE or FBE coating wrapped with protective film and separated by rubber spacers to prevent coating damage from metal-to-metal contact

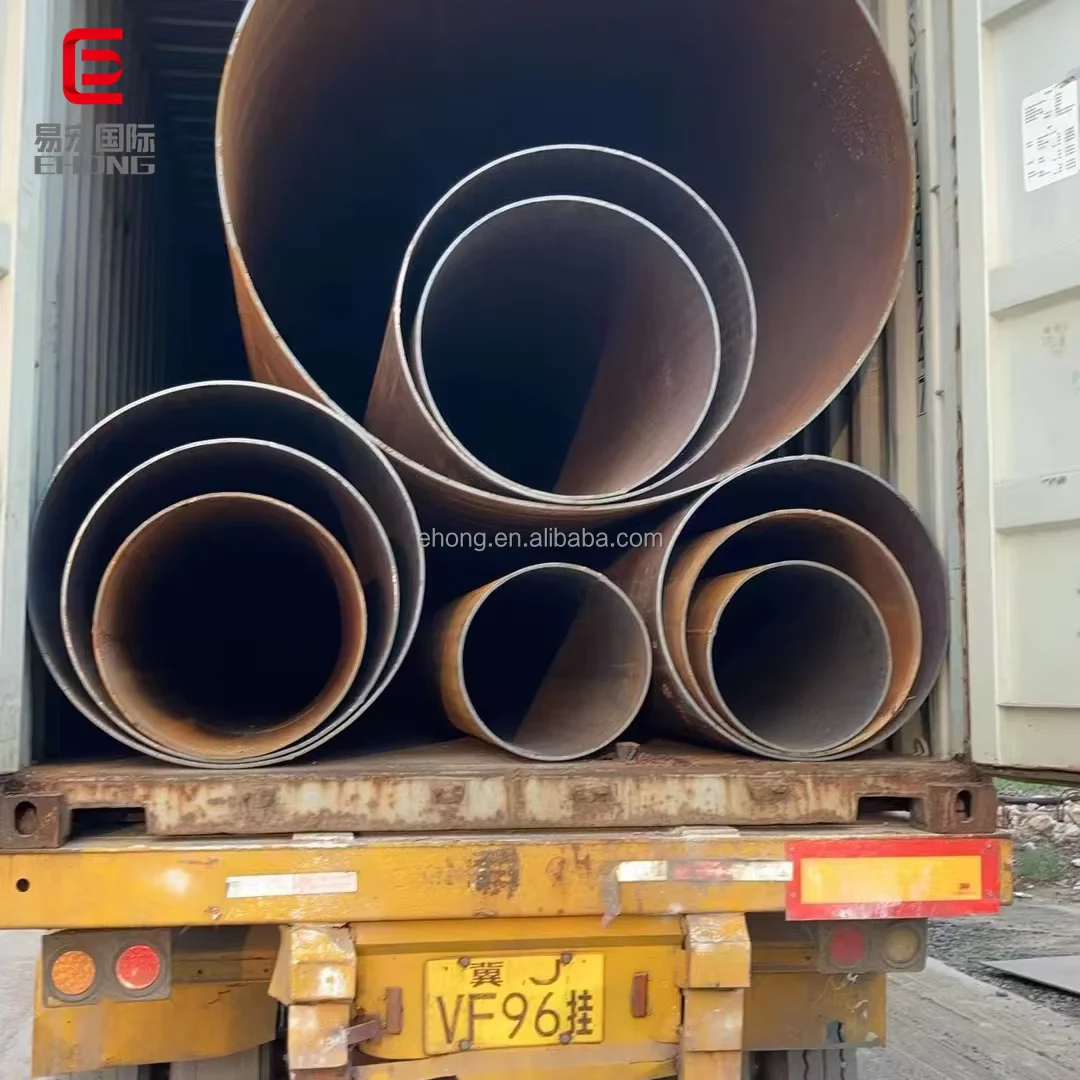

• Mixed-size loading optimization for container shipment: smaller OD pipes nested inside larger diameters to maximize container utilization and reduce freight cost per meter
• Custom cut lengths between 3–12 m available, with each piece marked with heat number, steel grade, OD, and wall thickness for site identification
• Professional lashing and securing for oversized pipes above 1,000 mm OD on flat rack or breakbulk vessels, with loading plans provided before shipment
• FOB, CIF, and DDP delivery terms available with full export documentation and tracking through to site delivery

Requesting a Quotation for Your LSAW Pipe Requirement

Share your project drawings, pipe specifications including OD, wall thickness, length, steel grade, applicable standard, and surface treatment requirement — we respond within 24 hours with a detailed quotation covering material, fabrication, coating, packing, and shipping costs. For projects requiring third-party inspection or specific certification documentation, confirm these requirements at inquiry stage so we can include them in the production schedule and pricing.

Start Your LSAW Pipe Inquiry With Full Specifications

Submit your OD, wall thickness, steel grade, quantity, and destination port to receive a quotation with Mill Test Certificate and export documentation details included.
