Description
Factory-Direct Laser Cut Pipe Fabrication — Vertically integrated from our own steel mill to finished CNC-cut components, ensuring full material traceability for every Stainless Steel 316 order.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Stainless Steel Laser Cut Pipe with Tube Fabrication |
| Product Type | Machined Steel Product (Laser Cut Pipe / Tube Fabrication Component) |
| Steel Grade | Stainless Steel 316, Carbon Steel, Alloy Steel, Aluminum, Copper |
| Technique | Laser Cutting, Bending, Stamping, Welding, Machining |
| Surface Treatment | Painting, Powder Coating, Plating, Polishing, Brushing, Anti-corrosion Treatment |
| Tolerance | Precision |
| Size | Customized Size |
| Application | Furniture Manufacturing, Automotive Parts, Construction Structures, Industrial Equipment |
| MOQ | Small Orders Accepted |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction Structures | Custom pipe components for steel frame buildings, curtain wall supports, infrastructure brackets |
| Industrial Equipment | Precision-cut pipe assemblies for machinery frames, plant piping systems, conveyor structures |
| Automotive Parts | Complex geometry exhaust pipe components, chassis brackets, roll cage sections |
| Furniture Manufacturing | Decorative pipe joints, table frame connectors, architectural handrail fittings |
Material Traceability Gaps That Cost Overseas Buyers Rework Weeks
When your fabricator sources raw pipe from third-party mills, certification chains break — and customs agents notice.
Outsourcing laser cut pipe fabrication overseas introduces a risk most procurement teams only discover at the inspection stage: the material test certificate does not match the heat number stamped on the pipe. Without owning the steel production facility, fabricators cannot guarantee traceability from billet to finished component. This gap leads to rejected shipments, delayed customs clearance, and costly on-site rework when dimensional tolerances drift beyond project specifications. [NEED_CITE: material traceability requirements for structural steel fabrication in international projects]
Precision Geometry for Structural and Industrial Pipe Assemblies

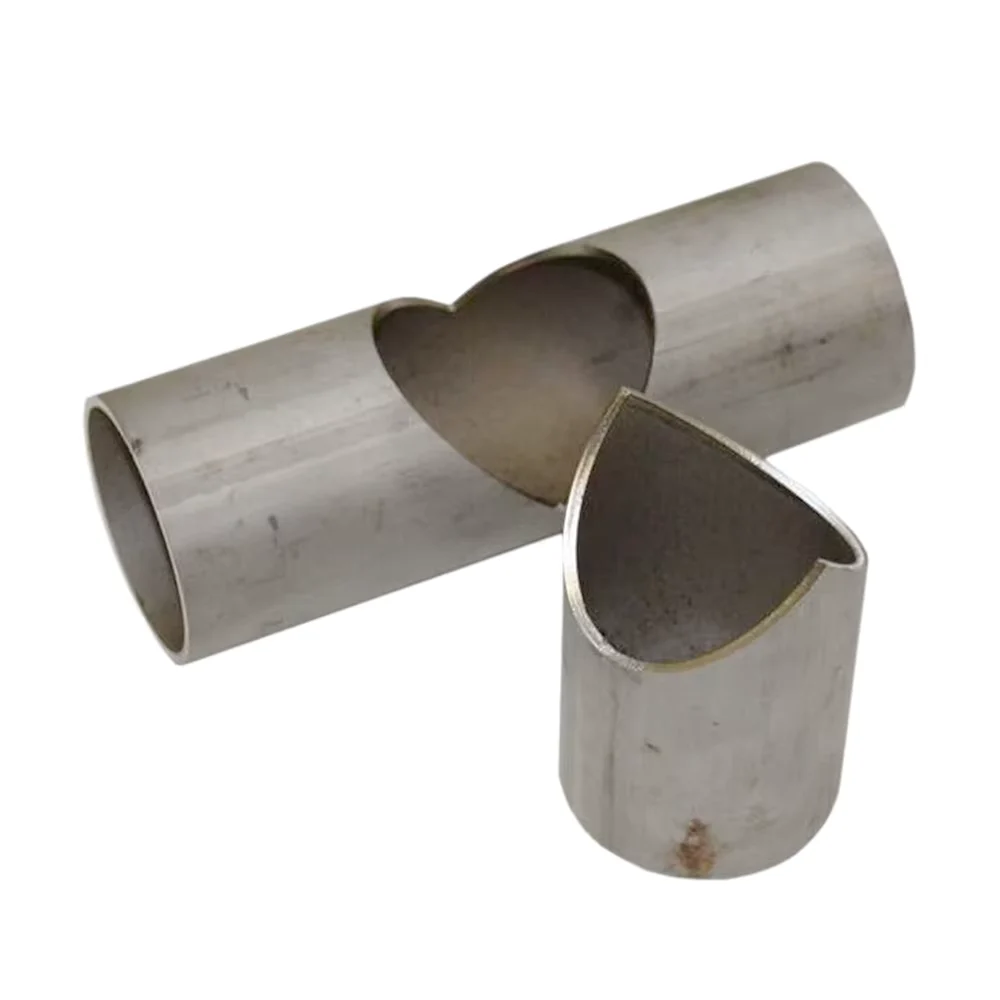

A Custom Stainless Steel Laser Cut Pipe Fabrication Supplier must deliver components that fit directly into the assembly without secondary machining. Our CNC laser cutting produces complex contours, curved openings, and clean edges on Stainless Steel 316 and carbon steel pipes — eliminating the burrs and heat-affected zones that traditional plasma cutting leaves behind. Each piece undergoes dimensional inspection against approved shop drawings before surface treatment, ensuring that bending angles, weld prep bevels, and connection holes meet the tolerance your project demands.
Engineering Compliance Across Corrosive and Load-Bearing Environments
Structural pipe components in coastal or chemical plant environments require both corrosion resistance and certified welding procedures. Stainless Steel 316 laser cut pipes maintain integrity in chloride-rich atmospheres, while carbon steel alternatives receive powder coating or anti-corrosion treatment per project specifications. All welding follows approved WPS procedures with qualified welders holding AWS and EN certifications, and every fabrication order ships with complete documentation including weld maps, NDT test results, and coating thickness reports. [NEED_CITE: AWS D1.1 structural welding code requirements for pipe fabrication]
Steel Grade Selection and Laser Cutting Process Fundamentals
Stainless Steel 316 offers superior corrosion resistance compared to 304 grades due to its molybdenum content, making it the preferred choice for marine, chemical, and food processing applications. Carbon steel pipes provide cost efficiency for indoor structural frames where surface treatment handles environmental protection. Our CNC laser cutting process uses focused light beams to vaporize material along programmed paths, producing kerf widths as narrow as 0.1mm — critical when fabricating interlocking pipe connections for furniture or automotive assemblies. The multi-material capability across Stainless Steel 316, Carbon Steel, Alloy Steel, Aluminum, and Copper allows project teams to source all pipe components from a single fabrication partner, reducing logistics complexity and quality variance.
Hidden Costs of Sourcing from Non-Integrated Fabricators
When buyers choose fabricators who subcontract raw material procurement, three hidden costs emerge: material substitution without notification, certification documents that cannot be verified against physical heat numbers, and dimensional tolerances that drift because the fabricator lacks control over incoming pipe quality. Projects requiring EN 1090 or AISC compliance face rejection at the inspection stage when traceability gaps surface. [NEED_CITE: consequences of material traceability failure in structural steel projects]
Vertically Integrated Fabrication with Full Documentation Control
Our Jinan workshop operates under the same quality system as our steel mill — meaning every Stainless Steel 316 laser cut pipe component carries material certification traceable to our own production heat numbers. We maintain 2,800+ raw material specifications in stock, eliminating the lead time uncertainty that comes from waiting for third-party mill deliveries. Certified welding procedures, qualified welders, and in-process dimensional checks ensure that every Custom Stainless Steel Laser Cut Pipe Fabrication order meets international standards before it leaves our facility. Our engineering team reviews shop drawings for material optimization and fabrication sequencing, catching interference issues before cutting begins.
Documentation & Compliance
- Mill Test Certificate documenting Stainless Steel 316 chemical composition including molybdenum content and nickel percentage per ASTM A240
- Dimensional inspection reports verifying laser cut tolerances against approved shop drawings for each batch
- Weld procedure specifications (WPS) and welder qualification records per AWS D1.1 or EN ISO 15614
- Surface treatment certification including powder coating thickness measurements and adhesion test results
- Material traceability documentation linking each component to specific heat numbers from our own steel mill
- Complete export package with commercial invoice, packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Precision laser cut Stainless Steel 316 pipe components packed in wooden crates with foam separators to prevent surface scratching during ocean transit
- Custom-sized pipe assemblies bundled with steel straps and edge protectors, optimized for container loading based on component dimensions
- Surface-treated carbon steel pipes wrapped in waterproof paper with VCI anti-corrosion protection for humid climate destinations
- Each bundle labeled with heat number, steel grade, and purchase order reference for site identification
- Professional loading plans reviewed before dispatch, accounting for weight distribution and securing methods to prevent shifting during rough sea transit
- FOB, CIF, and DDP shipping options available with complete tracking until site delivery
Start Your Fabrication Inquiry with Drawings and Specifications
Submit your project drawings in PDF or DWG format along with material specifications, steel grade requirements, and target quantity to receive a detailed quotation within 24 hours. Our engineering team will review shop drawings for feasibility, suggest material optimizations, and provide a production timeline before you commit. Confirm certification requirements and destination port to ensure all documentation aligns with customs clearance needs.
Request Your Laser Cut Pipe Fabrication Quote
Share your drawings and specifications to receive pricing, material test certificates, and production timelines. Contact our team at admin@xjystructure.com or reach us via WhatsApp at +86 188 5315 7756.
Frequently Asked Questions
Q: What materials are available for laser cut pipe fabrication?
A: We fabricate from Stainless Steel 316, Carbon Steel, Alloy Steel, Aluminum, and Copper pipes, with CNC laser cutting producing precision cuts across all material types.
Q: Can you fabricate to custom drawings and international standards?
A: Yes, our engineering team produces shop drawings for your approval before fabrication begins, and all welding procedures comply with AWS D1.1, EN 1090, and AISC standards as required by your project.
Q: What surface treatment options are available for corrosion protection?
A: We offer painting, powder coating, plating, polishing, brushing, and specialized anti-corrosion treatments selected based on your installation environment and design requirements.
Q: How do you ensure material traceability and quality control?
A: As a vertically integrated producer with our own steel mill, we provide Mill Test Certificates traceable to specific heat numbers, along with dimensional inspection reports and weld maps for every fabrication order.
Q: What is the typical lead time from drawing approval to delivery?
A: Production timelines depend on order complexity and quantity, but our integrated supply chain and raw material inventory allow us to begin fabrication immediately upon drawing approval and deposit receipt.
