Description
Factory-direct stainless steel coil supply — vertically integrated from our own steel mill to finished 2B finish coils, eliminating third-party sourcing gaps and ensuring full material traceability for every heat number.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | 304 / 316 / 430 Stainless Steel Coil |
| Product Type | Steel Coil |
| Steel Grade | 304, 304L, 316, 316L, 430, 410, 436, 439, 409L, 904L, 310S, 2205, 2507 |
| Standard | ASTM A240 / ASTM A666 / EN 10088 |
| Technique | Cold Rolled |
| Surface Finish | 2B |
| Width | 1000mm / 1219mm / 1500mm |
| Thickness | 0.2mm–3mm |
| Application | Fabrication / Industrial equipment / Construction cladding / Chemical processing / Food processing equipment / Architectural decoration |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Fabrication | Chemical storage tanks, pressure vessels, heat exchangers, and process piping requiring corrosion resistance |
| Construction & Architecture | Roofing cladding, wall panels, column covers, and decorative trim for commercial buildings |
| Food & Pharmaceutical | Processing equipment, conveyor systems, and sanitary work surfaces meeting hygiene standards |
| EPC Project Supply | Bulk coil procurement for large-scale industrial plants, desalination facilities, and infrastructure structures |
Why Thickness Tolerance on a Cold Rolled Coil Determines Your Fabrication Waste
Tight thickness control on 0.2mm–3mm cold rolled coils directly affects material yield at the press brake and shearing line.
When overseas buyers receive stainless coils with inconsistent gauge across the width, downstream fabrication becomes a cost leak. Sheets cut from the outer wraps may pass dimensional checks, while inner wraps fall outside tolerance — forcing operators to either scrap entire blanks or accept weld joints that fail visual inspection. On a 316L chemical tank project, even 0.05mm variation across a 1500mm width can push formed flanges beyond allowable gap tolerances, triggering rework on every seam. Fragmented suppliers who source raw material from multiple mills cannot guarantee uniform cold reduction, which is where vertically integrated production makes the difference. [NEED_CITE: cold rolled stainless steel thickness tolerance standards per ASTM A240]
Matching Coil Grades to Corrosive and Structural Demands
Selecting the right grade from a 304 316 430 stainless steel coil supplier determines whether your fabricated component survives its service environment or corrodes prematurely. Austenitic grades like 304 and 316L handle chloride exposure in coastal construction and chemical processing, while ferritic 430 and 409L serve architectural trim where cost matters more than pitting resistance. Duplex grades 2205 and 2507 cover high-stress structural nodes in desalination and offshore platforms where both strength and corrosion resistance are non-negotiable. Because we produce the raw slab in-house and cold roll to finished gauge under one roof, every coil carries consistent grain structure and surface quality from edge to edge — no blending from different mill heats.
Engineering Compliance and Certification for International Delivery
Structural and pressure-containing applications demand documentation that satisfies both the design engineer and the importing country’s customs authority. EN 10088 governs stainless steel grades for European construction cladding and architectural work, while ASTM A240 applies to pressure vessel and industrial equipment fabrication across North America and Middle East markets. Each coil must carry a mill test certificate showing chemical composition and mechanical properties traceable to the heat number, and third-party inspection from SGS, BV, or TÜV provides the independent verification that EPC firms require before releasing payment. [NEED_CITE: EN 10088 stainless steel grade specifications for construction applications]
Understanding the Grade Spectrum: Austenitic, Ferritic, and Duplex
The 304 316 430 stainless steel coil range spans three metallurgical families, each with distinct fabrication behavior. Austenitic grades 304, 304L, 316, and 316L offer excellent formability and weldability — the 2B finish from cold rolling provides a smooth, uniform surface ideal for further polishing or direct architectural use. Ferritic grades 430, 436, 439, and 409L deliver good oxidation resistance at lower cost, with magnetic properties and reduced nickel content that stabilizes pricing against LME fluctuations. Duplex grades 2205 and 2507 combine austenitic and ferritic structures, yielding higher yield strength than standard austenitic grades — critical for structural members in aggressive environments. The 904L and 310S grades cover specialized sulfuric acid resistance and high-temperature service respectively. Cold rolling to 0.2mm–3mm thickness on our own reduction lines ensures consistent mechanical properties across the full width, whether you need 1000mm for narrow trim or 1500mm for large tank shells.
The Hidden Cost of Sourcing from Unverified Coil Suppliers
Purchasing stainless coils without verified mill test certificates or from traders who blend material from unknown sources creates risks that surface only at project handover. Customs authorities in the EU and Middle East increasingly reject shipments lacking proper EN or ASTM documentation, turning a cost-saving purchase into a demurrage bill. On-site, material that fails spectrographic analysis against the specified grade forces complete replacement of fabricated sections — welding a 304 component where 316L was specified means tearing out every joint in a chloride environment. Dimensional non-conformance on thickness compounds the problem: fabricators discover gauge variation only after slitting and blanking, at which point the coil is already cut and claims become disputes. [NEED_CITE: material traceability requirements for stainless steel in pressure equipment]
What Sets Our Coil Supply Apart from Trading Companies
Our vertically integrated operation means the stainless slab is melted, hot rolled, cold reduced, and annealed within our own facility — every coil is traceable from raw material batch to finished product. We maintain 2,800+ specifications across our product range, so whether you need 0.3mm 430 for roofing trim or 2.0mm 316L for chemical tank shells, the material comes from a single quality system with unified process control. Our in-house laboratory issues mill test certificates for every heat number, and we coordinate third-party inspection with SGS, BV, or TÜV before shipment — not as an afterthought, but as a standard step in our release process. Professional loading teams handle coil cradles and edge protectors to prevent transport damage, and our export documentation package satisfies customs requirements across EU, Middle East, Southeast Asian, and African markets.
Documentation & Compliance
- Mill test certificate (EN 10204 3.1) documenting chemical composition and mechanical properties for each heat number of 304, 316, 430, and duplex grades per ASTM A240 and EN 10088
- Third-party inspection report from SGS, BV, or TÜV verifying surface finish, thickness tolerance, and dimensional accuracy before shipment
- Material traceability certificate linking each coil to its original melt batch, ensuring full chain of custody from slab to finished 2B finish product
- Certificate of origin and customs documentation (packing list, bill of lading, commercial invoice) prepared for EU, Middle East, and Southeast Asian import clearance
- ISO 9001 quality management certificate covering the entire cold rolling and annealing process from raw material intake to final coil packaging
Packaging, Loading & Delivery

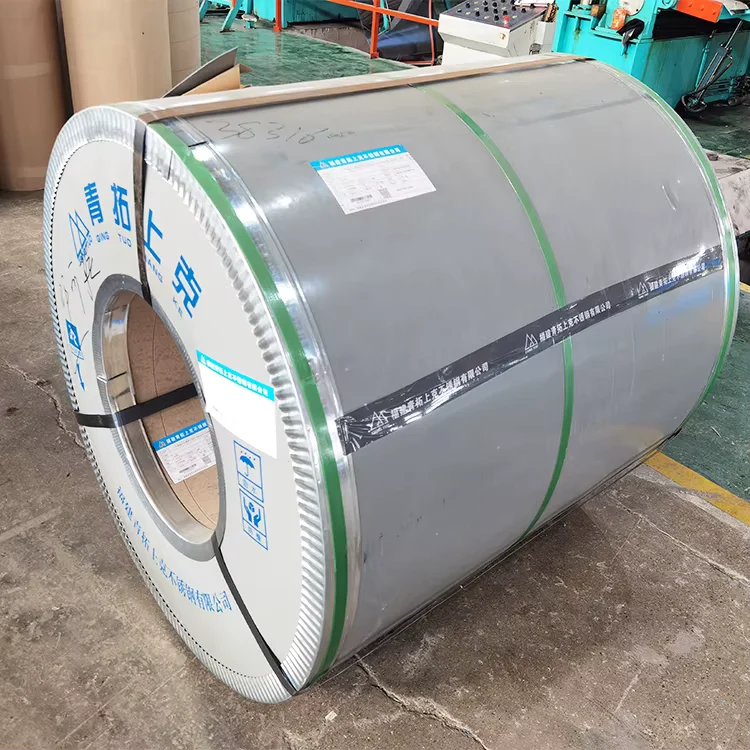

- Cold rolled 2B finish coils wrapped in multi-layer kraft paper and plastic film with steel strip banding to protect the mirror-smooth surface from scratches and moisture during ocean transit
- Coil edge protectors applied on all 1000mm, 1219mm, and 1500mm width products to prevent edge dents that would cause slitting defects at the fabrication shop
- Container loading optimized by coil weight and width combination — 1500mm coils loaded in dedicated cradles to prevent shifting, while 1000mm coils nested for maximum 20ft container utilization
- Heat number and grade identification stenciled on each coil wrapper and matching the mill test certificate, enabling immediate material verification upon site arrival
- FOB, CIF, and DDP shipping terms available with professional export documentation for stainless steel coil delivery to major ports across the Middle East, Southeast Asia, Europe, and Africa
Start Your Inquiry with Drawings and Grade Requirements
Share your project specifications including steel grade, thickness, width, total quantity, and destination port — our team responds within 24 hours with a detailed quotation covering material, cold rolling, packaging, and shipping costs. For EPC projects requiring third-party inspection or specific mill test documentation, confirm your certification requirements upfront so we include them in the production plan. Non-standard widths from slitting and cut-to-length services are available for projects where 1000mm, 1219mm, or 1500mm stock widths create excessive edge waste.
Frequently Asked Questions
Q: What is the difference between 304, 316, and 430 stainless steel coil for my project?
A: 304 offers general corrosion resistance suitable for indoor and mild outdoor environments. 316 and 316L contain molybdenum for superior chloride and pitting resistance, making them the standard choice for coastal construction, chemical processing, and marine applications. 430 is a ferritic grade with good oxidation resistance and lower cost, widely used for architectural trim, appliance panels, and decorative cladding where extreme corrosion resistance is not required.
Q: What documentation comes with each stainless steel coil shipment?
A: Every coil ships with a mill test certificate (EN 10204 3.1 format) showing chemical composition and mechanical properties traceable to the specific heat number. Third-party inspection reports from SGS, BV, or TÜV are available upon request for pre-shipment verification. Full export documentation including packing list, bill of lading, and certificate of origin is prepared for customs clearance at your destination port.
Q: Can you slit coils to custom widths or provide cut-to-length sheets?
A: Yes. Our processing services include precision slitting from master coils in 1000mm, 1219mm, and 1500mm widths down to your required strip dimensions, as well as cut-to-length sheet production. This reduces edge trimming waste at your fabrication facility and ensures dimensional accuracy for downstream forming and welding operations.
Q: How do you ensure the 2B surface finish remains undamaged during shipping?
A: Each coil is wrapped in multi-layer protective paper and plastic film, with steel strip banding and edge protectors applied before container loading. Coils are secured in dedicated cradles to prevent movement and surface contact damage during ocean transit. Our loading team follows standardized procedures developed from years of handling finished stainless steel products for international shipment.
Ready to Source Your Next Stainless Steel Coil Order?
Send your grade specifications, thickness, width, and quantity to receive a detailed quotation with mill test certificate confirmation and production timeline.
