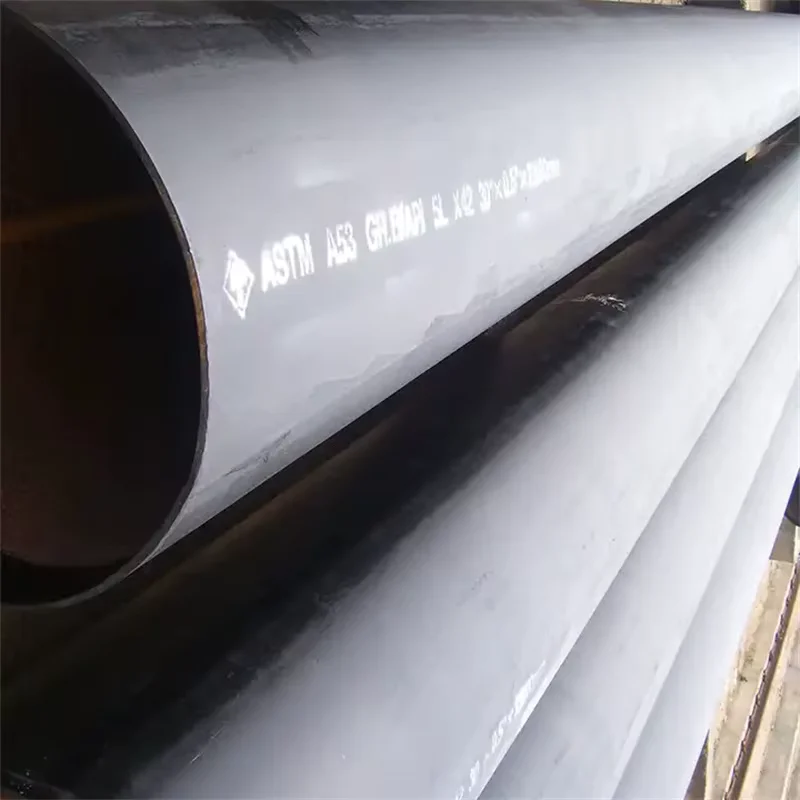

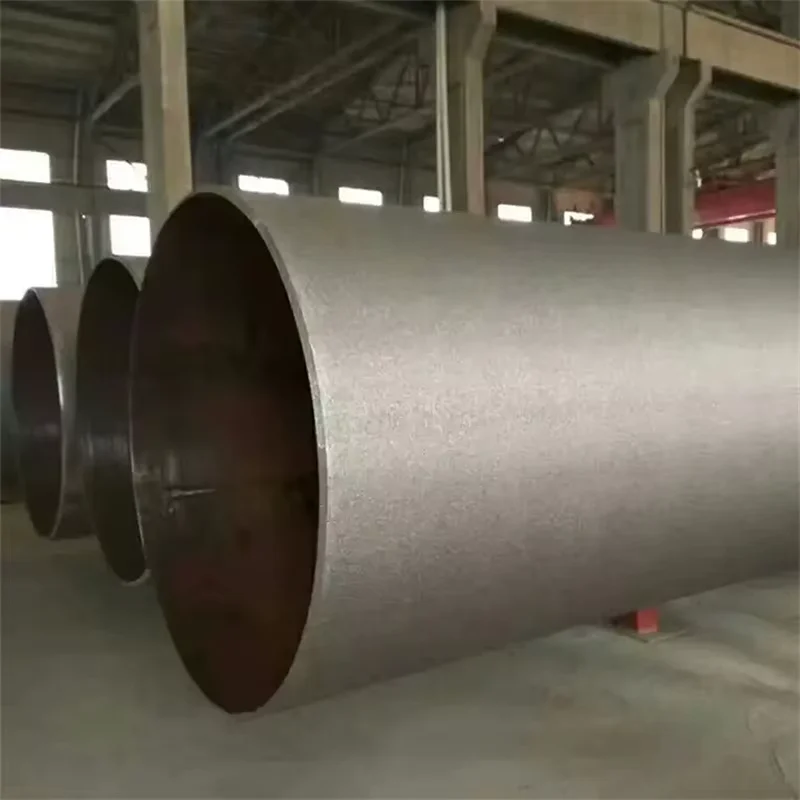

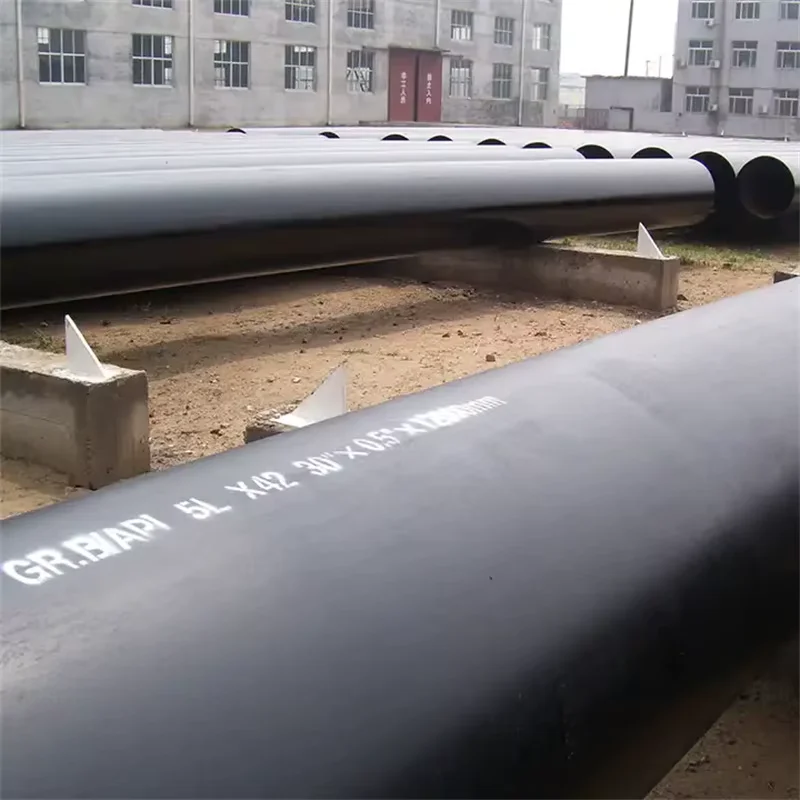

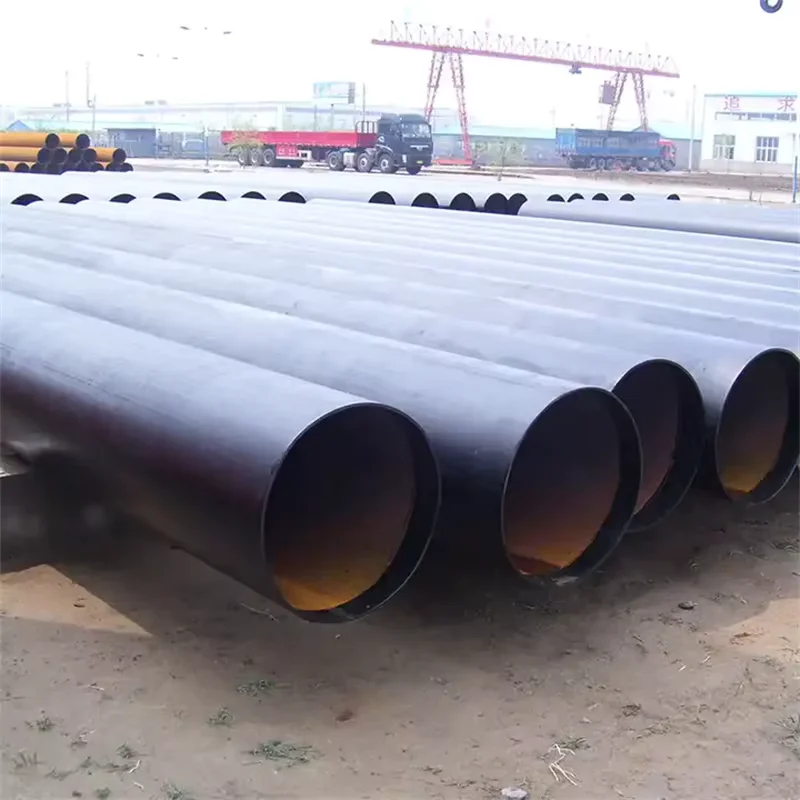

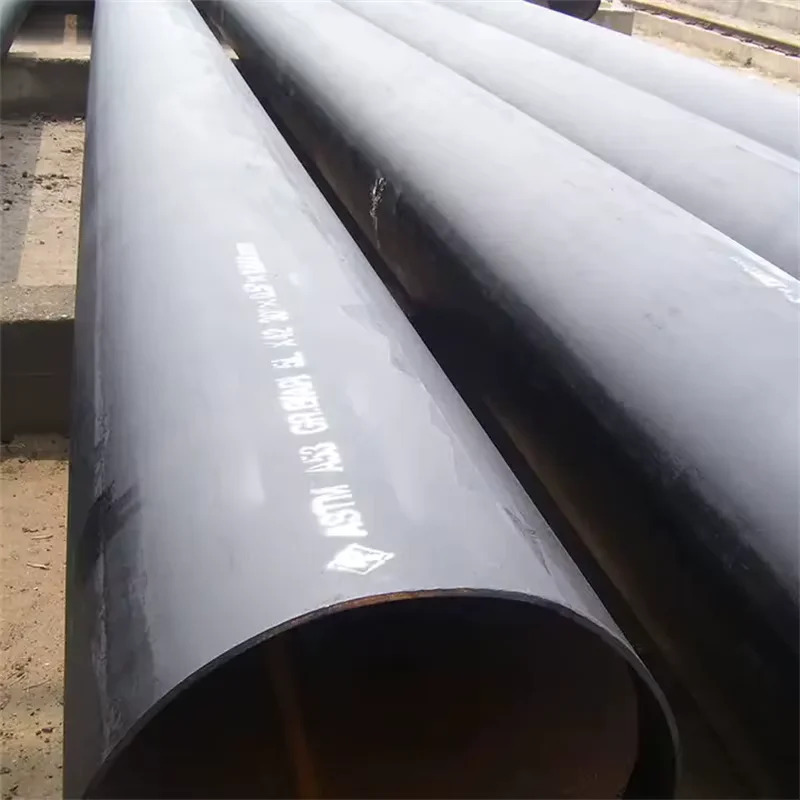

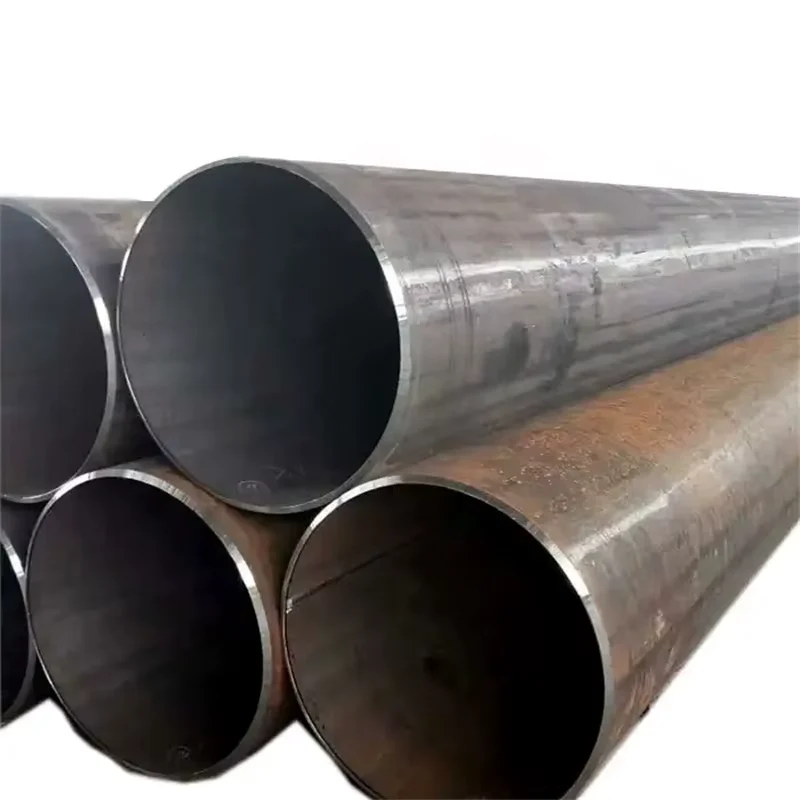

API 5L LSAW Steel Pipe JCOE Manufacturer OD 355.6-4000mm

Description

Integrated Mill-Direct LSAW Supply — Raw material from our own steel production facility with 2,800+ specifications ensures full heat-number traceability from plate to finished pipe.

Technical Specifications

Application Suitability

Where Material Traceability Breaks Down on Large-Diameter Pipeline Orders

Fragmented procurement between plate suppliers and pipe fabricators creates certification gaps that surface only at third-party inspection.

When EPC firms source LSAW steel pipe for cross-border pipeline or piling projects, the most common failure point is not welding — it is documentation. Plates rolled at one mill, transported to a separate fabricator, and welded under a generic WPS produce mill test certificates with broken heat-number chains. Customs authorities in the Middle East and EU increasingly flag these gaps during EN 10204 3.2 verification. [NEED_CITE: EN 10204 inspection document types for steel products] The result is cargo held at port, re-inspection costs, and schedule delays that no amount of price negotiation can recover. As an LSAW steel pipe JCOE manufacturer operating our own steel production facility, we control the full chain from slab to finished pipe — every heat number on the MTC traces directly back to our mill’s ladle analysis.

How JCOE Forming Matches Large-Diameter Pipeline and Piling Demands

The JCOE process forms plate into a round profile through progressive die strokes, then completes the longitudinal seam with submerged arc welding from both inside and outside. This method covers OD 355.6–4000 mm with wall thickness up to 50 mm — a range that SSAW cannot achieve at the same dimensional accuracy and that seamless mills cannot reach economically at these diameters. For piling applications in bridge and hydropower projects, the consistent roundness and straightness of JCOE-formed LSAW steel pipe allow direct drive-in without field re-rounding. Our own mill supplies the plate, so grade transitions from API 5L X65 for transmission lines to S355 for structural piling are managed under one quality system with unified WPS and PQR records.

Engineering Compliance Across API, EN, and AS Standards

Large-diameter welded pipe must satisfy different compliance frameworks depending on the destination market. API 5L PSL2 governs sour-service and high-pressure transmission pipelines with mandatory Charpy impact testing and stricter chemical limits. EN 10217 and EN 10219 apply to European structural and pressure applications where CE marking and factory production control audits are prerequisites for customs clearance. [NEED_CITE: API 5L PSL1 vs PSL2 requirements comparison] Australian projects require AS 1163 or AS 3678 compliance for structural hollow sections. Our LSAW steel pipe JCOE production line holds certification across all these standards simultaneously, and our in-house laboratory performs chemical analysis, tensile testing, and NDT before any third-party inspector arrives. Custom lengths and beveled ends are prepared to project-specific welding procedure specifications, reducing field cutting and fit-up time on site.

Steel Grade Selection and JCOE Welding Metallurgy

The grade range available in our LSAW steel pipe JCOE line spans API 5L grades from L245/B through X80, EN structural grades from S235 to S460, and Australian C-series grades including C350LO and C450LO. Higher API grades such as X65 and X70 require controlled rolling and precise carbon equivalent management to maintain weldability — the submerged arc process with matched flux and wire combinations ensures the weld metal achieves the same toughness as the base plate. [NEED_CITE: carbon equivalent and weldability in high-strength line pipe] For structural applications, the jump from S275 to S355 delivers higher yield capacity without increasing wall thickness, directly reducing transport weight and foundation loads. Surface treatment selection — oiled for temporary corrosion protection during transit, galvanized for long-term atmospheric exposure, or black painting with custom coating systems for buried or submerged service — is coordinated at the fabrication stage to avoid damaging the weld zone.

The Hidden Cost of Accepting Substitutes on Certified Grades

Substituting an unverified grade or accepting plates from an untraceable source may save margin at purchase but introduces risks that compound through the project lifecycle. Welding procedures qualified for X65 cannot be applied to material that tests as X52 — the result is under-matched weld strength that fails NDT acceptance. [NEED_CITE: weld strength matching requirements in API 5L] Missing or inconsistent MTCs trigger customs holds in the EU and Gulf states, where EN 10204 3.2 inspection documents are mandatory for pressure and structural applications. Dimensional deviations beyond tolerance force field rework — bevel re-cutting, fit-up correction, and in the worst case, section replacement — all billed back to the procurement team who approved the substitution.

Why Project Teams Source LSAW Pipe from Our Facility

Our vertical integration eliminates the most common failure mode in overseas pipe procurement: the gap between material supplier and fabricator. With our own steel production facility producing over 2,800 specifications of raw material, every plate used in our LSAW steel pipe JCOE line carries a heat number that traces to our mill’s ladle record. Our in-house laboratory performs full chemical and mechanical testing, and we maintain certified WPS and PQR records for every grade and thickness combination we produce. Third-party inspectors from SGS, BV, and TÜV operate at our facility on a regular schedule — not as a corrective measure, but as a standard part of our production release process. For oversized and heavy-wall pipes in the 2000–4000 mm OD range, our loading team plans stowage and lashing in advance, coordinating with forwarders to avoid port congestion surcharges and ensuring that site delivery sequences match construction installation order.

Documentation & Compliance

• Mill Test Certificate per EN 10204 3.1/3.2 documenting chemical composition and mechanical properties for each API 5L grade from L245/B to X80, with full heat-number traceability to our own mill
• CE certificate covering EN 10217 and EN 10219 production, required for customs clearance on structural and pressure pipe shipments to European Union member states
• ISO 9001 quality management system certificate covering the integrated steel production and LSAW steel pipe JCOE fabrication process
• SGS, BV, or TÜV third-party inspection reports available at any hold point — dimensional verification, NDT, coating thickness, and hydrostatic testing
• Welding documentation package including WPS, PQR, weld maps, and NDT reports for every longitudinal seam on API 5L PSL2 and EN-certified orders
• Full export documentation set: packing list, bill of lading, certificate of origin, and fumigation certificate for wooden packaging

Packaging, Loading & Delivery

• Heavy-wall LSAW pipes in OD 2000–4000 mm range shipped in bulk break or with custom steel cradles, secured with welded sea fastenings to prevent rolling during ocean transit
• Oiled surface treatment applied to all API 5L grades before packing to prevent corrosion during transit to Middle East and Southeast Asian ports
• Galvanized LSAW pipes bundled with non-metallic edge protectors to preserve the zinc coating during handling and shipping
• Custom cut lengths from 6m to 12m available, with beveled ends protected by plastic caps to prevent damage to welding preparation
• Heat number, grade, size, and heat marked on each pipe end with stenciled paint, matching the corresponding MTC for site verification
• FOB, CIF, and DDP terms available with professional stowage planning for oversized cargo, coordinated to match site installation sequences

How to Initiate a Technical Inquiry for Your Project

Submit your project drawings, required steel grades, applicable standards, and destination port to receive a detailed quotation including material, fabrication, coating, and logistics costs. Our engineering team will review shop drawings, confirm welding procedure qualifications for your specified grade and thickness, and provide a production schedule with defined inspection hold points. Mill test certificates and third-party inspection arrangements are confirmed at contract stage — no surprises at the port.

Request Your LSAW Pipe Quotation with Full Material Certification

Send your specifications and drawings to receive a detailed quote and mill test certificate sample within 24 hours.
