Description
Direct Mill Supply with Full Traceability — Every LSAW steel pipe is produced from our own steel mill slabs, ensuring wall thickness measurements align precisely with mill certificates before shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | LSAW Longitudinal Submerge-Arc Welded Steel Pipe |
| Product Type | Welded Steel Pipe (LSAW) |
| Steel Grade | Q195-Q345, A53-A369, ST35-ST52, P195TR1-P265TR2, P235GH-P265GH, S235JR-S355KJ2, X42-X80 (API 5L PSL1/PSL2) |
| Standard | GB/T 9711, API 5L, ISO 3183, ASTM A252, EN 10217-1, EN 10217-5, EN 10219-1/2, SY/T 5037, SY/T 5040 |
| Section Shape | Round |
| Size Range | OD 219 mm–3000 mm |
| Wall Thickness | 5.2 mm–30 mm (up to 60 mm per JCOE capability) |
| Length | 6 m / 12 m |

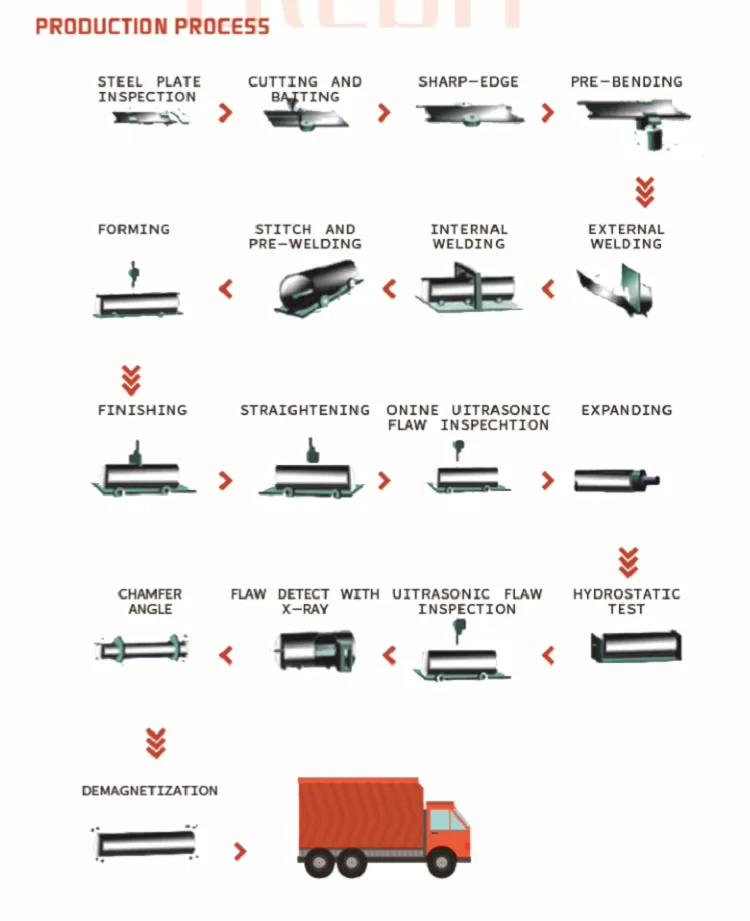

| Technique | LSAW (Longitudinal Submerge-Arc Welded) / JCOE forming |

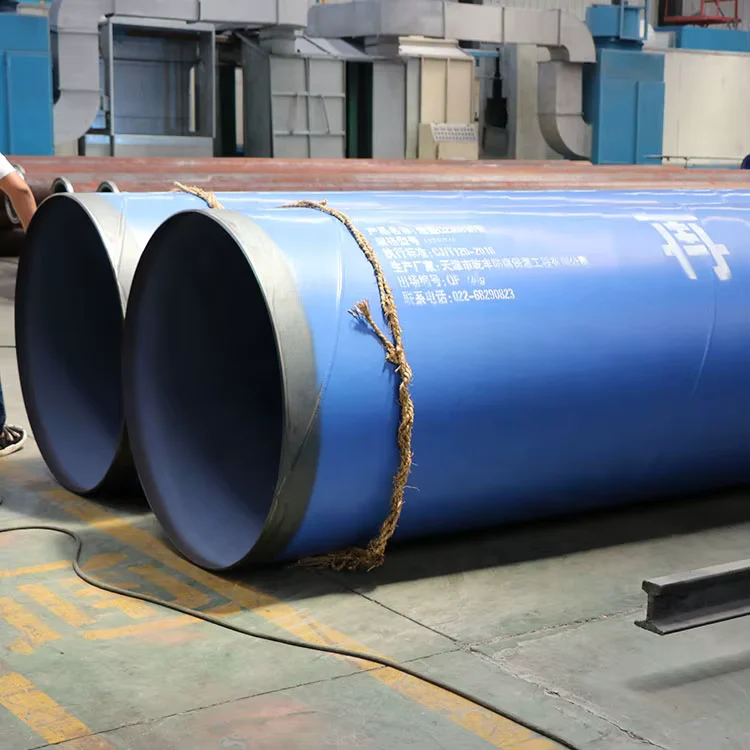

| Surface Treatment | 3PE / FBE coating |
| Ends | Plain / Beveled (per standard) |
| Application | Fluid transport, Oil & natural gas pipelines, Industrial and civil construction, Water supply and drainage, Piling, Structural support |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Transmission pipelines, gathering lines, offshore platform piping |
| Industrial Construction | Plant piping systems, fluid transport networks, process support columns |
| Infrastructure | Bridge piling, foundation casings, structural support columns |
| Water Engineering | Municipal water supply mains, drainage systems, intake/outfall pipelines |
Where Wall-Thickness Tolerance Decides Site Acceptance for LSAW Steel Pipe
A mill certificate that looks perfect on paper means nothing when ultrasonic testing reveals negative tolerance deviations at site.
I watched a batch of LSAW pipes get rejected at a Middle East project site — the EN 10217 certificates were beautifully formatted, but actual wall thickness measurements fell outside permissible tolerance bands. The entire shipment faced return logistics. [NEED_CITE: EN 10217 dimensional tolerance requirements for welded steel pipes]
When fabricators source steel from third-party mills, material traceability gaps emerge. Heat numbers on certificates cannot be verified against actual production records. This creates uncertainty for EPC firms managing critical pipeline projects where every weld joint must comply with API 5L or EN 1090 standards.
Matching Large-Diameter LSAW to Pipeline and Piling Applications
LSAW steel pipe in OD 219-3000 mm range serves distinct engineering requirements based on wall thickness and steel grade selection. For oil transmission pipelines, API 5L PSL2 grades X42-X80 provide the fracture toughness and weldability needed for high-pressure service. Municipal piling projects typically specify S355J2 or Q345 for structural load capacity. The JCOE forming process enables heavy-wall production up to 60 mm, accommodating deep foundation requirements where seamless alternatives become cost-prohibitive.
Engineering Compliance Across International Standards
LSAW steel pipe fabrication must satisfy multiple compliance layers simultaneously. Structural applications require EN 10219 or ASTM A252 certification for load-bearing verification. Pipeline projects demand API 5L PSL1/PSL2 with complete chemical composition and mechanical property documentation. European market entry requires CE marking per EN 10217, while Middle East specifications often mandate third-party inspection by SGS or BV at production stages. [NEED_CITE: API 5L PSL1 vs PSL2 requirements for line pipe] Surface treatment selection between 3PE and FBE coating depends on service environment — 3PE provides mechanical protection for buried pipelines, while FBE suits high-temperature process piping.
Steel Grade Selection and Welding Process Fundamentals
The LSAW submerged arc welding process produces longitudinal seams with consistent penetration across heavy-wall sections. Steel grade selection follows project-specific requirements: API 5L X-series grades (X42-X80) serve hydrocarbon transmission with controlled sulfur and phosphorus limits for weld integrity. EN 10217 P-series grades (P195-P265) address pressure applications with specified elevated temperature properties. Structural grades S235JR through S355KJ2 offer increasing yield strength with Charpy impact testing at sub-zero temperatures for cold climate installations. The JCOE forming technique enables precise diameter control for large-bore pipes where roller bending cannot maintain roundness tolerance.
Hidden Costs of Material Non-Conformance in LSAW Procurement
Purchasing LSAW steel pipe without verified material traceability creates cascading project risks. Dimensional deviations beyond standard tolerance trigger weld joint rejections during field construction. Missing or falsified mill certificates cause customs clearance delays at destination ports. [NEED_CITE: consequences of material certification gaps in international steel procurement] Steel grade substitution without proper documentation voids engineering approvals and insurance coverage. The cost of replacing rejected pipes — including demurrage, re-fabrication, and schedule delays — typically exceeds the original price differential between verified and unverified sources.
Integrated Material Control from Slab to Finished Pipe
Our vertically integrated production eliminates the sourcing gaps that plague third-party fabricators. The own steel mill with 3 production lines and 2,800+ raw material specifications feeds directly into LSAW pipe fabrication, providing complete heat number traceability from slab to finished component. Certified welding procedures (WPS/PQR) and AWS/EN qualified welders ensure every longitudinal seam meets code requirements. Full NDT testing — ultrasonic, radiographic, and magnetic particle — documents weld integrity before coating application. Third-party inspection by SGS, BV, or TÜV is accommodated at any production stage, providing independent verification for critical projects.
Documentation & Compliance
- Mill Test Certificate EN 10204 3.1/3.2 documenting chemical composition and mechanical properties for API 5L X52 and EN 10217 P265GH grades with heat number traceability
- CE Certificate per EN 10217-1 and EN 10217-5 for European market compliance, covering S235JR through S355KJ2 structural grades
- ISO 9001 Quality Management System certificate covering LSAW pipe fabrication processes from JCOE forming through final inspection
- SGS/BV Third-Party Inspection Reports documenting dimensional verification, NDT results, and coating thickness measurements per project specifications
- Material Traceability Matrix linking each pipe to original slab heat number, welding parameters, and inspection records
- Export Documentation including packing list, bill of lading, certificate of origin, and coating application reports for customs clearance
Packaging, Loading & Delivery

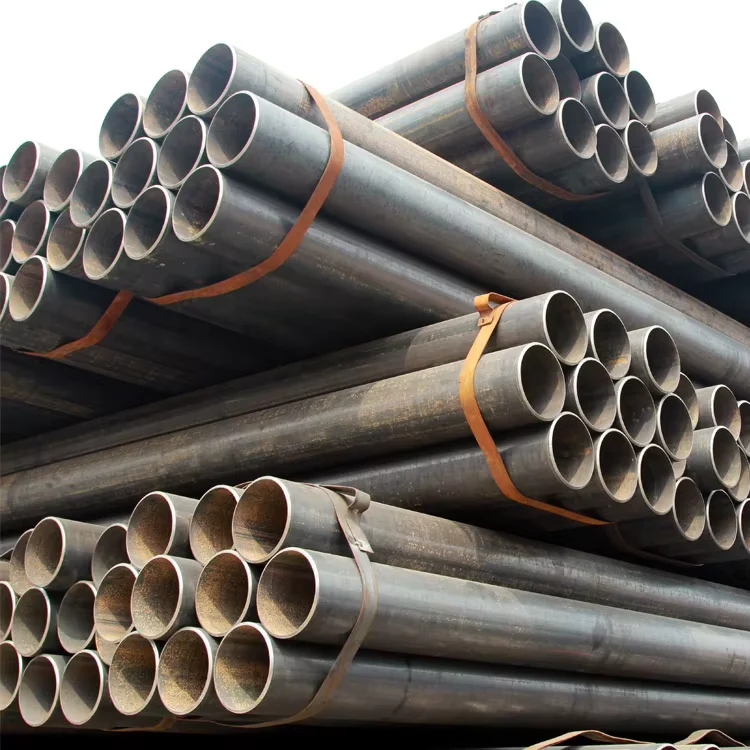

- Seaworthy bundling with steel strips and edge protectors for 12 m length LSAW pipes, preventing coating damage during ocean transit
- 3PE and FBE coated surfaces wrapped with protective film to preserve anti-corrosion treatment during handling and storage
- Container loading optimization for OD 219-610 mm pipes in 40ft containers, with wooden cradles preventing point loading on coated surfaces
- Heat number and steel grade stenciled on each pipe end, matching mill certificate documentation for site verification
- Break-bulk shipping arrangements for large-diameter pipes (OD 1000-3000 mm) with professional lashing and securing for heavy-wall components
- FOB/CIF/DDP delivery terms with complete export documentation and tracking until destination port or project site
Initiating Your LSAW Steel Pipe Inquiry
Submit project specifications including outer diameter, wall thickness, steel grade, quantity, and applicable standards (API 5L, EN 10217, or ASTM A252) to receive detailed quotation with material certification and production timeline. Engineering support includes shop drawing review and material optimization for large-diameter orders. Confirm third-party inspection requirements and coating specifications during initial inquiry to ensure compliance documentation aligns with project standards.
Frequently Asked Questions
Q: How do API 5L, EN 10217, and GB/T 9711 steel grades correspond for equivalent specifications?
A: API 5L X42-X80 grades serve pipeline applications with specific chemical and mechanical requirements. EN 10217 P235-P265 series addresses pressure applications with elevated temperature properties. GB/T 9711 aligns closely with API 5L for Chinese domestic pipeline projects. Cross-reference tables are available for grade equivalence verification during procurement.
Q: Can you provide EN 10204 3.2 certificates and accommodate buyer-nominated inspection agencies?
A: EN 10204 3.2 certificates with independent inspector witness are available for critical applications. Third-party inspection by SGS, BV, TÜV, or Lloyd’s Register is accommodated at any production stage — from material receiving through final coating inspection. Inspection hold points are documented in the quality plan submitted before production begins.
Q: When should I specify 3PE versus FBE coating for LSAW pipe applications?
A: 3PE (three-layer polyethylene) coating provides superior mechanical protection for buried pipelines subject to soil stress and handling damage. FBE (fusion-bonded epoxy) coating suits high-temperature service up to 100°C and provides excellent chemical resistance for process piping. Bare pipe with temporary rust prevention is specified for indoor applications or field coating projects.
Q: What is the typical production cycle for large-diameter LSAW orders?
A: Production scheduling depends on steel grade availability, coating requirements, and order quantity. Standard sizes with common grades (S235JR, X42) follow typical lead times. Large-diameter heavy-wall pipes requiring custom plate procurement or specialized coating applications require extended scheduling. Detailed production timelines are provided with quotation.
Q: How are large-diameter LSAW pipes packed and secured for ocean shipment?
A: Pipes with OD 219-610 mm are containerized with wooden cradles and steel strip bundling. Large-diameter pipes (OD 610-3000 mm) require break-bulk shipping with professional lashing systems. Coated surfaces receive protective wrapping. Loading plans account for weight distribution and port handling equipment capabilities at destination.
Request Your LSAW Steel Pipe Quotation with Full Material Certification
Submit your project drawings, steel grade requirements, and quantity specifications to receive comprehensive quotation including mill test certificates, production timeline, and shipping arrangements.
