Description

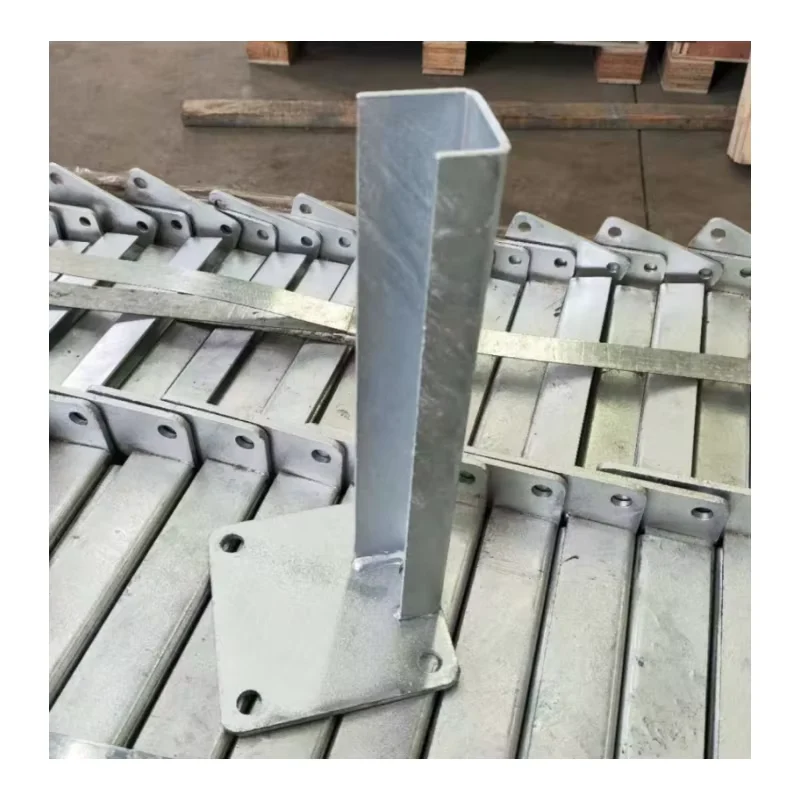

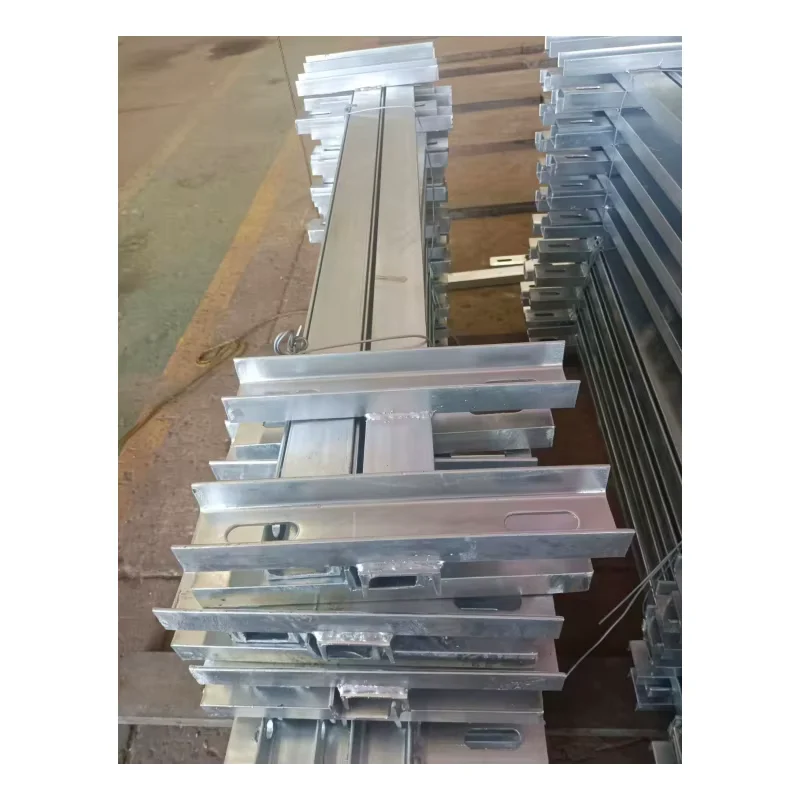

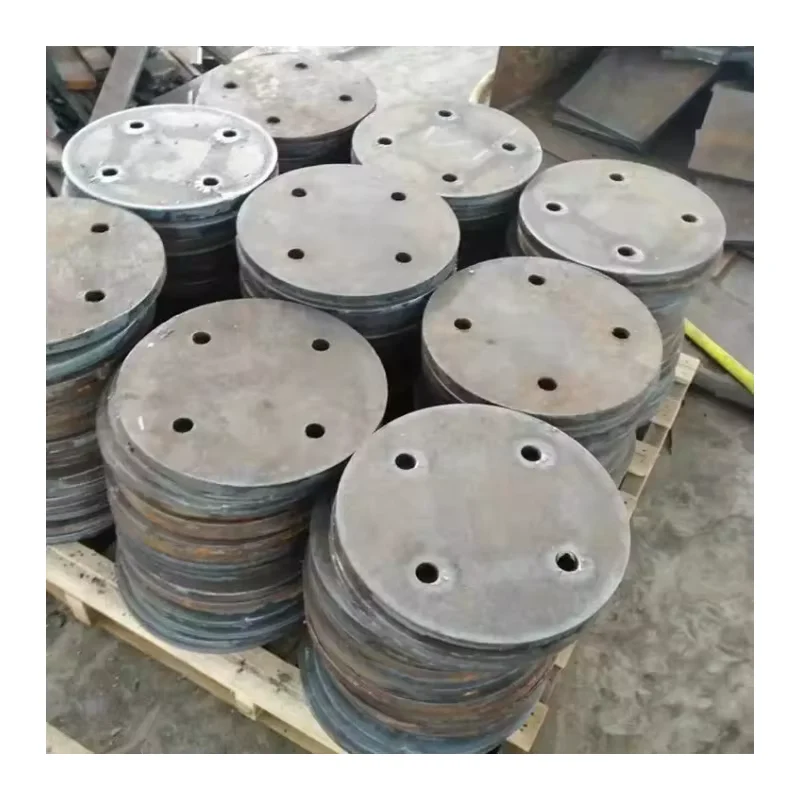

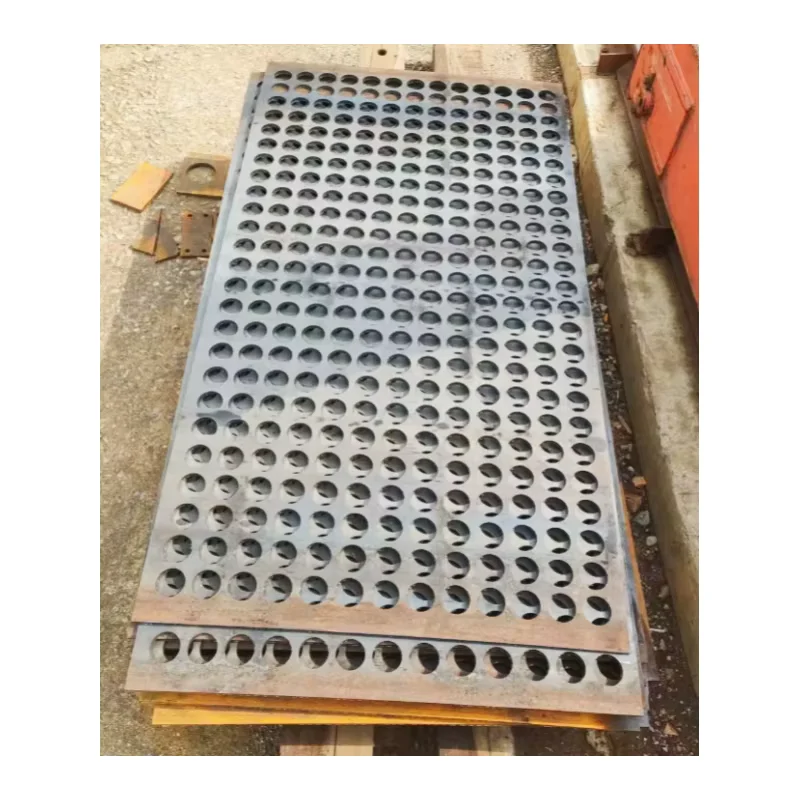

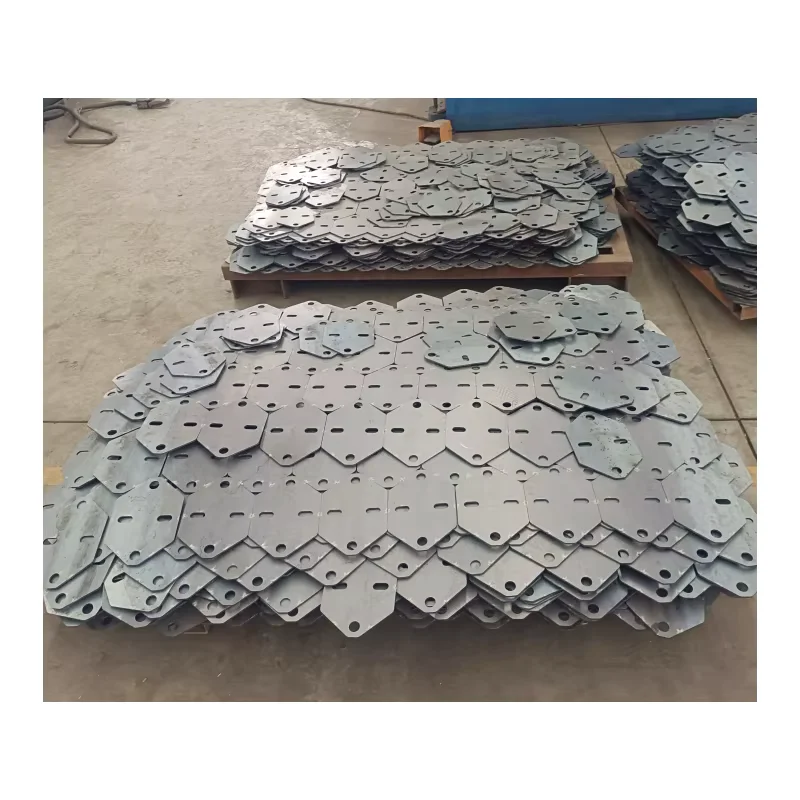

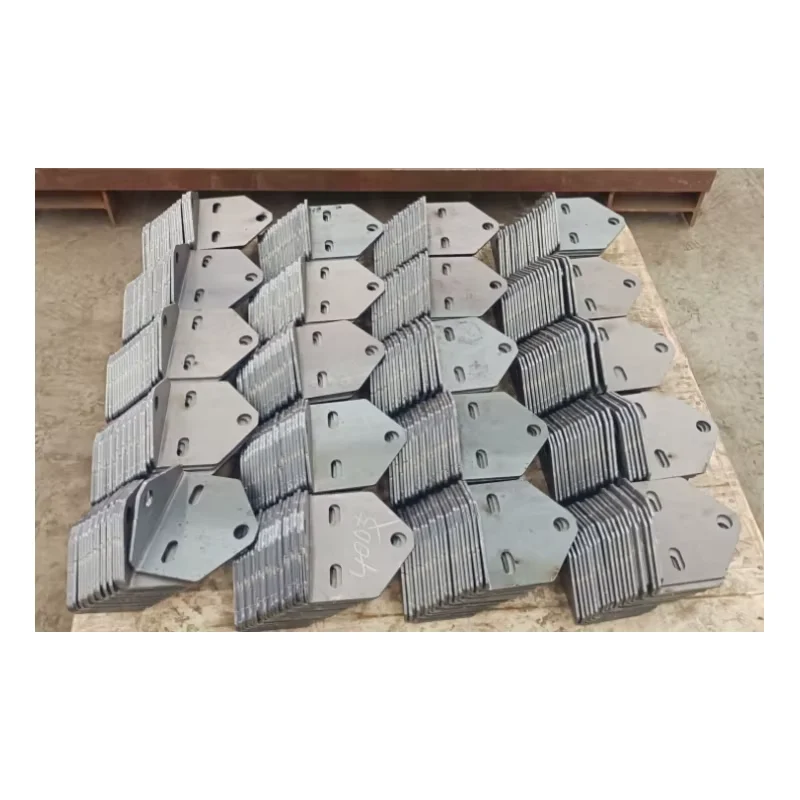

Direct Factory Fabrication — Every custom steel sheet component is cut, welded, and coated inside our own workshop backed by in-house steel production, eliminating third-party markup and material sourcing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Custom Steel Sheet Fabrication Part |
| Product Type | Fabricated Steel Structure / Machined Steel Product |
| Steel Grade | Carbon steel sheet / profile / pipe (specific grades per drawing) |
| Standard | GB / AISI / ASTM / BS / DIN / JIS |
| Processing | Laser Cutting, CNC Profiling, Bending, Punching Hole, Welding, Galvanizing, Powder Coating, Painting |
| Drawing Format | CAD / DWG / STEP / PDF |
| Surface Treatment | Galvanizing / Powder Coating / Painting |
| Tolerance | ±5% |
| Service | ODM / OEM |
| Package | By bundle or Custom |
| Application | Construction / Industrial facilities / Infrastructure / Custom structural components / Machinery frames / Platforms |
| MOQ | 1 PCS |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC & General Contractors | Structural steel frames, platform grating, stairway stringers, connection gusset plates for building and infrastructure projects |
| Industrial Project Developers | Warehouse portal frames, factory mezzanine decks, plant pipe rack supports, conveyor support structures |
| Steel Structure Companies | Overflow fabrication capacity for beam-to-column assemblies, truss nodes, base plates, and embedded anchor assemblies |
| Infrastructure & Civil | Bridge stiffener plates, retaining wall anchor panels, sound barrier mounting frames, culvert reinforcement sections |
What Welding Certification Gaps Cost on an Overseas Fabrication Order
Certified WPS and welder qualification documents decide whether your shipment clears customs or gets rejected at site inspection.
Outsourced steel fabrication to China often triggers anxiety at the receiving end — not about price, but about whether the welds actually hold up under load and whether the dimensional tolerances match the approved shop drawings. I have seen entire container loads of fabricated brackets arrive at a Southeast Asian warehouse only to fail ultrasonic testing because the fabricator used unqualified welders and skipped NDT. With our custom steel sheet fabrication service supplier workflow, every weld follows an approved WPS per AWS D1.1 or EN 1090, and each joint is traceable back to the welder’s qualification record. [NEED_CITE: EN 1090 execution class requirements for structural steel components]
How Fabricated Sheet Components Match Structural Frame Requirements
When EPC firms order custom steel sheet fabrication service supplier packages for platform decks and machinery frames, the critical match points are load-bearing capacity at connection nodes, corrosion resistance in the operating environment, and dimensional fit-up for field bolting or welding. Our engineering team reviews client CAD files to optimize nesting, minimize thermal distortion during laser profiling, and sequence welding passes to control residual stress — ensuring that each plate arrives on site ready to bolt without re-drilling or reaming.
Engineering Compliance and Surface Protection Selection
Structural steel plates fabricated for European projects must conform to EN 1090 execution classes, while North American shipments follow AISC and AWS D1.1 welding codes. Surface treatment selection — hot-dip galvanizing for high-humidity coastal sites, powder coating for indoor industrial machinery frames, or multi-layer industrial painting for infrastructure — directly affects service life and maintenance cycles. We supply coating thickness reports alongside every shipment so that site inspectors can verify compliance without third-party re-testing. [NEED_CITE: ISO 12944 corrosion category guidance for protective paint systems]
Steel Grade Selection and Processing Fundamentals
Carbon steel sheet grades across the GB, ASTM, and EN systems serve different load and environment combinations. S-series grades such as S235 and S355 offer incrementally higher yield strength for heavier structural frames, while ASTM A36 remains the default for general-purpose brackets and base plates in North American projects. Laser cutting delivers clean edges with minimal heat-affected zone, whereas CNC plasma and flame cutting handle thicker sections economically. Press brake bending and punch-hole operations add functional geometry without secondary machining, and submerged arc or MIG/MAG welding ensures full-penetration joints on heavy-gauge assemblies.
Hidden Costs of Sourcing Fabricated Parts Without Verified Documentation
Ordering fabricated steel components without verified material certificates and welding records creates compounding downstream costs. Material traceability gaps mean that site inspectors cannot confirm grade equivalence, leading to shipment holds at customs or outright rejection during structural audits. Dimensional tolerance drift beyond ±5% forces field rework — extra cutting, re-drilling, and re-welding — that erodes the original cost advantage of overseas sourcing. [NEED_CITE: material traceability requirements under EN 10204 inspection certificates]
Why Project Teams Source Fabrication Through Our Integrated Facility
Our custom steel sheet fabrication service supplier model works because raw steel production and fabrication happen under one roof. When a client sends a DWG file, we pull plate directly from our own mill inventory — over 2,800 specifications in stock — so material certification chains stay unbroken from heat number to finished component. Our in-house laboratory generates mill test certificates on demand, and our certified welders carry AWS and EN qualifications that satisfy international inspector requirements. Professional loading plans drawn for every container prevent the transit damage that I learned about the hard way years ago, and our documentation packages travel with each shipment so that customs clearance and site handover proceed without delays.
Documentation & Compliance
- Mill test certificate documenting chemical composition and mechanical properties of the base carbon steel plate per the specified GB, ASTM, or EN grade
- Welding procedure specification (WPS) and procedure qualification record (PQR) for every joint type, aligned with AWS D1.1 or EN 1090 requirements
- Weld map linking each fabrication joint to the qualified welder ID and NDT test result for full traceability
- Coating thickness inspection report covering galvanizing, powder coating, or paint systems per ISO 12944 or project specification
- Dimensional inspection report verifying critical tolerances against approved shop drawings before dispatch
- Certificate of origin and commercial packing list prepared for customs clearance at the destination port
Packaging, Loading & Delivery
- Laser-cut and welded carbon steel plate assemblies bundled with steel straps and timber separators to prevent surface scratching during ocean transit
- Galvanized or painted components wrapped with edge protectors and moisture-barrier film to preserve coating integrity across humid shipping routes
- Container loading plans drawn per component geometry, optimizing weight distribution for heavy fabricated frames and oversized plate packages
- Custom cutting to project-specified lengths before packing, reducing on-site secondary cutting waste for industrial and infrastructure applications
- Heat number and steel grade stenciled on each bundle for on-site material traceability verification by project inspectors
- FOB, CIF, and DDP shipping terms available with full export documentation and container tracking until port of discharge
How to Initiate a Fabrication Inquiry for Your Project
Submit your project drawings in CAD, DWG, STEP, or PDF format along with the required steel grade, surface treatment preference, and target quantity. Our engineering team responds within 24 hours with a preliminary assessment covering shop drawing timeline, production schedule, and a detailed quotation that breaks out material, fabrication, coating, packing, and freight costs separately. Once drawings are approved and the contract is signed, material procurement and production begin immediately.
Frequently Asked Questions
Q: What drawing formats do you accept for custom steel sheet fabrication?
A: We accept CAD, DWG, STEP, and PDF files. Our engineering team reviews each file for fabrication feasibility, suggests material optimization where possible, and prepares shop drawings for client approval before production starts.
Q: How do you ensure welding quality and dimensional accuracy on fabricated components?
A: All welding follows approved WPS and PQR documents per AWS D1.1 or EN 1090. In-process dimensional checks and NDT testing are conducted at defined hold points, and a complete QC documentation package including weld maps and inspection reports is supplied with every shipment.
Q: What surface treatment options are available and how is coating quality verified?
A: We offer hot-dip galvanizing, powder coating, and industrial painting. Each finish is verified with a coating thickness inspection report, and the treatment type is selected based on the project’s corrosion environment and service life requirements.
Q: Do you provide material test certificates and support third-party inspection?
A: Yes. Mill test certificates documenting chemical composition and mechanical properties are issued for every heat of steel. We also accommodate SGS, BV, or other third-party inspection agencies at our facility upon request.
Send Your Drawings for a Fabrication Assessment
Upload your project files in CAD, DWG, STEP, or PDF along with steel grade and quantity requirements to receive a detailed quotation and mill test certificate preview.
