Description
Vertically Integrated SSAW Pipe Mill — From raw coil to finished spiral welded pipe under one roof, eliminating third-party material gaps.
Technical Specifications
| Parameter | Value |
|---|---|

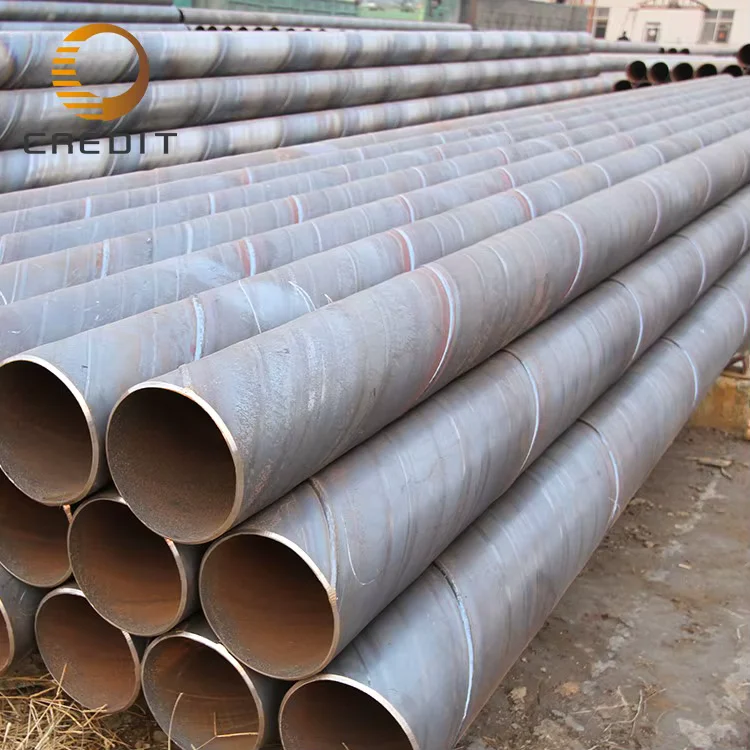

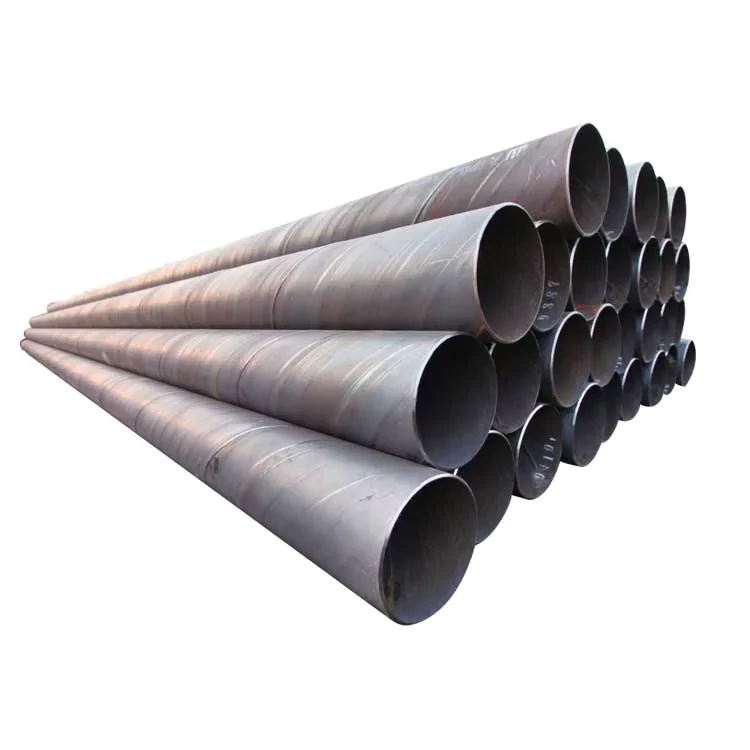

| Designation | SSAW Spiral Submerged-Arc Welded Steel Pipe |
| Product Type | SSAW Welded Steel Pipe |
| Steel Grade | Gr.B, X42, X46, X52, X60, X65, X70 |
| Standard | API 5L, ASTM A252, GB/T 9711.1/.2, EN 10219 |
| Section Shape | Round |
| Size Range | OD 219–3048 mm |
| Wall Thickness | 4.5–25.4 mm |
| Length | 6–50 m (standard 6 m / 12 m, customizable) |
| Technique | SSAW (Spiral Submerged-Arc Welded) |
| Surface Treatment | Oiled / Painted / Black / Custom per requirement |
| Tolerance | ±1% / ±5% |
| Ends | Plain / Beveled (per customer request) |
| Application | Oil & Gas Transportation / Liquid & Sewage Transport / Industrial Piping / Structural Piling / Water Conveyance |
| MOQ | 10 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Onshore and offshore gathering lines, transmission pipelines, flow lines |
| Municipal Infrastructure | Sewage conveyance mains, stormwater drainage, water supply trunk lines |
| Industrial Plant Piping | Process water circuits, cooling water loops, slurry transport systems |
| Civil Engineering | Structural piling for bridge foundations, retaining walls, marine jetty supports |
Where Weld Seam Integrity Determines Pipeline Acceptance
Spiral seam quality is the single most common reason SSAW pipes fail third-party NDT on critical projects.
I spent three months on-site at an oil and gas pipeline project in Riyadh. The SSAW pipes from another supplier failed third-party NDT — spiral weld seam slag inclusion and incomplete fusion brought the acceptance rate below 80%. The entire batch was rejected, and rework delayed the schedule by nearly two months. Since then I have been obsessive about WPS qualification, SAW parameter control, and online UT on every single pipe. With welded pipes, the seam is everything — no room to cut corners. [NEED_CITE: API 5L spiral submerged-arc welding quality requirements]
Matching Pipeline Pressure Ratings to Steel Grade Selection
Our SSAW Spiral Submerged-Arc Welded Steel Pipe covers the full API 5L grade spectrum from Gr.B through X70, allowing engineers to match material strength precisely to operating pressure and structural load requirements. The spiral forming process enables large diameters up to 3048 mm from narrower coil stock — a cost advantage over longitudinal welded alternatives on big-bore transmission lines. Each heat is traceable from raw coil certification through final mill test report, closing the material provenance gap that causes customs holds and NDT failures on overseas projects.
Engineering Compliance for Cross-Border Pipeline Projects
SSAW pipes destined for EU markets must conform to EN 10219 dimensional and welding standards, while Middle East and North African EPCs typically specify API 5L with supplementary NDE requirements. Our in-house quality system covers WPS and PQR documentation, weld maps, dimensional inspection reports, and coating thickness records — the complete package third-party inspectors like SGS or BV expect to see before issuing release notes. Beveled ends per customer request reduce field welding preparation time, and custom length options up to 50 m minimize joint counts on long transmission runs. [NEED_CITE: EN 10219 cold-formed and submerged-arc welded hollow section compliance]
Understanding the SSAW Process and Grade Coverage

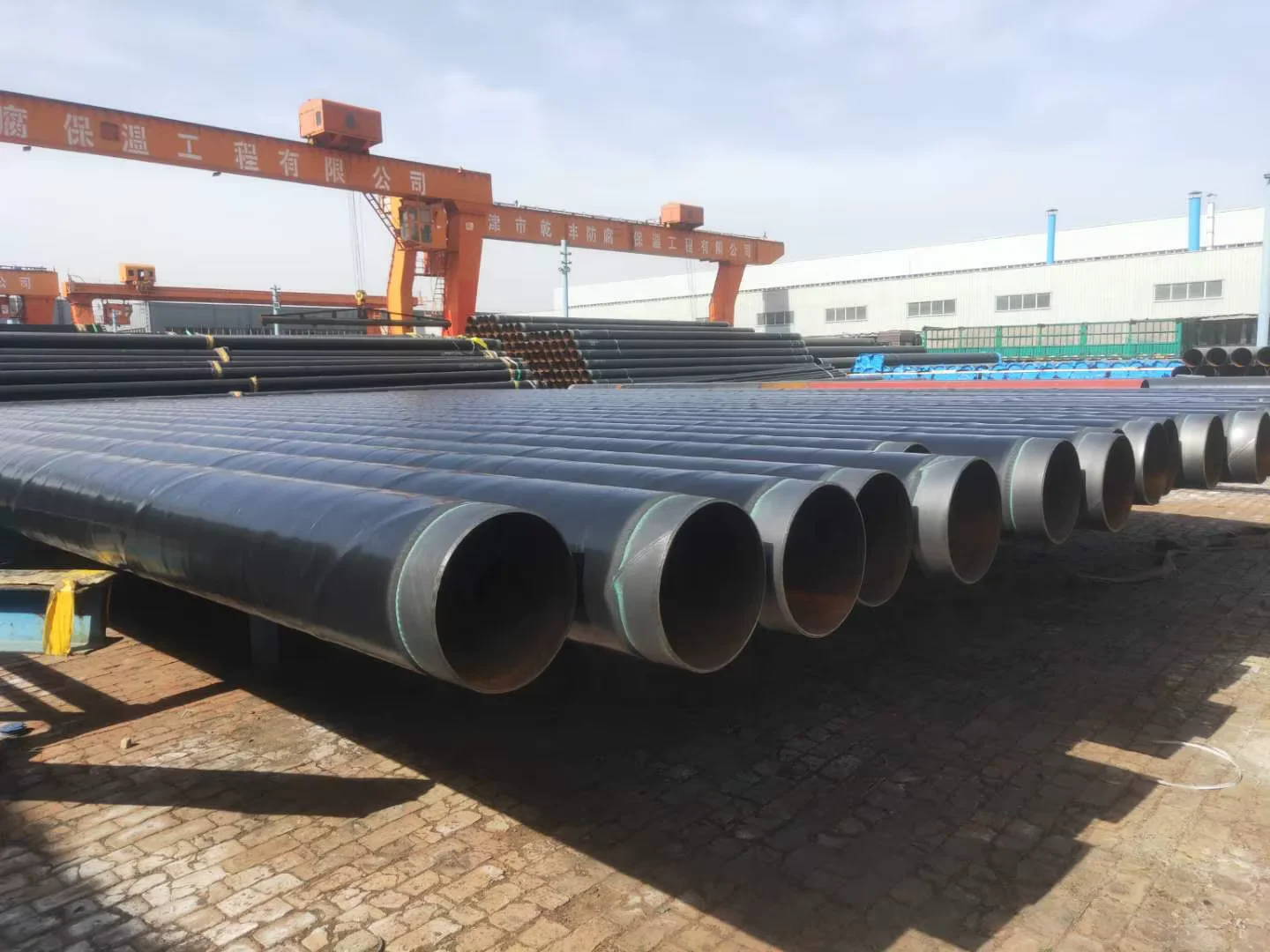

Submerged-arc welding deposits filler metal beneath a granular flux blanket, producing deep penetration and low hydrogen content in the spiral seam — critical for high-grade line pipe where hydrogen-induced cracking is a failure mode. The spiral geometry distributes residual stress more evenly than straight-seam alternatives and allows production of large diameters without requiring proportionally wider plate. Our grade range spans API 5L Gr.B for low-pressure water conveyance through X42, X52, X60, X65, and X70 for high-pressure gas transmission, with chemical composition and mechanical properties certified per heat. Surface treatment options — oiled for temporary transit protection, painted for atmospheric exposure, or custom coating for buried service — are applied after final inspection to avoid coating damage during production handling. [NEED_CITE: submerged-arc welding process advantages for spiral pipe manufacturing]
The Hidden Cost of Unverified Material Provenance
Purchasing SSAW pipe from trading companies who source from uncontrolled mills creates gaps in the material certification chain — heat numbers on test certificates may not match physical markings, and chemical composition claims cannot be independently verified. When third-party inspectors discover traceability breaks during pre-shipment inspection, the entire lot faces rejection regardless of actual weld quality. Non-conforming wall thickness beyond stated tolerance affects both pressure rating calculations and theoretical weight invoicing, creating disputes at project handover. [NEED_CITE: material traceability requirements in API 5L and EN 10219 standards]
Why Project Teams Specify Our SSAW Pipe Supply
Our own steel mill operates three production lines with over 2,800 raw material specifications in inventory, meaning coil procurement and pipe fabrication happen under a single quality management system — no third-party material sourcing, no certification chain breaks. Every SSAW Spiral Submerged-Arc Welded Steel Pipe ships with a mill test certificate documenting chemical composition and mechanical test results per heat, backed by our ISO 9001 certified quality system and in-house testing laboratory. We accommodate non-standard lengths up to 50 m, custom end treatments, and project-specific coating requirements without minimum order penalties beyond the 10-ton baseline. Third-party inspection by SGS, BV, or TÜV is arranged at buyer’s request with full factory access.
Documentation & Compliance
- Mill Test Certificate documenting API 5L X42–X70 chemical composition and mechanical properties per heat number
- API 5L / ASTM A252 / EN 10219 compliance certificates with supplementary NDE reports for pipeline projects
- ISO 9001 quality management system certificate covering the full fabrication and testing process
- SGS / BV / TÜV third-party inspection reports available upon request with complete factory access
- Material traceability documentation linking each pipe to its original coil heat number and production records
- Export documentation including packing list, bill of lading, and certificate of origin for customs clearance

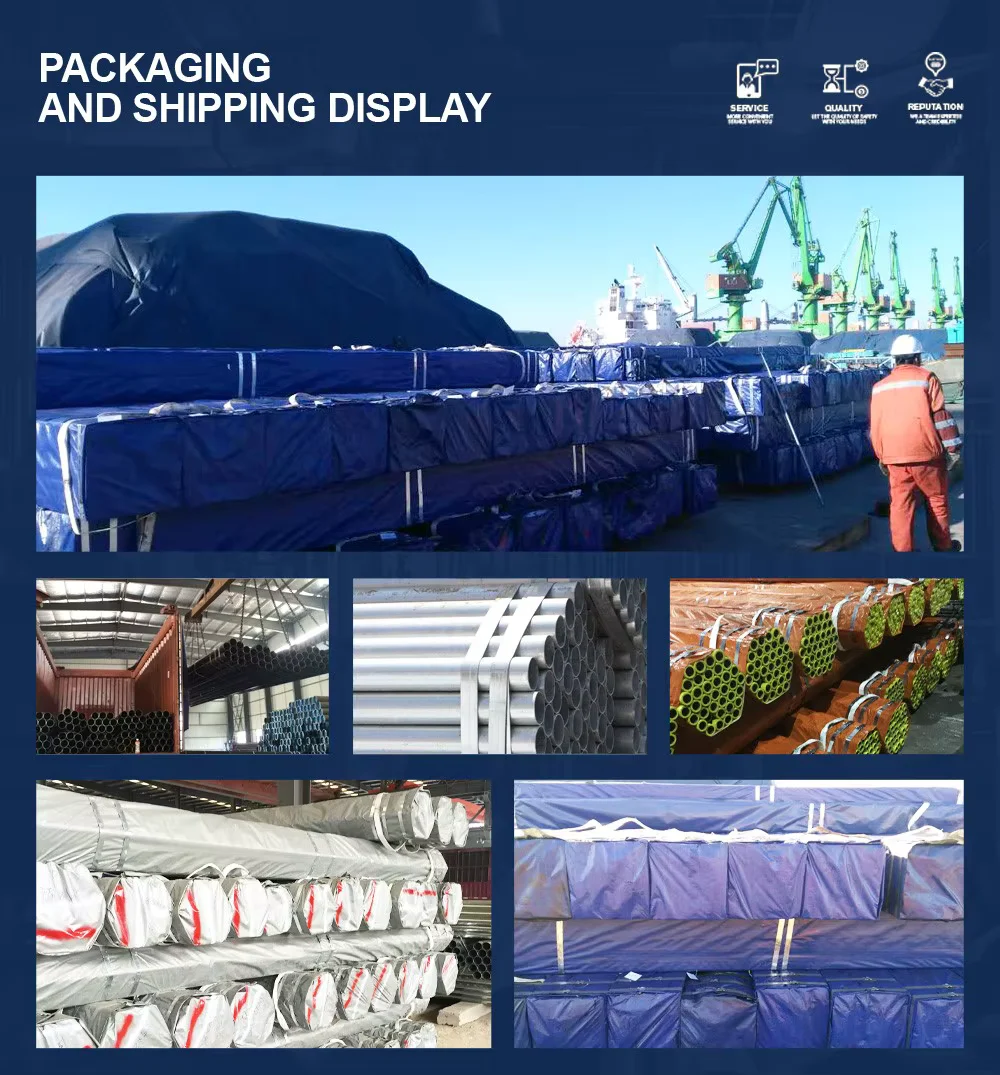

Packaging, Loading & Delivery
- SSAW pipes bundled with steel strip ties and edge protectors to prevent surface damage during ocean transit
- Oiled or painted surface treatment preserved through plastic wrapping and wooden cradle support for coated pipes
- Container loading optimized for OD 219–610 mm pipes in 20ft and 40ft containers; larger diameters shipped via breakbulk or flat rack
- Custom cut lengths from 6 to 50 m marked with heat number, steel grade, and dimensional identification
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading and lashing planning
Start Your SSAW Pipe Inquiry With Project Specifications
Submit your project drawings, required steel grade, diameter and wall thickness specifications, applicable standard, and destination port — we respond within 24 hours with a detailed quotation including material, fabrication, coating, and shipping costs, plus a production schedule and shop drawing timeline.
Request Your SSAW Pipe Quotation and Mill Test Certificate
Send your specifications to receive a detailed quote with complete API 5L / ASTM / EN documentation package.
Contact:
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Frequently Asked Questions
Q: Which API 5L steel grade should I specify for high-pressure gas transmission?
A: For high-pressure gas pipelines, X52 through X70 grades provide the necessary yield strength and fracture toughness. We supply the full range from Gr.B to X70 with complete chemical composition and mechanical property certification per heat.
Q: How do you ensure material traceability from coil to finished pipe?
A: Every SSAW pipe is traceable to its original coil heat number through our integrated production system. Mill test certificates document chemical composition and mechanical test results, and third-party inspection by SGS, BV, or TÜV is available at buyer’s request.
Q: Can you produce non-standard lengths or special surface treatments?
A: Yes. We offer custom lengths from 6 to 50 m beyond the standard 6 m and 12 m options, and surface treatments including oiled, painted, black, or project-specific coating requirements. Plain or beveled ends are available per customer request.
Q: What certifications do you provide for customs clearance in the EU and Middle East?
A: We provide API 5L, ASTM A252, and EN 10219 compliance certificates, ISO 9001 quality system certification, CE marking where applicable, and complete export documentation including packing list, bill of lading, and certificate of origin for customs clearance in EU, Middle East, and Southeast Asian markets.
Q: What is the typical production lead time and how are large-diameter pipes shipped?
A: Production lead times depend on order volume and coating requirements. Pipes with OD 219–610 mm are containerized; larger diameters up to 3048 mm are shipped via breakbulk or flat rack with professional loading and lashing planning for oversized cargo.
