Description

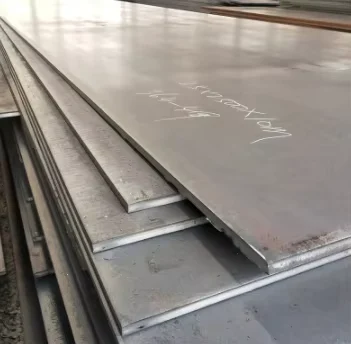

Direct Mill Supply — NM400 and NM500 wear resistant plates rolled and cut in-house with full heat number traceability from slab to finished edge.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | NM400/NM500 Wear Resistant Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | NM400, NM500 |
| Standard | JIS, ASTM, DIN |
| Thickness | 12mm |
| Technique | Hot Rolled |
| Surface Treatment | Coated |
| Processing Service | Cutting |
| Application | Wear resistant applications / Industrial machinery / Mining equipment / Construction machinery / Cutting parts |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining | Excavator bucket liners, crusher jaw plates, chute and hopper linings |
| Construction Machinery | Bulldozer blades, loader bucket edges, grader moldboards |
| Industrial Machinery | Conveyor scraper plates, feeder wear strips, mixer drum liners |
| EPC / Infrastructure | Aggregate processing plant structures, dredging pump casings |
Why Dimensional Tolerance on a 12mm Wear Plate Decides Whether It Fits Your Bucket Liner
A 2mm cutting deviation on a 12mm plate means the weld prep gap is gone before the plate even reaches the site.
When overseas buyers source wear resistant steel plates, the most common failure is not material chemistry — it is geometry. Plates cut outside tolerance cannot be butt-welded into liner assemblies, forcing re-cutting on-site or outright rejection. Sourcing from a trader who sub-contracts cutting adds a layer of uncertainty: you never see the CNC machine, never verify the calibration, and receive an MTC that traces back to a coil you did not order. As someone who once shipped a full container of 12mm plates to Dubai only to have them rejected because the cut dimensions drifted 2mm, I now personally verify cutting tolerances before every batch leaves the floor. [NEED_CITE: dimensional tolerance standards for wear resistant steel plate cutting]
How NM400 and NM500 Match Heavy Abrasion Environments
NM400 and NM500 are through-hardened wear grades designed for sliding and impact abrasion in mining and earthmoving equipment. The NM400 NM500 wear resistant steel plate supplier offering hot rolled and coated delivery gives procurement teams a single source for both material certification and custom cutting. At 12mm thickness, these plates serve as sacrificial liners in chutes, hoppers, and bucket edges where replacement frequency must be minimized without adding excessive weight to the assembly.
Engineering Compliance and Surface Protection for Wear Applications
Wear plates in mining and aggregate plants operate under continuous abrasive contact, often in wet or mildly corrosive conditions. The coated surface treatment on hot rolled NM400 and NM500 plates provides a baseline corrosion barrier during transit and early service, reducing white rust formation before the plate is welded into position. For projects governed by ASTM or JIS procurement specifications, the NM400 NM500 wear resistant steel plate supplier must supply mill test certificates confirming chemical composition and hardness range per the declared standard. [NEED_CITE: hardness testing methods for wear resistant steel per ASTM standards]
Steel Grade Selection and Hot Rolling Process
NM400 and NM500 designations indicate minimum surface hardness values in Brinell, with NM500 offering higher abrasion resistance at the cost of reduced formability. Hot rolling produces a uniform grain structure through the plate thickness, which is critical for wear applications where the surface layer is gradually consumed. The coated finish applied after rolling protects the plate during storage and ocean freight. When specifying NM400 versus NM500, the decision hinges on whether the application demands maximum wear life (NM500) or a balance of wear resistance and weldability (NM400). [NEED_CITE: Brinell hardness classification for wear resistant steel grades]
The Hidden Cost of Accepting Off-Grade or Uncertified Wear Plates
Purchasing wear resistant steel without verified hardness and chemical composition leads to premature liner failure, unplanned shutdowns, and repeated replacement cycles that far exceed the initial savings. Plates sourced through intermediaries often carry MTCs that cannot be traced to a specific heat, leaving buyers unable to prove material compliance during project audits. In regulated mining and infrastructure contracts, missing traceability documentation can result in rejected shipments and contractual penalties. [NEED_CITE: material traceability requirements in mining equipment procurement]
Why Buyers Choose Our Integrated Mill and Fabrication Facility
Our operation combines raw steel production with dedicated plate cutting and processing, meaning every NM400 NM500 wear resistant steel plate order is traced from slab to shipment under one quality system. We maintain over 2,800 raw material specifications in stock, allowing us to fulfill cutting orders without waiting for third-party coil supply. Each plate is cut on calibrated CNC equipment, and I personally inspect dimensional tolerances before packing — a practice adopted after an early export lesson. Our in-house laboratory issues mill test certificates covering chemical composition and hardness, and we accommodate third-party inspection through SGS or BV upon request. For international buyers, we handle export documentation, container loading optimization, and coordinate door-to-port logistics.
Documentation & Compliance
- Mill test certificate documenting NM400/NM500 chemical composition, hardness range, and heat number per JIS, ASTM, or DIN standard
- Third-party inspection report from SGS or BV verifying surface quality, dimensions, and coating thickness
- Material traceability sheet linking each plate to its original heat number and rolling batch
- Export packing list and bill of lading with plate identification marks matching mill certificates
- Certificate of origin for customs clearance in destination country
- Coating compliance statement confirming surface treatment type and application standard
Packaging, Loading & Delivery
- NM400/NM500 plates bundled with steel straps and edge protectors to prevent coating damage during handling and ocean transit
- Coated surface wrapped with waterproof paper and plastic film to preserve finish integrity in humid container conditions
- 12mm plates stacked in flat-bed containers with timber separators to avoid surface scratching and allow forklift access at destination
- Custom cutting dimensions marked with heat number and steel grade on each plate for on-site identification and traceability
- Container loading plan optimized for 12mm plate weight distribution to maximize payload within shipping line limits
- FOB, CIF, and DDP terms available with full export documentation and real-time shipment tracking
Start Your Inquiry with Drawings and Specifications
To receive an accurate quotation and mill test certificate for NM400 or NM500 plates, submit your project drawings (PDF or DWG), required thickness, cutting dimensions, steel grade preference, and destination port. Our engineering team reviews the files and responds with a detailed quote including material, cutting, coating, and logistics costs within one business day. For bulk orders, we confirm production scheduling and third-party inspection arrangements before contract signing.
Frequently Asked Questions
Q: What is the difference between NM400 and NM500 in terms of application?
A: NM400 offers a balance of wear resistance and weldability, suitable for moderate abrasion environments such as chute liners and conveyor components. NM500 provides higher hardness for severe abrasion applications like crusher jaws and excavator bucket edges, though it requires more careful welding procedures.
Q: Can you provide third-party inspection for the plates?
A: Yes, we accommodate SGS or BV third-party inspection before shipment. The inspection covers dimensional accuracy, surface quality, coating thickness, and verification of mill test certificate data against the physical plates.
Q: What is the minimum order quantity for custom-cut NM400/NM500 plates?
A: MOQ depends on the cutting dimensions and total tonnage required. Please share your drawing or cutting list, and we will confirm the feasible order quantity based on our stock availability and cutting efficiency.
Q: How do you ensure the coated surface is protected during shipping?
A: Each plate is wrapped with waterproof paper and plastic film, then bundled with edge protectors. Containers are loaded with timber separators to prevent plate-to-plate contact, and the coated surface faces upward or is shielded to avoid moisture accumulation during ocean transit.
Q: What standards do your NM400/NM500 plates comply with?
A: Our plates are produced and tested according to JIS, ASTM, and DIN standards. The mill test certificate specifies the applicable standard, chemical composition, and hardness range for each heat number.
Get Your NM400 NM500 Wear Resistant Steel Plate Quote Today
Send your specifications, cutting drawings, and destination port to receive a detailed quotation with mill test certificate and delivery schedule.
