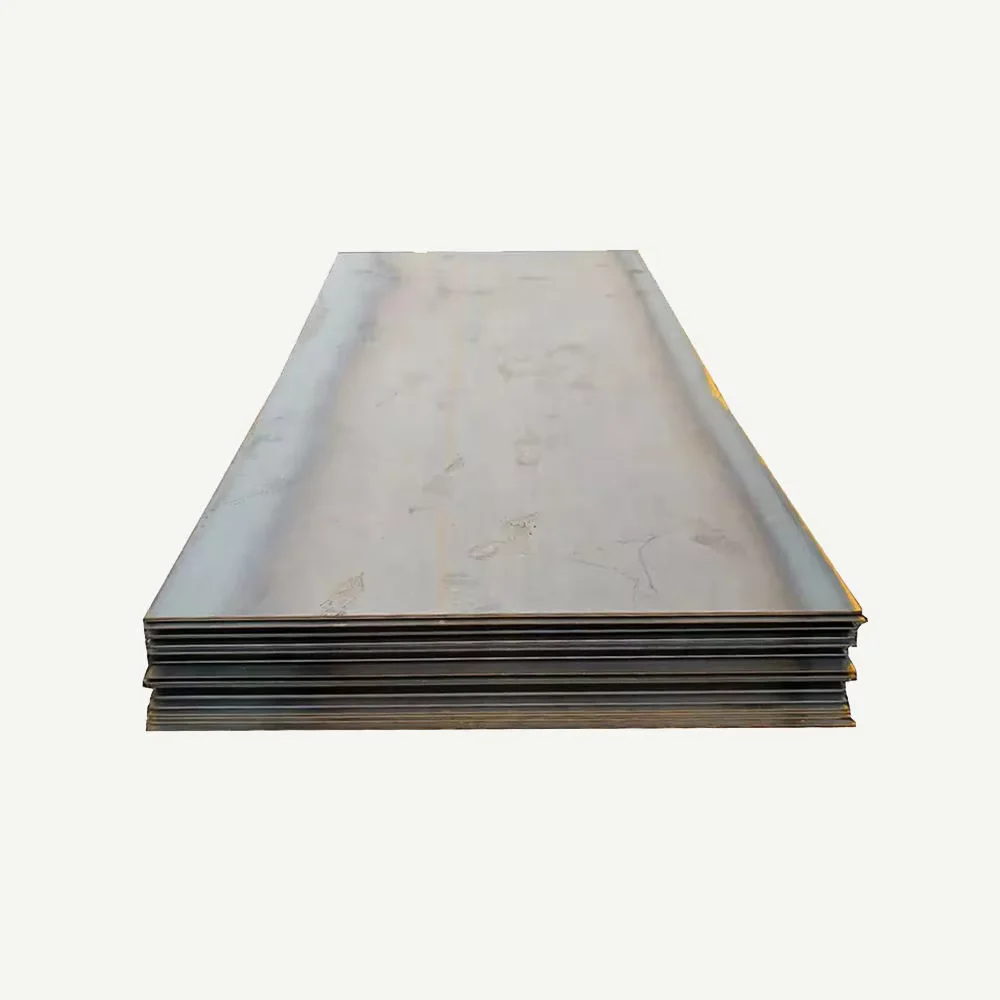

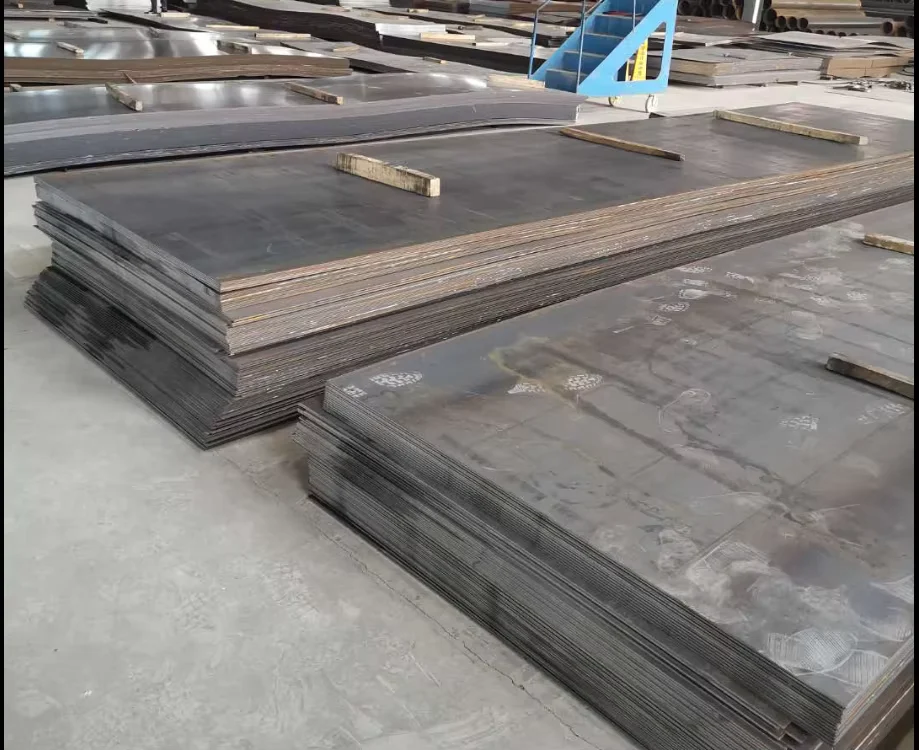

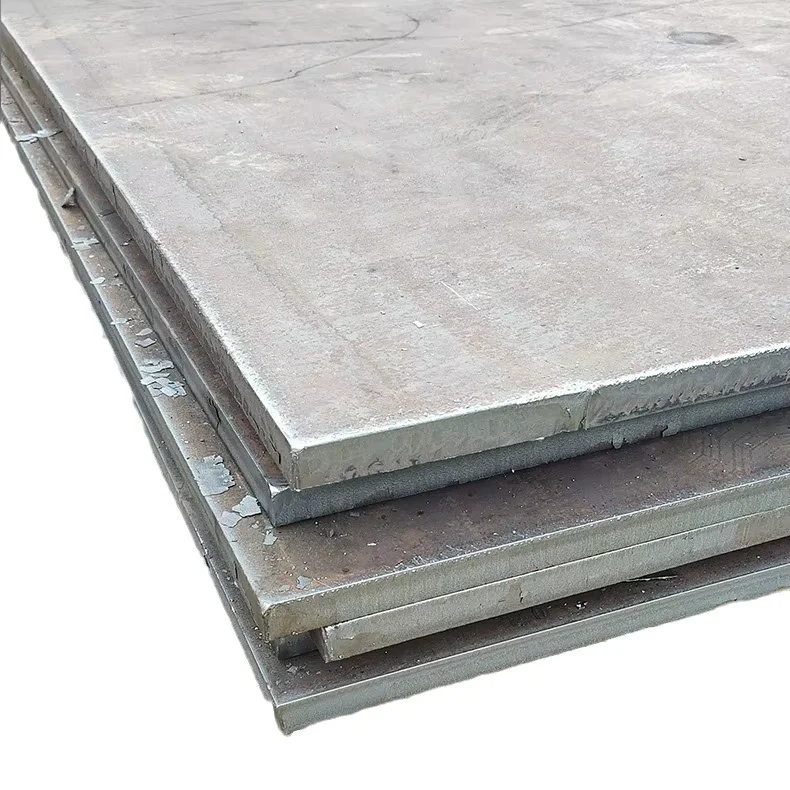

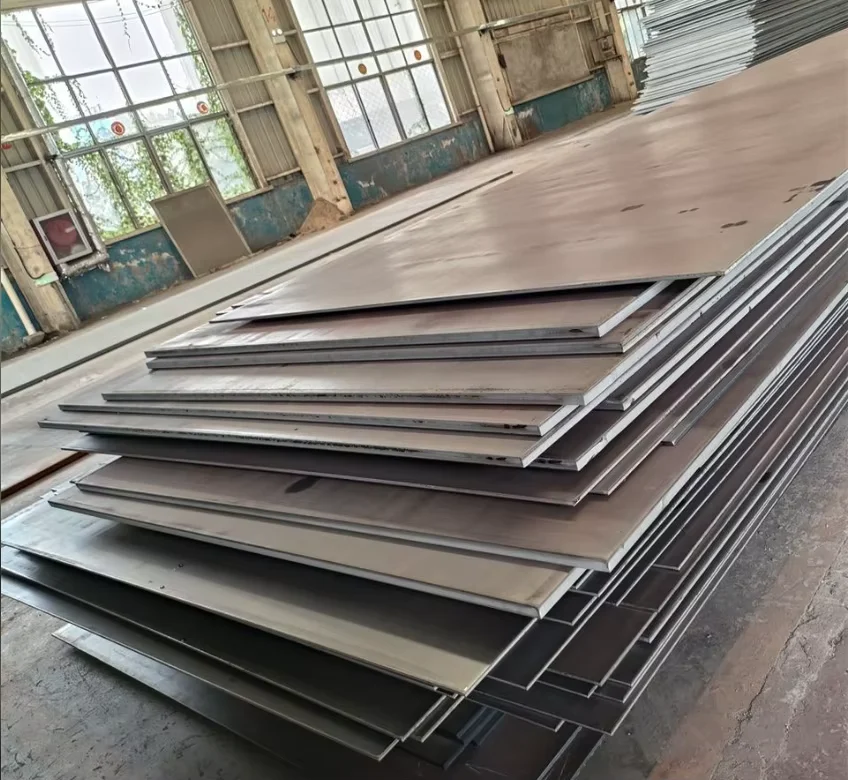

Q235 A36 SS400 Hot Rolled Carbon Steel Plate Supplier 0.35-200mm

Description

Direct Mill Supply — vertically integrated production from slab to finished plate eliminates third-party sourcing gaps.

Technical Specifications

Application Suitability

When Negative Tolerance Turns a Plate Order into a Port Dispute

Actual measured weight per plate decides whether the container clears customs or sits at the terminal.

I once loaded a container of 6 mm plates for a West African buyer. The mill spec said 6 mm, but the rolling mill had pushed negative tolerance deep — actual thickness measured 5.2 mm across the batch. The buyer weighed every plate on arrival, rejected the entire lot, and the container sat at the port for weeks accumulating demurrage. That kind of gap between declared and actual thickness doesn’t just cost money; it destroys the relationship with the end client. When sourcing a Hot Rolled Carbon Steel Plate Q235 A36 SS400 supplier, the distance between you and the rolling line is where tolerance problems hide. Third-party traders rarely verify plate-by-plate thickness. [NEED_CITE: negative tolerance practices in hot rolled steel plate trade]

Matching Plate Thickness and Grade to Structural Load Paths

A 0.35 mm plate and a 200 mm plate serve fundamentally different engineering functions, yet both roll off the same hot strip mill under different reduction schedules. For structural fabrication — warehouse frames, industrial platforms, bridge gussets — the Hot Rolled Carbon Steel Plate Q235 A36 SS400 supplier must hold stock across this full range so your project doesn’t stall waiting for a single missing thickness. XJY Structure operates three production lines with over 2,800 raw material specifications in-house, meaning thin-gauge plates for machinery base covers and heavy plates for pressure vessel shells come from the same quality system. When your drawing calls for S355JR at 40 mm for a main column base plate and S235JR at 8 mm for secondary bracing gussets, both grades ship in one consignment with traceable heat numbers.

Engineering Compliance Across GB, EN, and ASTM Frameworks

Structural projects crossing borders face a compliance layer that goes far beyond the steel itself. A warehouse project in the Middle East may specify ASTM A36 on the drawing, but the local inspector demands EN 10204 3.1 certificates formatted to European norms. A bridge in Southeast Asia might require JIS G3101 SS400 plates with classification society endorsement. The Hot Rolled Carbon Steel Plate Q235 A36 SS400 supplier must understand which standard governs the chemical composition limits, which governs the mechanical testing frequency, and which governs the dimensional tolerance — because they are not always the same standard. XJY Structure provides full Mill Test Certificates per EN 10204, third-party inspection through SGS, BV, or TÜV before shipment, and ISO 9001 certified quality management across the fabrication workflow. [NEED_CITE: EN 10204 inspection document types for steel plates]

Decoding the Grade Equivalence Web: Q235, A36, SS400, S235JR

These four grades appear on drawings worldwide and are often treated as interchangeable — but they are not identical. Q235B follows GB/T 700 with a minimum yield of 235 MPa at 16 mm thickness. A36 follows ASTM A36/A36M with a minimum yield of 250 MPa at 20 mm. SS400 follows JIS G3101 with a tensile range of 400–510 MPa but no explicit yield floor in the older standard revision. S235JR follows EN 10025-2 with a 20 J Charpy impact requirement at room temperature. When a Hot Rolled Carbon Steel Plate Q235 A36 SS400 supplier tells you “they’re all the same,” that is a red flag. The carbon equivalent, the impact toughness at sub-zero temperatures, and the elongation requirements differ enough that substitution without engineer approval can fail structural review. XJY Structure stocks all four grades simultaneously and provides cross-reference documentation so your procurement team and your structural engineer work from the same data. [NEED_CITE: steel grade equivalence between GB, ASTM, JIS, and EN standards]

The Hidden Cost of Unverified Plates on a Fabrication Floor

Plates that arrive with inflated thickness claims or missing chemistry reports create costs that never appear on the purchase order. A fabrication shop cutting a 20 mm plate for a moment connection expects 20 mm of weld-prep material; if the plate is actually 18.5 mm, the bevel geometry fails and the welder must rebuild — adding hours per joint. On a 500-ton structural package, those hours multiply into schedule overruns. Worse, if the Mill Test Certificate cannot be matched to a specific heat number, the entire batch may fail the inspector’s audit, forcing re-order and re-shipment. A Hot Rolled Carbon Steel Plate Q235 A36 SS400 supplier who controls the rolling process from slab to finished plate eliminates this chain of uncertainty. [NEED_CITE: dimensional inspection requirements for structural steel plates per EN 1090]

Why Fabricators and EPC Firms Source Through XJY Structure

XJY Structure operates as the fabrication division of Shandong Xin Jiyuan Special Steel Tube Co., backed by an integrated steel mill with three production lines. This means the Hot Rolled Carbon Steel Plate Q235 A36 SS400 supplier you deal with is the same entity that rolled the slab — no intermediary, no relabeled certificates, no broken traceability chains. The mill holds over 2,800 raw material specifications, so whether your project needs Q460 high-strength plate for a crane boom or St37-2 for a non-structural cover, stock availability is not a bottleneck. Beyond raw plates, the facility provides CNC cutting, plasma and flame cutting, drilling, bending, and welding per approved WPS — so your order can arrive as finished components ready for bolt-up, not as raw blanks requiring a second contractor. International projects across the EU, Middle East, Southeast Asia, and Africa have been delivered with complete documentation packages including weld maps, dimensional inspection reports, and coating certificates.

Documentation & Compliance

• Mill Test Certificate per EN 10204 3.1 documenting Q235B chemical composition and mechanical properties by heat number
• Third-party inspection report from SGS, BV, or TÜV verifying plate thickness, surface quality, and dimensional tolerance before shipment
• ISO 9001 quality management certificate covering the full fabrication workflow from material receipt to final dispatch
• Material traceability sheet linking each plate to its original heat number, rolling schedule, and test results
• Full customs documentation package: commercial invoice, packing list, bill of lading, and certificate of origin
• Welding Procedure Specification (WPS) and Procedure Qualification Record (PQR) for any fabricated components processed in-house

Packaging, Loading & Delivery

• Heavy plates above 20 mm thickness secured in steel strip bundles with edge protectors to prevent surface damage during crane handling
• Thin-gauge plates from 0.35 mm to 6 mm interleaved and wrapped in waterproof paper with steel banding to prevent moisture staining during ocean transit
• Hot rolled black surface plates treated with anti-rust oil on request for extended storage or humid destination climates
• Container loading optimized for plates up to 12,000 mm length in 40ft open-top or flat-rack containers; oversized plates shipped via breakbulk
• Each plate marked with heat number, steel grade, and thickness at both ends for on-site identification and inspector verification
• FOB, CIF, and DDP terms available with professional lashing and load-securing plans for heavy structural plate shipments

Getting Your Plate Package Quoted and Scheduled

Submit your project drawings in PDF or DWG format along with the required steel grades, thickness range, total tonnage, and destination port. XJY Structure responds within 24 hours with a preliminary assessment covering material availability, fabrication timeline, and documentation scope. For projects requiring custom cutting, drilling, or welding per your shop drawings, the engineering team prepares detailed shop drawings for your approval before any material is committed to production.

Start Your Hot Rolled Carbon Steel Plate Inquiry

Send your specifications and drawings to receive a detailed quotation with Mill Test Certificate scope and production schedule.
