Description
Factory-Direct Hot Rolled Plates — Our own mill produces Q235, Q255, and ASTM A36 plates in thicknesses from 0.35 mm to 200 mm, shipped with full mill test certificates and no broker markup.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 / Q255 / ASTM A36 Hot Rolled Carbon Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | Q235, Q255, ASTM A36 |
| Standard | GB (Q235 / Q255), ASTM A36 |
| Thickness | 0.35–200 mm |
| Width | 1000–2500 mm |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled (as-rolled) |
| Material Type | Low Carbon Steel |
| Application | Construction, Petrochemicals, Machinery, Structural Fabrication |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Column base plates, beam splice plates, gusset connections, stair treads |
| Petrochemical & Industrial | Pressure vessel end caps, platform grating supports, tank shell courses |
| Machinery Manufacturing | Machine bases, crane boom splice plates, conveyor frame gussets |
| Structural Fabrication (EPC) | Prefabricated building frames, warehouse portal frames, bridge connection assemblies |
Where Material Traceability Gaps Cost You a Full Shipment Rollover
A missing heat number on a Q235 plate can halt customs clearance and trigger third-party re-testing at the destination port.
Early in my career I sourced a batch of Q235B mid-plates for a Middle East warehouse project. The buyer’s third-party inspector flagged low yield strength on复检, and the entire lot was rejected. We paid demurrage for over forty days while replacement plates were re-rolled. That kind of loss doesn’t come from the steel itself — it comes from fragmented supply chains where the fabricator doesn’t control the mill. When you buy a Q235 Q255 ASTM A36 hot rolled carbon steel plate supplier from a trader who sources from multiple mills, you inherit their documentation gaps. [NEED_CITE: material traceability requirements in EN 10204 inspection documents]
How Plate Thickness Range Matches Structural Load Paths
A 0.35 mm hot rolled plate serves light-gauge cladding purlins, while a 200 mm slab becomes a heavy equipment foundation base. The Q235 Q255 ASTM A36 hot rolled carbon steel plate supplier we operate covers this full range under one quality system — meaning the same chemical composition controls and rolling schedules apply whether you order 5 mm connector plates or 80 mm column base slabs. Low carbon content across all three grades ensures consistent weldability for site splicing and shop assembly, which matters when your EPC crew is welding base plates to embedded anchors in humid coastal conditions.
Engineering Compliance Across GB, ASTM, and EN Frameworks
Q235 maps broadly to S235JR under EN 10025 and ASTM A36 under U.S. specifications, but equivalence is never automatic — each standard defines its own testing frequency, elongation thresholds, and impact test temperatures. [NEED_CITE: steel grade equivalence between GB Q-series and ASTM / EN standards] For EU-bound projects, EN 1090-2 requires CE-marked fabrication with documented welding procedure specifications, and the plate must carry a 3.1 inspection certificate per EN 10204. Our mill issues full chemical and mechanical test reports per heat number, and third-party inspection through SGS or BV can be arranged before shipment. For projects in the Middle East and Southeast Asia, ASTM A36 plates ship with the same documentation package, avoiding grade-substitution disputes at site acceptance.
Low Carbon Composition, Hot Rolling, and What They Mean for Your Fabrication Sequence
Q235 and Q255 are Chinese GB standard low carbon structural steels, with carbon content kept low to prioritize weldability and cold-forming over raw hardness. ASTM A36 occupies the same design space in the U.S. system. Hot rolling produces a mill scale surface that provides short-term corrosion resistance during storage and transit but must be removed by shot blasting before painting or galvanizing for long-term exposure. The as-rolled surface also means tighter dimensional control on thickness compared to cold-rolled alternatives — critical when you’re stacking base plates for machining or drilling bolt-hole patterns. Width options from 1000 mm to 2500 mm reduce the number of longitudinal welds needed in large platform decks, cutting both labor hours and NDT inspection costs.
The Hidden Cost of Accepting Substitute Grades Without Documentation
Ordering Q235 and receiving a commercially pure grade with lower manganese content may pass visual inspection but fail ultrasonic testing on welded connections. [NEED_CITE: consequences of steel grade substitution in structural welding codes] Plates sourced from non-integrated traders often carry mixed heat numbers within a single bundle, making it impossible to produce a coherent mill test certificate package. When the project inspector requests 3.1 certificates per EN 10204 and your supplier can only provide a 2.2 commercial invoice, the shipment gets held — and your erection schedule slips by weeks. The cost is never just the steel price difference; it’s re-welding, re-inspection, and demurrage.
Why an Integrated Mill and Fabrication Shop Changes Your Procurement Risk
We operate our own steel production facility with three rolling lines and maintain over 2,800 raw material specifications in inventory — so when you order Q235 Q255 ASTM A36 hot rolled carbon steel plate supplier stock, the plate comes from our mill, not a broker’s warehouse. Every plate carries a heat number traceable to our ladle analysis, and our fabrication division can cut, drill, weld, and shot-blast those same plates into finished assemblies before shipment. This vertical integration eliminates the gap between material supplier and fabricator that causes most overseas procurement disputes. Our welding procedures are certified to AWS and EN standards, and our welders hold current qualifications — meaning the WPS, PQR, and weld maps travel with the shipment as a complete documentation package.
Documentation & Compliance
- Mill Test Certificate per EN 10204 Type 3.1, documenting Q235 / Q255 / ASTM A36 chemical composition (C, Mn, Si, S, P) and mechanical properties per heat number
- CE marking documentation for EN 1090-2 structural steel component fabrication, including Declaration of Performance
- ISO 9001 quality management system certificate covering both steel production and fabrication processes
- SGS or BV third-party inspection report available upon request, covering dimensional checks, surface condition, and coating thickness
- Full material traceability from heat number through rolling schedule to final plate identification
- Export customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

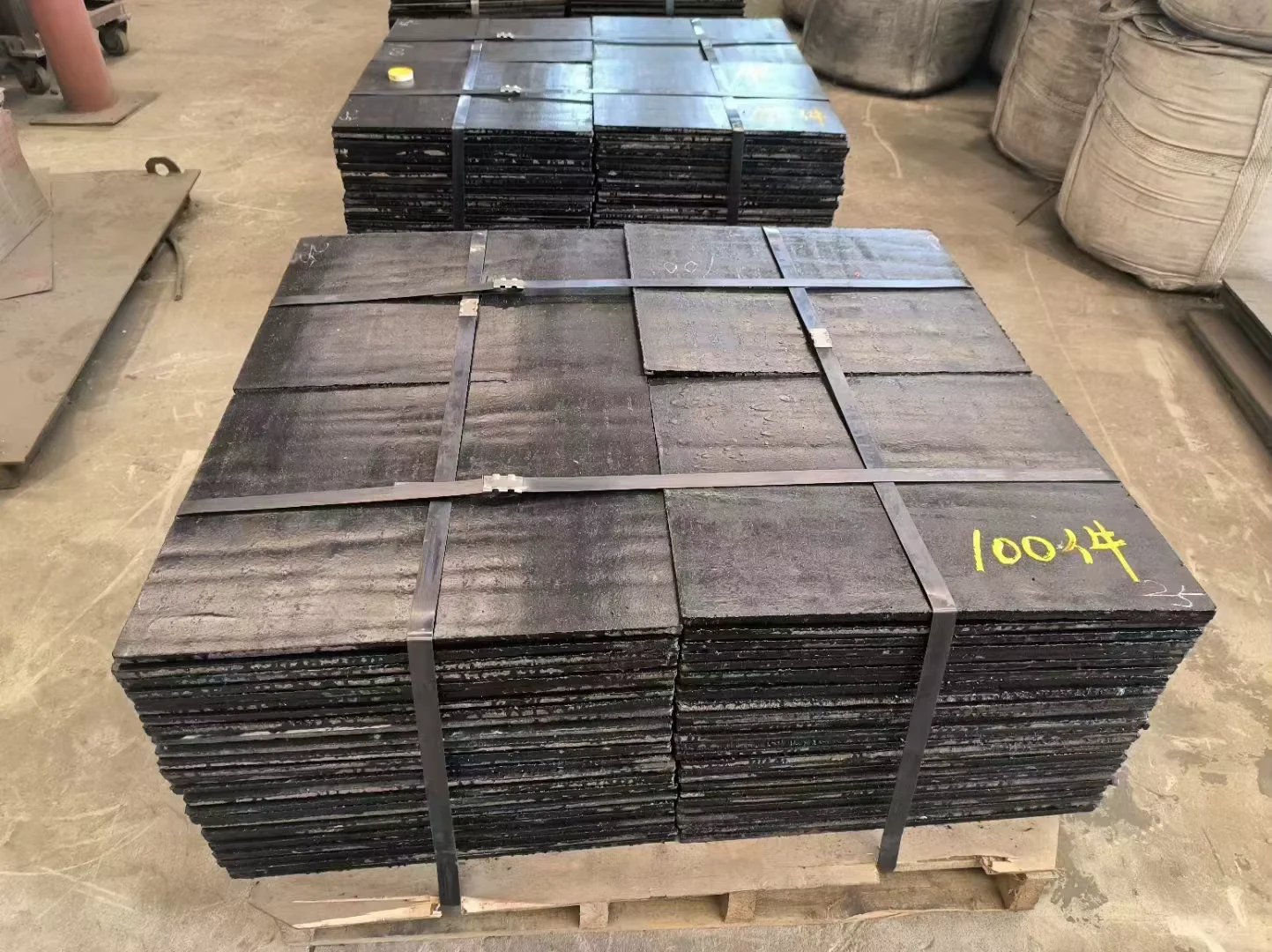

- Hot rolled Q235 / Q255 / ASTM A36 plates bundled with high-tensile steel strips and edge protectors to prevent coil-edge damage during ocean transit
- Mill scale surface protected by anti-rust oil spray for plates destined for humid climates or extended storage before fabrication
- Container loading optimized for 2000 mm and 2500 mm width plates to maximize 20ft and 40ft GP container utilization with wooden dunnage separation
- Custom cutting to project-specified dimensions available before shipment, reducing on-site waste and cutting labor for EPC contractors
- Each plate stenciled with heat number, steel grade, thickness, and width for immediate site identification and traceability verification
- FOB, CIF, and DDP delivery terms available with professional oversized cargo loading plans for plates exceeding standard container dimensions
Getting Your Quote with Full Material Certification
Send your project drawings (PDF or DWG), required steel grade, thickness, width, and quantity to receive a detailed quotation including material cost, fabrication charges if applicable, coating, packing, and shipping — along with the mill test certificate format we will provide. We respond within 24 hours with a preliminary assessment and shop drawing timeline.
Request Your Q235 Q255 ASTM A36 Plate Quotation
Submit your specifications, steel grade, and destination port to receive pricing with full mill test certification.
Tel: +86 531 8573 6315 | Mobile/WhatsApp/WeChat: +86 188 5315 7756 | Email: admin@xjystructure.com
Frequently Asked Questions
Q: What is the equivalence between Q235, Q255, and ASTM A36?
A: Q235 and ASTM A36 are broadly comparable as low carbon structural steels with similar yield strength ranges, though exact chemical composition and testing frequency differ between GB and ASTM standards. Q255 offers slightly higher strength than Q235. For projects requiring formal grade substitution approval, we provide cross-reference documentation and can arrange third-party verification.
Q: Can you provide third-party inspection before shipment?
A: Yes. SGS and BV inspection reports can be arranged for any order, covering dimensional verification, surface condition assessment, chemical composition review, and mechanical property testing. The inspection is conducted at our mill before plates are released for packing.
Q: Do you offer custom cutting and drilling for steel plates?
A: Yes. Our fabrication division provides CNC cutting, plasma and flame cutting, drilling, and edge preparation to your engineering drawings. Plates can be delivered as finished components with shot blasting and primer coating applied before shipment.
Q: How are hot rolled plates different from galvanized plates for outdoor structures?
A: Hot rolled plates arrive with a mill scale surface suitable for indoor use or as a base for subsequent coating. For outdoor or corrosive environments, we recommend shot blasting followed by painting or hot-dip galvanizing after fabrication. We handle both surface treatment options in-house.
Q: What documentation do you provide for customs clearance and project acceptance?
A: Every shipment includes a Mill Test Certificate per EN 10204, packing list, bill of lading, and certificate of origin. CE marking documentation is available for EU-destined projects. All documents reference the specific heat numbers on the plates shipped.
Start Your Steel Plate Procurement with Certified Documentation
Share your project specifications and required standards to receive a quotation with full mill test certificates and fabrication options.
Contact us at admin@xjystructure.com or WhatsApp +86 188 5315 7756.
