Description
Factory-Direct Fabrication — Own steel mill with 2,800+ raw material specifications feeds directly into our welding and cutting workshop, eliminating third-party sourcing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Custom Fabricated Steel Structure Components |
| Product Type | Fabricated Steel Structure |
| Steel Grade | Q235, Q345, A36, SS400, S235JR, S355 |
| Standard | GB |
| Section Shape | Custom per client drawing |
| Technique | Welding, Drilling, Cutting, Painting |
| Surface Treatment | Galvanized / Black / Painted |
| Tolerance | ±1% |
| Length | As client’s request |
| Drawing Design | As client’s drawing |
| Application | Steel structure frame / Construction / Industrial facilities / Infrastructure projects |
| MOQ | 3-5 tons (Carbon and Alloy steel, customized); 1 piece (stocks) |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| General Construction | Building frames, column-beam assemblies, mezzanine platforms |
| Industrial Facilities | Factory warehouse structures, equipment support frames, conveyor gantries |
| Infrastructure | Bridge components, pipeline support racks, utility station frameworks |
| EPC Projects | Modular steel structures, process pipe racks, electrical substation frames |
When Welding Procedure Specifications Decide Whether Your Shipment Clears Site Inspection
A single unqualified weld joint can halt an entire structural erection sequence.
Overseas buyers outsourcing fabrication to China face a persistent quality distance problem. Welding quality, dimensional accuracy, and coating standards become black boxes once components leave the factory gate. I once watched a batch of connection plates arrive at a Southeast Asian port with坡口 angles altered by the supplier to cut grinding time — the result was ultrasonic testing failures across the entire lot, forcing on-site cutting and re-welding that delayed the project by weeks. [NEED_CITE: AWS D1.1 structural welding code requirements for prequalification]
Beyond welding, material traceability creates another vulnerability. When fabricators source steel from third-party mills without integrated production, certification chains develop gaps that surface during final inspection. Shop drawing errors compound the problem — mismatched hole patterns or incorrect connection details discovered during erection trigger costly rework and schedule overruns.
Matching Structural Steel Fabrication to Project Load and Environment Requirements
Custom Steel Structure Fabrication Supplier capabilities must align with specific engineering demands. For load-bearing frames in industrial facilities, Q345 or S355 grades provide higher yield strength than Q235, reducing section sizes while maintaining structural integrity. In corrosive environments such as coastal warehouses or chemical plants, hot-dip galvanized surface treatment extends service life without ongoing maintenance. Connection design follows project-specific drawings — whether bolted flange plates for field assembly or full-penetration welded joints for moment-resisting frames. Our engineering team reviews shop drawings before fabrication begins, identifying potential interference issues or welding access problems that would otherwise surface during erection.
Engineering Compliance and Certification Pathways for International Projects
Structural steel fabrication for international projects must satisfy multiple compliance layers. European projects require EN 1090 execution class certification, documenting welding procedure specifications and welder qualifications throughout production. North American projects reference AISC 207 standards for quality assurance in fabricator shops. Material certification must trace each component back to heat numbers on mill test reports, with chemical composition and mechanical properties verified against specified grades. [NEED_CITE: EN 1090 structural steel fabrication execution classes] Surface treatment documentation includes coating thickness measurements and adhesion test results. For oversized components requiring specialized transport, loading plans must account for weight distribution and lashing points to prevent damage during ocean transit.
Steel Grade Selection and Fabrication Process Fundamentals
Understanding steel grade systems helps buyers specify appropriate materials. The Q-series (Q235, Q345) follows Chinese GB standards, where the number indicates minimum yield strength in MPa. S-series grades (S235JR, S355) conform to European EN standards, with JR designation indicating impact test requirements at room temperature. ASTM A36 represents the American standard equivalent for general structural applications. Fabrication techniques include CNC cutting for precision hole patterns, plasma or flame cutting for thick plates, and submerged arc welding for long seam joints. Surface treatment selection depends on environment — black (as-fabricated) finish suits indoor applications, while painted systems provide corrosion protection for exterior exposure. Galvanizing offers the most durable protection but requires components fit for bath immersion.
Hidden Costs of Incorrect Material Specification and Certification Gaps
Procuring structural steel components without verified certification creates downstream risks. Material substitution — receiving Q235 when S355 was specified — compromises structural capacity and fails inspection requirements. Missing weld maps or incomplete WPS documentation triggers rejection during third-party auditing. Negative tolerance exceeding acceptable limits reduces actual section modulus, affecting load calculations. [NEED_CITE: material traceability requirements in structural steel codes] Customs clearance delays occur when mill test certificates lack proper authentication or when steel grade markings conflict with documentation. These issues surface not at the fabricator’s facility, but at the project site where erection cannot proceed without approved materials.
Why Project Teams Source Fabricated Steel Components Through Integrated Production
Vertical integration from raw steel production to finished fabrication provides material cost control and quality consistency. Our own steel mill supplies 2,800+ specifications of raw material directly to the fabrication workshop, eliminating third-party sourcing gaps and ensuring traceability from melt shop to final component. Certified welding procedures with qualified welders holding AWS and EN certifications support international project requirements. Complete quality documentation packages include WPS, PQR, weld maps, dimensional inspection reports, and coating reports — everything needed for project handover. Engineering support covers shop drawing review and material optimization, reducing RFI cycles during production. International project experience spans EU, Middle East, Southeast Asia, and African markets, with familiarity in local compliance requirements and documentation expectations.
Documentation & Compliance
- Mill test certificates documenting Q345 chemical composition and mechanical properties per GB standards, with heat number traceability
- Welding procedure specifications and welder qualification records compliant with AWS D1.1 or EN ISO 15614 requirements
- Dimensional inspection reports verifying tolerance compliance for fabricated components per approved shop drawings
- Surface treatment certificates including coating thickness measurements and adhesion test results for painted or galvanized finishes
- Material traceability records linking each component to original mill test certificates through heat number tracking
- Export documentation package including packing lists, bills of lading, and certificates of origin for customs clearance
Packaging, Loading & Delivery
- Fabricated steel components bundled with steel straps and edge protectors to prevent coating damage during handling and transit
- Surface treatment protection measures including VCI paper wrapping for painted components and separation blocks for galvanized pieces

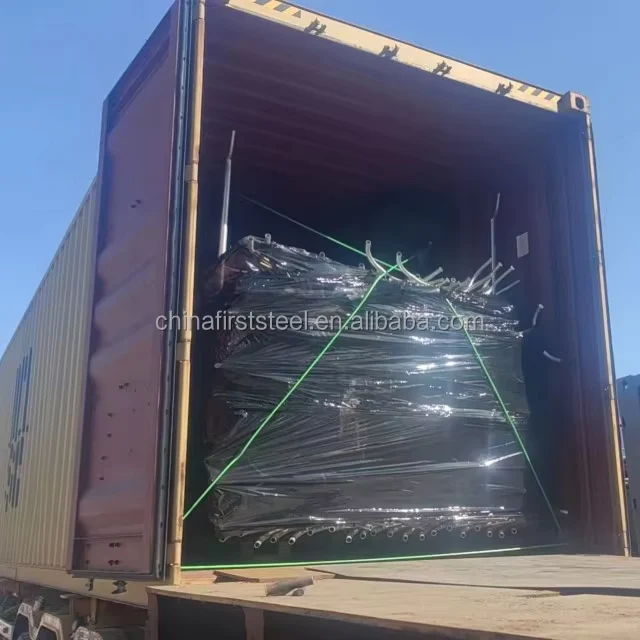

- Container loading optimization based on component dimensions, with custom crating for oversized pieces requiring flat rack or breakbulk shipment
- Length customization to match container internal dimensions, reducing cutting waste and transport costs for standard size shipments
- Component identification with heat numbers and steel grade markings stenciled on each piece for site verification
- Shipping terms available as FOB, CIF, or DDP with professional loading supervision and real-time tracking until site delivery
Initiating Your Fabrication Inquiry with Complete Technical Requirements
Submit project drawings in PDF or DWG format along with steel grade specifications, required standards, and quantity requirements to receive preliminary assessment within 24 hours. Detailed quotations cover material, fabrication, coating, packing, and shipping costs with production schedule included. Confirm shop drawing approval process and quality documentation requirements before contract execution to ensure alignment with project specifications.
Request Fabrication Quote with Technical Documentation
Share your engineering drawings and material specifications to receive detailed quotation including mill test certificates and welding procedure documentation.
