Description
Direct Mill Fabrication — Q235B and Q345B structural steel components produced from our own steel mill with full material traceability for warehouse and workshop projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B/Q345B Fabricated Steel Structure |
| Product Type | Fabricated Steel Structure |
| Steel Grade | Q235B, Q345B |
| Standard | CE, ISO 9001:2008 |

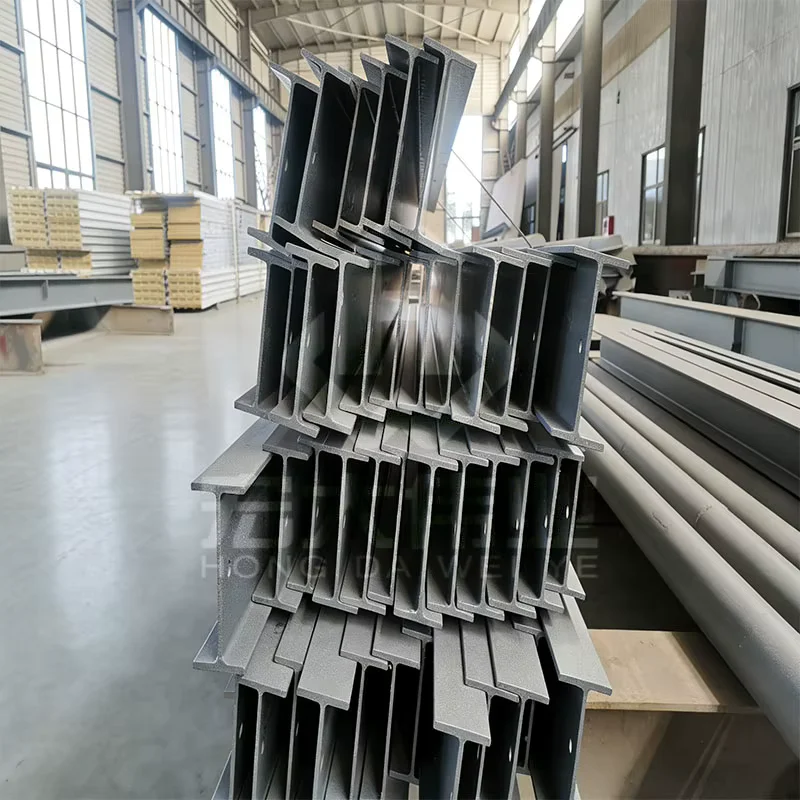

| Section Shape | Solid H-shape Steel Beam, C/Z Shape Steel Channel |
| Surface Treatment | Painting / Galvanized |
| Structure Type | Steel Structure |
| Design Style | Modern |
| Installation | Guided Drawing |
| Warranty | 1 Year |
| After-sale Service | Online Technical Support / Free Spare Parts |
| Project Solution Capability | Graphic Design / 3D Model Design |
| Customization | Custom Size Options / Customized Color |
| Application | Steel Workshop, Steel Warehouse, Garages |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Steel warehouse frames, logistics center structures, heavy-duty workshop buildings |
| Commercial Building | Multi-story steel frame buildings, commercial garages, retail storage facilities |
| Infrastructure | Equipment support platforms, bridge approach structures, utility building frames |
| Agricultural & Storage | Grain storage warehouses, cold storage facilities, machinery housing structures |
Where Material Traceability Decides Whether Your Steel Warehouse Passes Inspection
When a fabricator sources raw steel from third-party mills, the certification chain breaks — and your project carries undocumented risk.
Outsourced steel fabrication for warehouse and workshop projects often creates gaps between the mill test certificate and the finished component. You receive a fabrication drawing approval, but the H-beam columns and truss assemblies inside your building may carry steel grades that cannot be traced back to a single heat number. This is not a hypothetical concern. On industrial projects across Southeast Asia and the Middle East, inspectors have rejected entire warehouse frames because the fabricator could not produce matching MTCs for the Q345B beams already welded and painted [NEED_CITE: material traceability requirements in EN 1090 execution classes]. The cost of re-fabrication falls entirely on the buyer when documentation fails before the structure ever leaves the factory floor.
How H-Beam Frames and C/Z Purlin Systems Match Warehouse Load Requirements

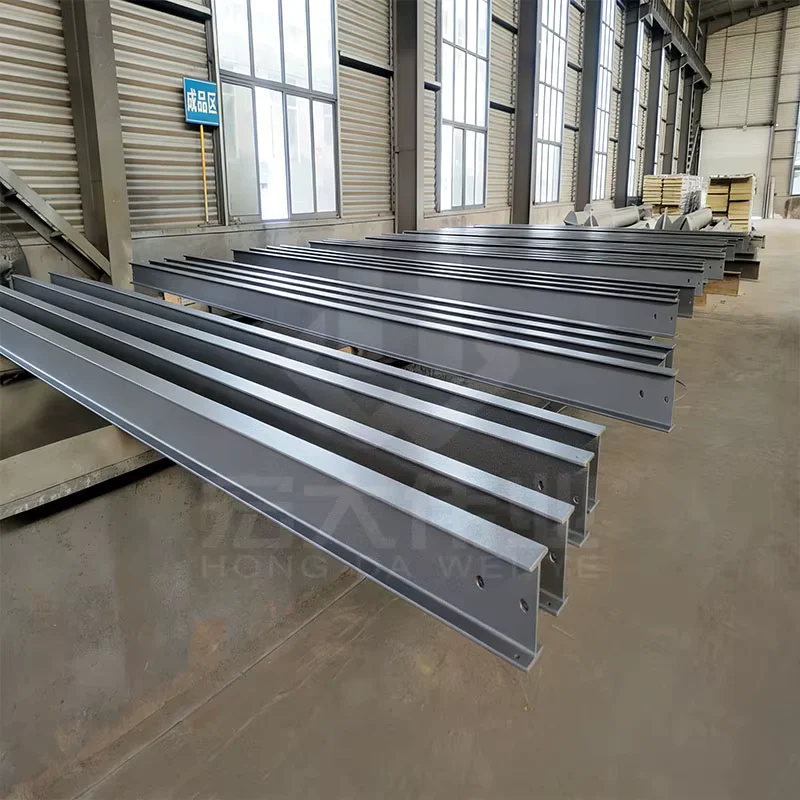

The main frame of a steel warehouse relies on solid H-shape steel beams to carry vertical loads from roof systems, crane rails, and mezzanine platforms. Q345B provides higher yield capacity than Q235B, making it the preferred choice for clear-span warehouse designs where column spacing exceeds standard intervals. C and Z shape steel channels serve as purlin systems that transfer roof and wall cladding loads back to the primary frame. Custom Structural Steel Fabrication for Warehouse & Workshop projects requires precise hole patterns and connection plates drilled to match your engineering drawings — our CNC processing ensures each component fits on site without field modification.
Engineering Compliance and Surface Protection for Industrial Environments
Steel warehouse structures in coastal or high-humidity regions face accelerated corrosion that compromises structural integrity within years if surface treatment is inadequate. Hot-dip galvanized finish provides long-term protection for warehouse frames exposed to aggressive atmospheres, while painting systems offer cost-effective alternatives for controlled indoor environments. Fabricated components must comply with execution class requirements under EN 1090 or equivalent welding standards, with certified welding procedures and qualified welders verified before production begins [NEED_CITE: EN 1090 structural steel execution class requirements]. Dimensional tolerance on H-beam flange flatness and web straightness directly affects bolted connection fit-up on site — components that exceed tolerance force costly rework during erection.
Understanding Q235B and Q345B Steel Grades for Structural Fabrication
Q235B and Q345B belong to the Chinese GB/T 700 and GB/T 1591 steel grade systems respectively. Q235B is a carbon structural steel widely used for secondary members, bracing, and light-load purlin systems in warehouse construction. Q345B is a low-alloy high-strength structural steel that delivers higher yield capacity, making it suitable for primary load-bearing frames such as H-beam columns and rafters in large-span workshop buildings. The B designation indicates impact testing at room temperature, providing verified toughness for general structural applications. Both grades are fully weldable using standard MIG/MAG and submerged arc welding processes when proper welding procedure specifications are followed. Surface treatment selection between painting and galvanized finish depends on the service environment — galvanized coatings provide sacrificial protection that extends maintenance intervals for warehouse structures in industrial or coastal zones.
The Hidden Cost of Accepting Fabricated Steel Without Verified Documentation
Purchasing fabricated structural steel without complete welding records and dimensional inspection reports creates liability that surfaces only during installation or final inspection. Components fabricated from unverified steel grades may pass visual inspection at the factory but fail ultrasonic testing when the client’s third-party inspector arrives. Welding procedures that were never qualified to AWS or EN standards produce joints that crack under service loading — the repair cost on an erected warehouse frame exceeds the original fabrication price many times over. Customs clearance in markets requiring CE marking or EN 1090 compliance becomes impossible without the factory production control certificate and declaration of performance [NEED_CITE: CE marking requirements for structural steel components under EN 1090]. The cheapest quote often becomes the most expensive decision when documentation gaps force project delays or structural rejection.
Why Project Teams Source Custom Structural Steel Fabrication for Warehouse & Workshop From Our Facility

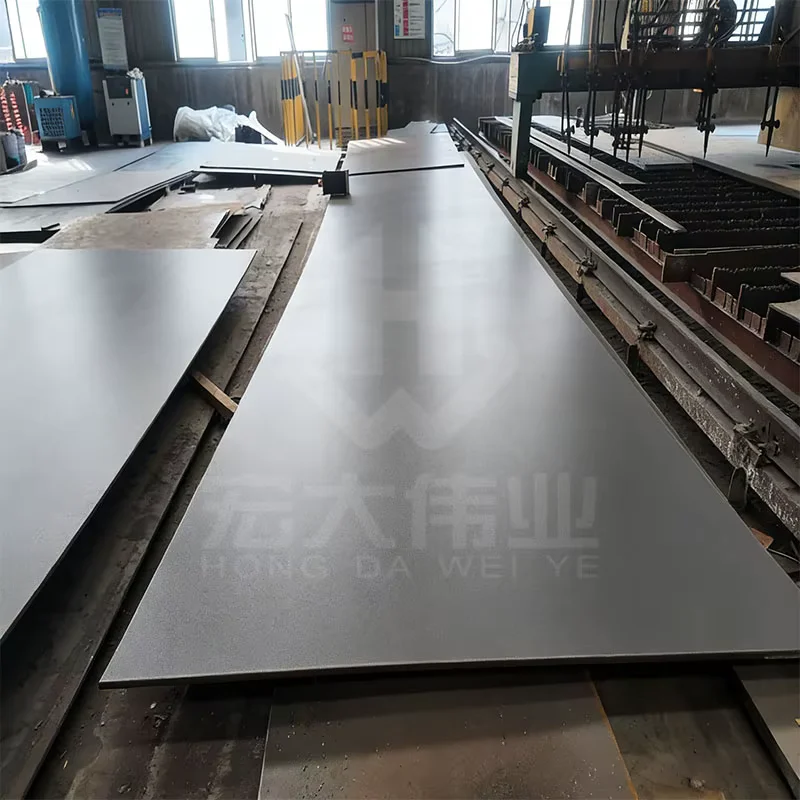

Our fabrication division operates under the same corporate entity as our steel production mill, meaning every Q235B and Q345B plate and section used in your warehouse frame originates from our own production lines. This vertical integration eliminates the documentation gap that occurs when fabricators purchase steel from open-market traders. Our raw material inventory covers over 2,800 specifications, allowing us to fulfill custom size options without waiting for external mill rolling schedules. The fabrication workshop is equipped with CNC cutting, drilling, and automated welding stations that process H-beam frames and purlin systems to engineering drawings with consistent dimensional accuracy. Every weld is performed by certified welders under approved WPS, with complete quality documentation including weld maps, NDT reports, and coating thickness measurements prepared before shipment. We have delivered fabricated steel structures to projects across the European Union, Middle East, Southeast Asia, and Africa, with full compliance to international standards including EN 1090, AWS, and AISC requirements.
Documentation & Compliance
- Mill Test Certificate documenting Q235B and Q345B chemical composition and mechanical properties per GB/T 700 and GB/T 1591, with heat number traceability to our own steel production
- CE certificate and Declaration of Performance for fabricated structural steel components manufactured under EN 1090 factory production control system
- ISO 9001:2008 quality management system certificate covering the full scope from raw material procurement through fabrication, welding, and surface treatment
- Welding Procedure Specifications and Procedure Qualification Records for all welded connections, qualified to AWS D1.1 or EN ISO 15614 standards
- Dimensional inspection reports and coating thickness measurement records for every shipped batch of H-beam frames and purlin assemblies
- Complete export documentation including packing list, bill of lading, and certificate of origin for customs clearance at destination port
Packaging, Loading & Delivery
- H-beam columns and rafters bundled with steel strip ties and separated by timber dunnage to prevent surface damage to painted or galvanized finish during ocean transit
- C and Z purlin systems packed in nested bundles with edge protectors to preserve galvanized coating and prevent deformation of thin-wall profiles
- Custom-sized fabricated components loaded into open-top or flat-rack containers when dimensions exceed standard container internal measurements, with professional lashing and bracing
- All structural members marked with heat number, steel grade, and piece identification corresponding to approved shop drawings for traceability on site
- Professional loading plans prepared for each shipment to maximize container utilization and minimize freight cost for warehouse and workshop project deliveries
- FOB, CIF, and DDP shipping terms available with complete export documentation and tracking support until delivery at project site
How to Start Your Warehouse or Workshop Steel Fabrication Inquiry
Submit your project drawings in PDF or DWG format along with required steel grades, surface treatment preference, and applicable standards to receive a detailed quotation within 24 hours. Our engineering team will review your shop drawings, confirm material availability from our 2,800+ specification inventory, and provide a production schedule before contract signing. Confirm your certification requirements and destination port so we can prepare the complete documentation package for customs clearance and project inspection.
Request Your Fabrication Quotation and Material Certification
Send your project drawings and specifications to receive a detailed quote with mill test certificate documentation.
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Frequently Asked Questions
Q: What international standards do your fabricated steel structures comply with?
A: Our fabricated structural steel components are manufactured under EN 1090 execution class requirements for the European market, AWS D1.1 for North American projects, and AISC standards. We hold CE certification and ISO 9001:2008 quality management certification, with complete documentation including welding procedure qualifications and factory production control records.
Q: How do you ensure welding quality on H-beam frames and truss assemblies?
A: All welding is performed by qualified welders under approved Welding Procedure Specifications. In-process dimensional checks and non-destructive testing including ultrasonic and magnetic particle inspection are conducted per project requirements. Complete weld maps and NDT reports are included in the quality documentation package shipped with every order.
Q: Can you provide shop drawing review and engineering support before fabrication begins?
A: Yes. Our engineering team reviews client drawings, prepares detailed shop drawings for approval, and provides material optimization and fabrication sequencing recommendations. This process identifies potential fit-up issues and connection conflicts before production starts, reducing field rework on site.
Q: What surface treatment options are available and how do they affect project cost?
A: We offer painting systems and hot-dip galvanized finish for fabricated steel components. Galvanized coating provides longer corrosion protection for warehouse structures in aggressive environments but carries higher initial cost. Painting systems offer flexible color options and lower upfront cost for indoor or controlled environments. Our team recommends the appropriate treatment based on your project environment and design life requirements.
Q: How do you handle shipping for oversized fabricated warehouse components?
A: Large H-beam columns and long-span rafters that exceed standard container dimensions are loaded into open-top or flat-rack containers with professional lashing and bracing. We prepare detailed loading plans for each shipment to maximize container utilization and provide complete export documentation for customs clearance at destination.
