Description

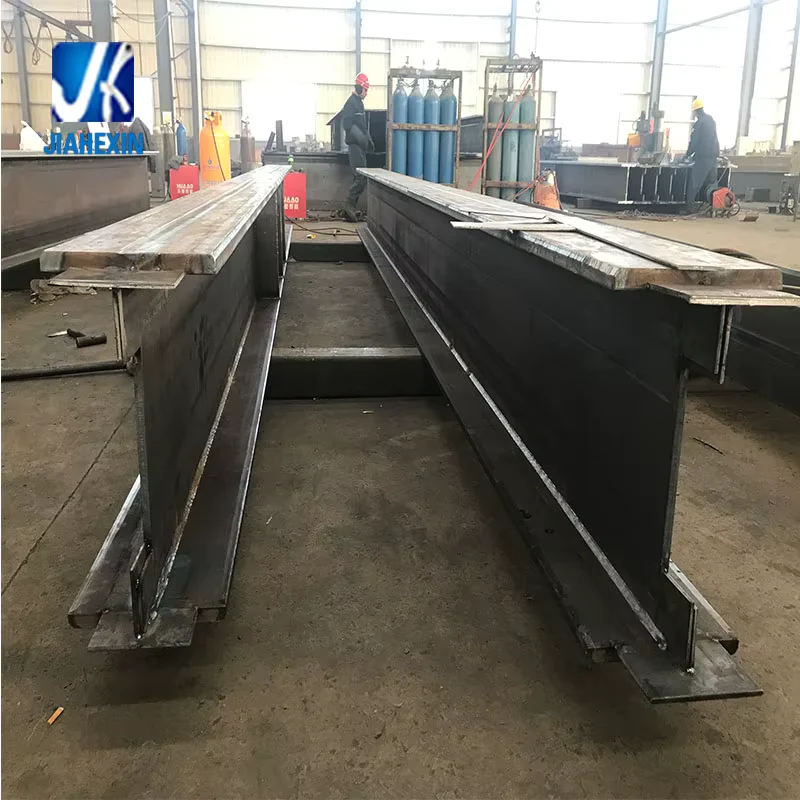

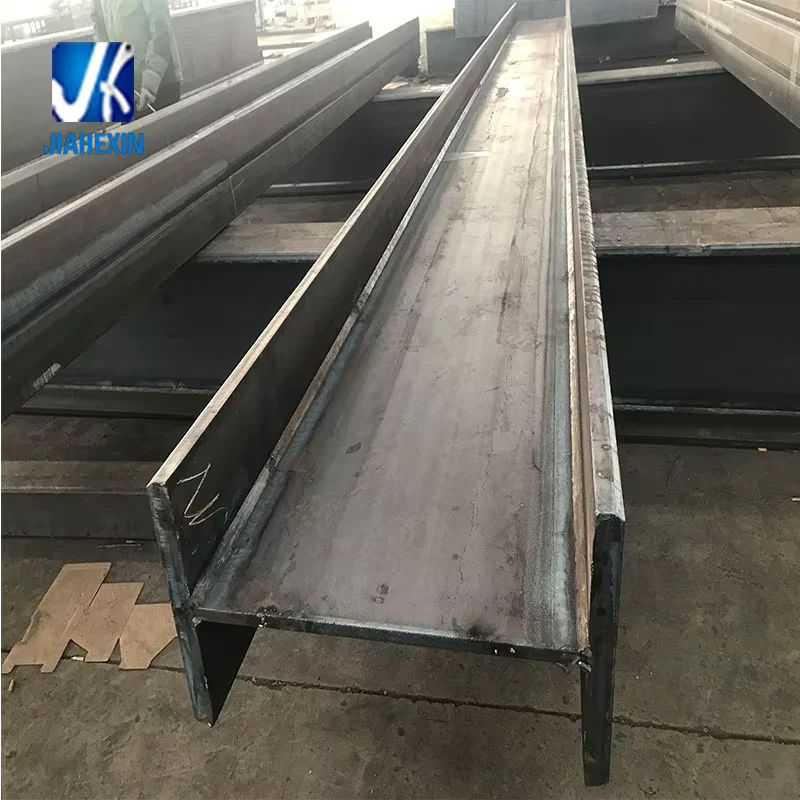

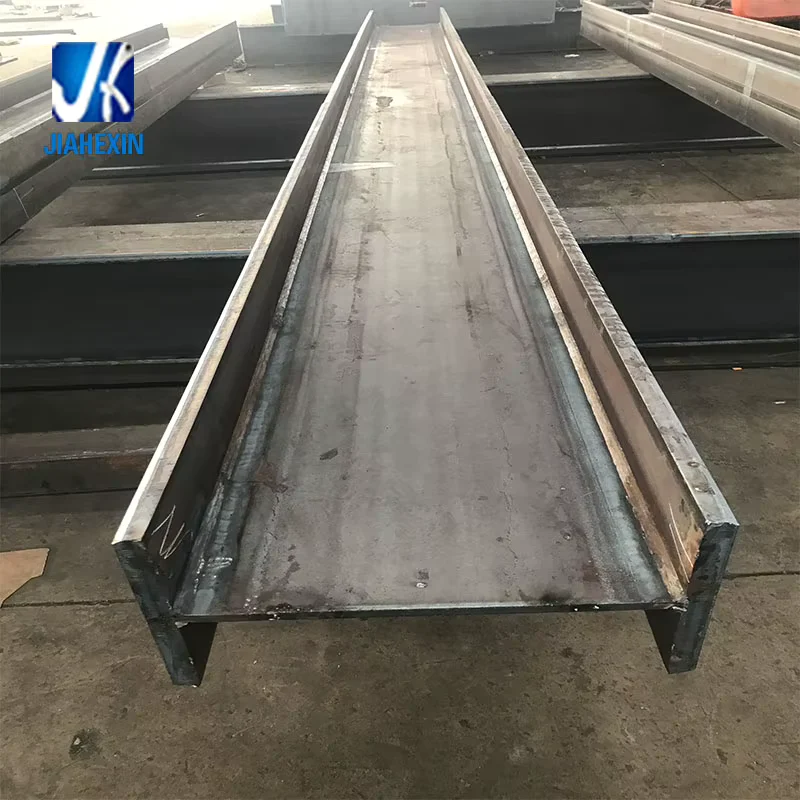

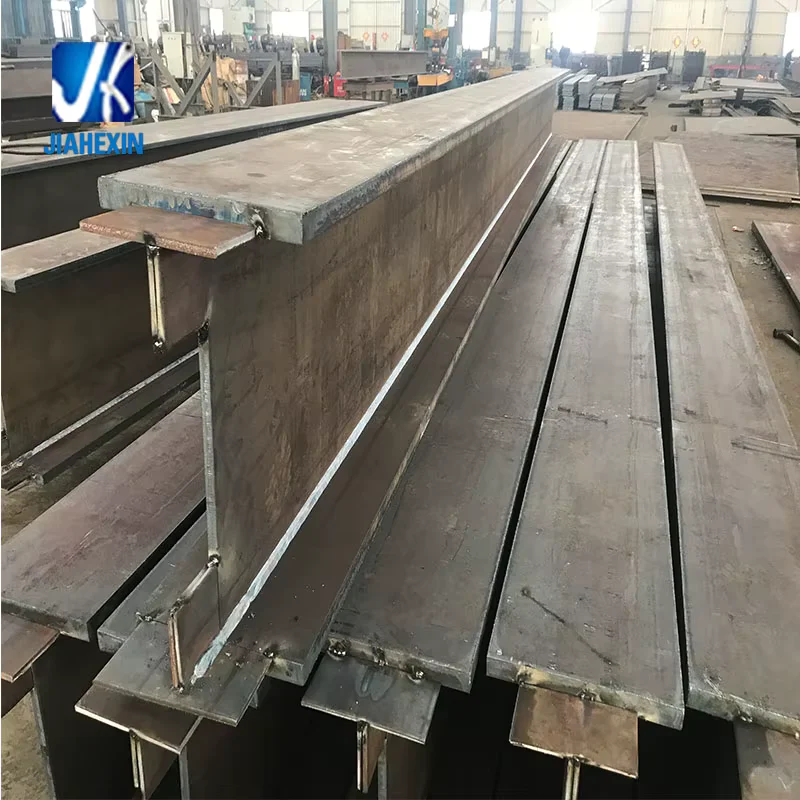

Factory-Direct Welded H-Beam Fabrication — Raw steel produced and fabricated under one roof, eliminating third-party material sourcing gaps for Q235B and Q345B structural components.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Welded H-Beam Steel Structural Fabrication |
| Product Type | Fabricated Steel Structure (Welded H-Beam) |
| Steel Grade | Q235B, Q345B, Q460C, SS400, S235JR, A36, 45#, 304, 316 |
| Standard | GB, JIS, ASTM, AISI, DIN, BS, ISO |
| Section Shape | Welded H-Beam |
| Weight Range | 10 kgs – 20,000 kgs |
| Technique | Welding (TIG, MIG, Spot, CO2, Arc) |
| Surface Treatment | Powder Coating, Painted, Galvanized, or Natural |
| Manufacturing Processes | Material cutting, deburring, bending, assembling, welding, polishing/cleaning, shot blasting, machining, painting, packing |
| Heat Treatment | Normalization, Annealing, Quenching and Tempering (for 45#) |
| Non-Destructive Testing | PT, MT, UT, RT |
| Tolerance | ±10% |
| Software Compatibility | SolidWorks, Pro/Engineer, AutoCAD (DXF, DWG), PDF, IGS, STP |
| Application | Steel structure construction, Steel workshop, Power stations, Power plants, Large generators, Material handling equipment, Construction machinery |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Steel workshop frames, power plant structural supports, generator housing structures |
| Infrastructure | Bridge components, conveyor support structures, material handling equipment frames |
| Commercial Buildings | Multi-story building columns and beams, mezzanine platforms, stairway assemblies |
| Energy Sector | Wind turbine support structures, solar mounting frames, substation structural frameworks |
What Material Traceability Gaps Cost on an Overseas Fabrication Order
When your fabricator sources steel from third parties, certification chains break — and customs officers notice.
Outsourcing structural steel fabrication overseas introduces quality uncertainty that compounds at every project stage. Buyers routinely face situations where mill test certificates cannot be traced back to actual heat numbers, welding procedures lack proper qualification records, or coating thickness reports do not match on-site measurements. These documentation gaps trigger customs holds, delay project timelines, and force expensive re-inspection by third-party agencies. For Q235B and Q345B welded H-beams intended for EU or Middle East projects, EN 1090 compliance requires complete traceability from raw material procurement through final fabrication — a chain that fragments when material sourcing and fabrication happen at separate facilities. [NEED_CITE: EN 1090 structural steel fabrication certification requirements]
How Welded H-Beams Match Industrial Load-Bearing Requirements
For power stations and heavy industrial workshops, structural frames must support dynamic loads from rotating equipment and overhead cranes. Q345B welded H-beams provide higher yield strength than Q235B for main load-bearing columns, while Q235B remains cost-effective for secondary bracing and platform supports. Our fabrication process includes CNC cutting, automated submerged arc welding, and shot blasting to SA 2.5 before painting or galvanizing — ensuring surface preparation meets coating adhesion requirements for corrosive industrial environments. Each Custom Welded H-Beam Steel Structural Fabrication Supplier order includes weld maps documenting joint locations, welding procedures, and NDT results for critical connections.
Engineering Compliance and Surface Treatment Selection
Structural steel for EU projects must comply with EN 1090 execution classes, requiring certified welding procedures and qualified welders — documentation we provide as standard with every shipment. For projects in Southeast Asia or Middle East coastal areas, hot-dip galvanizing provides 50+ years of corrosion protection, while powder coating offers color matching for architectural applications. Q460C grade selection reduces section weight for long-span trusses while maintaining structural integrity, though it demands preheating during welding to prevent hydrogen cracking. Third-party inspection by SGS or BV can be arranged for projects requiring independent verification of dimensional accuracy and coating thickness. [NEED_CITE: steel grade equivalence between GB and ASTM standards]
Steel Grade Selection and Welding Process Fundamentals
Q235B corresponds to S235JR in EN standards and A36 in ASTM, offering good weldability and formability for general structural applications. Q345B (equivalent to S355JR) provides approximately 50% higher yield strength, making it suitable for heavily loaded columns and crane runway beams. For 45# carbon steel components requiring machining, quenching and tempering heat treatment achieves the hardness needed for bearing surfaces and connection plates. Our welding capabilities include MIG/MAG for general fabrication, submerged arc welding for thick plate H-beams, and TIG for stainless steel 304/316 components in corrosive environments. Non-destructive testing covers penetrant testing for surface cracks, magnetic particle testing for weld quality, and ultrasonic testing for full-penetration butt welds in critical connections.
Hidden Costs of Non-Compliant Fabrication
Material substitution without proper documentation creates liability exposure when structural engineers cannot verify as-built conditions. Welding procedures qualified for one steel grade do not automatically transfer to another — using S235JR procedures on Q345B material risks incomplete fusion and reduced joint strength. Dimensional tolerance deviations beyond ±10% force on-site rework, with field-cutting and re-welding adding 15-25% to installation labor costs. Missing quality documentation triggers customs delays at destination ports, with storage fees and demurrage charges accumulating while inspection agencies verify material properties. [NEED_CITE: structural steel fabrication quality control standards]
Why Source Welded H-Beams from an Integrated Producer
Our steel mill produces Q235B and Q345B plates and sections across 3 production lines with 2,800+ specifications in stock, eliminating the material sourcing gap that creates traceability problems. Fabrication happens in our own workshop using the same quality management system that governs steel production — one point of accountability from raw material to finished component. Certified welding procedures per AWS D1.1 and EN ISO 15614 qualify our welders for international projects, with complete documentation packages including WPS, PQR, and weld maps shipped with every order. Shop drawing review and engineering support catch connection conflicts before fabrication begins, reducing RFI delays that extend project schedules. Professional packing and loading plans account for oversized H-beam dimensions, with lashing calculations ensuring components survive ocean transit without deformation.
Documentation & Compliance
- Mill test certificate documenting Q345B chemical composition and mechanical properties per GB/T 1591, traceable to heat number
- EN 1090 certificate of conformity for structural steel fabrication, required for CE marking on EU projects
- ISO 9001 quality management certificate covering both steel production and fabrication processes
- SGS or BV third-party inspection reports for dimensional accuracy, welding quality, and coating thickness verification
- Material traceability records linking each fabricated component to specific heat numbers and mill test certificates
- Complete export documentation including packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery
- Q345B welded H-beams bundled with steel strips and edge protectors to prevent coating damage during handling
- Galvanized components wrapped in waterproof paper with desiccant packets to prevent white rust formation during ocean transit
- Custom loading plans for 40ft open-top containers accommodate oversized H-beams up to 12 meters length, with lashing points calculated for sea transport
- Shot blasted and painted surfaces protected with interleaving materials to prevent adhesion loss between stacked components
- Heat number and steel grade stenciled on each piece for on-site identification and traceability verification
- FOB, CIF, and DDP shipping terms available, with door-to-door logistics coordination for project sites lacking port access
How to Request a Fabrication Quote
Share your project drawings in PDF or DWG format along with steel grade specifications, quantity requirements, and destination port — we respond within 24 hours with a detailed quotation covering material, fabrication, surface treatment, and shipping costs. For custom fabrication to EN 1090 or AWS standards, include welding procedure requirements and NDT specifications so we can confirm capability before contract signing. Shop drawing preparation begins upon drawing approval and deposit receipt, with typical production lead times of 30-45 days depending on component complexity and order volume.
Frequently Asked Questions
Q: Can you fabricate welded H-beams to EN 1090 standards for EU projects?
A: Yes, our fabrication workshop holds EN 1090 certification for structural steel components, with execution class 2 or 3 available depending on project requirements. We provide complete documentation including CE marking declarations, welding procedure qualifications per EN ISO 15614, and welder certifications per EN ISO 9606.
Q: What quality documentation accompanies a Q345B welded H-beam order?
A: Each shipment includes mill test certificates traceable to heat numbers, welding procedure specifications, welder qualification records, dimensional inspection reports, NDT test results, and coating thickness measurements. For third-party verification, SGS or BV inspection can be arranged at our facility before shipment.
Q: Do you provide shop drawing services or must we supply complete fabrication drawings?
A: Our engineering team can prepare shop drawings from your design drawings for review and approval before fabrication begins. We also offer material optimization and fabrication sequencing support to reduce waste and improve production efficiency.
Q: What surface treatment options are available for welded H-beams?
A: We offer shot blasting to SA 2.5 standard followed by painting with epoxy primer and polyurethane topcoat, hot-dip galvanizing per ISO 1461, or powder coating for architectural applications. Surface treatment selection depends on environmental conditions and project specifications.
Q: How do you handle shipping for oversized welded H-beam components?
A: We develop custom loading plans for container or breakbulk shipping, with lashing calculations ensuring components survive ocean transit. For lengths exceeding container capacity, we coordinate flat rack or open-top container loading, or arrange breakbulk vessel shipment for very large components.
Get Your Custom Welded H-Beam Fabrication Quote
Submit your project drawings and specifications to receive a detailed quotation with material traceability documentation and international standard compliance within 24 hours.
