Description

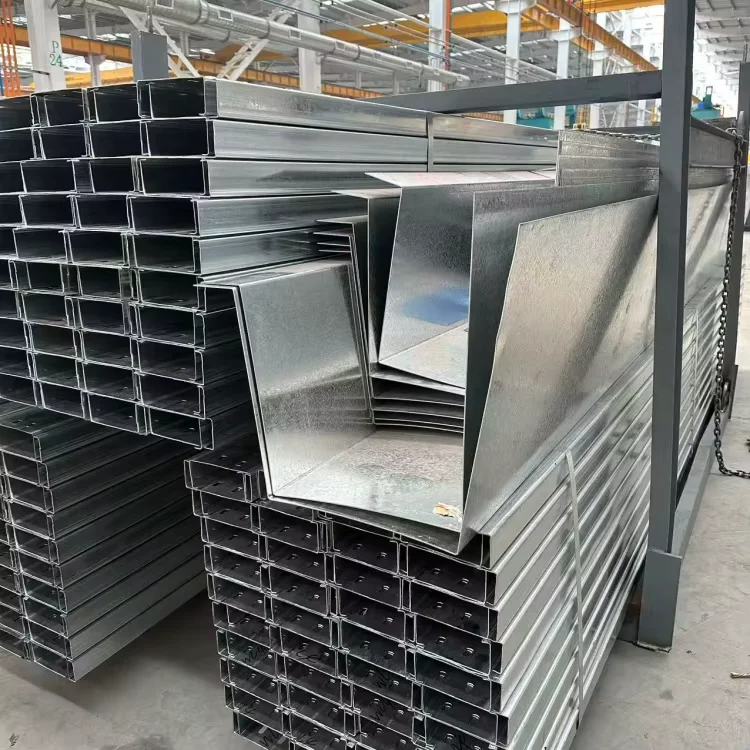

Factory-Direct C Purlin Fabrication — Raw Q235/Q355 steel from our own mill goes straight to CNC drilling and cutting lines, eliminating third-party material gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q355 C Purlin Steel Drilling & Cutting Service |
| Product Type | Fabricated Steel Structure Component (C Purlin) |
| Steel Grade | Q235, Q235B, Q355, Q355B |
| Section Shape | C Purlin |
| Technique | CNC Drilling & Cutting / Welded |
| Main Frame | Welded H-shape Steel Beam |
| Surface Treatment | Painting / Galvanized |
| Application | Steel Structure Workshop, Warehouse, Hangar, Plant, Office Building, Industrial Facility |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Primary and secondary purlin systems for steel structure workshops and warehouses |
| Logistics & Storage | Roof and wall framing for large-span distribution centers and cold storage facilities |
| Infrastructure (EPC) | Certified structural components for plant buildings and utility support frames |
| Commercial Construction | Purlin and girt assemblies for office buildings and industrial parks |
When a 5mm Drilling Offset Means Airfreight on Your Budget
Dimensional accuracy on C purlin connections is not a tolerance detail — it is a project cost variable.
I have seen a full container of C purlins arrive at a Saudi site with bolt holes shifted 5mm off the shop drawing grid. Every single piece had to be re-dr*ng replacements had to be air-freighted at three times the original unit cost. That kind of failure does not come from bad steel — it comes from fabricators who treat drilling as an afterthought rather than a controlled CNC process. When overseas buyers outsource C purlin steel drilling and cutting fabrication service to shops without integrated engineering and production, the gap between approved drawings and delivered holes becomes a financial liability. [NEED_CITE: dimensional tolerance requirements for structural steel fabrication per EN 1090-2]
Matching C Purlin Geometry to Workshop and Warehouse Framing

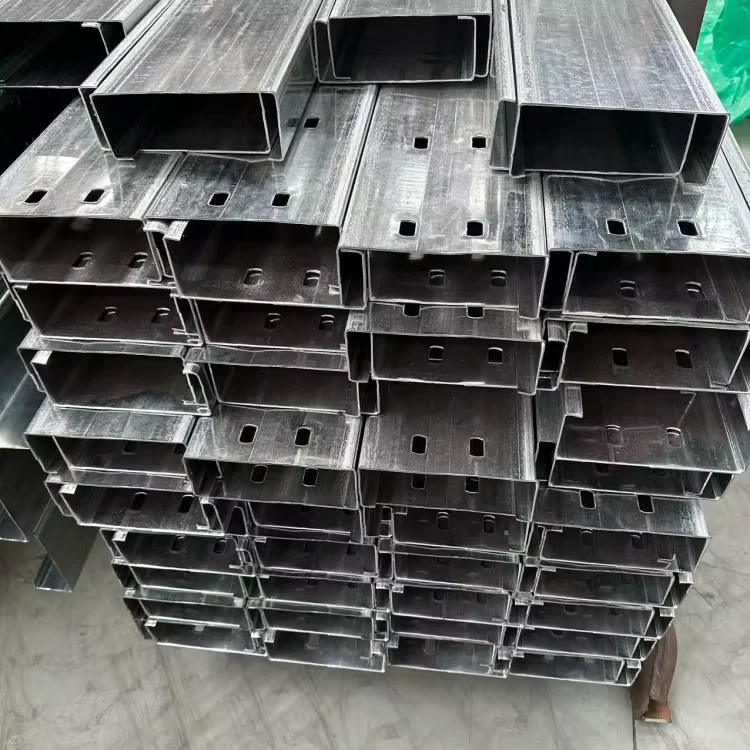

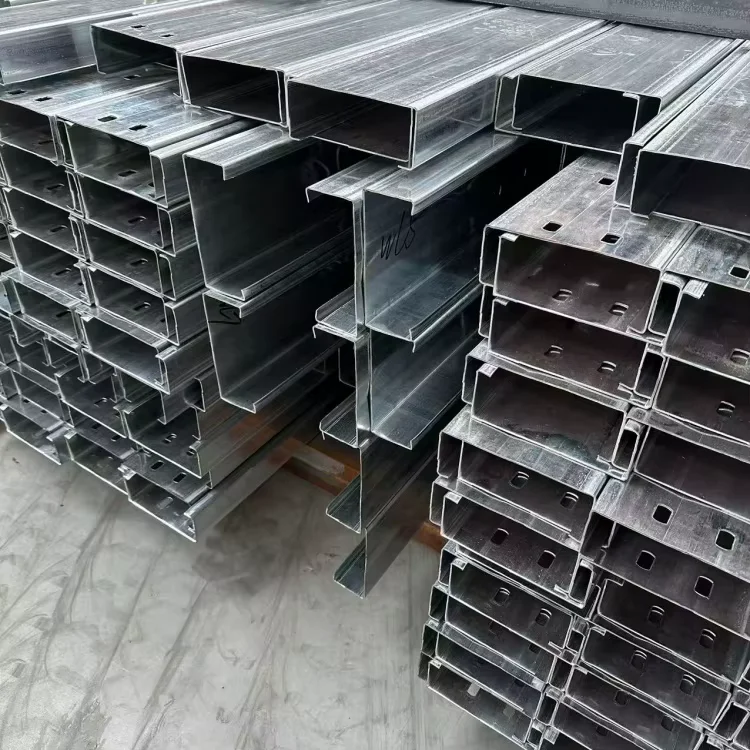

C purlins serve as the secondary load-transfer backbone in portal-frame structures, spanning between rafters to carry roof sheeting and insulation loads. The C purlin steel drilling and cutting fabrication service we deliver matches each piece to the project’s rafter spacing, lap length, and bolt-hole pattern — all driven by approved shop drawings rather than field improvisation. For warehouse and hangar applications, Q355 grade provides the yield strength needed to resist wind uplift on long spans, while Q235 remains cost-effective for shorter bay buildings. Our CNC lines hold hole positions within the tolerance envelope required by EN 1090 execution classes, so erection crews bolt up without reaming.
Structural Code Compliance and Surface Protection for Field Conditions
Engineering specifications for industrial facilities typically reference EN 1993-1-3 for cold-formed purlins or AISC guidelines for hot-rolled sections, and the steel grade must be traceable back to the original heat. [NEED_CITE: EN 1993-1-3 design rules for cold-formed thin-gauge members] Galvanized finish is specified for coastal or high-humidity sites where corrosion allowance matters, while shop-applied primer systems suit enclosed workshops with controlled environments. Third-party inspection by SGS or BV can be called at any production stage to verify material certificates and dimensional reports before shipment. Customs clearance in EU markets requires CE marking under EN 1090, and our fabrication procedures are certified to that standard — a detail that separates compliant shipments from port-held containers.
Steel Grade Selection and Processing Logic for C Purlins

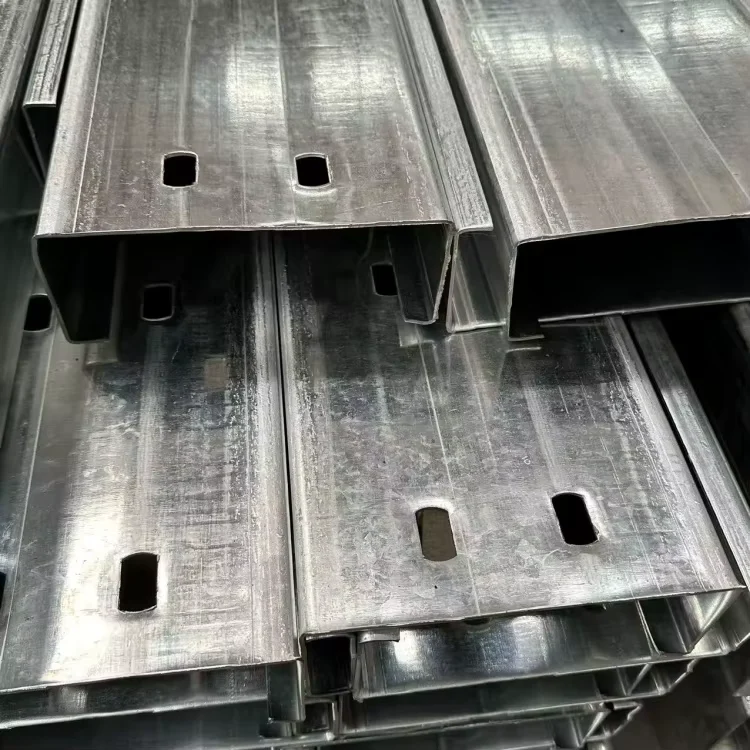

Q235 and Q355 belong to the Chinese GB/T 1591 series; Q355 offers higher yield strength than Q235, making it the default choice for longer-span purlin systems in warehouses and aircraft hangars. The B suffix (Q235B, Q355B) indicates impact testing at 20°C, which matters for projects in regions with seasonal temperature drops. CNC drilling and cutting on these grades requires controlled feed rates and sharp tooling to avoid burr formation around bolt holes — a detail that affects fit-up quality on site. Welded C purlins built up from plate offer deeper sections than cold-formed alternatives, and our shop integrates submerged arc welding with CNC hole-punching in a single production flow. Surface treatment choice — hot-dip galvanizing versus paint — depends on the project’s corrosion category per ISO 12944, and we apply coating thickness checks with every batch.
The Real Price of Buying Unverified Purlin Components
Material certificates that cannot be traced to a specific heat number mean the structural engineer cannot sign off on load calculations — a situation that halts project handover regardless of how quickly the steel arrived. Fabricators who source raw coil from multiple traders without in-house testing create documentation gaps that surface during third-party audits. [NEED_CITE: material traceability requirements under EN 1090-2 for structural steel components] Non-standard negative tolerance on thickness may reduce purchase weight but also reduces section modulus below the design assumption, creating a hidden structural risk that only shows up during overload testing.
Integrated Control from Mill to Finished Component
Our fabrication division operates under the same roof as the steel production facility, meaning Q235 and Q355 raw material moves directly from our rolling lines to the CNC drilling and cutting bay without leaving the site. This vertical integration gives every C purlin steel drilling and cutting fabrication service order a continuous material chain — from mill test certificate to finished, painted, or galvanized component. The shop maintains over 2,800 raw material specifications in inventory, so standard and custom purlin sections can be cut to length and drilled without waiting for external coil delivery. Welding procedures are qualified to AWS and EN standards, and every welder on the purlin line holds current certification. Professional loading plans handle oversized fabricated assemblies, and export documentation is prepared in parallel with production to avoid vessel delays.
Documentation & Compliance
- Mill Test Certificate documenting Q235B and Q355B chemical composition and mechanical properties per GB/T 1591, traceable by heat number
- CE Certificate confirming EN 1090-2 compliance for structural steel fabrication, required for EU project customs clearance
- ISO 9001 Quality Management System certificate covering the full fabrication process from cutting to coating
- SGS or BV third-party inspection report available at any hold point during C purlin production
- Welding documentation package including WPS, PQR, and welder qualification records for welded C purlin assemblies
- Full export document set: packing list, bill of lading, and certificate of origin matched to destination country requirements
Packaging, Loading & Delivery

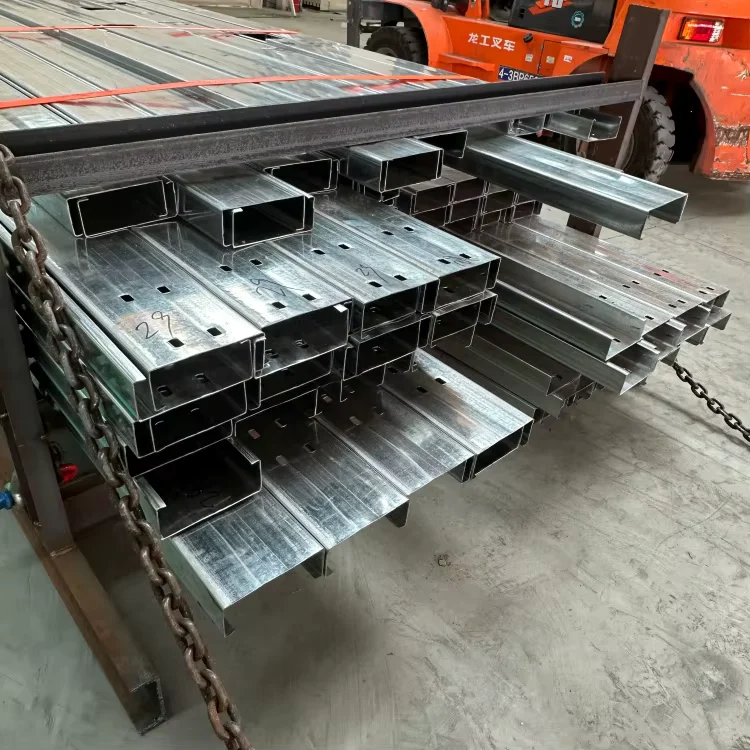

- Q355 C purlins bundled with galvanized steel strips and edge protectors to prevent coating damage during ocean transit
- Galvanized surface purlins wrapped with waterproof paper and plastic film to preserve zinc layer in humid container conditions

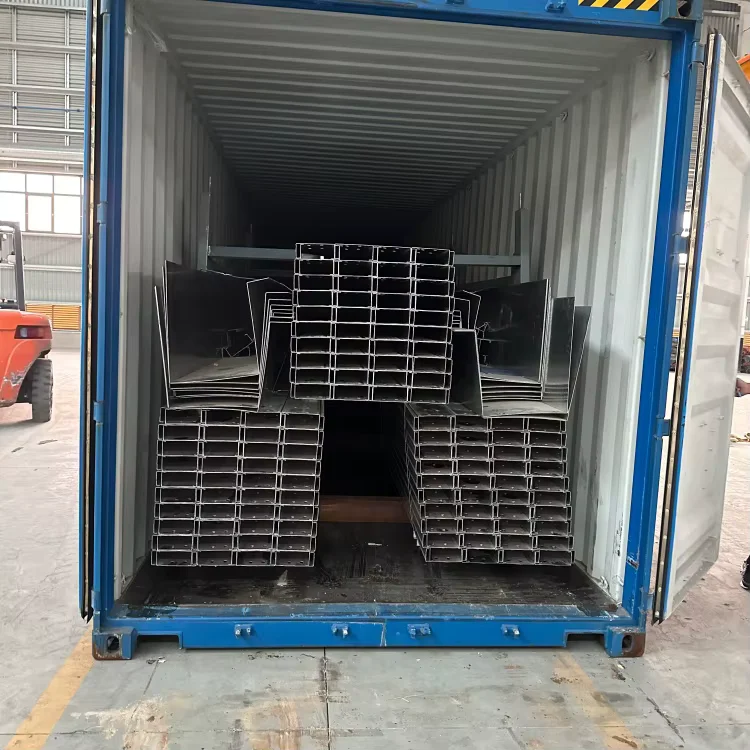

- Custom-length purlins cut to project-specific dimensions and nested for container optimization, reducing per-unit freight cost
- Each bundle tagged with heat number, steel grade (Q235B/Q355B), and piece mark matching the approved shop drawing list
- FOB, CIF, and DDP shipping terms available; oversized H-shape main frame components loaded with specialized lashing plans
- Production lead times coordinated with vessel schedules to minimize port storage and demurrage exposure
Starting Your C Purlin Fabrication Inquiry
Send your project drawings in PDF or DWG format along with steel grade requirements, surface treatment preference, and destination port. Our engineering team responds within 24 hours with a preliminary assessment covering material availability, CNC drilling feasibility, and production scheduling. Shop drawings are prepared for your approval before any cutting begins, and mill test certificates are issued per heat number for full traceability.
Request a Quote with Full Material Traceability
Submit your C purlin specifications, steel grade, quantity, and destination to receive a detailed quotation including fabrication, coating, packing, and shipping costs — along with sample mill test certificates and welding documentation.
