Description
Vertically Integrated Mill-to-Fabrication — We produce and process Q235B and Q345B galvanized Z/C/U channels from our own steel mill, eliminating third-party material sourcing risks.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B / Q345B Galvanized Steel Z/C/U Channel |
| Product Type | Z / C / U Channel Steel |
| Steel Grade | Q235B, Q345B, SS400, S235JR |
| Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
| Section Shape | Z / C / U section |
| Length | 6m, 9m, 12m or customized |
| Technique | Hot Rolled / Cold Rolled / Galvanized |
| Surface Treatment | Galvanized / Hot Rolled |
| Tolerance | ±5% / ±1% |
| Application | Building structures, beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, warehouse shelves |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Reaction towers, container racks, warehouse shelves, industrial furnace frames |
| Infrastructure & Civil Engineering | Transmission towers, bridge support structures, lifting and transportation machinery frames |
| Commercial Building | Structural beams, platform supports, mezzanine framing, roof purlin systems |
| Maritime & Heavy Industry | Ship structural supports, offshore platform secondary structures |
When Dimensional Tolerance Becomes a Site-Wide Rework Nightmare
A ±1% tolerance on galvanized Z/C/U channels determines whether your purlin system bolts together or gets cut and rewelded on site.
Outsourced section steel fabrication often arrives with cumulative length deviations that compound across a warehouse roofline. When the third bay doesn’t align, the entire erection sequence stalls. Buyers sourcing from fragmented suppliers face material traceability gaps — the galvanizing certificate doesn’t match the mill test report, and the base metal chemistry remains unverified. [NEED_CITE: structural steel dimensional tolerance requirements for cold-formed sections]
How Galvanized Channels Match Corrosive Industrial Environments
Galvanized Z/C/U channels in Q235B and Q345B grades provide sacrificial zinc protection for warehouse purlins, transmission tower bracing, and container rack uprights. The zinc coating thickness directly determines service life in humid or chemically exposed environments — a critical factor for reaction tower support frames and industrial furnace platforms. Our integrated fabrication process ensures CNC-cut holes and welded connections receive touch-up galvanizing, preventing localized corrosion at stress concentration points.
Structural Compliance and Certification Pathways
Channel sections for transmission towers and bridge supports must conform to EN10147 or ASTM A653 depending on destination market. European projects require CE marking under EN 1090 execution class EXC2 or EXC3, verified through factory production control audits and welder qualification records. [NEED_CITE: EN 1090 structural steel component certification requirements] North American infrastructure projects specify ASTM A653 with G90 or G180 coating designations. Custom lengths of 6m, 9m, or 12m reduce field splicing, but require precise end-cutting to maintain bolt-hole alignment across multi-bay frames.
Steel Grade Selection: Q235B vs Q345B vs S235JR
Q235B remains the workhorse grade for general building purlins and warehouse shelving uprights where yield strength requirements stay moderate. Q345B delivers higher load capacity for transmission tower bracing and crane runway beams without increasing section dimensions. S235JR serves as the European equivalent for projects specifying EN standards, while SS400 satisfies Japanese industrial specifications. The galvanizing process applies uniformly across all grades, but welding parameters must adjust — Q345B’s higher carbon equivalent demands preheat considerations for thick-section connections.
The Hidden Cost of Unverified Material Sources
Purchasing galvanized channels without mill test certificates creates downstream liability. When coating thickness falls below ASTM A653 G90 minimum, accelerated corrosion compromises transmission tower structural integrity within years, not decades. Material substitution — receiving Q235B when Q345B was specified — passes visual inspection but fails load testing, triggering project acceptance rejection. [NEED_CITE: consequences of non-compliant steel material certification in structural projects]
Why Project Teams Source Customized Galvanized Steel Z C U Channel Supplier Through Us
Our own steel mill produces 2,800+ raw material specifications, giving us direct control over base metal chemistry before galvanizing begins. Each Customized Galvanized Steel Z C U Channel Supplier order receives CNC cutting, drilling, and welding in our fabrication workshop — no third-party subcontracting creates handoff gaps. Welders hold AWS and EN certifications with qualified WPS/PQR procedures on file. Third-party inspection through SGS or BV verifies dimensional accuracy and coating thickness before shipment. Professional loading plans maximize container utilization for 6m and 12m lengths while protecting galvanized surfaces during ocean transit.
Documentation & Compliance
- Mill Test Certificate documenting Q235B or Q345B chemical composition and mechanical properties per heat number
- CE Certificate confirming EN 1090 compliance for Customized Galvanized Steel Z C U Channel Supplier components exported to EU markets
- ISO 9001 Quality Management System certificate covering fabrication processes and galvanizing operations
- SGS or BV Third-Party Inspection Report verifying dimensional tolerance and zinc coating thickness per ASTM A653
- Material Traceability Report linking each channel bundle to specific heat numbers and galvanizing batch records
- Customs Documentation including packing list, bill of lading, and certificate of origin for destination clearance
Packaging, Loading & Delivery

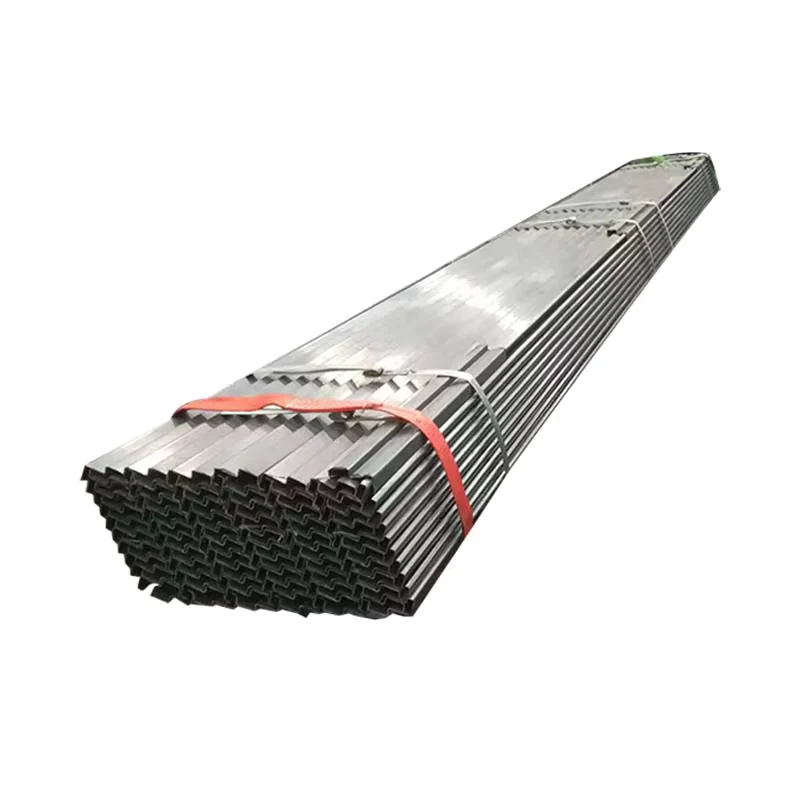

- Galvanized Z/C/U channels bundled with steel straps and edge protectors to preserve zinc coating during handling and ocean transit
- Surface protection through plastic wrapping or anti-rust oil application for hot-rolled variants before galvanizing
- Container loading optimization for 6m, 9m, and 12m lengths using specialized racks to prevent nesting damage
- Custom cutting to project-specific lengths with deburred edges and hole patterns marked per shop drawings
- Heat number and steel grade stenciled on each bundle for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination for project sites
Moving From Inquiry to Mill Test Certificate
Share your project drawings in PDF or DWG format along with specified steel grades, coating requirements, and quantity. We respond within 24 hours with a detailed quotation covering material, fabrication, galvanizing, and shipping costs. Shop drawing approval precedes production, ensuring hole patterns and cut lengths match your erection sequence.
Request Your Customized Galvanized Steel Z C U Channel Supplier Quote
Submit your specifications and receive pricing with full material certification documentation.
