Description
Direct Factory Fabrication — Q235 and Q345 steel parts processed in-house from raw plate to finished assembly, eliminating third-party markup.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345 Custom Structural Steel Fabrication Parts |
| Product Type | Fabricated Steel Structure |
| Steel Grade | Q235, Q345 |
| Section Shape | Customized According to Drawings |
| Wall Thickness | 0.5-30 mm |
| Length | 6m for Sheet / 9m for hollow section |
| Technique | Laser Cutting / CNC Bending / Robot Welding |
| Surface Treatment | Galvanized / Powder Coating / Painting |
| Tolerance | ±0.1mm – ±1mm |
| Material | Carbon Steel / Stainless Steel / Aluminum / Copper |
| Application | Construction / Machinery / Equipment / Frame / Shipbuilding / Automotive / Aerospace |
| MOQ | 1 Piece |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction | Steel frame structures, building columns and beams, truss assemblies, platform supports |
| Machinery | Machine bases, equipment brackets, conveyor frames, industrial support structures |
| Infrastructure | Bridge components, highway sign gantries, utility tower connections |
| Shipbuilding | Deck structures, bulkhead stiffeners, hull framing members |
| Industrial Equipment | Pressure vessel skirts, tank supports, heavy machinery frames |
What Dimensional Tolerance Actually Means When Components Land on Site
A 4mm drill hole offset turns a bolted connection into a field rework disaster.
When structural steel fabrication is outsourced overseas, the distance between the factory floor and the erection site creates a dangerous gap in accountability. Shop drawings get approved with assumed tolerances, CNC programs run without verification against actual material conditions, and by the time 200 beam connections arrive in Dubai, nothing aligns. The contractor faces on-site re-drilling at triple the labor cost, or worse, structural compromise from forced-fit connections. This is not hypothetical — dimensional accuracy in custom structural steel fabrication determines whether your project stays on schedule or becomes a case study in procurement failure [NEED_CITE: dimensional tolerance standards for structural steel fabrication].
How Laser Cutting Precision Translates to Field Assembly

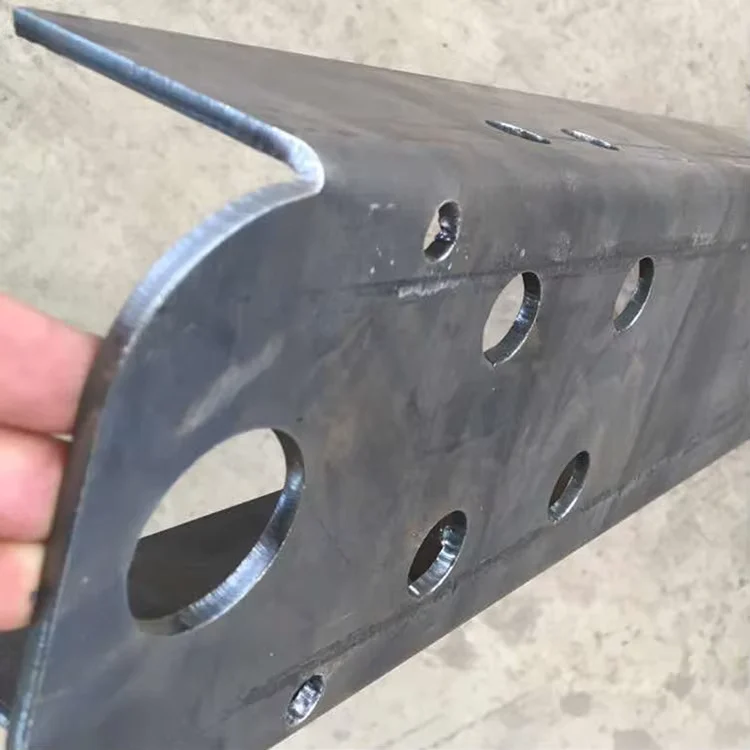

Fiber laser cutting achieves ±0.1mm tolerance on complex geometries that would require multiple setups on traditional plasma systems. For Q235 and Q345 structural components, this means bolt holes land exactly where the shop drawing specifies, connection plates mate flush without shimming, and weld prep edges maintain consistent root gaps. When your Custom Structural Steel Fabrication Manufacturer controls the entire process from raw plate to finished assembly, tolerance stacking errors get caught at the programming stage rather than discovered during erection.
Meeting Engineering Codes Across Different Markets

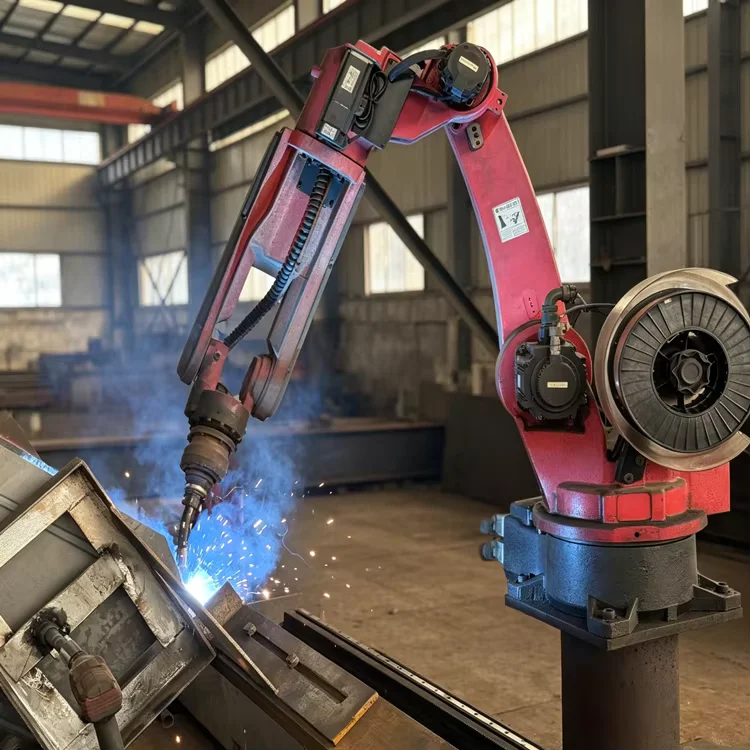

Structural steel fabricated for international projects must satisfy the governing code of the destination country — EN 1090 for European construction, AWS D1.1 for American projects, or local equivalents for Middle East and Southeast Asian infrastructure. The steel grade itself (Q235 equivalent to S235JR, Q345 comparable to S355JR) provides the mechanical foundation, but fabrication quality — weld procedure qualification, dimensional inspection, surface preparation — determines customs clearance and site acceptance [NEED_CITE: EN 1090 execution class requirements for structural steel]. Robot welding with qualified WPS ensures consistent penetration and fusion across production runs, while NDT testing documentation closes the audit trail that inspectors demand.
Steel Grade Selection and Process Economics
Q235 offers adequate strength for non-critical structural applications at lower material cost, while Q345 delivers higher yield strength for load-bearing frames and dynamic loading conditions. The choice between carbon steel, stainless steel, or aluminum depends on corrosion environment and lifecycle cost — galvanized coating extends service life in outdoor exposure, powder coating provides aesthetic finish with UV resistance, and painting allows color matching for architectural integration. CNC bending of Q345 requires accounting for springback compensation in the program, while laser cutting parameters shift between material types to maintain edge quality and kerf width.
The Hidden Cost of Unverified Material Claims
When a fabricator sources steel from third-party mills without maintaining certification chains, the Mill Test Certificate becomes a piece of paper disconnected from actual material. Heat numbers don’t trace back to chemistry reports, yield strength claims lack laboratory verification, and customs authorities flag shipments for re-inspection. Engineering codes require material traceability from mill to finished component — without it, your Custom Structural Steel Fabrication order faces rejection at site inspection, project delays while replacement material ships, or worst case, structural failure under load that traces back to substandard steel [NEED_CITE: material traceability requirements in structural steel codes].
Why Fabrication Integration Eliminates Supply Chain Gaps
Our own steel production facility with 3 production lines and 2,800+ raw material specifications means the plate arriving at the laser cutting table carries complete chemistry and mechanical property documentation from our mill. There is no gap between material supplier and fabricator — one quality system, one point of accountability, one certification chain from raw steel to finished component. Certified welding procedures and qualified welders (AWS/EN certified) ensure every joint meets code requirements, while engineering support reviews shop drawings for fabrication feasibility before the first cut. Complete quality documentation packages — WPS, PQR, weld maps, dimensional inspection reports, coating reports — travel with the shipment so your inspector has everything needed for approval.
Documentation & Compliance
- Mill Test Certificate documenting Q235 and Q345 chemical composition and mechanical properties per Chinese GB standards with equivalence cross-reference to EN/ASTM grades
- Welding Procedure Specification (WPS) and Procedure Qualification Record (PQR) for all welded connections per AWS D1.1 or EN ISO 15614
- Dimensional Inspection Report verifying hole positions, length, straightness, and surface profile against approved shop drawings
- Surface Treatment Certificate documenting galvanizing coating thickness, powder coating adhesion test results, or painting system DFT measurements
- Material Traceability Sheet linking each fabricated component to heat number, mill certificate, and production batch
- Export Documentation including packing list, bill of lading, certificate of origin, and customs declaration for destination country clearance
Packaging, Loading & Delivery
- Laser-cut Q235/Q345 plates stacked with interleaving protectors to prevent surface scratching during transit, bundled with steel strapping for container loading
- Welded assemblies wrapped in waterproof VCI paper with desiccant packs to prevent corrosion on bare steel surfaces during ocean freight
- Galvanized components separated with rubber edge protectors to preserve zinc coating integrity at contact points during handling and shipping
- Custom fabrication pieces loaded according to engineered shipping drawings that distribute weight evenly and prevent shifting in container or on flat rack
- Heat number and piece mark stenciled on each component matching the delivery manifest for site identification and traceability verification
- FOB Qingdao port or CIF/DDP delivery to project site with complete export documentation and container tracking until arrival
How to Move From Drawing to Purchase Order
Submit your project drawings (PDF/DWG format) with specifications including steel grade, quantity, surface treatment requirements, and destination port. We respond within 24 hours with preliminary assessment, detailed quotation covering material, fabrication, coating, packing, and shipping costs, plus shop drawing timeline and production schedule. Once shop drawings are approved and contract signed with deposit, material procurement and production begin immediately.
Frequently Asked Questions
Q: What information do you need to provide an accurate quotation for custom fabrication?
A: We require project drawings in PDF or DWG format showing dimensions, connection details, and weld symbols; steel grade specification (Q235, Q345, or other); surface treatment preference (galvanized, powder coating, or painting); quantity; and destination port or site location for shipping calculation.
Q: Can you fabricate components to international standards like EN 1090 or AWS D1.1?
A: Yes, our welding procedures are qualified per AWS D1.1 and EN ISO 15614 standards, our welders hold international certifications, and we provide complete quality documentation including WPS, PQR, weld maps, and dimensional inspection reports required for EN 1090 or AISC compliance.
Q: How do you ensure material traceability from raw steel to finished component?
A: As a vertically integrated manufacturer with our own steel mill, we maintain complete certification chains from raw material production through fabrication. Each component is marked with heat numbers that trace back to Mill Test Certificates documenting chemical composition and mechanical properties.
Q: What surface treatment options are available and how do I choose?
A: We offer hot-dip galvanizing for maximum corrosion protection in outdoor or industrial environments, powder coating for aesthetic finish with UV and chemical resistance, and painting systems for color matching and architectural applications. The choice depends on service environment, design life, and project specifications.
Q: What is the typical production lead time for custom structural steel fabrication?
A: Lead time depends on component complexity, quantity, and surface treatment requirements. After shop drawing approval and deposit receipt, typical production cycles range from standard lead times for simple cuts to extended schedules for complex welded assemblies with multiple surface treatment steps.
Get Your Custom Structural Steel Fabrication Quote Started
Send your drawings and specifications to receive detailed pricing with material certification and quality documentation included. Contact us at admin@xjystructure.com or WhatsApp +86 188 5315 7756 to discuss your project requirements.
