Description
Custom Structural Steel Fabrication Service for S235JR and S355JR Steel Structures
Full-Spectrum Fabrication Under One Roof — From raw steel plate to finished welded assemblies, XJY Structure controls the entire chain through our own steel mill and fabrication workshop, delivering structural steel fabrication with complete material traceability and certified welding documentation.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Structural Steel Fabrication |
| Product Type | Custom Fabricated Steel Frames, Columns, Beams, Trusses, Platforms |
| Steel Grade | S235JR / S275JR / S355JR / Q235B / Q345B (per project drawing) |
| Standard | EN 1090 / AWS D1.1 / AISC |
| Section Shape | H-beam, I-beam, Box column, Channel, Angle, Custom profiles |
| Size Range | Up to 30m length, plate thickness 6mm–100mm |

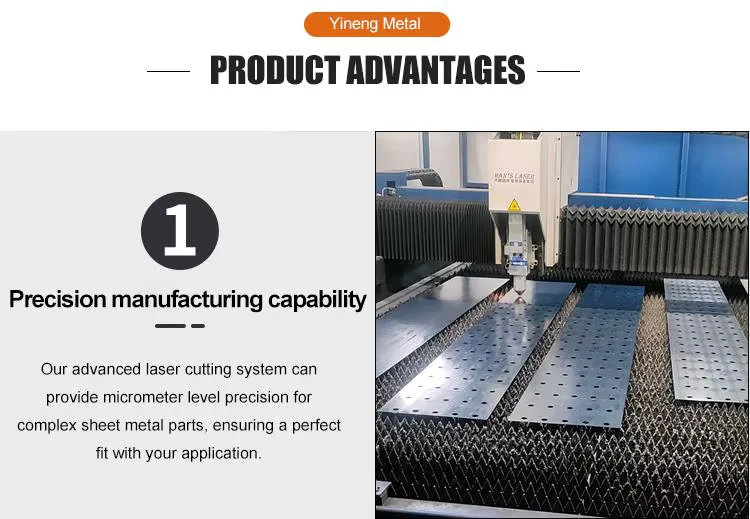

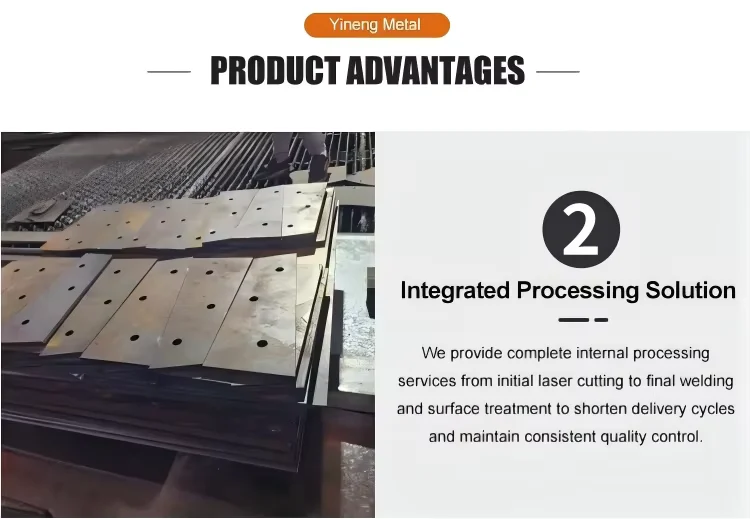

| Technique | CNC cutting, Plasma/Flame cutting, Drilling, Bending, MIG/MAG/SAW welding, Shot blasting, Painting |
| Surface Treatment | Shot blasting to Sa 2.5, Primer + Top coat per project specification |
| Tolerance | Per EN 1090 EXC2/EXC3 or AISC Code of Standard Practice |
| Application | Industrial buildings, Warehouses, Commercial construction, Infrastructure platforms |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Factory buildings, Processing plants, Equipment support frames |
| Logistics & Warehousing | Portal frame warehouses, Mezzanine floors, Racking support structures |
| Commercial Building | Multi-story steel frames, Column-beam assemblies, Stairway systems |
| Infrastructure | Pipe rack supports, Cable tray structures, Platform walkways |
| Energy Sector | Solar mounting structures, Substation frames, Wind turbine access platforms |
Why Weld Procedure Qualification Matters More Than Mill Certificates for Fabricated Steel
A valid WPS without matching production welds is the most expensive piece of paper on any construction site.
When overseas fabricators ship structural steel fabrication to international projects, third-party inspectors routinely find discrepancies between documented welding procedures and actual weld quality on delivered components. Weld sizes below WPS requirements, incomplete fusion at root passes, or mismatched filler materials trigger full NDT re-inspection and costly field rework — often weeks after the components have already arrived on site. [NEED_CITE: EN 1090 execution class requirements for welding quality]
Material traceability compounds the problem. When fabricators source steel from third-party traders rather than producing it in-house, heat number chains break down. Mill test certificates become disconnected from actual plate batches, leaving engineers unable to verify whether delivered columns match the structural calculations approved during design.
How Custom Structural Steel Fabrication Matches Complex Engineering Requirements
Every structural steel fabrication project begins with shop drawing coordination between our engineering team and the client’s design consultants. We review connection details, weld access requirements, and bolt hole tolerances before any cutting starts — eliminating the RFI delays that typically plague overseas fabrication orders. Our CNC equipment handles complex multi-axis cuts for moment connections and bracing nodes, while qualified welders execute procedures per approved WPS/PQR documentation. For projects in corrosive environments, we apply surface treatment systems specified to match atmospheric conditions, from basic primer coats for indoor warehouse frames to multi-layer epoxy systems for coastal infrastructure.
Engineering Compliance and Certification Pathways
Structural steel fabrication for international projects must satisfy multiple compliance layers simultaneously. EN 1090 certification governs execution classes for European market access, with EXC2 covering standard buildings and EXC3 required for bridges and dynamic loading applications. [NEED_CITE: EN 1090 cold-formed hollow section requirements] AWS D1.1 applies to North American projects, demanding specific preheat temperatures and interpass controls based on carbon equivalent calculations. Our fabrication workshop maintains qualified procedures across both standards, with welder qualifications renewed per six-month production continuity requirements. Material certification follows the same rigor — every plate and section carries traceable heat numbers linked to mill test certificates showing chemical composition and mechanical properties verified in our in-house laboratory.
Steel Grade Selection and Fabrication Process Fundamentals
The choice between S235JR, S275JR, and S355JR directly affects both structural efficiency and fabrication approach. Higher strength grades like S355JR allow reduced section sizes for the same load capacity, but demand stricter preheat controls during welding to prevent hydrogen cracking in thick plate connections. Our welding procedures specify minimum preheat temperatures based on plate thickness and carbon equivalent, verified through procedure qualification records tested under independent laboratory supervision.
Surface preparation through shot blasting to Sa 2.5 standard removes mill scale and provides anchor profile for coating adhesion — critical for structural steel fabrication destined for humid or marine environments. The blasting process also reveals surface defects invisible under mill scale, allowing repair before coating application rather than costly field touch-up after delivery.
Tolerance control during fabrication directly affects site assembly efficiency. CNC drilling ensures bolt hole patterns match connection drawings within ±0.5mm, while automated cutting maintains length tolerances that prevent cumulative stack-up errors in multi-story frames. This precision becomes essential when components must bolt together at height with minimal field adjustment.
Hidden Costs of Incorrect Material Sourcing in Structural Steel Fabrication
Material substitution without engineering approval creates liability exposure that no amount of cost savings can offset.
When fabricators deliver S275 components specified as S355JR, the structural engineer faces an impossible choice: reject the shipment and delay the project, or recalculate the entire structure and issue revised approvals — assuming the lower grade actually meets the design loads. Third-party inspection failures at destination ports trigger customs holds, demurrage charges, and reshipment costs that dwarf any initial price difference. [NEED_CITE: steel grade equivalence between EN and ASTM standards]
Documentation gaps create similar problems. Missing weld maps or incomplete NDT reports prevent handover to building authorities, leaving completed structures without occupancy permits. The cost of retrospective testing and documentation reconstruction typically exceeds the original fabrication price.
Why Project Teams Choose XJY Structure for Structural Steel Fabrication
Our vertically integrated model eliminates the traditional gap between material supplier and fabricator. XJY Structure operates as the dedicated fabrication division of Shandong Xin Jiyuan Special Steel Tube Co., giving us direct access to steel production across 3 rolling lines with over 2,800 specifications in raw material inventory. This integration means every plate and section used in your structural steel fabrication carries complete traceability from steelmaking through final assembly — no third-party sourcing, no broken heat number chains.
Our fabrication capacity handles medium-to-large projects requiring coordinated production sequencing. Shop drawing review, material optimization, and fabrication planning happen in-house, with engineering support available for connection design queries and erection sequence coordination. Certified welding procedures and qualified welders per AWS and EN standards ensure compliance across international project specifications.
Complete quality documentation packages accompany every shipment — weld maps, dimensional inspection reports, coating thickness measurements, and material traceability records organized for project handover requirements. Third-party inspection through SGS, BV, or TÜV is available at any production stage for clients requiring independent verification.
Documentation & Compliance
- Mill test certificate documenting S235JR/S355JR chemical composition and mechanical properties per EN 10219, with heat number traceability to original steel production
- CE certificate per EN 1090-1 for structural steel components, covering execution class EXC2 or EXC3 as required by project specification
- ISO 9001 quality management system certificate covering design review, fabrication, inspection, and coating processes
- Third-party inspection reports from SGS/BV/TÜV covering dimensional checks, NDT results, and coating thickness measurements
- Complete weld documentation package including WPS, PQR, welder qualification records, and weld maps with NDT coverage summary
- Export documentation including packing list, bill of lading, certificate of origin, and material traceability summary for customs clearance
Packaging, Loading & Delivery
- Fabricated components bundled with steel strapping and edge protectors to prevent coating damage during handling and ocean transit
- Shot blasted and painted surfaces wrapped in protective film at connection zones to preserve surface preparation for site welding
- Container loading optimized for oversized components up to 12m length, with 40ft open-top or flat-rack options for portal frame rafters
- Custom crating for complex connection assemblies and bolted node packages, with component identification tags matching erection drawings
- Heat number markings maintained on all load-bearing members through painting and coating processes for site traceability verification
- FOB Qingdao or CIF destination port options available, with door-to-door logistics coordination for project sites requiring inland transport
Getting Your Structural Steel Fabrication Quote Started
Submit your project drawings in PDF or DWG format along with steel grade specifications, required standards, and target quantity. Our engineering team responds within 24 hours with preliminary assessment, shop drawing timeline, and detailed quotation covering material, fabrication, coating, and shipping costs.
Request Your Structural Steel Fabrication Assessment
Share your project specifications and receive a detailed quotation with material traceability documentation within 24 hours. Contact our engineering team at admin@xjystructure.com or reach us via WhatsApp at +86 188 5315 7756.
Frequently Asked Questions
Q: What international standards do you comply with for structural steel fabrication?
A: Our fabrication workshop maintains certification for EN 1090 (European), AWS D1.1 (American), and AISC standards. We produce structural steel fabrication with execution class EXC2 for standard buildings and EXC3 for bridges and dynamic loading applications, with qualified welding procedures covering both metric and imperial specifications.
Q: How do you ensure material traceability throughout the fabrication process?
A: As a vertically integrated producer with our own steel mill, we maintain complete heat number traceability from raw steel production through final assembly. Every component carries permanent markings linked to mill test certificates showing chemical composition and mechanical properties verified in our in-house laboratory.
Q: Can you fabricate custom components from our engineering drawings?
A: Yes, we provide complete custom structural steel fabrication services based on client-supplied drawings. Our engineering team reviews shop drawings for manufacturability, suggests material optimizations, and coordinates connection details before production begins to prevent field assembly issues.
Q: What quality documentation do you provide with delivered components?
A: Every shipment includes mill test certificates, weld maps with NDT coverage summary, dimensional inspection reports, coating thickness measurements, and complete export documentation. We organize all records per project handover requirements for building authority approval and owner’s facility management records.
