Description
Integrated Mill-to-Fabrication Supply — Own steel production facility with 3 lines eliminates material traceability gaps for custom structural steel fabrication.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Custom Structural Steel Fabrication |
| Product Type | Fabricated Steel Structure |
| Steel Grade | SS400, S235JR, A36, Q235B, Q345B, Q460, 304, 316 |
| Standard | ISO, GB, JIS, ASTM, ANSI, AISI, DIN, BS |
| Section Shape | Custom structural shapes (beams, columns, trusses, platforms, connections) |
| Weight Range | 10 kg – 20,000 kg per piece |
| Technique | CNC cutting, plasma/flame cutting, drilling, bending, welding (TIG/MIG/Spot/CO2/arc), shot blasting, machining, painting |
| Surface Treatment | Powder coating, painted, galvanized, or natural |
| Welding Methods | TIG, MIG, Spot, CO2, Arc welding |
| Heat Treatment | Normalization, annealing, quenching and tempering |
| Non-Destructive Testing | PT, MT, UT, RT |
| Software Compatibility | SolidWorks, Pro/Engineer, AutoCAD (DXF/DWG), PDF, TIF, IGS, STP |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Factory buildings, warehouse frames, material handling platforms |
| Power Generation | Power plant support structures, large generator bases, boiler frames |
| Infrastructure | Bridge components, transmission towers, conveyor support systems |
| Mining & Metallurgy | Mining machinery frames, metallurgical equipment supports, chemical plant structures |
| Commercial Building | Multi-story steel frames, mezzanine floors, connection assemblies |
Material Traceability Decides Customs Clearance for Custom Structural Steel Fabrication
When overseas buyers outsource fabrication without integrated mill control, material certification chains break at the first inspection point.
Project engineers reviewing shop drawings expect heat numbers on every weld map to match mill test certificates. When fabricators source steel from third-party traders, the traceability gap surfaces during SGS or BV audits—triggering re-inspection fees and shipment holds at destination ports. [NEED_CITE: EN 1090 structural component certification requirements]
For custom structural steel fabrication serving EU and Middle East markets, the absence of documented material origin means customs authorities reject CE marking claims. One warehouse project in West Africa faced three weeks of delay because connection plates lacked traceable mill certificates, forcing air freight of replacement components at premium cost.
Matching Fabrication Processes to Structural Load Requirements
Custom structural steel fabrication for power plant frames requires welding procedures qualified to AWS D1.1 or EN ISO 15614, with welders certified under the same standard. Our CNC cutting maintains ±0.5mm tolerance on beam flanges, ensuring bolt-hole alignment when components arrive at site. For Q345B columns supporting dynamic loads from heavy generators, we apply post-weld heat treatment to relieve residual stress—preventing dimensional drift during service.
Engineering Compliance Across International Standards
Structural steel fabrication for European projects must comply with EN 1090 execution class requirements, including factory production control certification and CE marking for load-bearing components. [NEED_CITE: EN 1090 execution class requirements for steel structures] North American projects follow AISC 207 standards for heavy fabricated members, requiring certified welding procedures and NDT reports. Our engineering team reviews shop drawings using Tekla and SolidWorks, optimizing material usage while maintaining compliance with the specified standard. For projects in Southeast Asia and Africa, we provide dual certification packages covering both origin country standards and destination requirements.
Steel Grade Selection and Welding Process Fundamentals
Q235B and S235JR represent equivalent yield strength grades across Chinese and European systems, suitable for general construction frames where moderate load capacity suffices. Q345B and S355JR offer higher yield strength for columns and beams supporting heavy industrial equipment or multi-story buildings. When fabricating stainless steel components (304, 316) for chemical plants, TIG welding prevents chromium carbide precipitation at weld zones, maintaining corrosion resistance. For thick plate connections in mining machinery frames, submerged arc welding delivers deep penetration while controlling hydrogen-induced cracking through preheat and interpass temperature control. Shot blasting to Sa 2.5 grade before painting ensures coating adhesion in humid coastal environments.
Hidden Costs of Unverified Fabrication Sources
Purchasing fabricated steel components without certified welding procedures risks structural failure under dynamic loads—especially for crane runway beams or vibrating equipment supports. [NEED_CITE: AWS D1.1 welding qualification requirements] Components fabricated from untraceable steel may fail ultrasonic testing at site, requiring costly replacement and project delays. Negative tolerance abuse on plate thickness reduces load capacity below design specifications, creating safety hazards that surface only during structural audits. Missing NDT documentation forces third-party inspectors to reject entire batches, regardless of actual weld quality.
Why Source Custom Structural Steel Fabrication from an Integrated Producer
Our own steel mill produces Q235B, Q345B, and S235JR plates and sections, eliminating the markup and certification gaps that occur when fabricators buy from traders. Every heat number on our mill test certificates traces directly to our production records—no missing links in the documentation chain. The fabrication workshop operates CNC plasma cutters, automated SAW stations, and shot blasting lines under one roof, reducing handling damage and coordinate errors between suppliers. We maintain 2,800+ steel specifications in inventory, enabling same-week material allocation for urgent project changes. Certified welders hold AWS and EN qualifications, with welding procedure specifications approved by third-party surveyors. Professional loading teams plan container stowage for oversized beams and trusses, maximizing weight utilization while protecting surface coatings during ocean transit.
Documentation & Compliance
- Mill test certificates documenting Q345B chemical composition and mechanical properties per GB/T 1591, with heat number traceability from slab to finished component
- EN 1090 CE certificate covering execution class EXC2 and EXC3 for load-bearing structural components exported to European markets
- ISO 9001 quality management system certificate covering design review, material procurement, fabrication, and inspection processes
- SGS or BV third-party inspection reports available for pre-shipment verification of dimensional accuracy and welding quality
- Complete weld documentation packages including WPS, PQR, weld maps, and NDT reports (PT/MT/UT/RT) for critical connections
- Export documentation including packing lists, bills of lading, and certificates of origin formatted for destination country customs requirements
Packaging, Loading & Delivery

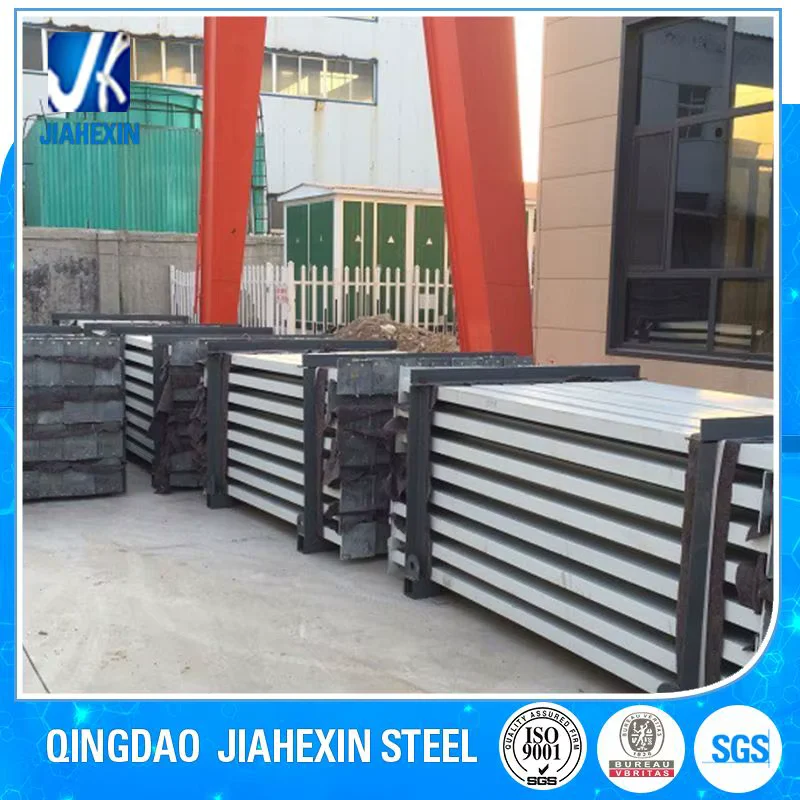

- Heavy fabricated components (beams, columns, trusses) bundled with steel straps and edge protectors to prevent coating damage during handling and ocean transit
- Galvanized steel structures wrapped with waterproof paper and secured in containers with timber chocks to prevent movement and zinc coating abrasion
- Custom crating for oversized connection assemblies and precision-machined components, with clear marking of heat numbers and assembly positions
- Container loading plans optimized for 20ft and 40ft open-top containers, maximizing weight utilization while maintaining access for site unloading
- Surface-treated components (painted or powder-coated) separated by protective film to prevent adhesion and scratching during transport
- FOB, CIF, and DDP shipping terms available, with door-to-door logistics coordination for project sites in Middle East, Southeast Asia, and Africa
Start Your Custom Structural Steel Fabrication Inquiry
Submit project drawings (PDF/DWG format) with steel grade specifications, required standards, and target quantity to receive a detailed quotation within 24 hours. Our engineering team will review shop drawings, confirm material availability from our integrated mill, and provide a production schedule including fabrication, inspection, and shipping milestones. For projects requiring EN 1090, AWS, or AISC compliance, specify the execution class or standard in your inquiry to ensure accurate documentation packages.
Get Your Custom Structural Steel Fabrication Quote
Share your project specifications and steel grade requirements to receive pricing with mill test certificates and compliance documentation.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: How do you ensure material traceability from raw steel to fabricated components?
A: Our integrated production model means we manufacture the raw steel plates and sections in our own mill, then fabricate them in our workshop. Each component carries a heat number that traces back to our mill production records, with mill test certificates documenting chemical composition and mechanical properties. This eliminates the certification gaps that occur when fabricators source steel from third-party traders.
Q: What international standards can you comply with for structural steel fabrication?
A: We fabricate structural steel components according to EN 1090 (European), AWS D1.1 (American Welding Society), and AISC (American Institute of Steel Construction) standards. Our welding procedures are qualified to these standards, and we provide complete documentation packages including WPS, PQR, weld maps, and NDT reports. We hold CE certification for EN 1090 execution classes EXC2 and EXC3.
Q: What is the process from drawing submission to production?
A: After receiving your inquiry with drawings and specifications, we provide a quotation within 24 hours. Upon order confirmation, our engineering team prepares shop drawings for your review and approval using SolidWorks, AutoCAD, or Tekla. Once shop drawings are approved and the deposit is received, we begin material procurement and fabrication. In-process inspections and NDT testing occur at defined hold points before surface treatment and shipping.
Q: Can you provide third-party inspection before shipment?
A: Yes, we welcome SGS, BV, or other third-party inspection agencies to verify dimensional accuracy, welding quality, surface treatment, and documentation before shipment. We coordinate inspection schedules with your nominated surveyor and provide access to all quality records and NDT reports.
Q: How do you handle shipping for oversized fabricated components?
A: Our logistics team plans container loading for heavy beams, columns, and trusses, using open-top containers for oversized pieces and flat racks for components exceeding standard container dimensions. We prepare professional loading plans maximizing weight utilization while protecting surface coatings. Shipping terms include FOB, CIF, and DDP with door-to-door coordination for project sites.
