Description
Direct Mill Fabrication, No Broker Markup — XJY Structure owns the steel production lines feeding this fabrication shop, so every Q235 and Q345B square and rectangular tube traces back to our heat number before laser cutting begins.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Custom Galvanized Square/Rectangle Steel Pipe Structural Parts |
| Product Type | Square / Rectangular Steel Tube (Structural Parts with Laser Cutting & Welding Services) |
| Steel Grade | Q195, Q215, Q235, Q345B/C/D/E |
| Standard | GB, ASTM, JIS, BS, AISI |
| Section Shape | Square, Rectangular |
| Size Range | Wall Thickness 0.6–40 mm; Length 1–12 m (or custom) |
| Technique | Hot Rolled / Cold Rolled |
| Surface Treatment | Galvanized (also available: Bare, Painted, Oiled) |
| Tolerance | ±1% |
| Ends | Bevel end / Plain end / Screwed and socket |
| Processing Services | Laser Cutting, Welding, Punching, Bending, Decoiling |
| Application | Steel structures / Construction frames / Machinery / Scaffolding / Fluid transport / Industrial platforms |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC & Industrial Projects | Factory building frames, warehouse portal frames, plant pipe racks and conveyor supports |
| General Contractors | Column and beam assemblies for commercial buildings, scaffolding uprights and ledgers |
| Steel Structure Companies | Laser-cut connection plates welded to square tubes for truss chords and bracing members |
| Infrastructure | Sound barrier posts, highway sign gantries, lighting pole base sections |
| Machinery & Platforms | Equipment skid frames, industrial mezzanine structures, crane runway beams |
Where Tolerance Stacks Up Against Structural Frame Assembly
A ±1% tolerance on a 200×200 mm column means the difference between a bolt that slides in and one that needs reaming on site.
When a拉美 warehouse project I worked on received square tubes with wall thickness drifting toward the negative edge of tolerance, the fabricator on the other end had to re-machine every connection plate. The steel looked right on the mill cert, but the cumulative dimensional drift turned a two-week erection into a six-week headache. Outsourced fabrication without integrated material control means you never know which heat the tube came from, whether the galvanizing bath was refreshed, or if the laser cut was calibrated that morning. A custom galvanized square rectangular steel tube laser cutting welding services supplier that owns the upstream mill eliminates that uncertainty — the heat number on the certificate matches the steel you receive, and the dimensional check happens before the tube leaves the shop. [NEED_CITE: EN 10219 cold-formed hollow section requirements]
Matching Q235 and Q345 Tubes to Load-Bearing and Corrosion Environments
Galvanized Q345B rectangular tubes serve as primary columns in warehouse frames where both yield strength and atmospheric corrosion resistance matter. The hot-dip zinc layer handles coastal or industrial atmospheres, while the Q345 grade carries higher point loads than Q235 without upsizing the section. For scaffolding and temporary works, Q235 square tubes offer adequate strength at lower cost, and the galvanized coating survives repeated dismantling and reassembly cycles. Our laser cutting cells position holes and profiles to ±1 mm on assemblies up to 12 m long, so connection plates and bolt groups land exactly where the erection drawing calls for — no field rework.
Engineering Code Alignment and Surface Protection Selection
Structural hollow sections used in EU-bound projects must conform to EN 10219 for cold-formed welded products, which governs dimensional tolerances, sectional properties, and technical delivery conditions. [NEED_CITE: steel grade equivalence between EN and ASTM standards] North American specifiers reference ASTM A500 or A53, while Middle East and African tenders often accept GB equivalents with third-party inspection. The galvanizing thickness you specify should match the corrosion category of the installation environment — C3 industrial atmospheres need different zinc mass than C2 indoor conditions. We prepare shop drawings that flag these choices before production starts, so the coating report and mill test certificate arrive as one documentation package.
Steel Grade Hierarchy and Fabrication Process Fundamentals
The Q-series grades (Q195 through Q345) follow the Chinese standard system where the number indicates minimum yield strength in MPa. Q235 remains the workhorse for general construction frames; Q345B/C/D/E steps up for heavier industrial loads, with the suffix letters indicating impact test temperature ranges. Hot-rolled tubes suit thicker walls above 6 mm where structural rigidity matters; cold-rolled tubes deliver tighter surface finish and dimensional consistency for visible architectural applications. Hot-dip galvanizing immerses the fabricated assembly in molten zinc, metallurgically bonding the coating to the steel substrate — this is fundamentally different from electroplating and produces the coating adhesion needed for structural handling and welding after fabrication. Wall thickness tolerance directly affects theoretical weight calculations used in bidding; a tube at the negative edge of tolerance weighs less per meter than one at nominal, which changes tonnage-based pricing if you are not comparing apples to apples.
The Hidden Cost of Unverified Material and Coating
Accepting a lower galvanizing thickness than specified does not show up until the first corrosion stain appears — or until the inspector’s coating gauge reads 45 microns against an 80-micron requirement. At that point the entire batch sits in the port, re-stripping and re-galvanizing adds weeks to the schedule, and the erector’s crane rental keeps billing. Material certificates from an unverified source may list the correct grade on paper but lack heat-level traceability to the actual production batch. Welding procedure qualification records (WPS) and procedure qualification records (PQR) become meaningless if the base metal chemistry does not match what the procedure was tested on. [NEED_CITE: structural steel fabrication quality documentation requirements for international projects]
Why XJY Structure Controls the Full Chain
We operate our own steel production facility with three rolling lines and over 2,800 stock specifications, meaning the Q235 and Q345 tubes in your order originate from our mill — not a third-party trader’s yard. The fabrication division runs CNC laser cutting, MIG/MAG/SAW welding, and shot blasting under one roof, so dimensional accuracy and coating quality stay under a single quality system. Every heat number is traceable from the slab to the finished galvanized tube, and our certified welders hold AWS and EN qualifications validated through regular testing. We supply structural steel to EPC firms and general contractors across the EU, Middle East, Southeast Asia, and Africa, with complete documentation packages prepared per project requirements. Custom galvanized square rectangular steel tube laser cutting welding services supplier capability extends to project-specific shop drawing review, material optimization, and fabrication sequencing.
Documentation & Compliance
- Mill test certificate documenting Q235 and Q345B chemical composition and mechanical properties per GB standards, with heat number traceability to our own steel production
- CE certificate confirming EN 10219 compliance for cold-formed welded structural hollow sections exported to European markets
- ISO 9001 quality management system certificate covering the integrated steel production and fabrication process
- SGS or BV third-party inspection report available for coating thickness, dimensional checks, and weld quality verification
- Material traceability report linking each fabricated component to its heat number, WPS, and PQR records
- Complete customs documentation package including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery

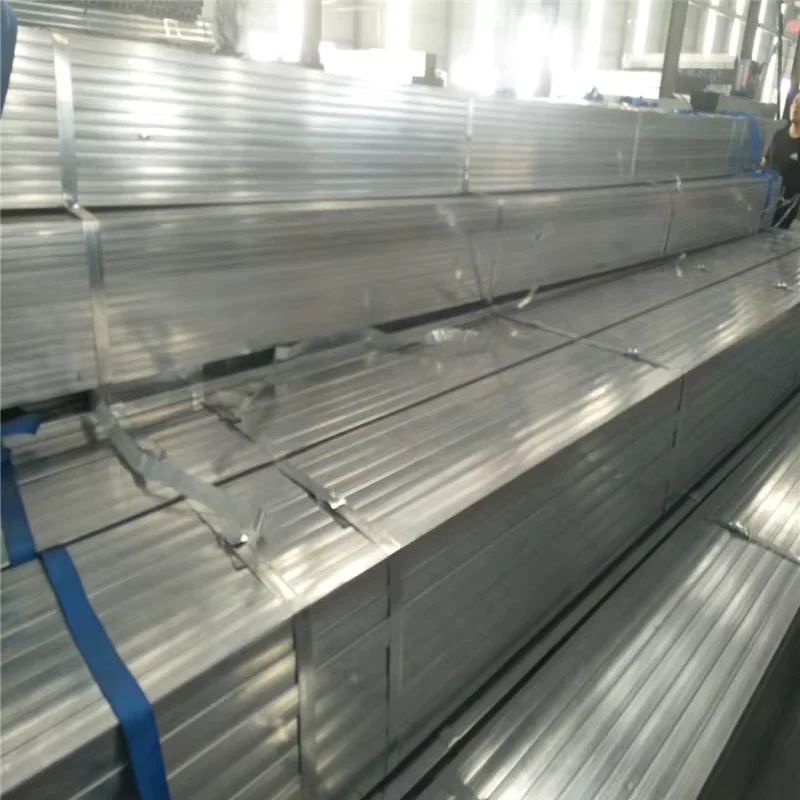

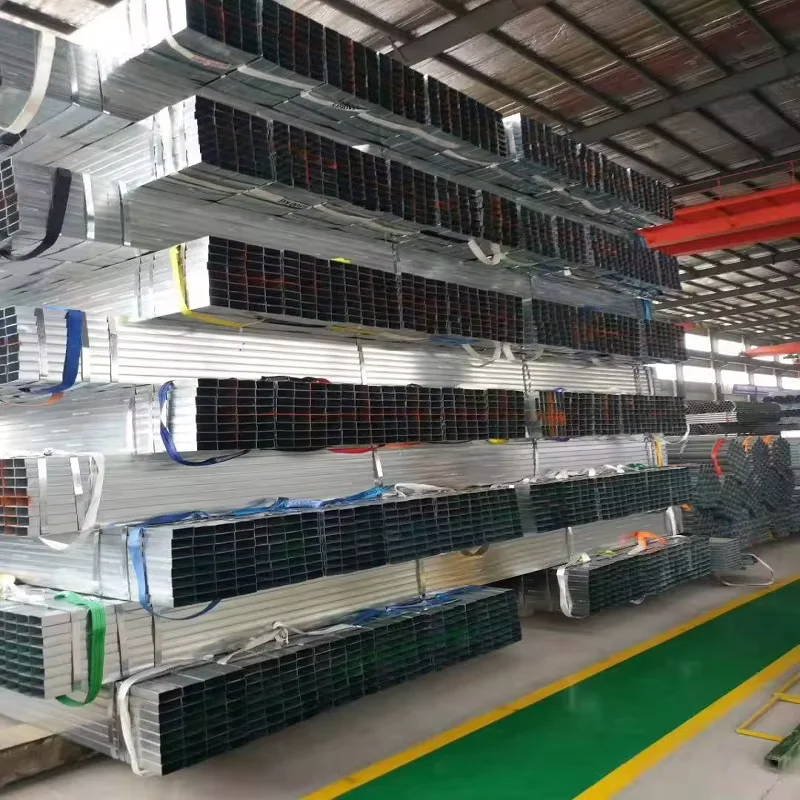

- Galvanized Q235 and Q345 square and rectangular tubes bundled with steel strips and edge protectors to prevent zinc coating damage during ocean transit
- Laser-cut structural parts wrapped individually with waterproof paper and secured in steel frames to avoid movement and surface scratching inside the container
- Custom lengths up to 12 m loaded with optimized stowage plans for 20ft and 40ft open-top containers, maximizing payload per shipment
- Galvanizing thickness verified by coating gauge before packing; each bundle tagged with heat number, steel grade, and dimensional summary
- FOB, CIF, and DDP shipping terms available with door-to-door tracking for project sites in the Middle East, Southeast Asia, Africa, and South America
Start Your Fabrication Inquiry with Drawings and Specifications
Upload your project drawings in PDF or DWG format along with the required steel grades, galvanizing thickness, and target standards — our engineering team responds within 24 hours with a preliminary assessment, shop drawing timeline, and detailed quotation covering material, fabrication, coating, and logistics. Confirm your certification requirements and third-party inspection preferences early so the documentation package aligns with your destination country’s customs and engineering approval process.
Frequently Asked Questions
Q: How does XJY Structure guarantee material traceability from the steel mill to the finished galvanized tube?
A: Every tube originates from our own steel production facility, and each heat number is recorded from slab production through rolling, fabrication, and galvanizing. The mill test certificate you receive links directly to the physical material in your shipment.
Q: Can you fabricate structural parts from my engineering drawings using laser cutting and welding?
A: Yes. Our fabrication division processes custom galvanized square rectangular steel tube laser cutting welding services orders based on client-supplied drawings. We prepare shop drawings for your approval before production begins, and all welding follows qualified WPS procedures.
Q: What surface treatment options are available besides hot-dip galvanizing?
A: We also supply bare (black), painted, and oiled finishes depending on your project environment and specification requirements. Hot-dip galvanizing is recommended for outdoor or corrosive atmospheres where long-term corrosion protection is needed.
Q: What quality documentation is included with delivery?
A: Each shipment includes mill test certificates with chemical composition and mechanical properties, dimensional inspection reports, coating thickness reports, welding procedure records (WPS/PQR), and export customs documents. Third-party inspection reports from SGS or BV are available upon request.
Q: How are oversized fabricated structural parts packed for export?
A: Laser-cut assemblies and long-length tubes are secured in custom steel frames with waterproof wrapping and edge protection. We prepare container loading plans for open-top and standard containers to maximize payload and protect the galvanized coating during transit.
[Request a Quotation with Drawings and Material Specifications]
Submit your project drawings, steel grade requirements, and target delivery port to receive a detailed quotation with shop drawing timeline and mill test certificate confirmation.
