Description

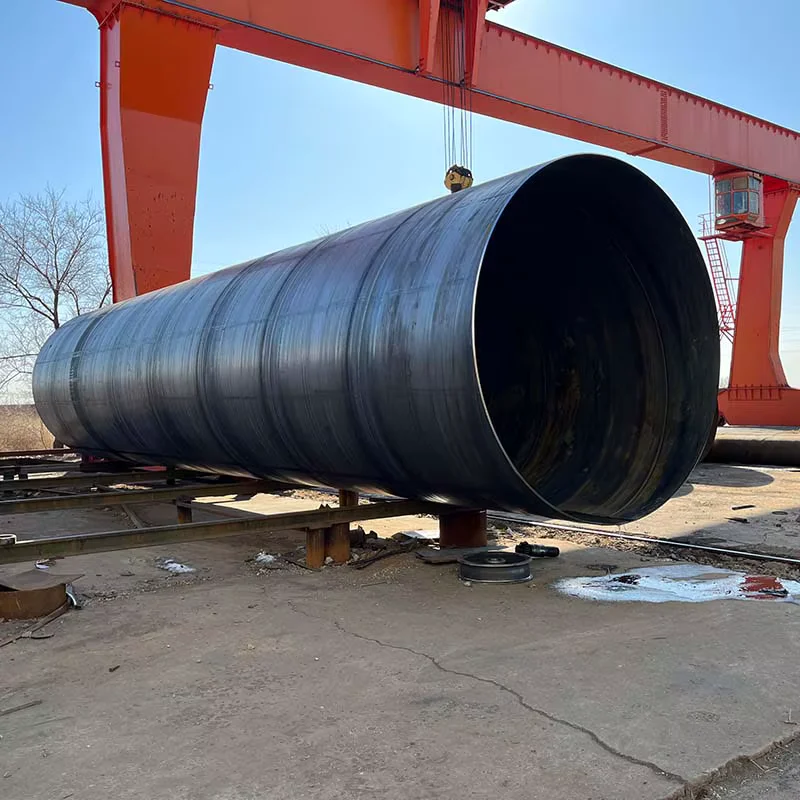

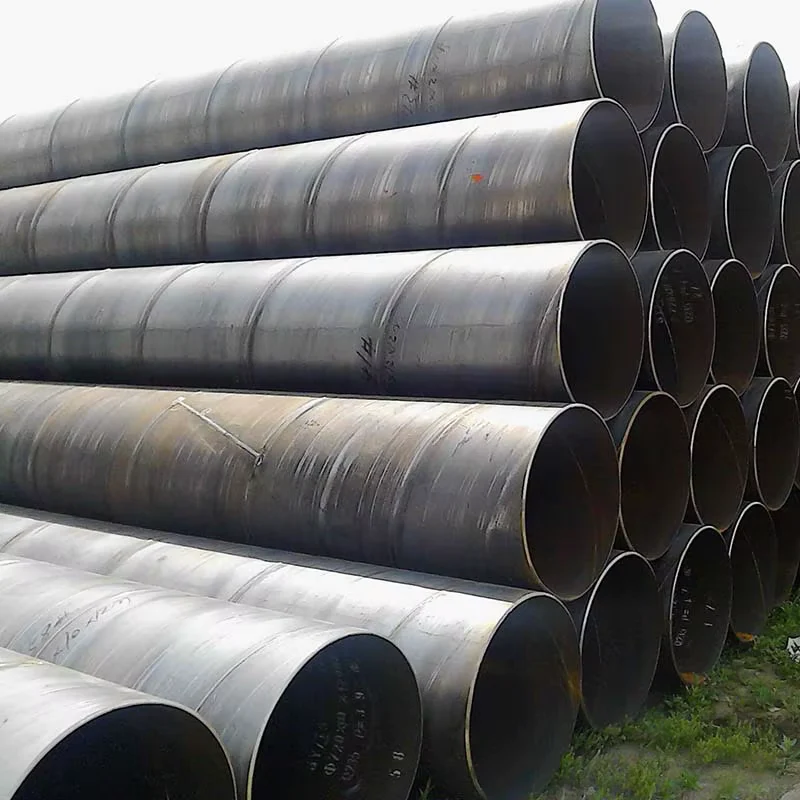

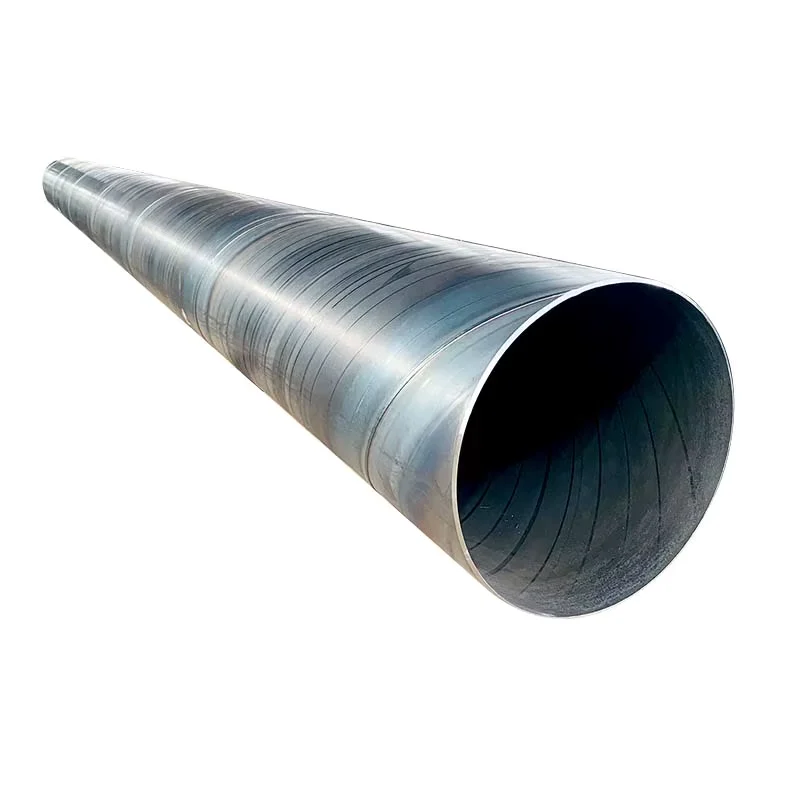

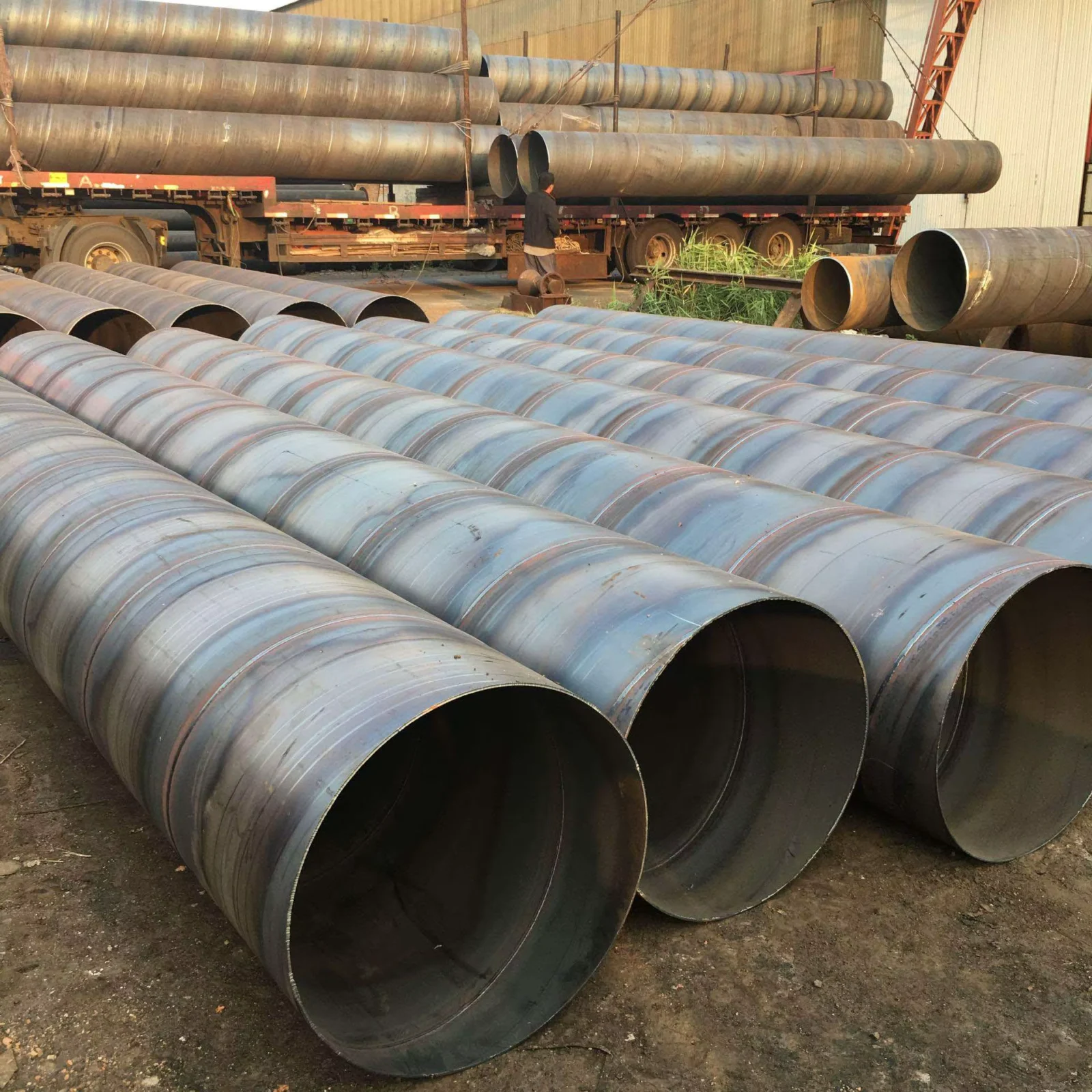

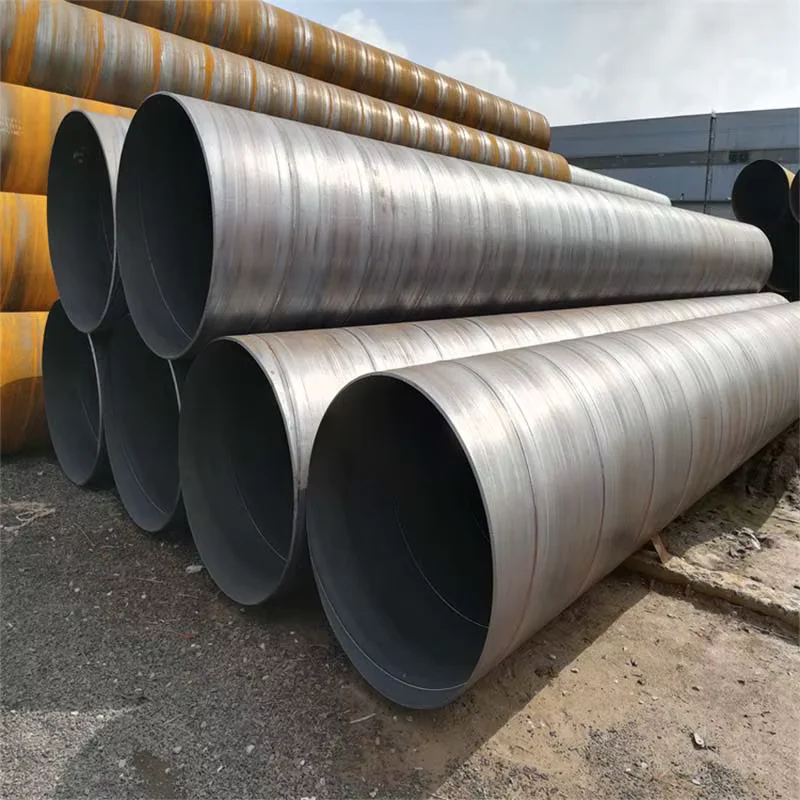

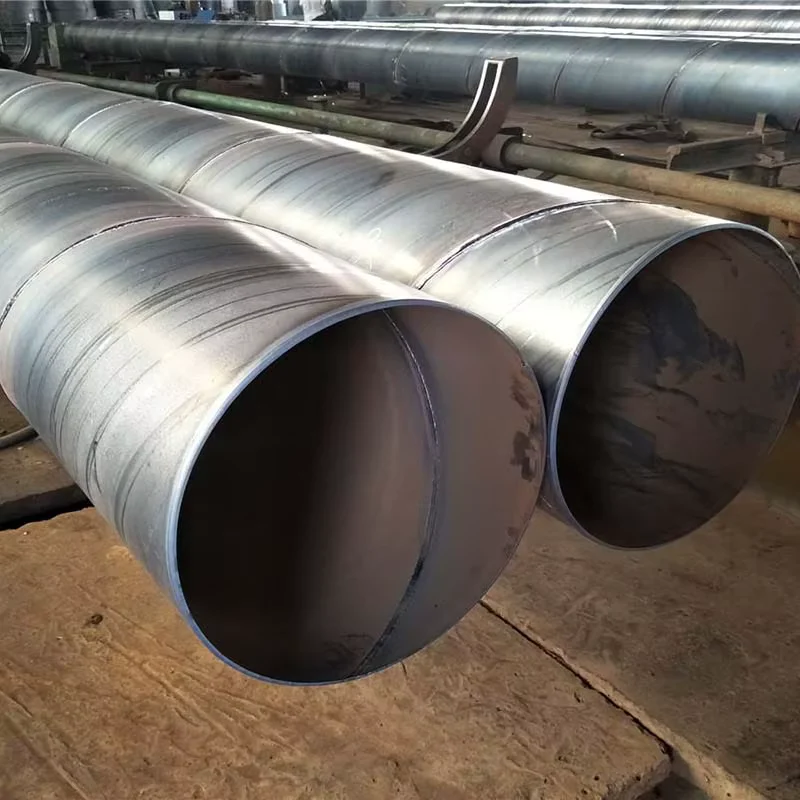

Factory Direct SSAW Pipe Mill — Vertically integrated from raw steel plate to finished spiral welded pipe under one quality system, eliminating third-party material sourcing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q355 SSAW Steel Pipe |
| Product Type | Spiral Submerged Arc Welded Steel Pipe (SSAW) |
| Steel Grade | Q195, Q235, Q355, X42, X46, L242, L450 |
| Standard | ASTM, GB, EN, DIN, JIS |
| Section Shape | Round |
| Size Range | OD 219–3000 mm |
| Wall Thickness | 4–26 mm |
| Length | 6–12 m |
| Technique | SSAW (Spiral Submerged Arc Welding) |
| Surface Treatment | Black Carbon |
| Tolerance | ±5% |
| Ends | Plain / Beveled (customizable) |
| Application | Oil & gas transmission / Urban construction / Water transfer & sewage / Field irrigation / Structural pipelines |
| MOQ | 10 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Long-distance transmission pipelines, gathering line networks, cross-country crude oil transport |
| Municipal Infrastructure | Urban water transfer mains, sewage outfall lines, stormwater drainage systems |
| Industrial Construction | Plant piping racks, structural support columns, conveyor frame foundations |
| Agricultural Irrigation | Large-diameter field irrigation channels, raw water intake pipelines |
What Negative Wall Tolerance Really Costs on a Pipeline Project
A 0.5 mm wall thickness shortfall on a 1420 mm OD pipe can trigger full-batch rejection at third-party inspection.
When sourcing large diameter SSAW steel pipe from fragmented suppliers, buyers often discover wall thickness inconsistencies only after SGS or BV inspectors arrive at the port. Negative tolerance beyond allowable limits means the pipe fails dimensional verification, the entire batch gets held for re-inspection, and project schedules slip by weeks. Material traceability gaps compound the problem — when fabricators source plate from multiple mills without heat-number tracking, certification chains break and customs documentation becomes unreliable. [NEED_CITE: dimensional tolerance requirements for large diameter welded steel pipe per ASTM and EN standards]
Matching Large Diameter SSAW Steel Pipe to Pipeline Engineering Demands
The 219–3000 mm outer diameter range covers virtually every municipal and industrial pipeline specification, from 219 mm irrigation laterals to 3000 mm water transfer trunk lines. Wall thickness from 4 mm to 26 mm accommodates both low-pressure gravity flow systems and high-pressure transmission networks. The spiral submerged arc welding process produces a continuous helical seam that distributes stress more evenly than longitudinal welds, making large diameter SSAW steel pipe particularly suitable for buried pipeline applications where ground loading and hydrostatic pressure demand consistent seam integrity.
Engineering Compliance and Certification Requirements
Large diameter SSAW steel pipe used in structural and pressure applications must conform to recognized international standards — ASTM for North American projects, EN standards for European markets, and GB specifications for domestic Chinese projects. The spiral welding process requires certified Welding Procedure Specifications (WPS) and qualified welders per AWS or EN frameworks to ensure seam quality passes ultrasonic and radiographic testing. For projects in regulated markets, CE marking and third-party inspection reports become mandatory for customs clearance, and material traceability from steel plate heat number through finished pipe must be documented in Mill Test Certificates conforming to EN 10204 3.1 or 3.2 requirements. [NEED_CITE: welding procedure qualification requirements for submerged arc welded pipe per AWS D1.1]
Steel Grade Selection and Spiral Welding Process Fundamentals
The Q-series grades (Q195, Q235, Q355) follow the Chinese GB standard system where the number indicates minimum yield strength in MPa — Q235 delivers approximately 235 MPa yield for general structural and low-pressure pipeline use, while Q355 provides higher strength for demanding structural applications. API grades X42 and X46 serve oil and gas transmission pipelines requiring specific pressure ratings. The SSAW process forms steel plate or coil into a螺旋 configuration and welds both internal and external seams using submerged arc welding, which produces deep penetration and high-quality weld metal suitable for thick-wall pipes. This manufacturing method allows production of large diameters up to 3000 mm from relatively narrow plate, offering cost advantages over longitudinal seam welding for big-bore applications. Surface treatment options extend beyond black carbon to include 3PE anti-corrosion coating, epoxy lining, and external painting for aggressive soil or marine environments.
Hidden Costs of Procuring Non-Compliant Large Diameter Pipe
Specifying the correct steel grade and verifying dimensional compliance before shipment prevents expensive field failures. Pipes with wall thickness below tolerance limits fail pressure testing and require replacement — mobilizing crews to excavate and replace buried pipe costs multiples of the original material value. Missing or incomplete Mill Test Certificates delay customs clearance and may trigger port demurrage charges. Unqualified welding procedures produce seams vulnerable to crack propagation under cyclic loading, creating safety hazards in pressure transmission applications. [NEED_CITE: consequences of dimensional non-compliance in pressure pipeline construction]
Why Source Large Diameter SSAW Steel Pipe From Our Mill
Our facility operates as a vertically integrated producer — we manufacture steel plate on our own rolling lines and fabricate finished SSAW pipe in the same complex, eliminating the material sourcing gap that creates traceability problems for buyers working with trading companies. Every heat of steel carries a unique identification number tracked from plate production through pipe welding to final inspection, ensuring complete chain-of-custody documentation. Our workshop holds certified welding procedures for SSAW pipe fabrication, and our quality control team performs in-process ultrasonic testing on every weld seam before surface treatment. We maintain inventory across the full 219–3000 mm diameter range and 4–26 mm thickness spectrum, allowing consolidated shipments that reduce per-ton freight costs. Professional loading teams plan container and break-bulk stowage to maximize payload while protecting pipe ends and coatings during ocean transit.
Documentation & Compliance
- Mill Test Certificate documenting Q235/Q355 chemical composition and mechanical properties per GB/T 9711, with heat number traceability from steel plate to finished pipe
- Third-party inspection report from SGS, BV, or TUV verifying dimensional accuracy, weld seam quality, and coating thickness before shipment
- Welding Procedure Specification (WPS) and Procedure Qualification Record (PQR) for submerged arc welding per AWS D1.1 or EN ISO 15614
- Non-destructive testing reports covering ultrasonic examination of spiral weld seams and radiographic testing for critical applications
- Certificate of Conformity and CE marking documentation for projects requiring EN standard compliance and European market access
- Complete customs documentation package including packing list, bill of lading, certificate of origin, and material test summaries
Packaging, Loading & Delivery
- Black carbon surface SSAW pipes bundled with steel strip ties and separated by timber dunnage to prevent coating damage and facilitate handling at destination port
- Pipe ends protected with plastic caps to preserve beveled edge geometry and prevent moisture ingress during ocean transit
- Break-bulk and container loading plans optimized for 6–12 m standard lengths, with nesting arrangements for large diameter pipes to maximize vessel payload
- Heat number and steel grade stenciled on each pipe at 1-meter intervals for field identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional export documentation and real-time shipment tracking until site delivery
- Custom length cutting service available for project-specific requirements within the 6–12 m range, reducing field cutting waste
Requesting Quotation and Technical Documentation
Submit project specifications including outer diameter, wall thickness, steel grade, quantity, and destination port to receive a detailed quotation covering material, fabrication, coating, and logistics costs. Our engineering team reviews drawings and specifications within 24 hours, providing preliminary technical assessment and shop drawing coordination support. Confirm required certifications, third-party inspection preferences, and delivery timeline before contract execution to ensure complete documentation alignment with project requirements.
Frequently Asked Questions
Q: What is the difference between SSAW and LSAW pipe for large diameter applications?
A: SSAW pipe uses spiral submerged arc welding to form a helical seam, allowing production of large diameters from narrower plate at lower cost. LSAW pipe uses longitudinal seam welding and is typically preferred for very thick-wall high-pressure applications. For municipal water transfer and general structural use, SSAW pipe offers cost advantages while meeting the same dimensional and quality standards.
Q: Can you provide third-party inspection before shipment?
A: Yes, we coordinate third-party inspection through SGS, BV, TUV, or other internationally recognized inspection agencies. Inspection covers dimensional verification, weld seam quality testing, coating thickness measurement, and documentation review. The inspection report becomes part of the shipping documentation package.
Q: What surface treatment options are available for corrosion protection?
A: Standard delivery is black carbon surface. For aggressive environments, we provide 3PE anti-corrosion coating (three-layer polyethylene), epoxy internal lining, and external painting systems. Coating selection depends on soil conditions, operating temperature, and project specifications.
Q: How do you ensure material traceability from steel plate to finished pipe?
A: Each heat of steel receives a unique identification number tracked through our integrated production system. The Mill Test Certificate documents chemical composition and mechanical properties for each heat, and the heat number is marked on every finished pipe. This chain-of-custody documentation satisfies EN 10204 3.1 and 3.2 certification requirements.
Q: What is the minimum order quantity for large diameter SSAW pipe?
A: The minimum order quantity is 10 tons. For project procurement, we recommend consolidating multiple diameter and thickness requirements into single shipments to optimize freight costs and reduce per-ton logistics expenses.
Get Your Large Diameter SSAW Steel Pipe Quote With Full Material Certification
Send your project specifications — diameter, wall thickness, steel grade, quantity, and destination — to receive a detailed quotation and Mill Test Certificate sample within 24 hours.
