Description

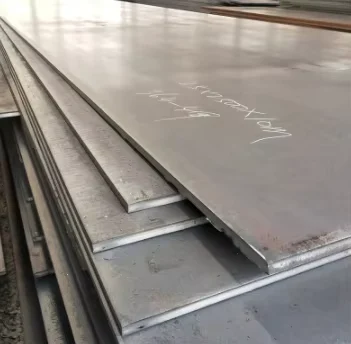

Factory-Direct Q235B Q345B Wear Resistant Steel Plate — Hot rolled plates produced in our own mill with full chemical and dimensional traceability from slab to finished sheet.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B/Q345B Wear Resistant Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | Q235B, Q345B |
| Standard | ASTM, DIN, BS, JIS |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled |
| Tolerance | ±1% |
| Processing | Cutting, Bending, Welding |
| Application | Construction, Petrochemical, Machinery, Shipbuilding |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction | Floor plates, column base plates, embedded connection plates for steel frame structures |
| Petrochemical | Pipe rack support plates, platform grating base plates, vessel saddle plates |
| Machinery | Liner plates for crushers, bucket wear liners, conveyor chute liners |
| Shipbuilding | Deck stiffener plates, hatch coaming plates, bulkhead connection gussets |
Where Material Traceability Gaps Cause Weld Failures on Structural Platforms
A mill certificate that looks clean on paper can still hide carbon equivalent values that crack under field welding.
On a warehouse project in West Africa, Q345B plates arrived with mill certs showing nominal chemistry. Third-party retesting at the job site revealed carbon equivalent readings above the weldable threshold — every butt weld on the platform structure developed micro-cracks within days. The entire batch had to be cut out and replaced, weeks behind schedule. [NEED_CITE: carbon equivalent limits for weldable structural steel per AWS D1.1] That kind of failure does not come from bad welding technique; it comes from sourcing plates through traders who cannot guarantee what the mill actually poured. When you buy a Q235B Q345B wear resistant steel plate supplier that controls its own melting and rolling lines, the heat number on every plate links directly back to the ladle analysis — no gaps, no re-certified material mixed in.
Matching Plate Tolerance to Fabrication Sequences
Structural platforms and machinery frames demand that every base plate and gusset fits the bolt pattern drilled in the shop. A ±1% tolerance on hot rolled Q235B Q345B wear resistant steel plate thickness means the fabricator can set CNC cutting parameters once and trust that plate 1 and plate 50 will behave identically under the torch. When tolerance drifts beyond this range, fit-up gaps force welders to over-fill joints, introducing distortion and residual stress that no amount of post-weld straightening fully removes.
Engineering Compliance Across Multi-Standard Project Environments
Projects spanning Middle East, Southeast Asian, and African markets frequently require the same plate batch to satisfy ASTM, DIN, BS, and JIS referencing conventions simultaneously. Q235B roughly maps to S235JR under EN standards and A36 under ASTM; Q345B aligns with S355JR and A572 Gr 50 in general structural intent, though exact chemistry and impact testing requirements differ. [NEED_CITE: steel grade equivalence tables between Chinese GB standards and EN/ASTM systems] Our engineering team reviews each purchase order against the governing code and flags any gap between the specified grade and the actual test requirements before production begins — preventing customs holds or third-party inspector rejection at the destination port.
Hot Rolling, Grade Selection, and What They Mean for Wear Resistance
Hot rolling produces a microstructure with uniform grain flow through the plate thickness, which matters when the plate faces abrasion from bulk material sliding across its surface. Q235B provides adequate strength for general structural backing plates and non-critical wear surfaces where forming and welding take priority over surface hardness. Q345B offers higher yield strength, making it suitable for load-bearing wear liners in crushers, chutes, and conveyor systems where the plate must resist both impact and surface degradation. Neither grade is a dedicated abrasion-resistant steel like NM360 or Hardox — but for projects where moderate wear meets structural duty, Q345B hot rolled plate delivers a cost-effective balance without requiring a separate AR steel procurement line. [NEED_CITE: hot rolled vs normalised plate microstructure effects on wear performance]
The Hidden Cost of Buying Plates Without Verified Chemistry
Sourcing plates through brokers who consolidate stock from multiple unknown mills creates a chain where heat numbers cannot be verified and certificates can be transferred between batches. The consequences surface late: weld procedure qualifications fail during pre-production testing, third-party inspectors reject material at the loading port, or — worst — the structure passes initial inspection but develops brittle fractures under cyclic loading. [NEED_CITE: structural steel failure modes linked to unverified carbon equivalent values] Replacing fabricated and erected steel costs multiples of the original plate price, and no amount of documentation reshuffling after the fact restores project credibility.
Why Procurement Teams Choose Our Mill-to-Fabrication Line
We melt, roll, and process Q235B and Q345B plates in our own facility — meaning the mill test certificate you receive is generated from our laboratory, not forwarded through a chain of intermediaries. Our raw material range covers 2,800+ specifications, so when your project calls for mixed thicknesses in a single order, we consolidate from one production system rather than patching together surplus stock from external traders. Every plate is identifiable by heat number from the rolling stage through cutting and welding in our fabrication workshop. We hold ISO 9001 certification, and third-party inspection through SGS or BV is available for every shipment. For overseas buyers, we handle export documentation, container loading plans for heavy plate bundles, and coordinate port-to-site logistics — one contract, one quality system, one accountable source for your Q235B Q345B wear resistant steel plate supplier requirement.
Documentation & Compliance
- Mill test certificate documenting Q235B and Q345B chemical composition including carbon, manganese, silicon, sulfur, phosphorus, and carbon equivalent values per GB/T 700 and GB/T 1591
- Third-party inspection report from SGS or BV covering dimensional verification, surface quality, and ultrasonic testing where specified
- Material traceability sheet linking each plate to its heat number, rolling schedule, and test specimen location
- ISO 9001 quality management system certificate covering the full production and processing chain
- Export customs documentation including packing list, bill of lading, and certificate of origin matching the steel grade and standard declared
Packaging, Loading & Delivery
- Hot rolled Q235B and Q345B plates bundled with steel straps and edge protectors to prevent surface scoring during ocean transit
- Anti-rust oil applied to plate surfaces before bundling, preserving the hot rolled finish against saltwater exposure during shipping
- Container loading plans optimized for mixed-thickness plate orders, maximizing weight utilization within 20ft and 40ft heavy-test containers
- Custom cutting to project-specified dimensions before shipment, reducing on-site cutting waste and handling time at destination
- Each plate stenciled with heat number, steel grade (Q235B or Q345B), thickness, and purchase order reference for site identification
- FOB, CIF, and DDP terms available with coordinated door-to-door logistics for oversized plate shipments
Getting Your Quotation Moving
Send your project drawings or plate schedule — specifying steel grade (Q235B or Q345B), thickness, width, length, quantity, and destination port — and we return a detailed quotation covering material, processing, coating, packing, and shipping within 24 hours. If your project requires cutting, bending, or welding to engineering drawings, we include shop drawing review and fabrication sequencing in the same response.
Start Your Q235B Q345B Plate Inquiry
Submit your specifications, steel grade, and required standards to receive a quotation with full mill test certificate documentation.
