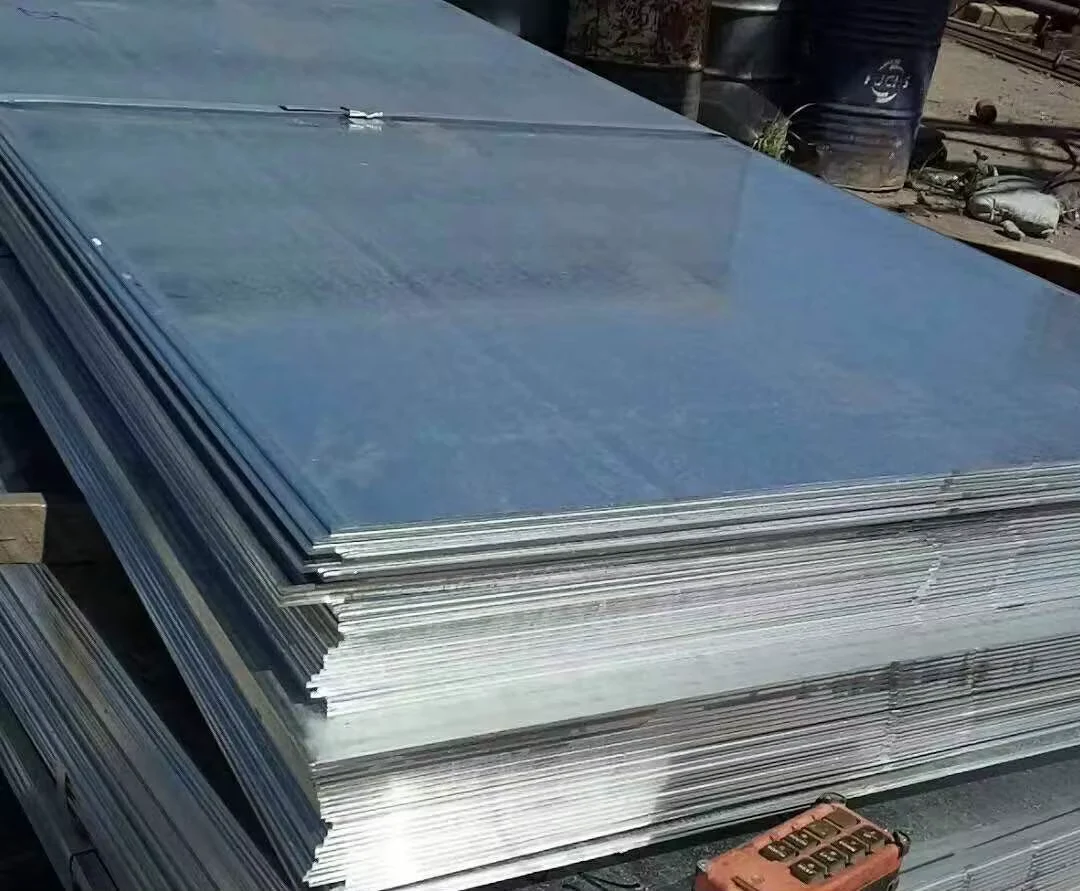

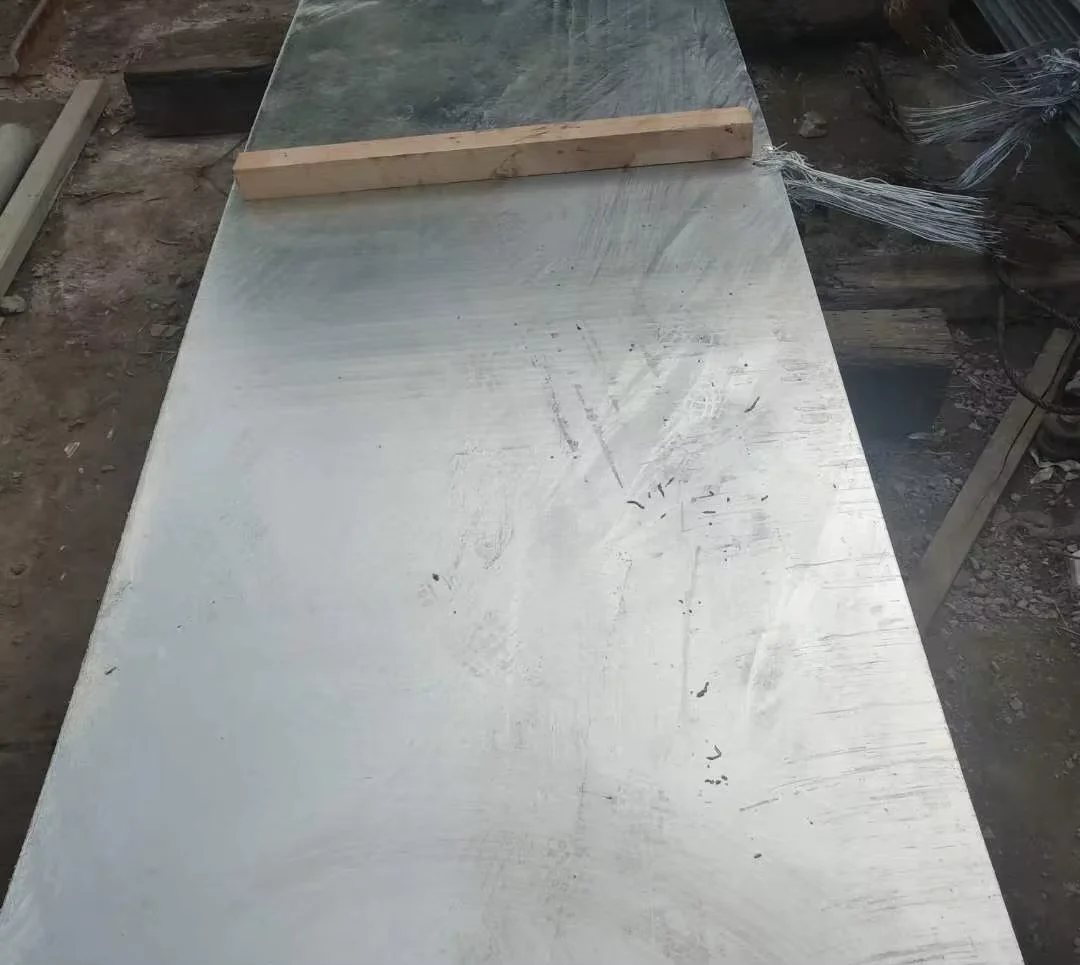

Mill-Direct Galvanized Steel Plate — Hot-dipped coils and cut-to-length sheets produced in-house, shipped without trading markup to project sites across Latin America, the Middle East, and Southeast Asia.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | SGHC, SGCC, DX51D, Q195 |
| Standard | JIS G3302, ASTM A653M/A924M |
| Thickness | 0.12mm – 4.0mm |
| Length | 5.8m / 6m or custom cut-to-length |
| Technique | Hot Dipped Galvanizing |
| Surface Treatment | Galvanized (Hot Dipped), coating weight 30–275g/m² (double side) |
| Spangle | Big spangle / Normal spangle / Small spangle / Non-spangle |
| Edge | Mill edge / Cut edge |
| Application | Roofing, Cladding, Ductwork, Light steel framing, General fabrication |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Commercial Construction | Roofing sheets and wall cladding panels for warehouses, logistics centers, and retail buildings |
| HVAC & Mechanical | Rectangular and spiral ductwork for commercial ventilation systems |
| Light Steel Framing | C-section and U-section profiles for residential and industrial wall systems |
| EPC Infrastructure | General fabrication components for platform grating, cable trays, and equipment enclosures |
Zinc Coating Weight Determines Whether Your Roofing Sheets Survive Five Years or Twenty
Specifying 30g/m² for a coastal warehouse is the fastest way to guarantee a corrosion callback.
Buyers sourcing Galvanized Steel Plate supplier options from overseas often face a gap between what the quotation states and what arrives on site. Zinc coating thickness is rarely verified at the port of discharge, and a 30g/m² coating in an industrial or marine atmosphere will show white rust within months [NEED_CITE: zinc coating thickness and atmospheric corrosion correlation]. Beyond coating inconsistency, fragmented procurement creates material traceability gaps — heat numbers on mill certificates fail to match the physical plates, and customs authorities in markets like Brazil and Chile increasingly demand full documentation alignment before release.
How Thickness Range and Spangle Options Align With End-Use Requirements

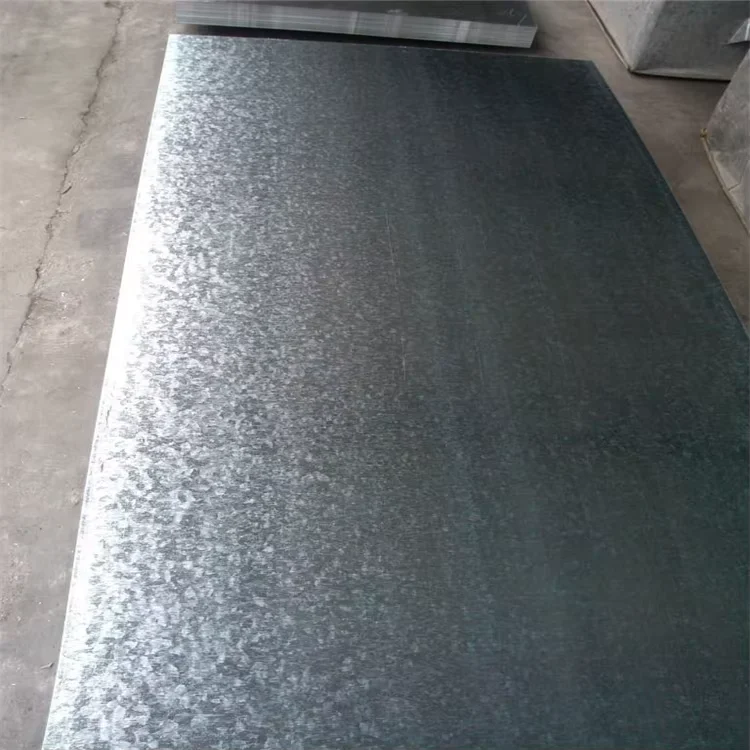

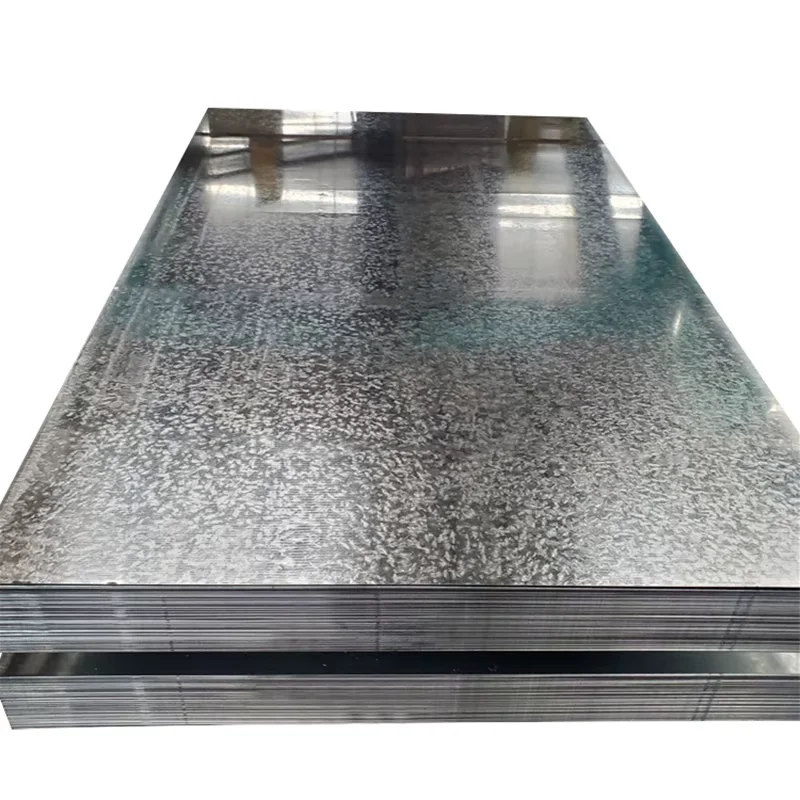

The 0.12mm to 4.0mm thickness range covered by SGHC, SGCC, DX51D, and Q195 grades spans from light-gauge roofing profiles to medium-plate general fabrication blanks. Thinner gauges between 0.12mm and 0.5mm are typically roll-formed into roofing and cladding profiles where formability matters more than structural load. Thicker plates from 1.0mm to 4.0mm serve ductwork flanges, light steel framing connectors, and welded fabrication components. Spangle selection — big, normal, small, or non-spangle — directly affects paint adhesion and surface appearance; non-spangle finishes are preferred when the Galvanized Steel Plate will receive a topcoat in architectural applications, while big spangle remains acceptable for industrial roofing where aesthetics are secondary.
Engineering Compliance and Certification Requirements Across Markets
Galvanized Steel Plate conforming to JIS G3302 is widely specified across Southeast Asian and Middle Eastern projects, while ASTM A653M/A924M governs supply to North American and many Latin American contracts [NEED_CITE: JIS and ASTM galvanized steel standard equivalence]. The SGCC and DX51D grades are commercially equivalent in most forming applications, though DX51D carries the ASTM designation that U.S. engineers and inspectors expect. For projects requiring third-party verification, SGS or BV inspection at the galvanizing line confirms coating weight, adhesion, and surface quality before shipment. Cut-to-length plates with cut edge specification eliminate site-side shearing, reducing labor cost and edge burr hazards on the installation floor.
Understanding the Galvanizing Process and Grade Selection Logic
Hot-dipped galvanizing immerses cold-rolled steel substrate in a molten zinc bath, producing a metallurgical bond between zinc and iron that provides sacrificial corrosion protection. The coating weight range of 30–275g/m² double side allows specification matching to environment severity — light indoor ductwork may only need 30g/m², while outdoor structural cladding in humid or saline conditions requires 180g/m² or above. Among the available grades, SGHC is the commercial quality suited for simple forming without strict mechanical requirements, while SGCC and DX51D offer improved formability for roll-formed roofing and cladding profiles. Q195, a Chinese standard grade, provides comparable forming characteristics at competitive material cost and is widely accepted across African and Southeast Asian specifications. The spangle pattern — controlled through zinc bath chemistry and cooling rate — does not affect corrosion performance but influences paint wetting and final surface uniformity [NEED_CITE: spangle size effect on paint adhesion in galvanized steel].
The Hidden Cost of Accepting Unverified Coating Claims
Ordering Galvanized Steel Plate based on price alone, without requiring coating weight test reports tied to specific heat numbers, creates downstream risk that rarely appears in the initial quotation comparison. Material arriving at port with coating weight below specification will fail adhesion and bend tests during project inspection, triggering rejection or costly renegotiation. In markets with strict import documentation requirements, missing or mismatched mill test certificates delay customs clearance for weeks — a scenario I have seen firsthand when certificate details failed to align with physical material markings at South American ports [NEED_CITE: customs documentation requirements for steel imports in Latin America]. The true cost is not the per-ton price difference but the project schedule impact and the engineering liability of installing unverified material.
Vertically Integrated Supply From Raw Steel to Finished Plate
XJY Structure operates its own steel production facility with multiple rolling lines, providing direct control over substrate quality before galvanizing begins. This vertical integration means every Galvanized Steel Plate shipped carries full material traceability from steelmaking heat number through galvanizing bath records to final inspection. The in-house capability covers CNC cutting, plasma cutting, drilling, and bending, allowing cut-to-length plates and custom fabricated components to be produced under one quality management system. Over 2,800 stock specifications ensure that standard gauge and width combinations are available for immediate production scheduling. Certified welding procedures and qualified welders support any downstream fabrication requirements, while complete quality documentation packages — including WPS, PQR, dimensional inspection reports, and coating weight certificates — are prepared as standard deliverables with every shipment.
Documentation & Compliance
- Mill Test Certificate documenting SGCC/DX51D chemical composition and coating weight per JIS G3302 or ASTM A653M, tied to individual heat numbers
- Third-party inspection report from SGS or BV confirming zinc coating thickness, surface quality, and dimensional tolerance before shipment
- ISO 9001 quality management system certificate covering the integrated steel production and galvanizing process
- Certificate of origin and customs documentation package including packing list, bill of lading, and compliance declarations for destination port clearance
- Coating weight test report with adhesion test results for each production batch, supporting project-specific quality acceptance requirements
Packaging, Loading & Delivery

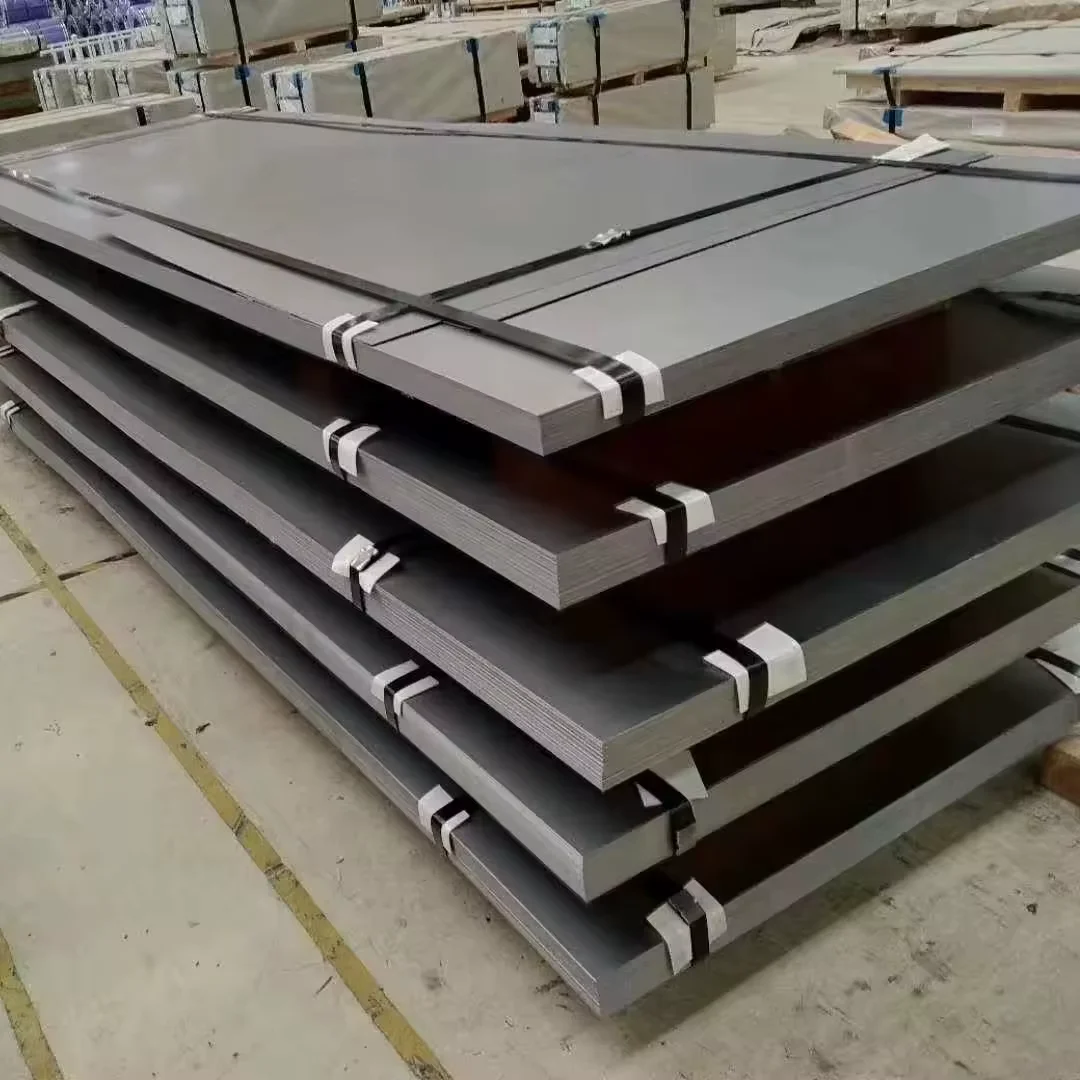

- Galvanized Steel Plate bundles secured with steel strips and edge protectors to preserve the zinc coating and prevent edge damage during ocean transit

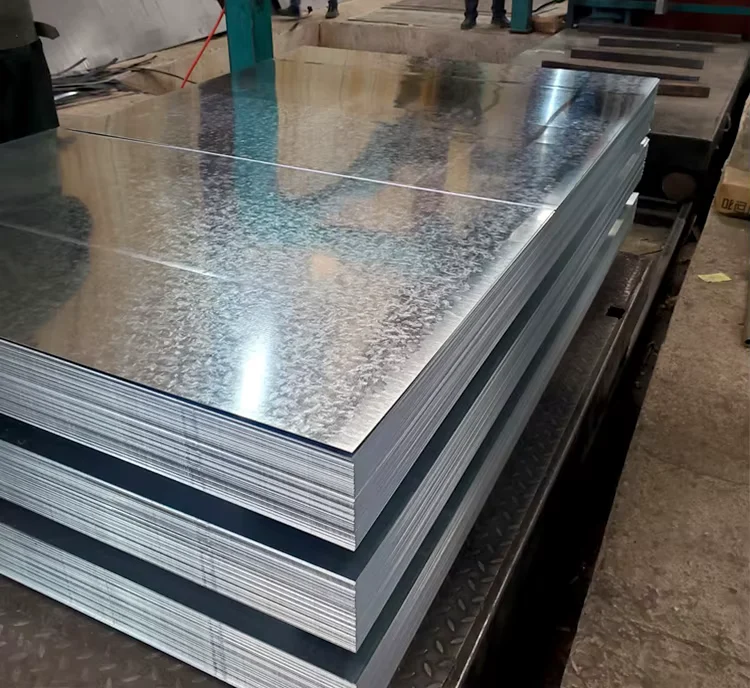

- Cut-to-length plates stacked with interleaving paper between sheets to prevent surface scratching on non-spangle and small spangle finishes
- Container loading optimized for 5.8m and 6m plate lengths to maximize 20ft and 40ft GP container utilization, reducing per-ton freight cost
- Heat number and steel grade markings stenciled on each bundle for site-side identification and material traceability verification upon arrival
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading plans for project-specific delivery requirements
Start Your Inquiry With Drawings and Specifications
Share your project drawings, required steel grade, thickness, coating weight, and destination port to receive a detailed quotation including material, fabrication, coating, packing, and shipping costs. Our engineering team reviews shop drawings and confirms production scheduling within typical lead times, with full mill test certificate and compliance documentation included as standard.
Request a Quote for Galvanized Steel Plate With Full Certification
Submit your specifications, steel grade, and quantity to receive pricing and mill test certificate samples.
