Description
Integrated Mill-to-Pipe Supply — Own steel plate production and LSAW forming lines ensure full heat-number traceability from raw material to finished API 5L pipe.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L X42/X52/X60/X65 Straight Seam Submerged Arc Welded Steel Pipe |

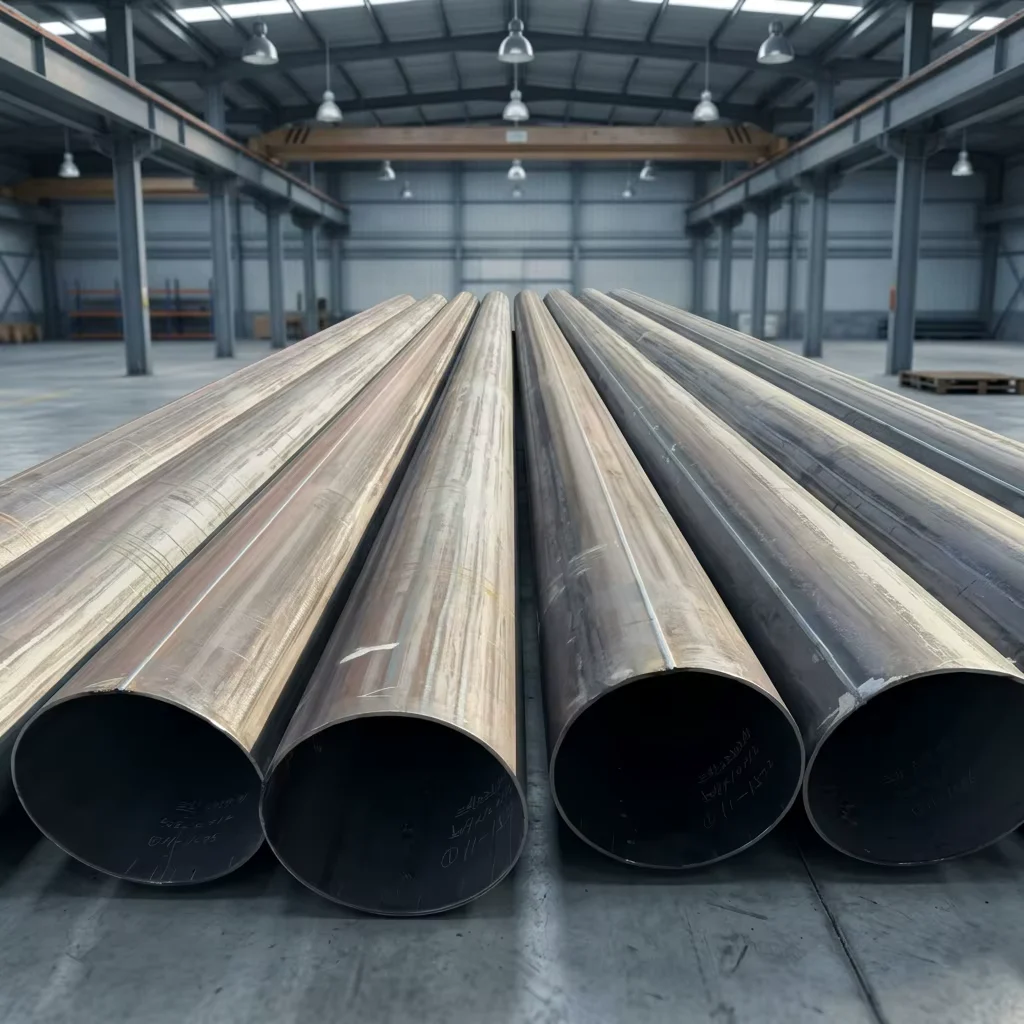

| Product Type | Straight Seam Submerged Arc Welded Steel Pipe (LSAW) |
| Steel Grade | X42, X52, X60, X65 |
| Standard | API 5L |
| Section Shape | Round |
| Outer Diameter | 219mm–1420mm |
| Wall Thickness | Custom Available |
| Length | Custom Available |
| Technique | Submerged Arc Welded (SAW/LSAW) |
| Surface Treatment | Bare or Anti-corrosion Coating Optional |
| Tolerance | ±1% |
| Ends | Bevel End Available |
| Processing Service | Cutting, Bevel End, Custom Length |
| Application | Onshore and offshore oil and gas transmission pipeline, petroleum and natural gas delivery, fluid transport |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Onshore and offshore crude oil and natural gas transmission trunk lines |
| Petrochemical | Long-distance hydrocarbon fluid delivery pipelines and gathering systems |
| Infrastructure | Industrial water and process fluid transport networks |
Material Traceability Gaps Create Customs and Welding Rejection Risks
Sourcing API 5L line pipe from fragmented suppliers breaks the certification chain between steel plate and finished weld seam.
When procurement teams buy LSAW pipe from a fabricator who sources raw plate from a separate mill, the heat-number link between material certificate and finished pipe often disappears. Third-party inspectors flag incomplete MTCs, customs authorities hold shipments without verifiable origin documentation, and field welders reject spools when weld procedure qualification cannot reference the base metal chemistry. As an API 5L LSAW steel pipe supplier operating our own steel plate mill alongside the pipe-forming lines, we maintain one continuous traceability record from slab reheating through final hydrostatic testing. [NEED_CITE: API 5L material traceability requirements for line pipe]
Matching Long-Distance Transmission Pressure and Corrosion Demands

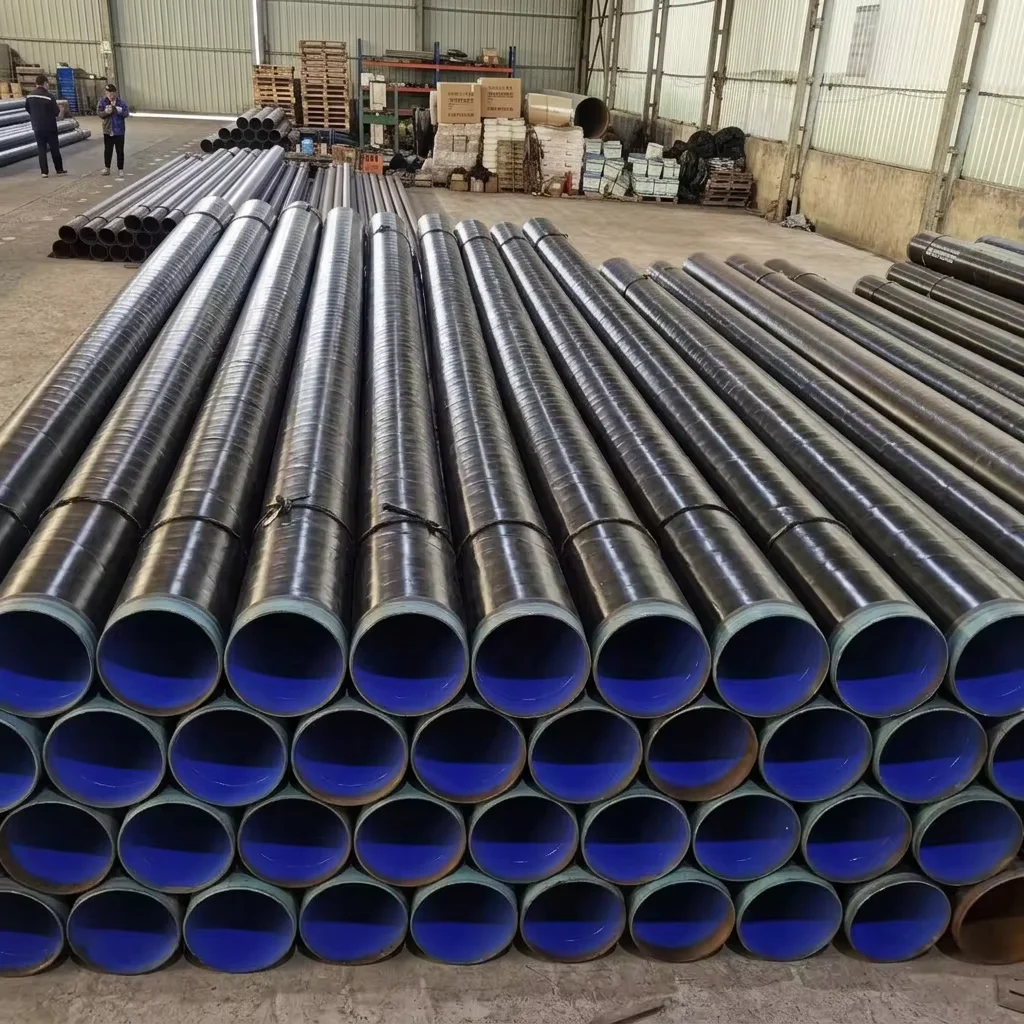

API 5L LSAW steel pipe in grades X42 through X65 covers the pressure range required for most onshore trunk lines and moderate-depth offshore gathering systems. The submerged arc welding process produces a full-penetration longitudinal seam with consistent fusion across the wall thickness, which matters when the pipe carries sour gas or operates under cyclic pressure loading. For offshore environments or corrosive soil conditions, we apply 3PE, FBE, or epoxy anti-corrosion coating systems after mill hydrostatic testing and before end-bevel finishing. Custom outer diameters up to 1420mm allow the same supply chain to serve both main transmission lines and branch connections without switching vendors.
Engineering Compliance and Certification for Pipeline Projects
Pipeline design codes such as ASME B31.4 and B31.8 reference API 5L for material qualification, meaning the pipe must carry valid MTCs showing chemical composition and mechanical properties per the specified grade. [NEED_CITE: ASME B31.8 reference to API 5L for gas transmission piping] For projects shipping to European or Middle East markets, buyers typically require third-party inspection from SGS, BV, Lloyds, or DNV at the fabrication stage. Our mill issues certificates per API 5L PSL2 requirements, and we coordinate inspection hold points directly with the client’s nominated surveyor. Bevel-end preparation follows project-specific welding procedure specifications, ensuring field joint-up matches the WPS groove geometry without additional machining at the construction site.
Steel Grade Selection and Submerged Arc Welding Process
The X42 through X65 grade series represents increasing minimum yield strength levels within the API 5L framework, allowing designers to optimize wall thickness against internal pressure without changing the outer diameter. Higher grades such as X60 and X65 reduce tonnage per kilometer on long transmission routes, but demand tighter control over carbon equivalent and welding heat input to avoid cold cracking in the heat-affected zone. The submerged arc welding process used in LSAW production provides deep, uniform fusion with low hydrogen input, which suits higher-grade steels where weld metal toughness remains critical. [NEED_CITE: API 5L PSL2 Charpy impact requirements for higher grades] Wall thickness tolerance of ±1% ensures that the actual weight per meter stays close to theoretical calculations, preventing both under-design surprises and overpayment on material tonnage.
Hidden Costs of Incomplete Documentation and Tolerance Drift
When a pipe supplier cannot provide heat-number-linked MTCs, the project faces three compounding costs: customs holds at the destination port, weld procedure requalification if base metal chemistry differs from the original PQR, and potential rejection of installed spools during owner-engineer audit. Negative tolerance drift beyond the ±1% band means the pipe passes mill inspection but fails the designer’s minimum-wall check during field measurement, forcing spool replacement at installed cost multiples of the original pipe price. [NEED_CITE: API 5L dimensional tolerance and inspection requirements]
Why Project Teams Source from Our Facility
Our steel plate mill feeds directly into the LSAW forming and welding lines, so every pipe carries a heat number traceable to the original slab chemistry and rolling records. The in-house理化实验室 tests every heat for chemical composition, tensile strength, and Charpy impact before the pipe enters the forming stage, eliminating the gap that appears when fabricators buy plate from external sources. We hold over 2,800 raw material specifications in inventory, allowing us to consolidate mixed-grade orders for multi-section pipeline projects into single shipments. Certified welding procedures and qualified welders per AWS and EN standards cover both the longitudinal seam and any attachment welding required for pipe supports or lifting lugs. Professional loading teams plan stowage for oversized diameter pipes to maximize container utilization and prevent coating damage during ocean transit.
Documentation & Compliance
- Mill test certificate documenting X42–X65 chemical composition, yield strength, and Charpy impact values per API 5L PSL2
- API 5L certification with full material traceability linking each pipe to its original heat number and slab record
- Third-party inspection coordination with SGS, BV, Lloyds, or DNV at forming, welding, hydrostatic testing, and coating stages
- Welding procedure specification (WPS) and procedure qualification record (PQR) for submerged arc longitudinal seam
- Dimensional inspection report covering outer diameter, wall thickness, length, and bevel-end geometry per project specification
- Export documentation including packing list, bill of lading, and certificate of origin for destination customs clearance
Packaging, Loading & Delivery

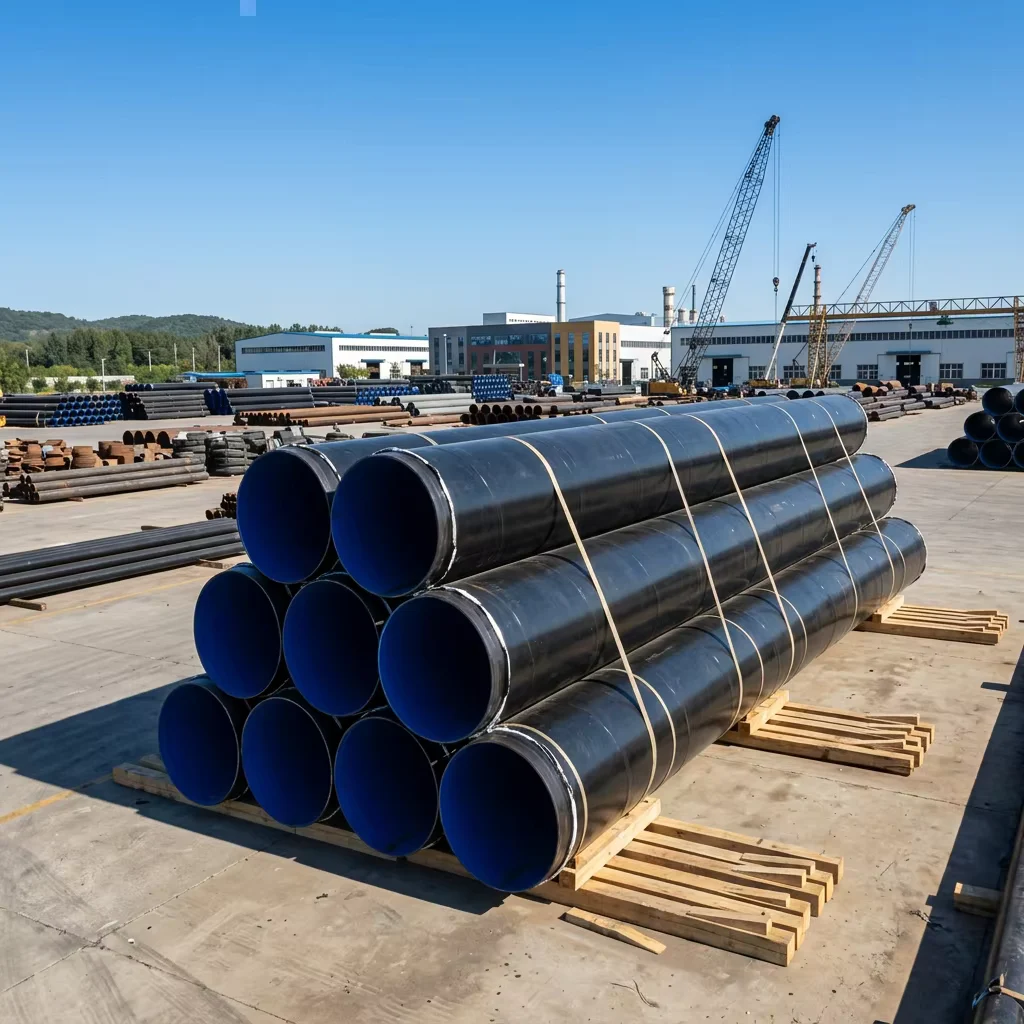

- Bare or coated API 5L LSAW pipes bundled with steel straps and edge protectors to preserve anti-corrosion coating during ocean transit
- Bevel-end pipes fitted with plastic protectors on both ends to prevent groove damage from handling and stacking
- Custom-length pipes marked with heat number, steel grade, and wall thickness at intervals not exceeding one meter for field identification
- Oversized diameter pipes above 1000mm loaded on flat racks or in open-top containers with wooden cradle supports to prevent ovality
- FOB, CIF, and DDP shipping terms available with professional stowage planning for mixed-diameter pipeline orders
- Complete export documentation package issued before vessel departure to avoid destination port demurrage
Starting Your Pipeline Procurement
Share your project specifications including API 5L grade, outer diameter, wall thickness, length, coating requirement, and destination port. We respond within 24 hours with a detailed quotation covering material, fabrication, coating, packing, and shipping costs, along with the shop drawing timeline and production schedule.
Request Your API 5L LSAW Pipe Quotation
Submit your pipeline specifications and steel grade requirements to receive a detailed quotation with mill test certificate documentation and production schedule.
